In today's bandwidth-hungry networks, extending reliable Gigabit Ethernet beyond copper's limitations is essential. Enter the 1000BASE-LX SFP (Small Form-factor Pluggable) transceiver – the workhorse for long-distance fiber optic connections. This definitive guide dives deep into its technology, applications, and why choosing the right module, like LINK-PP's high-performance options, is critical for network integrity.
❖ What is a 1000BASE-LX SFP?
A 1000BASE-LX SFP is a hot-swappable optical transceiver designed for Gigabit Ethernet (1000Mbps) over fiber optic cables. The "LX" denotes "Long Wavelength," signifying its use of 1310nm lasers optimized for single-mode fiber (SMF). Its primary advantage is achieving distances up to 10 kilometers (6.2 miles), far exceeding 1000BASE-SX (multimode) or copper standards.
Key Specifications & How It Works
Standard: IEEE 802.3 Clause 38 (Gigabit Ethernet over Fiber)
Data Rate: 1.25Gbps (Gigabit Ethernet)
Wavelength: 1310nm
Fiber Type: Primarily Single-Mode Fiber (SMF), commonly OS1 or OS2. *Can also work over Multimode Fiber (MMF) like OM1/OM2 using a Mode Conditioning Patch Cord (MCP) for distances up to 550m.*
Max Distance: Up to 10km on standard SMF. High-quality modules like the LINK-PP LS-SM311G-10C reliably achieve this.
Interface: Duplex LC connector
DDM (DOM) Support: Digital Optical Monitoring (DOM) provides real-time diagnostics (Tx/Rx power, temperature, voltage).
❖ Core Applications: Where 1000BASE-LX SFPs Shine
Building-to-Building Connectivity: Connecting separate facilities (campuses, data centers, offices) across roads or campuses.
Long Fiber Runs: Spanning large industrial complexes, warehouses, or municipal networks.
Fiber Backbone Links: Aggregating traffic from access switches to core/distribution layers.
Service Provider Access Networks: Delivering services to business customers over existing SMF infrastructure.
Network Extensions: Overcoming copper distance limits (100m) for remote IDFs or devices.
Deployment Considerations & Best Practices
Fiber Type Matching: Ensure your infrastructure uses SMF (OS1/OS2). Using MMF requires an MCP at both ends for distances >300m.
LINK-PP Tip: Our modules include clear labeling for SMF/MMF compatibility.
Cable Quality: Use OS2 SMF for guaranteed 10km performance, especially with older lasers.
Connector Cleanliness: Contaminated LC connectors are a leading cause of link failure and errors. Inspect and clean meticulously!
Link Budget Calculation: Ensure (Transmit Power - Receiver Sensitivity) > (Cable Loss + Connector Loss + Splice Loss + Safety Margin).
DOM Utilization: Monitor optical power levels (
show interfaces transceiver detailson Cisco, similar commands on other platforms) proactively to detect degradation before failure.

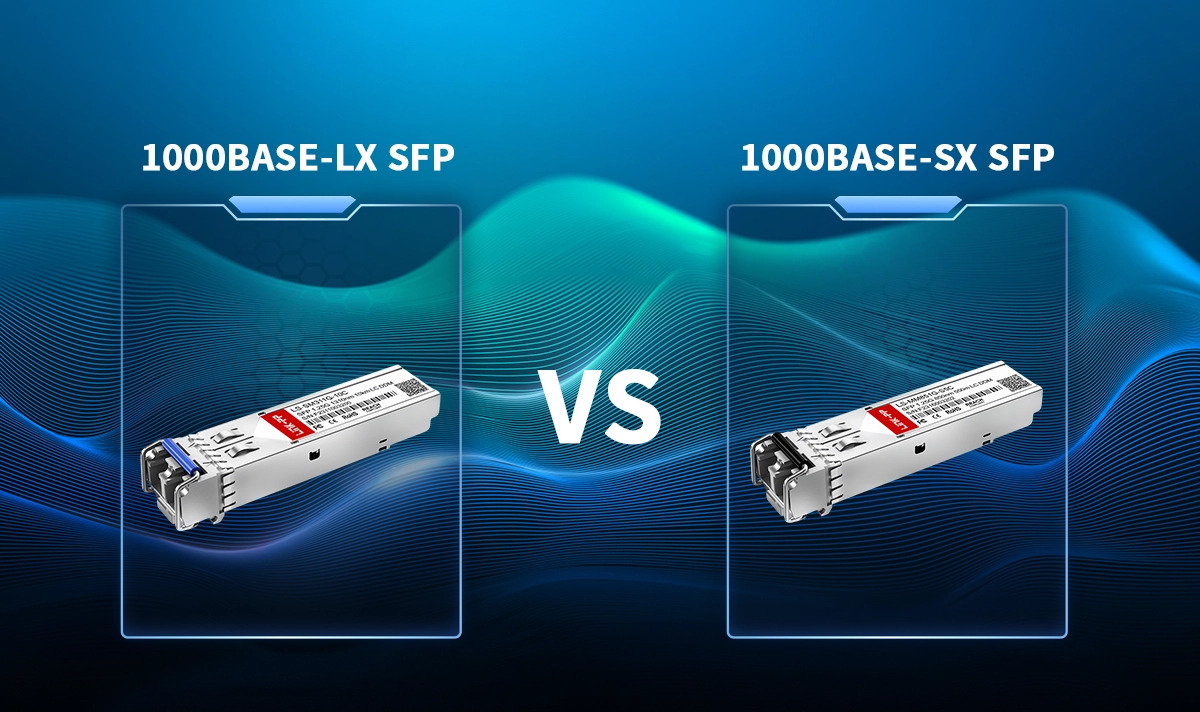

❖ 1000BASE-LX SFP vs. 1000BASE-SX SFP: Choosing the Right Gigabit Fiber
Feature | 1000BASE-LX SFP | 1000BASE-SX SFP |
|---|---|---|
Wavelength | 1310nm | 850nm |
Fiber Type | Primarily Single-Mode Fiber (SMF) | Multimode Fiber (MMF) |
Max Distance | Up to 10 km (SMF) | 550m (OM2), 300m (OM1) |
Cost (Fiber) | Higher (SMF cable cost) | Lower (MMF cable cost) |
Cost (Module) | Typically Slightly Higher | Typically Lower |
Best For | Long Haul (>550m), Existing SMF | Short Reach (<550m), MMF Cabling |
❖ Why Choose Genuine & Compatible Modules like LINK-PP?
Using high-quality, MSA-compliant SFP optical modules is non-negotiable for network stability. LINK-PP transceivers offer:
Full IEEE Standard Compliance: Guaranteed interoperability with major switches (Cisco, Juniper, HPE, Dell, Brocade, etc.).
Rigorous Testing: Extensive pre- and post-production testing ensures performance meets specifications.
Lifetime Warranty: Commitment to product reliability.
Cost Savings: Significant savings vs. OEM pricing without sacrificing quality.
DOM Support: Real-time diagnostics for proactive management.
Low Power Consumption: Reduced operational costs and thermal load.
Recommended LINK-PP 1000BASE-LX SFP Model:
For reliable 10km SMF performance, consider the LINK-PP LS-SM311G-10C. This high-quality SFP transceiver features:
Support 1.25Gbps bit rates
1310nm FP laser and PIN photodiodes, up to 10km on SMF transmission
Full DDM(DOM) support
Wide temperature range support, standard and industrial option
Compatibility with major switch vendors
MSA-compliant design
❖ FAQs: Your 1000BASE-LX SFP Questions Answered
Q: Can I use a 1000BASE-LX SFP with Multimode Fiber (MMF)?
A: Yes, but distances are limited (typically 550m max for OM1/OM2, 300m without MCP). You MUST use a Mode Conditioning Patch Cord (MCP) at both ends to launch the laser correctly onto the MMF and avoid Differential Mode Delay (DMD) issues. Performance beyond 550m on MMF is not guaranteed. SMF is always preferred for LX.
Q: What's the difference between LX and LH SFP?
A: "LH" (Long Haul) is often a vendor-specific term for modules exceeding 10km (e.g., 20km, 40km, 80km using 1550nm). Standard 1000BASE-LX is defined for 5km but commonly achieves 10km on modern SMF. Always check the specific module's datasheet for its rated distance.
Q: How do I know if my switch supports 1000BASE-LX SFPs?
A: Consult your switch's datasheet, compatibility matrix, or use the CLI (show inventory, show interface transceiver). Most enterprise-grade Gigabit switches support LX SFPs. LINK-PP provides compatibility lists for major platforms.
Q: Why is my 1000BASE-LX link unstable or not coming up?
A: Common culprits include:
Dirty or damaged fiber connectors (CLEAN THEM!).
Incorrect fiber type (using MMF without MCPs for >300m).
Exceeded link budget (distance too long, losses too high).
Faulty patch cable or splice.
Module incompatibility (use MSA-compliant modules like LINK-PP).
Check Tx/Rx power levels via DOM.
Q: Is 1000BASE-LX still relevant with 10G/25G available?
A: Absolutely! Gigabit Ethernet remains vital for countless applications where cost-effective, reliable long-distance links are needed, and 10G+ optics/cabling are overkill or cost-prohibitive. LX SFPs are a mature, economical solution for dedicated 1G links or aggregating lower-speed traffic over distance.
❖ Conclusion
The 1000BASE-LX SFP transceiver remains a cornerstone technology for robust, long-distance Gigabit Ethernet connectivity. Understanding its specifications, deployment requirements (especially fiber type and MCP use), and leveraging diagnostic tools like DOM are key to successful implementation. For guaranteed performance, reliability, and significant cost savings over OEMs, choose MSA-compliant modules from trusted suppliers like LINK-PP.
