In today’s data-driven world, 100G optical transceivers are the backbone of high-speed networks. But what exactly is a 100G Single Lambda optical module? Unlike traditional 100G optics that split data across four 25G wavelengths (4x25G NRZ), this breakthrough technology uses a single wavelength (lambda) to transmit 100Gbps! Leveraging PAM4 modulation, it slashes complexity while boosting efficiency—ideal for data centers, 5G, and cloud infrastructure.

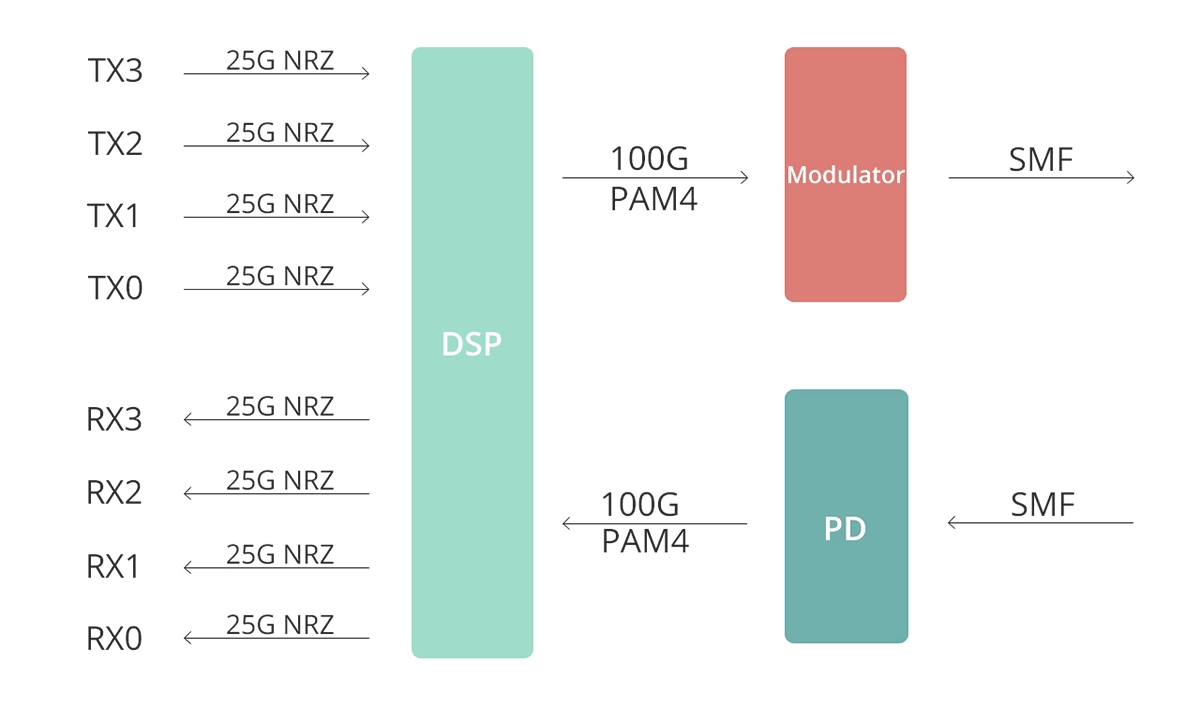

📝 Demystifying "Single Lambda": How It Works
The magic lies in advanced modulation techniques and higher-speed electronics:
Higher Baud Rate: Instead of four slower (e.g., 25G or 28G) electrical lanes, a Single Lambda module uses sophisticated electronics to generate and process a single, much faster electrical signal (e.g., 50G PAM4 or 100G PAM4).
Advanced Modulation (PAM4): Pulse Amplitude Modulation with 4 levels (PAM4) encodes 2 bits of data per symbol. This doubles the data rate compared to traditional NRZ (1 bit per symbol) without doubling the physical signal speed (baud rate). A 50+ Gbaud PAM4 signal carries 100G.
Single Wavelength: This single, high-speed electrical signal drives one laser, generating one optical wavelength (lambda). This single lambda carries the entire 100G data stream.
Single Fiber Path: This single wavelength travels down one fiber strand (in BiDi modules using WDM filters) or one strand in each direction for duplex modules (like CWDM4 or ER4 Lite).
📝 Key Advantages of 100G Single Lambda Modules
Why choose Single Lambda over older 4-lane technologies? The benefits are compelling:
Dramatic Fiber Reduction: The biggest win! Reduces fiber count by 75% compared to SR4 or PSM4. Instead of 8 fibers (4 Tx, 4 Rx) for a duplex link, Single Lambda uses just 2 fibers (or 1 with BiDi). This maximizes the use of existing fiber infrastructure.
Simplified Deployment & Management: Fewer fiber connections mean faster installation, easier patching, reduced cabling complexity, and lower risk of errors. Network management overhead decreases.
Higher Port Density: By requiring fewer physical fiber connections per port on switches and routers, Single Lambda modules enable much higher port density. This is critical in space-constrained data centers.
Cost Efficiency: Lower fiber counts directly translate to savings on fiber cabling, patch panels, cassettes, and management overhead. While module costs were initially higher, they are now highly competitive, often offering a better total cost of ownership (TCO).
Smooth Migration Path: Single Lambda is the foundation for next-gen speeds like 400G (using 4x100G Single Lambda wavelengths) and 800G, ensuring investment protection.
📝 Single Lambda vs. Traditional 100G 4-lane: A Quick Comparison
Feature | 100G Single Lambda (e.g., FR1/LR1) | Traditional 100G (e.g., SR4/LR4/CWDM4) |
|---|---|---|
Lanes / Wavelengths | 1 Lane / 1 Lambda | 4 Lanes / 4 Lambdas |
Fiber Strands (Duplex) | 2 Strands (1 pair) | 8 Strands (4 pairs - SR4) or 2 Strands (Muxed - LR4/CWDM4) |
Modulation | NRZ (SR4) or PAM4 (some newer) | |
Complexity | Lower (Simpler SerDes) | Higher (Lane alignment, muxing) |
Power Consumption | Generally Lower | Generally Higher |
Path to Higher Speeds | Direct (Same PAM4 foundation) | Requires significant redesign |
Common Reach | FR1: 2km, LR1: 10km | SR4: 100m, LR4/CWDM4: 10km |
📝 Where Are 100G Single Lambda Modules Used?
These modules are the workhorses for modern 100G connectivity:
Data Center Interconnect (DCI): Connecting data centers over short to medium distances (2km to 40km+) efficiently.
High-Density Data Center Fabrics: Spine-leaf architectures, top-of-rack (ToR) to aggregation/leaf switches, and leaf to spine connections where fiber density is paramount.
Telecom Metro & Access Networks: Providing high-capacity backhaul and fronthaul.
Enterprise Core Networks: Upgrading backbone links.
Cloud Service Provider (CSP) Networks: Scalable infrastructure for massive data flows.
📝 LINK-PP: Your Partner for High-Performance Single Lambda Solutions
When deploying critical 100G Single Lambda infrastructure, choosing a reliable and high-quality supplier like LINK-PP is essential. LINK-PP specializes in cutting-edge optical transceivers designed for performance, compatibility, and longevity.
Discover LINK-PP's Key 100G Single Lambda Modules:
LINK-PP Model | Form Factor | Wavelength | Reach | Fiber Type | Key Application |
|---|---|---|---|---|---|
LQ-SM31100-DR1C | QSFP28 | 1310nm | 500m | SMF | Short-reach parallel SMF links |
LQ-SM31100-FR1C | QSFP28 | 1310nm | 2km | SMF | Data center interconnect |
LQ-SM31100-LR1C | QSFP28 | 1310nm | 10km | SMF | Cost-effective 10km DCI |
LINK-PP optical modules undergo rigorous testing to ensure MSA compliance and seamless interoperability with major switch and router brands. They offer exceptional performance and stability, crucial for maintaining low bit error rates (BER) in demanding PAM4-based links. Choosing LINK-PP means investing in reliable 100G connectivity that optimizes your fiber infrastructure and future-proofs your network.
📝 The Future is Single Lambda (and Beyond!)
The 100G Single Lambda paradigm isn't just a trend; it's the dominant architecture for modern 100G deployments and the essential stepping stone to higher speeds. 400G modules primarily use four 100G Single Lambda wavelengths (e.g., 400G-FR4, LR4). 800G follows similar principles with eight 100G lambdas or higher-order modulation like PAM4 on fewer wavelengths. The efficiency gains pioneered by 100G Single Lambda are fundamental to scaling networks sustainably.
🚀 Ready to Optimize Your 100G Network with Single Lambda Efficiency?
100G Single Lambda optical modules are no longer just an option; they are the smart, fiber-efficient standard for deploying and scaling 100G networks. By dramatically reducing fiber requirements, simplifying cabling, enabling higher density, and offering a clear path to future speeds, they deliver significant operational and cost advantages.
Unlock the power of efficient 100G connectivity! Explore LINK-PP's range of high-performance, reliable 100G Single Lambda modules. [Visit the LINK-PP website!]
