Introduction

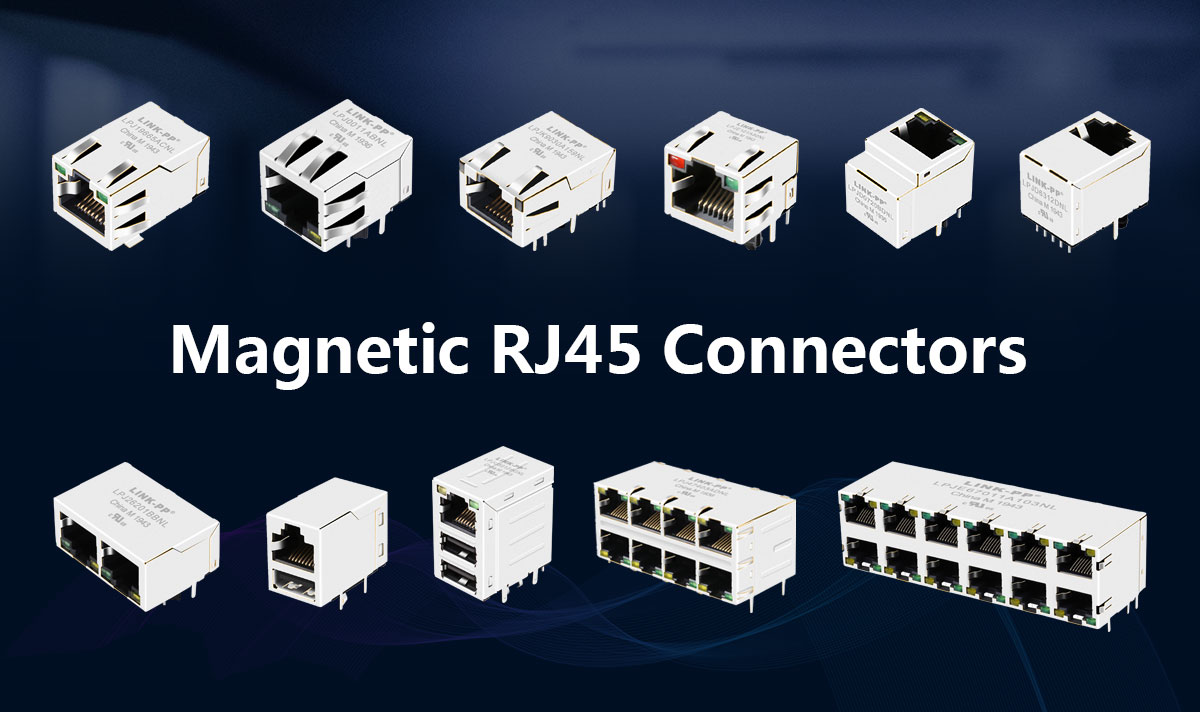

Integrated RJ45 connectors—also known as magnetic RJ45 jacks or MagJacks—combine Ethernet interface and embedded magnetics (transformers, chokes, sometimes LEDs) into one compact module. This integration makes them especially valuable in consumer electronics, where space, performance, and cost are all critical factors.
1. Technical Expertise & Reliability in Design
Integrated modules simplify PCB layout by embedding magnetics within the connector body, reducing signal routing complexity and improving EMI performance. Engineers can thus deliver robust, efficient designs with fewer discrete components and lower failure points.
With standardized, factory-matched magnetics and tested performance, integrated units ensure consistent signal integrity—minimizing insertion loss, return loss, and crosstalk in Ethernet data transmission.
2. Compactness and Cost Efficiency in Consumer Devices
Consumer electronic products—from routers and smart TVs to NAS systems and VoIP devices—benefit from the smaller footprint of integrated RJ45 connectors. They save PCB real estate, cut BOM complexity, and support faster time-to-market.
Ideal for space-constrained applications like smart TVs. For example, LINK-PP integrated modules are commonly used in these devices for their compact design and integrated LEDs.
3. Enhanced Network Performance & Connectivity
RJ45 connector with magenetic support a wide bandwidth spectrum—from Fast Ethernet (10/100 Mbps) to high-speed Gigabit (1 Gbps) and beyond (2.5G, 5G, 10G Ethernet)—ensuring future-proofed performance in consumer electronics.
A stable wired connection remains critical for bandwidth-heavy applications like gaming consoles, smart TVs, and streaming devices, where wireless alone may fall short in latency, throughput, or interference resilience.
4. IoT, Smart Homes & Hybrid Connectivity
In smart home environments, RJ45 Magjacks enable reliable, high-speed connectivity for devices such as IP cameras, PoE lighting systems, VoIP phones, and home automation hubs.
They also support PoE—simplifying power and data delivery over a single cable, which is especially advantageous in smart lighting or security installations.
5. Trustworthiness & Industry Standards
Integrated modules undergo rigorous testing for electrical performance, EMI, and isolation—meeting strict standards like IEEE 802.3, IEC 60603-7, FCC, and TIA-1096-A. This ensures safety, consistency, and regulatory compliance.
Their use across well-known consumer brands and incorporation in reliable products (e.g. smart TVs, routers) underlines industry trust in their durability and performance.
6. Consumer Insights & Practical Feedback
As one user remarked on Reddit regarding the sustained relevance of RJ45:
“RJ45 has been the most successful form factor and keeps getting better. Cheap, reliable and supports 100 GbE.”
This sentiment underscores the enduring value and adaptability of RJ45 connectors—even as consumer electronics evolve.
Conclusion
Integrated RJ45 Connectors play a vital role in consumer electronics by merging design simplicity, performance, and reliability. They:
Optimize PCB layout and accelerate time-to-market
Deliver consistent Ethernet performance across speeds
Drive stable connectivity for IoT and smart home functions
Meet industry standards and offer trusted, field-proven reliability
Whether in a smart TV, gaming console, or home router, LINK-PP Magnetic RJ45 Jack help ensure seamless and dependable network experiences.
