🌐 Introduction
The Institute of Electrical and Electronics Engineers (IEEE) is a global leader in developing technical standards that shape modern technology. Among its many contributions, IEEE 802.3 stands out as the definitive standard for Ethernet — the backbone of wired networking. It defines the physical and data link layers of the OSI model, ensuring interoperability, reliability, and scalability for devices worldwide.
🌐What is IEEE 802.3?
First introduced in 1983, IEEE 802.3 specifies the rules for Ethernet communication, covering aspects such as:
Physical Layer specifications – cable types, signal encoding, and transmission speeds
Data Link Layer protocols – framing, addressing, and error detection
Media Access Control (MAC) – using Carrier Sense Multiple Access with Collision Detection (CSMA/CD)
Over time, IEEE 802.3 has evolved to include faster data rates (10 Mbps to 400 Gbps, with work in progress on 800 Gbps), support for fiber optics, and Power over Ethernet (PoE) capabilities.
🌐 Why IEEE 802.3 Matters
Universal Compatibility – Ensures that networking hardware from different manufacturers works together.
Scalable Speed – Covers a broad range of data rates, from 10 Mbps (10BASE-T) and 100 Mbps (Fast Ethernet) to 1 Gbps, 10 Gbps, and up to 400 Gbps.
Technological Innovation – Includes advancements in cabling, PoE delivery, and energy efficiency (IEEE 802.3az).
🌐 Technical Structure of IEEE 802.3
1. MAC & Frame Format
Standard Ethernet frames have a minimum length of 64 bytes and a maximum of 1518 bytes without VLAN tags.
With IEEE 802.1Q VLAN tagging, the maximum frame size increases to 1522 bytes.
Jumbo Frames (>9000 bytes) are vendor-specific and not part of the core IEEE 802.3 standard.
2. Media Access Control
Early Ethernet used CSMA/CD for shared media.
Modern Ethernet is primarily full-duplex, switch-based, and collision-free.
3. Physical Layer Variants
Twisted-pair copper: 10BASE-T, 100BASE-TX, 1000BASE-T, up to 10GBASE-T
Fiber optic: multimode and single-mode (e.g., 10GBASE-SR/LR, 100GBASE-LR4)
4. PoE Standards
802.3af (PoE) – PSE output up to 15.4 W (PD receives ~12.95 W)
802.3at (PoE+) – PSE output up to 30 W (PD receives ~25.5 W)
802.3bt (PoE++)
Type 3: PSE output up to 60 W (PD receives ~51 W)
Type 4: PSE output up to 90 W (PD receives ~71 W)
5. Energy-Efficient Ethernet (EEE)
IEEE 802.3az (2010) reduces power consumption during low data activity without changing the Ethernet interface.
🌐 IEEE 802.3 Evolution – A Summary
Standard | Year | Notable Feature |
|---|---|---|
10BASE-T | 1990s | Copper Ethernet at 10 Mbps |
Fast Ethernet | 1995 | 100 Mbps |
1000BASE-T | 1999 | Gigabit copper |
10GBASE-T | 2006 | 10 Gbps copper |
2.5/5GBASE-T | 2016 | Intermediate speeds over Cat5e/Cat6 |
40/100GBASE | 2010+ | High-speed fiber for data centers |
200/400GBASE | 2018 | Ultra-high speed Ethernet |
PoE/PoE+/PoE++ | 2003–2018 | Power delivery over Ethernet |
EEE (802.3az) | 2010 | Energy savings at idle |
🌐 LINK-PP & IEEE 802.3: Full Compatibility

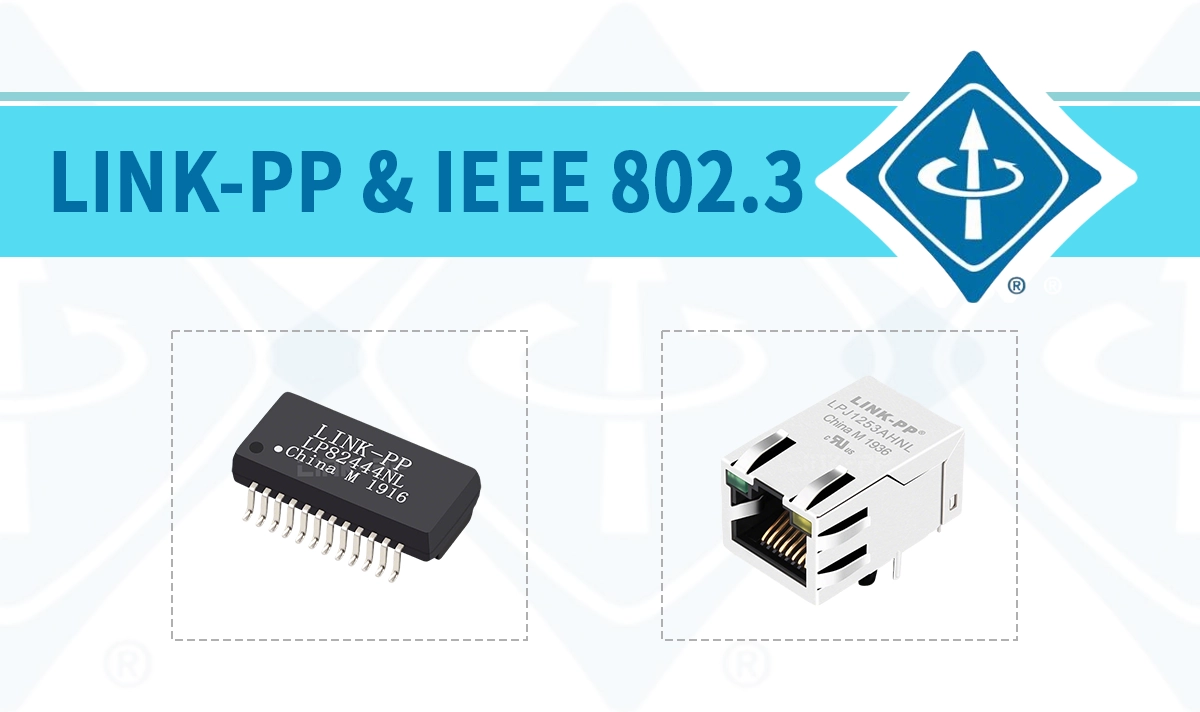

At LINK-PP, all PoE RJ45 connectors and LAN transformers undergo strict quality control to ensure full IEEE 802.3 compliance, including precise adherence to frame format, timing, and PoE power delivery specifications.
PoE RJ45 Connectors
Examples: LPJG4928HENL
Certified for 10/100/1000 Mbps
Meet IEEE 802.3at PoE+ electrical specs.
Integrated RJ45 with Magnetics & LAN Transformers
Combine signal magnetics and LAN filtering in one compact form.
Support 10 Mbps – 10 Gbps, PoE, EMI control, and -40 °C to +85 °C operating range.
🌐 Conclusion
The IEEE 802.3 standard underpins Ethernet networking, enabling global interoperability and scalability. By strictly following IEEE specifications — including precise PoE power delivery and frame formats — LINK-PP delivers components ready for both current and future networking demands.
