In the vast ecosystem of network infrastructure, the humble 100M optical transceiver (or 100M SFP module) remains a critical workhorse for enterprise access layers, industrial networks, and legacy system upgrades. Choosing the right one, however, can be a complex puzzle of compatibility, fiber type, and reach.
Selecting the wrong module can lead to network failures, unnecessary costs, and hours of troubleshooting. This guide will demystify the key selection criteria—Single-mode vs. Multi-mode and Single-fiber vs. Dual-fiber—to empower you to make an informed, optimal decision for your specific application.
➤ Key Takeaways
Always make sure the transceiver works with your device. This stops network problems and keeps things running well.
Pick the fiber type that fits your needs. Multi-mode fiber works for short range. Single-mode fiber is good for long range.
Check the wavelength and distance details. Make sure they fit your network needs. This keeps your data moving safely.
Match the transceiver’s data rate to your network speed. This stops slow connections and makes things work better.
Use the checklist before you buy anything. It helps you not make mistakes. It helps you pick the right transceiver for your system.
➤ Understanding the Basics: What is a 100M Transceiver?
A 100M fiber optic transceiver is a hot-pluggable network component that converts electrical signals into optical signals and vice versa, enabling data transmission over fiber optic cables at Fast Ethernet speeds (100Mbps). They are essential for extending network reach beyond the limitations of copper cabling, providing immunity to electromagnetic interference, and enhancing security.
➤ Key Decision #1: Single-mode (SMF) vs. Multi-mode (MMF) Fiber
This is the most fundamental choice, primarily determined by the distance you need to cover and the existing fiber cabling in your infrastructure.
Feature | Single-mode Transceiver | Multi-mode Transceiver |
|---|---|---|
💡 Core Diameter | Smaller (9µm) | Larger (50µm or 62.5µm) |
🌐 Light Source | Laser (1310nm or 1550nm) | LED/VCSEL (850nm or 1310nm) |
📏 Typical Reach | Long Haul (10km to 160km+) | Short Haul (100m to 2km) |
💰 Relative Cost | Higher (transceiver & cable) | Lower (transceiver & cable) |
🎯 Best For | Long-distance, WANs, MANs, ISP links | Short-distance, LANs, data centers, campuses |
When to Choose Multi-mode?
If your link distance is under 2 kilometers—for example, connecting buildings on a campus or links within a data center—a Multi-mode transceiver (like a 100BASE-SX standard) is the most cost-effective solution.
When to Choose Single-mode?
For distances exceeding 2 kilometers or for applications requiring high bandwidth over long hauls, Single-mode (like a 100BASE-LX/LH or 100BASE-EX standard) is the only choice. It offers lower signal attenuation and higher bandwidth potential.

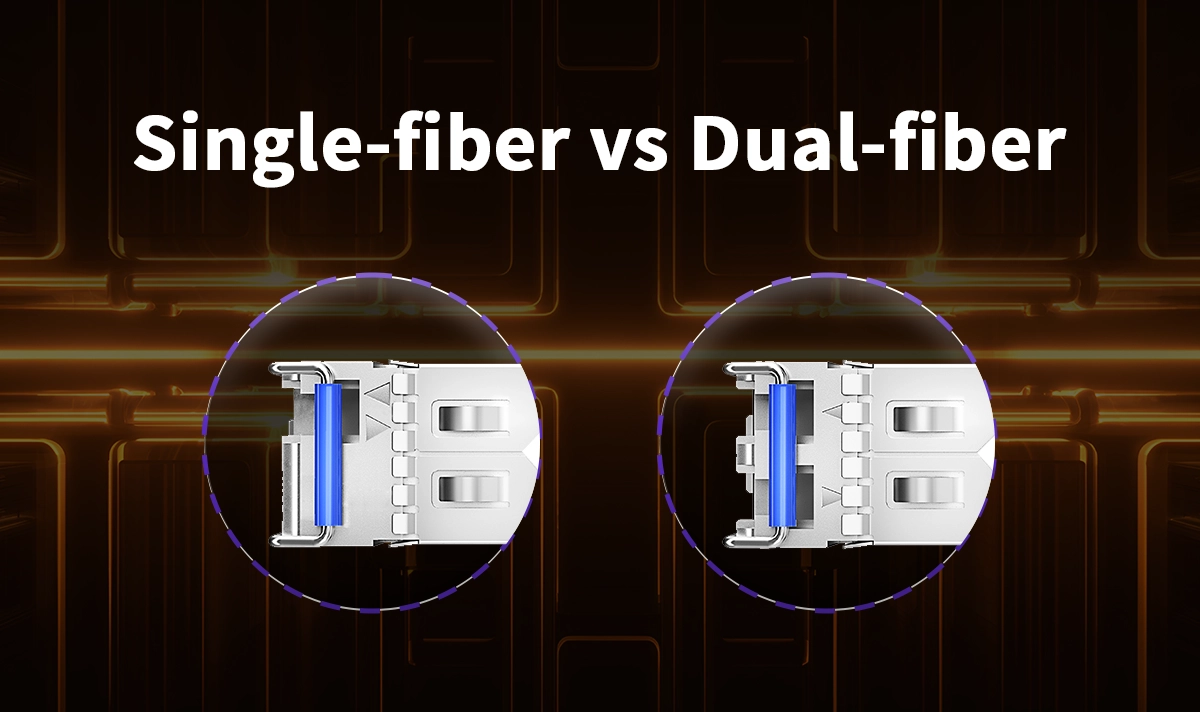

➤ Key Decision #2: Single-fiber (BiDi) vs. Dual-fiber
This choice depends on how many strands of fiber you have available.
Dual-fiber (Duplex) Transceivers: The standard and most common type. They use two fiber strands—one for transmitting (Tx) data and one for receiving (Rx). They are simple and reliable.
Single-fiber (Bi-Directional / BiDi) Transceivers: These advanced modules use only one fiber strand for both transmission and reception. They achieve this by using different wavelengths (e.g., Tx on 1310nm and Rx on 1550nm) on the same strand. This is a perfect solution for limited fiber infrastructure, effectively doubling your existing fiber capacity.
➤ Putting It All Together: How to Choose Your 100M Module
Follow this simple decision flow for your 100M transceiver selection:
Check Your Switch Compatibility: First and foremost, ensure the module is compatible with your brand of network switch (Cisco, Juniper, HP, etc.) or is a reliable third-party OEM like LINK-PP.
Determine the Distance: Measure the required link length. Is it 500m or 20km? This will immediately point you to Multi-mode or Single-mode.
Audit Your Fiber Cable: Do you have spare fibers? If you are low on available strands, a Single-fiber BiDi transceiver is your hero.
Match the Wavelength & Standard: Ensure the wavelength (850nm, 1310nm, 1550nm) and standard (SX, LX, EX, ZX) match on both ends of the link, especially for BiDi modules which must be deployed in matched pairs.
➤ Why Choose LINK-PP 100M Transceivers?
When reliability and cost-efficiency are paramount, LINK-PP offers a comprehensive range of high-quality, MSA-compliant 100M optical transceivers. Our modules are rigorously tested to ensure full compatibility with major switch brands and flawless performance.
Here are some of our top-performing 100M models perfect for your fiber network upgrade:
LINK-PP Model | Type | Fiber Mode | Wavelength | Max Reach | Best Use Case |
|---|---|---|---|---|---|
LS-MM8501-02C | Dual-fiber | Multi-mode | 850nm | 2km | Campus LAN, Data Center |
Dual-fiber | Single-mode | 1310nm | 10km | Metropolitan Area Network | |
Single-fiber (BiDi) | Single-mode | Tx1310/Rx1550nm | 20km | Fiber Capacity Expansion | |
Single-fiber (BiDi) | Single-mode | Tx1550/Rx1310nm | 20km | Paired with LP-SFP-100BX-U |
These LINK-PP optical transceivers provide a reliable and budget-friendly alternative to overpriced branded modules, helping you reduce network costs without compromising on performance or stability.
➤ Final Thoughts & CTA
Selecting the right 100M Fast Ethernet SFP module boils down to understanding your network's requirements for distance, existing fiber plant, and budget. Remember the acronym "SLD": Single/Multi-mode for Length, and Duplex/BiDi for fiber Density.
