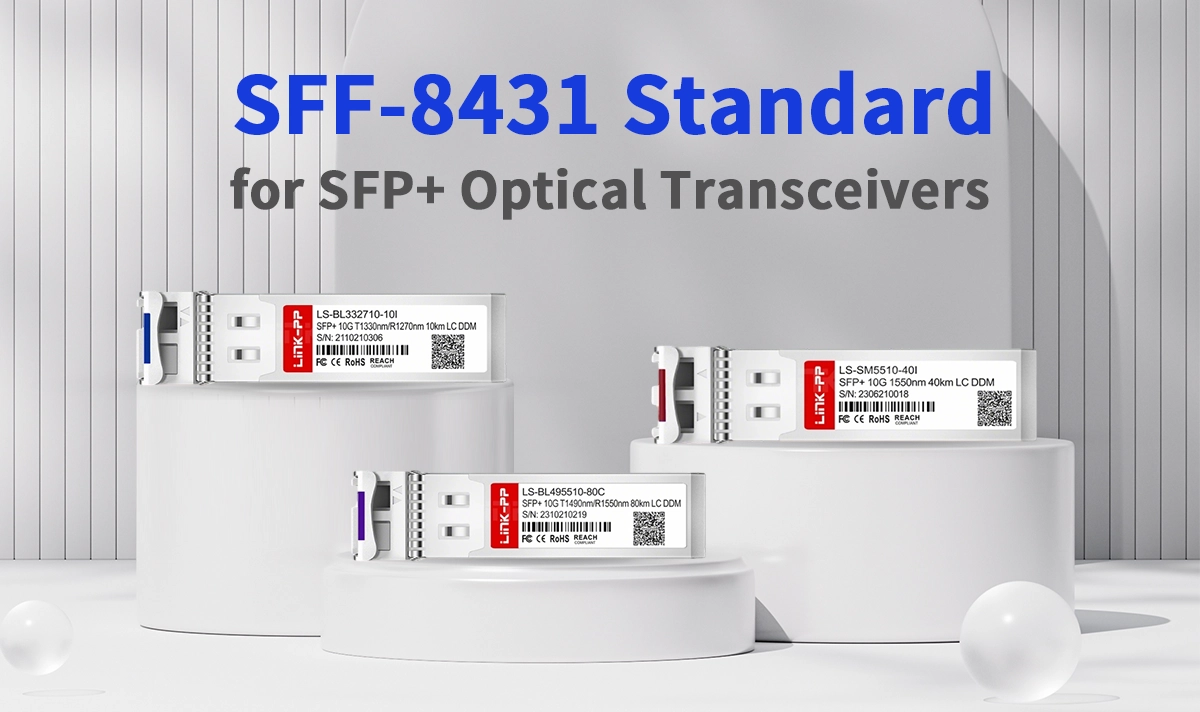

SFF-8431 is the Multi-Source Agreement (MSA) defining the 10 Gb/s high-speed electrical interface between host systems and SFP+ optical transceivers. Officially titled “SFP+ 10 Gb/s and Low Speed Electrical Interface”, Revision 4.1 was ratified on July 6, 2009, with an addendum in September 2013.
Why SFF-8431 compliance matters
Signal Integrity & Data Rates
SFF-8431 ensures reliable 10 Gb/s (up to 11.1 GBd) serial connectivity over PCB traces, via a 100 Ω differential, AC-coupled interface, tested over defined trace lengths (up to ~150–200 mm).Universal SFP+ Compatibility
By conforming to SFF-8431, SFP+ modules and host systems interoperate seamlessly, supporting a wide range of Ethernet and Fibre Channel applications. It specifies both high-speed (SFI channel) and low-speed management interfaces.Host Signal Conditioning
The standard requires host-side pre-emphasis and receive equalization to mitigate signal degradation, ensuring clean eye diagrams and low bit-error rates.
Key technical highlights
Compliance at 10 Gb/s
Supports serial protocols including 10GBASE-SR/LR and Fibre Channel at 8.5 Gb/s (FC-PI-4). Offers optional support for other data rates.Standardized Signalling
Differential 100 Ω AC-coupled lines, hot-pluggable with dedicated power rails for transmitter and receiver, with proper sequencing to protect PCB.Host–Module Interface (SFI)
Defines precise test patterns (e.g., PRBS9), jitter, and signal levels. Compliance measured via mated reference test boards.Low-speed side-channel management
Includes LVTTL signals like TX_DISABLE, RX_LOS, and I²C-based DOM/DDM managed by SFF-8472.
LINK-PP SFP+ modules: full compliance and performance you can trust

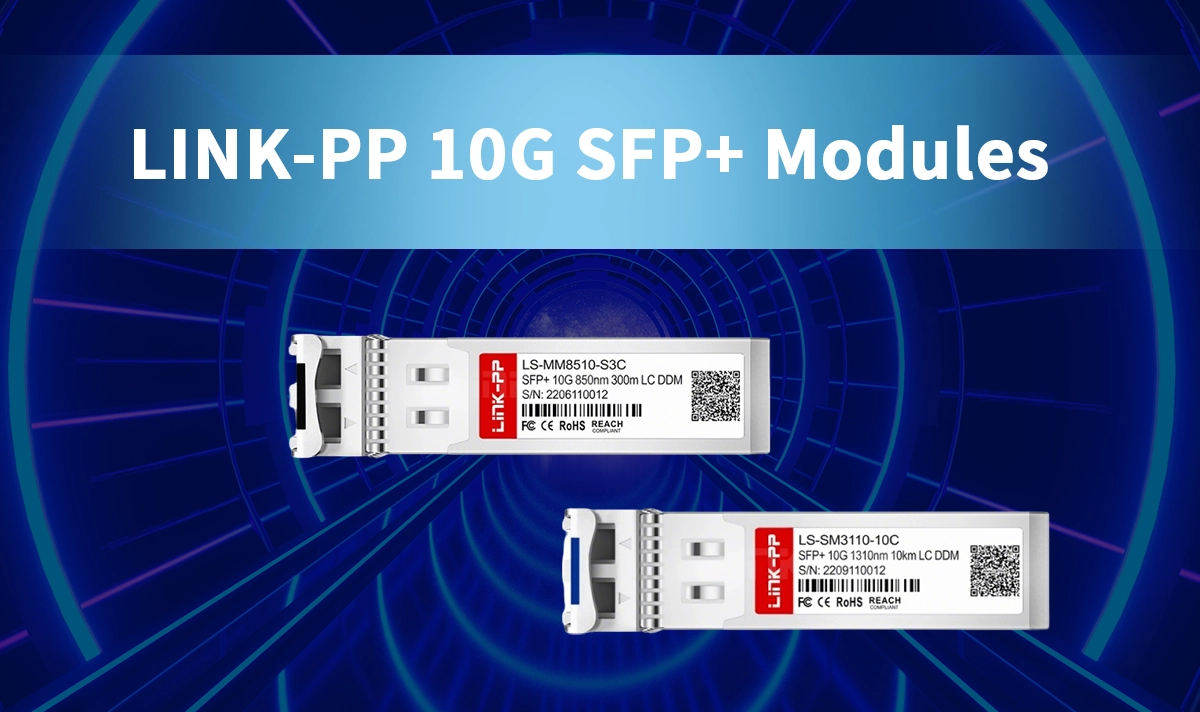

LINK-PP's SFP+ transceiver lineup—such as the LS-MM8510-S3C 10GBASE-SR and LS-SM3110-10C 10GBASE-LR—is fully compliant with SFP+ MSA, SFF-8431, SFF-8432, and IEEE 802.3ae standards.
Electrical Interface Compliance
Each module meets SFF-8431 high-speed electrical requirements for 10 Gb/s signaling, ensuring clean differential performance and host interoperability.Robust Real-time Monitoring (DOM/DDM)
Built-in digital diagnostics conforming to SFF-8472, providing real-time access to temperature, voltage, TX/RX optical power and more via a 2-wire I²C interface.Extensive Testing & Interoperability
LINK-PP tests each module on factory host equipment across 200+ vendor platforms, ensuring performance reliability and signal integrity.
Conclusion
By strictly adhering to the SFF-8431 standard and its related specifications, LINK-PP’s SFP+ optical modules deliver high-quality, highly compatible 10 Gb/s high-speed connectivity solutions. Whether in data centers or telecommunications networks, choosing LINK-PP products that comply with SFF-8431 ensures reliable performance and safeguards your network infrastructure.
