In the high-speed world of fiber optic communication, data travels at the speed of light. But what happens when that light fades? Optical Signal Attenuation is the single greatest factor limiting the distance and performance of your network. Understanding it is crucial for anyone involved in data centers, telecommunications, or enterprise networking.
This guide will demystify signal loss, explore its causes, and show you how to combat it effectively.
📝 Key Takeaways
Attenuation makes signals weaker in fiber optic cables. Keep attenuation low for clear messages.
Check your optical transceiver’s specs often. Learn the highest attenuation it can take.
Pick good optical fiber and do not bend it sharply. This keeps the signal strong.
Clean connectors before you use them. Dirt can make attenuation worse and hurt your network.
Use tools like OTDR and power meters to measure attenuation. Finding problems early stops communication trouble.
Now you know why attenuation is important in your optical network. Managing optical attenuation helps keep your signal safe. You can keep your optical signal strong by checking cables often. Use the right optical tools for your network. Always use an optical power meter or OTDR to measure your signal. Clean your optical connectors so you do not lose signal. If your signal is too strong, use optical attenuators. If you want to learn more, read guides from top optical companies. Your optical network will work better if you take care of your signal.
🔍 What is Optical Signal Attenuation?
Optical attenuation is the gradual loss of flux (light intensity) as an optical signal travels through a fiber. Measured in decibels (dB), it's the logarithmic ratio of the output power to the input power. Simply put, it's the weakening of the signal over distance.
Every network has a "loss budget"—the maximum amount of loss a system can handle while still functioning correctly. Exceeding this budget leads to data errors, slow speeds, and complete link failure.
⚠️ Top 5 Causes of Fiber Optic Signal Loss
Attenuation doesn't have just one cause. It's a combination of factors, both inherent and external.
Intrinsic Absorption: Even the purest glass absorbs tiny amounts of light energy, converting it to heat. This is a fundamental property of the material.
Scattering (Rayleigh Scattering): The primary cause of loss in optical fibers. It occurs when light hits microscopic imperfections in the glass and is scattered in all directions. This effect is more pronounced at shorter wavelengths.
Bending Loss: When a fiber is bent too sharply, light can literally "leak" out. This is divided into:
Macrobending: Large, visible bends (e.g., a kinked cable).
Microbending: Tiny, microscopic bends caused by pressure from cable packaging or environmental stress.
Connector and Splice Loss: Every connection point (connector, splice, coupler) is a potential source of loss due to misalignment, dirt, or air gaps.
Impurities: Although modern manufacturing is advanced, minuscule water ions (OH-) or other contaminants in the glass can cause significant absorption at specific wavelengths.
📉 The Real-World Impact: Why You Should Care
Excessive attenuation directly translates to network issues:
Reduced Data Rates: A weak signal requires more error correction, slowing down effective throughput.
Increased Bit Error Rate (BER): The receiver struggles to distinguish between 1s and 0s, leading to corrupted data packets.
Shortened Transmission Distances: Links may simply not "link up" over the required distance.
Higher Operational Costs: Troubleshooting attenuation issues consumes time and resources.
🛠️ How to Measure and Mitigate Attenuation
The key tool for measuring loss is an Optical Loss Test Set (OLTS) or an Optical Time-Domain Reflectometer (OTDR). An OTDR is particularly valuable as it doesn't just measure total loss; it creates a "map" of your fiber, pinpointing the location and severity of events like splices, connectors, and bends.
How to Combat Signal Loss:
Use High-Quality Fiber: Choose ITU-T G.652.D or G.657.A1/B3 fibers for lower attenuation and better bend tolerance.
Minimize Connections: Plan your links to use as few connectors and splices as possible.
Clean Connections Religiously: A dirty connector is the #1 cause of unexpected attenuation. Use professional cleaning tools.
Avoid Tight Bends: Always respect the cable's minimum bend radius.
Choose the Right Transceiver: This is where LINK-PP expertise comes in.
⚡ Boosting Your Signal: Using Optical Amplifiers

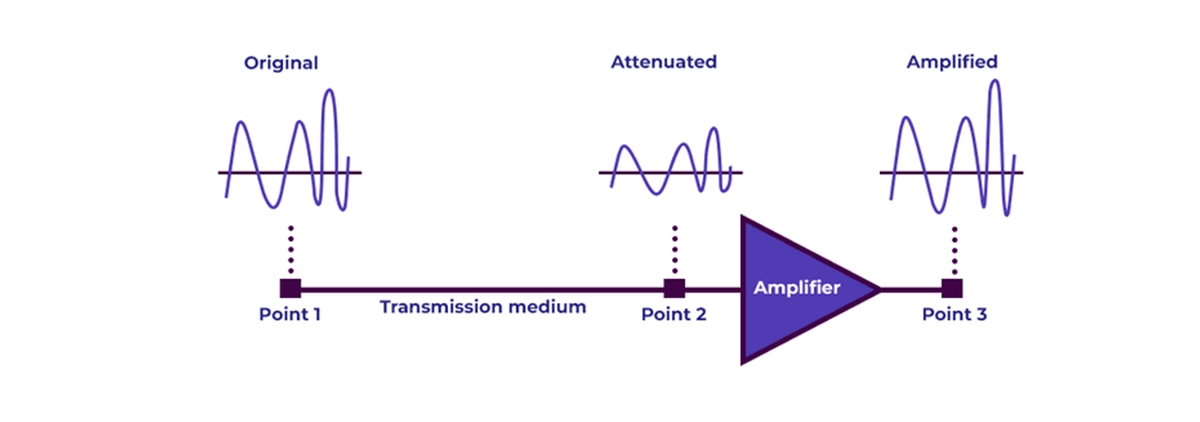

When the required transmission distance exceeds what your transceivers and fiber can handle alone, optical amplifiers become the heroes of the story. Unlike regenerators, which must convert the optical signal back to electrical and then to optical again (O-E-O), optical amplifiers directly boost the intensity of the light signal itself without any conversion.
The most common type is the Erbium-Doped Fiber Amplifier (EDFA), which is instrumental in long-haul fiber optic transmission and DWDM systems. EDFAs amplify light in the 1550nm window (the region with the lowest attenuation in silica fibers), effectively extending the reach of your signals by hundreds of kilometers without a single electrical repeat.
Integrating an EDFA into your system is a powerful strategy to overcome attenuation and achieve ultra-long-distance high-speed data transmission.
💡 LINK-PP's Solution: Smarter Optics for a Stronger Signal
Combating attenuation isn't just about the fiber; it's about the equipment at each end. A high-quality optical transceiver with superior components can make a significant difference in your loss budget.
LINK-PP's transceivers are engineered for exceptional transmit power and receiver sensitivity, giving you a wider margin within your loss budget. This means more reliable links over longer distances.
For instance, our LINK-PP SFP-10G-ZR is not your average 10GBASE-ZR module. It's designed to handle challenging environments with superior performance, making it an excellent high-power DWDM optical transceiver for long-haul applications where every dB counts.
Looking for a reliable 100G solution? Ask about our LINK-PP QSFP28-100G-LR4 module, a top-tier 100G LR4 optical transceiver known for its low power consumption and robust performance in data center interconnects.
Fiber Type | Typical Attenuation (@1550nm) | Best For | Recommended LINK-PP Module |
|---|---|---|---|
Single-Mode (G.652.D) | 0.20dB/km | Long-haul, Telecom, DWDM | LINK-PP LS-SM5510-80C |
Bend-Insensitive (G.657.A1) | 0.22dB/km | FTTH, Dense Racks | LINK-PP LS-BL273310-20C |
Multimode (OM4) | 2.5dB/km (@850nm) | Short-reach Data Centers | LINK-PP LS-MM8510-S3C |
📝 Conclusion: Don't Let Your Signal Fade Away
Understanding and managing optical signal attenuation is non-negotiable for building a future-proof, high-performance network. By choosing the right fiber, maintaining it properly, leveraging technologies like optical amplifiers, and partnering with a component provider that prioritizes quality, you can ensure your data travels clearly and efficiently over any distance.
📞 Ready to optimize your network's loss budget and eliminate signal issues?
Contact our experts at LINK-PP today for a free consultation. Whether you need advice on low-loss optical transceivers or designing an amplified long-haul system, we have the solutions. Let's build a faster, more reliable network together.
❓ FAQ
What is the main cause of attenuation in fiber?
Attenuation in fiber mostly happens from absorption and scattering. The fiber material takes in some light as it moves. Small flaws in the fiber make the light scatter. Both of these things make the signal weaker as it goes through the fiber.
How do you measure attenuation in fiber?
You can check attenuation with an OTDR or a power meter. The OTDR sends a light pulse and shows where the loss is. A power meter checks the light at the start and end of the fiber.
Why is low attenuation important for optical communication systems?
Low attenuation keeps your signal strong in fiber. You need a strong signal for good optical communication systems. High attenuation can make errors and weak signals. Always check your fiber to keep attenuation low.
Can you use fiber for long-distance communication systems?
Yes, you can use fiber for long-distance communication systems. Fiber lets you send data over many kilometers. Pick fiber with low attenuation and good quality. This helps your signal stay strong over long distances.
Tip: Always clean your fiber connectors. Dirty connectors make attenuation worse and lower your fiber network’s performance.
