In the noisy, chaotic world of data transmission, getting a clear signal from point A to point B is the ultimate goal. Among the arsenal of techniques engineers use, one of the most fundamental and robust is Binary Phase Shift Keying (BPSK). It's the digital modulation equivalent of a steadfast, reliable workhorse—not always the flashiest, but incredibly dependable where it counts: in overcoming noise.
This article will break down BPSK modulation, its advantages, its applications, and why it's a critical technology behind high-performance, long-range coherent optical modules.
➤ Key Takeaways
BPSK modulation uses two phases, 0° and 180°, to show binary data. This simple way helps send signals that are easy to understand.
BPSK does not get affected by noise easily, so it works well for digital communication in tough places.
The design of BPSK systems is simple. It only needs basic parts like a balanced modulator and a phase detector.
BPSK saves power and bandwidth. This lets more signals fit in the same space and does not waste energy.
People use BPSK for satellite TV, GPS, and wireless networks. These need strong and clear signals.
➤ What is BPSK Modulation? The Digital Toggle Switch

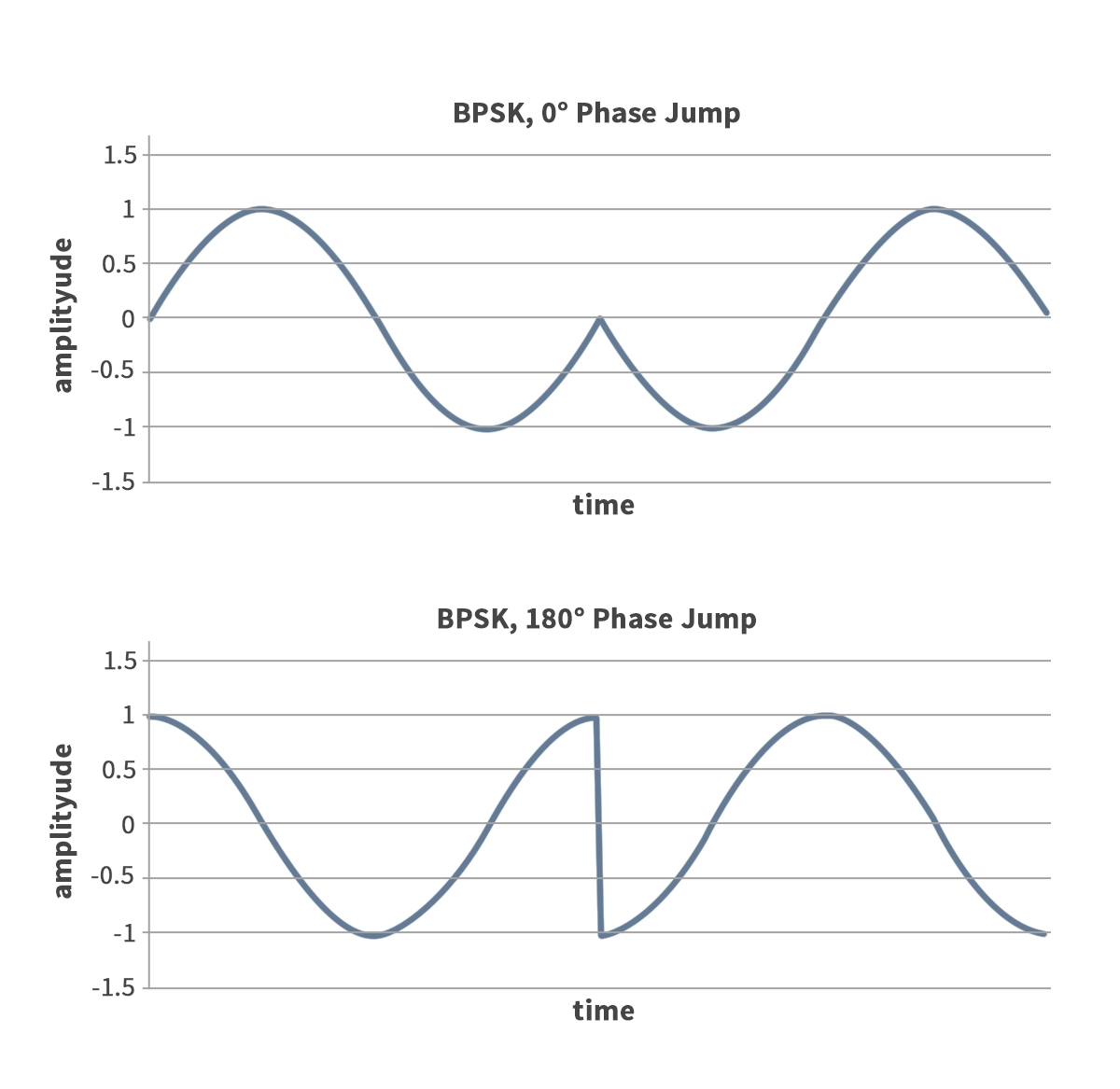

At its core, BPSK is a digital modulation scheme where the phase of a constant carrier signal is switched to represent binary data (0s and 1s).
A 0 is represented by a carrier wave with a specific phase (e.g., 0 degrees).
A 1 is represented by the same carrier wave, but shifted by exactly 180 degrees—it's essentially inverted.
Imagine a light switch. It's either completely ON or completely OFF. There's no in-between. BPSK operates on the same binary principle but with the phase of a radio or light wave. This dramatic, 180-degree shift makes the signal highly distinguishable from noise, even in poor conditions.
➤ Why Choose BPSK? The Key Advantages
BPSK is prized for its exceptional noise immunity, which is technically measured as Bit Error Rate (BER) performance. Here’s why it excels:
Superior BER in Low-SNR Environments: BPSK requires the least signal-to-noise ratio (SNR) to achieve a low bit error rate compared to other basic modulation schemes like QPSK or 16-QAM. It's the most robust option for long-haul or noisy links.
Simplicity: The modulation and demodulation process is relatively straightforward, leading to simpler receiver design.
Constant Envelope: The amplitude of the BPSK signal remains constant, which minimizes issues with nonlinear amplifiers.
➤ BPSK vs. Other Modulation Schemes: A Quick Comparison
Modulation Scheme | Bits per Symbol | Robustness (Noise Immunity) | Spectral Efficiency | Best For |
|---|---|---|---|---|
BPSK | 1 | ⭐️⭐️⭐️⭐️⭐️ (Highest) | Low | Deep-space comms, noisy channels, long-range optics |
QPSK | 2 | ⭐️⭐️⭐️⭐️ (High) | Medium | Satellite broadcast, DSL internet, downlink communications |
16-QAM | 4 | ⭐️⭐️⭐️ (Medium) | High | Cable modems, Wi-Fi (5/6 GHz channels), microwave backhaul |
64-QAM | 6 | ⭐️⭐️ (Low) | Very High | Wi-Fi (strong signals), 4G/5G, digital television |
Table: A comparison of common digital modulation schemes.
➤ BPSK in Action: Real-World Applications
You won't find BPSK in your short-range Wi-Fi router (which uses higher-order QAM for speed), but it's hiding in some of the most critical communication systems:
Deep Space Communications: NASA uses BPSK to communicate with probes like Voyager. Over billions of miles, the signal is incredibly weak; BPSK's robustness is the only way to ensure data gets through.
RFID Tags: Many passive RFID tags use BPSK for its power efficiency and reliable backscatter communication.
Wi-Fi & Bluetooth: While not used for the primary data payload, BPSK is often used in the header and control sections of packets where reliability is paramount.
The True Powerhouse: Coherent Optical Communications: This is where BPSK truly shines today. In long-haul and ultra-long-haul DWDM networks, data is transmitted over fiber optics using light. To achieve incredible speeds over thousands of kilometers, engineers use coherent detection with modulation schemes like BPSK. It allows the receiver to detect both the amplitude and phase of the light wave, dramatically extending reach and capacity.
This is precisely where a brand like LINK-PP leverages this technology. For instance, the LINK-PP QSFP28-100G-ZR4 coherent optical module is engineered to utilize advanced modulation techniques like BPSK (and its variants) in its underlying DSP (Digital Signal Processor) to deliver exceptional 100G performance over distances exceeding 80km. This ensures your data integrity remains intact even on the most demanding long-haul optical transport networks.
When discussing coherent optical modules and strategies for improving signal integrity in fiber optics, understanding the role of foundational modulation like BPSK is key for network architects.
➤ Conclusion: The Unsung Hero of Data Integrity
BPSK may not be the fastest modulation scheme, but its unparalleled resilience makes it the undisputed choice for applications where data integrity cannot be compromised. It is the silent guardian ensuring that our most critical data—from the edges of our solar system to the depths of our global internet backbone—arrives intact.
As network demands grow and reach extends further, the principles of BPSK continue to underpin the advanced, coherent technologies that power our connected world.
💡 Ready to Build a More Resilient Network?
Understanding the underlying technology is the first step. The next is choosing the right hardware that leverages this robustness for your application. Explore LINK-PP's full range of high-performance, coherent optical modules designed for maximum reach and signal integrity. Contact our experts to find the perfect solution for your infrastructure needs!
➤ FAQ
What does BPSK stand for?
BPSK means Binary Phase Shift Keying. This method sends digital data by changing the phase of a carrier signal.
What makes BPSK different from other modulation types?
BPSK uses only two phase states: 0° and 180°. This keeps BPSK simple and helps it work well with noise. Other types might use more phases or change how strong the signal is.
What equipment do you need for BPSK?
You need a balanced modulator in the transmitter. The receiver needs a phase detector. These parts help you make and read BPSK signals.
What are common uses for BPSK?
BPSK is used in satellite TV, GPS, wireless networks, and deep space communication. It is good when you want a clear and steady signal.
What are the main benefits of BPSK?
BPSK gives you strong noise resistance, a simple setup, and saves power. It helps you send data with fewer mistakes, even when conditions are hard.
