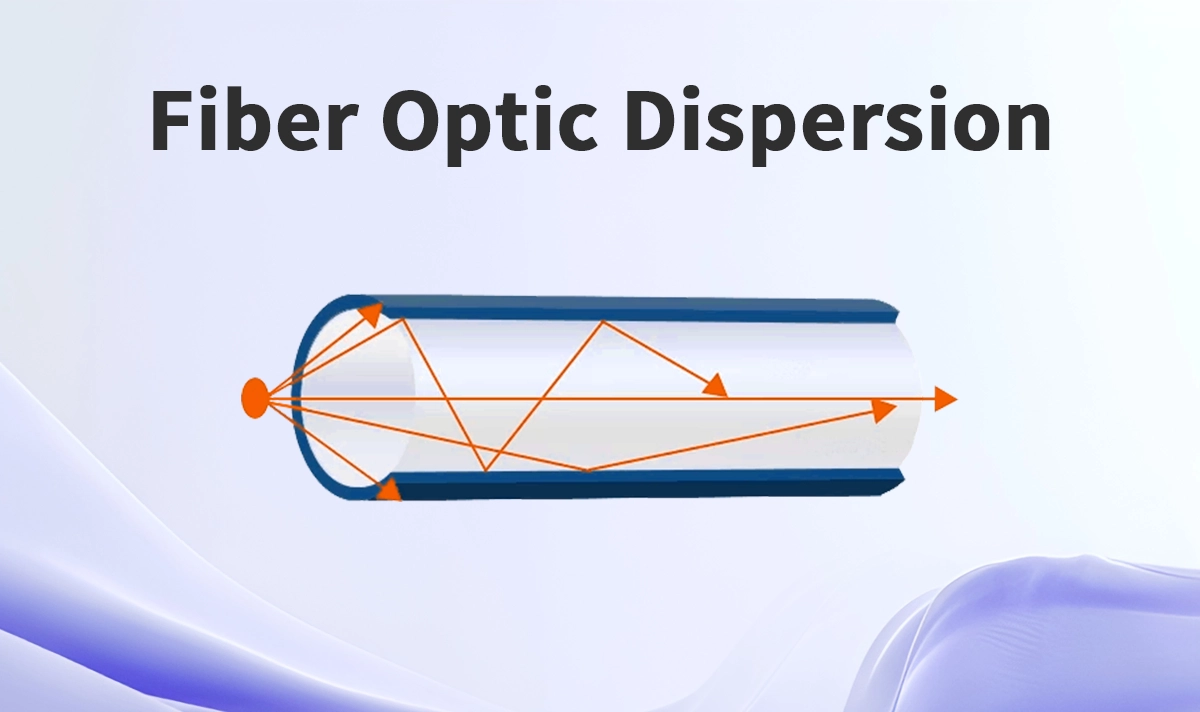

In the world of high-speed data transmission, light is the ultimate courier. But even light isn't perfect. As pulses of light travel down a fiber optic cable, they can get stretched, distorted, and blurred. This phenomenon, known as fiber optic dispersion, is a fundamental challenge that network engineers must overcome to achieve faster speeds and greater distances.
Think of it like a group of runners starting a race at the exact same moment. By the end of the race, some are ahead, others are behind, and the once-sharp starting line is now a smeared crowd. Similarly, dispersion causes light pulses to spread out, potentially overlapping with neighboring pulses and corrupting the data signal at the receiver end.
This blog post will demystify the types of dispersion, their impact on your network performance, and the crucial role that modern optical transceivers play in combating it.
➤ Key Takeaways
Learn about dispersion to keep signals strong. Dispersion changes how data moves in fiber.
Pick single-mode fiber for far places. It lowers modal dispersion. This keeps your signal good.
Use tools to fix dispersion problems. These tools help with chromatic dispersion.
Test your fiber often and look for mistakes. Finding problems early stops bigger issues later.
Pick the best wavelength to lower chromatic dispersion. Some wavelengths send data more clearly.
➤ The Two Main Culprits: Chromatic & Polarization Mode Dispersion
Understanding the different types of dispersion is the first step to mitigating their effects. They primarily fall into two categories:

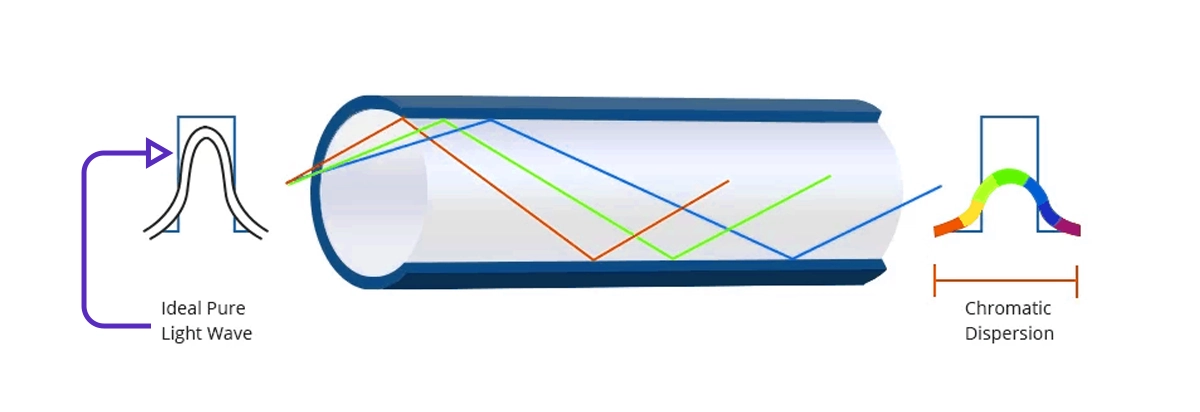

1. Chromatic Dispersion (CD)
This is the most common form. It occurs because different colors (wavelengths) of light travel at slightly different speeds through the glass fiber, even if they are part of the same original pulse. This is similar to how a glass prism splits white light into a rainbow spectrum.
Material Dispersion: Caused by the intrinsic properties of the silica glass itself.
Waveguide Dispersion: Caused by the physical structure of the fiber core that guides the light.

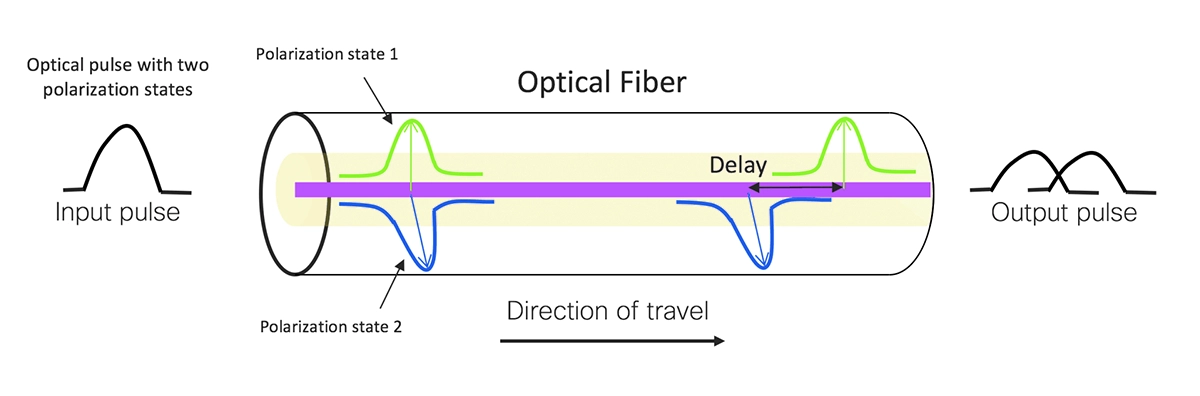

2. Polarization Mode Dispersion (PMD)
This is a more complex effect, becoming significant especially at high data rates (10Gbps and above). Optical fibers are not perfectly symmetrical. Imperfections can cause the light wave to travel in two polarization states (think of them as orientations). These two states travel at slightly different speeds, causing the pulse to spread.
➤ The Real-World Impact: Why Should You Care?
Dispersion isn't just a theoretical concept; it has tangible consequences for network performance:
Bit Errors (BER): Pulse spreading leads to Inter-Symbol Interference (ISI), where one symbol interferes with the next, increasing the Bit Error Rate.
Limited Distance: The longer the fiber link, the more pronounced the dispersion effect becomes, effectively limiting the maximum reach of a signal without regeneration.
Bandwidth Cap: It ultimately caps the bandwidth-distance product of a fiber optic system, preventing you from pushing more data over longer distances.
➤ Combatting Dispersion: The Solutions
Fortunately, brilliant engineering solutions have been developed to counter dispersion:
Dispersion-Shifted Fibers (DSF): Fibers designed to have their zero-dispersion wavelength shifted to the 1550nm window (where attenuation is lowest).
Dispersion Compensation Modules (DCM): Spools of special fiber that have opposite dispersion properties, effectively "undoing" the dispersion accumulated over the main fiber link.
Advanced Optical Transceivers: This is where the magic of modern optical modules comes into play. Coherent optics and Electronic Dispersion Compensation (EDC) chipsets within transceivers can digitally process and correct for dispersion effects.
➤ The Role of Smart Optical Modules: Your First Line of Defense
Choosing the right transceiver is critical. Modern high-speed optical transceivers are not just simple light emitters; they are intelligent devices equipped with sophisticated DSP (Digital Signal Processing) chips.
For instance, the 400G-ZR+ Coherent Pluggable module is engineered to handle dispersion effortlessly. Its integrated coherent technology and powerful EDC algorithms automatically compensate for severe Chromatic and Polarization Mode Dispersion over hundreds of kilometers, making it an ideal dispersion tolerant optic for long-haul and metro applications.

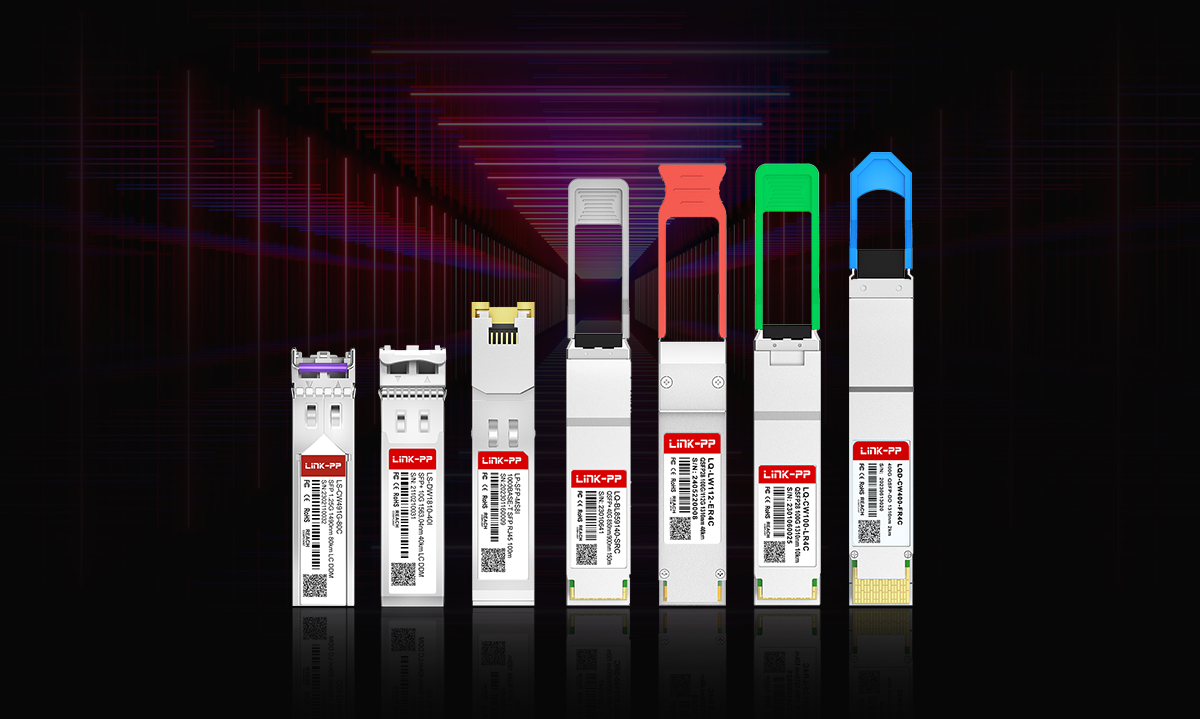

When selecting a fiber optic transceiver for long-distance, always look for specifications on dispersion compensation. A high-quality module like those from the LINK-PP portfolio ensures maximum reach and signal integrity, simplifying your network design.
Type of Dispersion | Primary Cause | Key Impact | Mitigation Techniques |
|---|---|---|---|
Chromatic Dispersion (CD) | Different wavelengths travel at different speeds. | Pulse broadening, limits distance & speed. | DCF, DSP in coherent modules, DSF |
Polarization Mode Dispersion (PMD) | Imperfections cause polarization mode speed differences. | Significant at high speeds (>10G), causes pulse distortion. | PMD-compensating modules, advanced DSP |
➤ Conclusion: Don't Let Dispersion Dim Your Signal
Fiber dispersion is an inherent property of optical fiber, but it is no longer an insurmountable barrier. Through a combination of specialized fiber, intelligent network design, and, most importantly, advanced optical transceiver technology, its effects can be effectively managed.
Investing in quality components designed to handle these physical limitations is key to building a robust, high-capacity, and future-proof network.
Ready to eliminate dispersion from your network equation? 🚀
➤ FAQ
What is the main cause of dispersion in optical fibers?
You see dispersion when different parts of a light pulse travel at different speeds inside the fiber. This spreading happens because the fiber bends and slows down some wavelengths more than others.
How does dispersion affect my network speed?
Dispersion can blur your light pulses. When this happens, your transceiver may mix up the data. You might notice slower speeds or more errors in your network.
Can I fix dispersion problems myself?
You can lower dispersion by choosing the right fiber and using compensation devices. Test your system often. If you still see problems, ask an expert for help.
Does fiber type matter for dispersion?
Yes! Single-mode fiber has less modal dispersion. It works better for long distances. Multi-mode fiber has more modal dispersion. It fits short links best.
What tools help manage dispersion?
You can use dispersion compensation modules, fiber Bragg gratings, or special fiber types. These tools help keep your signals clear and your data reliable.
