LINK-PP leads the industry with advanced Ethernet LAN transformers trusted by global networks. Engineered for high-speed data transmission, excellent signal integrity, and robust electrical isolation, LINK-PP's transformers are relied upon by engineers in data centers, industrial automation, and smart buildings. LINK-PP LAN Transformer uses precise ethernet magnetics and strict standards for ethernet and lan compatibility. Their transformers support diverse network equipment, from ethernet switches to industrial networks.
LINK-PP LAN Transformers Key Benefits
Supports data rates 10/100/1000, 2.5G, 5G up to 10G BASE-T
Built-in EMI shielding and noise attenuation
UL, IEEE, RoHS, and REACH compliant
Ideal for PoE, PoE+, and PoE++ networks
Feature | Details |
|---|---|
Supported Data Rates | 10 BASE-T, 100 BASE-TX, 1000 BASE-T, 2.5G BASE-T, 5G BASE-T, 10G BASE-T |
Applications | Ethernet (non-PoE), PoE, PoE+, CHOKE, TOKEN RING, PoE++ |
Package Types | Single, Dual, Quad |
Mounting Types | THT, SMT, PCMCIA, BGA BUMP GRID ARRAY |
Operating Temperature | 0 to +70°C, -40°C to +85°C, -40°C to +105°C |
Standards Compliance | HDBaseT, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, upcoming IEEE 802.3bt |
LAN Transformers Performance Highlights
High-Speed Data Transmission
LINK-PP’s LAN transformers support a wide range of Ethernet speeds, from legacy 10BASE-T to cutting-edge 10GBASE-T. Whether in gigabit access points or high-throughput automation systems, the transformers ensure seamless communication.
Data Rate | LINK-PP Module | Typical Applications |
|---|---|---|
10/100BASE‑T | LP1102NL Magnetics Transformer | Legacy industrial controllers,IP cameras |
1000BASE‑T | LP6096ANL PoE+ Transformer | Smart routers, business gateways |
2.5G+ | LP79604PNL PoE++ Transformer | Edge computing platforms, PoE++ systems |
10GBASE‑T | LP72431ANL SMD Transformer | Data centers, industrial PLCs |
High-speed data transmission enables smooth streaming, efficient uploads, and responsive industrial networks.
Signal Integrity & Isolation
Signal integrity is central to LINK-PP’s transformer design. Advanced winding reduces cross-talk and insertion loss, while multiple insulation layers protect circuits from surges and ESD.
Excellent noise attenuation
1500Vrms isolation voltage
UL94 V-0 flame-retardant materials
Reliable signal isolation ensures system safety and communication clarity even in EMI-prone environments.
Ethernet isolation transformers from LINK-PP meet strict industry standards, ensuring compatibility and performance across various network devices. These transformers play a vital role in high-speed ethernet, where even minor disruptions can impact network reliability.
Engineer Insights
Many network engineers have praised LINK-PP’s LAN transformers for consistent real-world performance. For example, Jason, a system architect at a top India automation firm, shared:
Proper isolation in ethernet isolation transformers safeguards both data and hardware, making them essential for reliable network operation.
These results affirm the product’s resilience and IEEE standards compliance under mission-critical conditions.
Application Flexibility

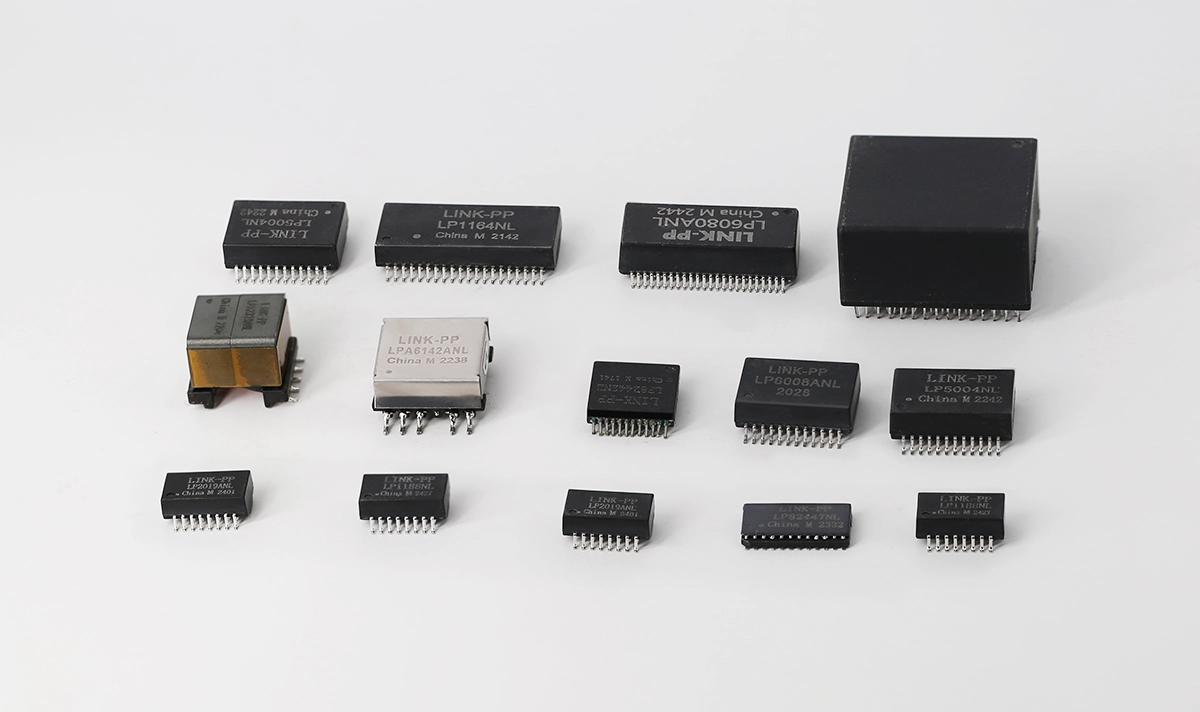

LINK-PP offers Single, Dual, and Quad package formats with SMT, through-hole, and BGA options. Designed for:
PoE switches and splitters
Industrial IoT gateways
Medical and military communication systems
Smart home automation hubs
Built to operate from -40°C to +85°C, these transformers are tailored for rugged applications.
Compliance & Certification
LINK-PP’s Ethernet magnetics meet and exceed global standards:
IEEE 802.3u/ab/af/at/bt
UL 60950, UL 62368
RoHS and REACH compliant
ISO 9001:2015 certified production
All models offer EMI shielding options and flame-retardant housings for noise-sensitive and safety-critical environments.
Conclusion
With adoption in over 300 million devices across 60+ countries, LINK-PP’s LAN transformers set the benchmark for modern Ethernet design. Their precision engineering and global compliance make them the trusted choice for engineers seeking speed, safety, and signal clarity.
Explore our full range: LINK-PP Official Store
FAQ
What makes LINK-PP’s LAN transformers suitable for high-speed ethernet networks?
LINK-PP’s LAN transformers support high-speed data transmission, maintain signal integrity, and provide reliable data transmission in 10/100/1000base-t networks and high-performance ethernet systems.
What applications use LINK-PP ethernet isolation transformers?
Engineers use ethernet isolation transformers in industrial IoT applications, consumer electronics, medical devices, and smart home networks. These transformers ensure signal isolation and noise attenuation for reliable network communication.
What standards do LINK-PP ethernet magnetics meet?
LINK-PP ethernet magnetics comply with the latest ethernet specification, including IEEE 802.3 standards. They offer isolation, ESD protection, and meet global safety and reliability requirements.
