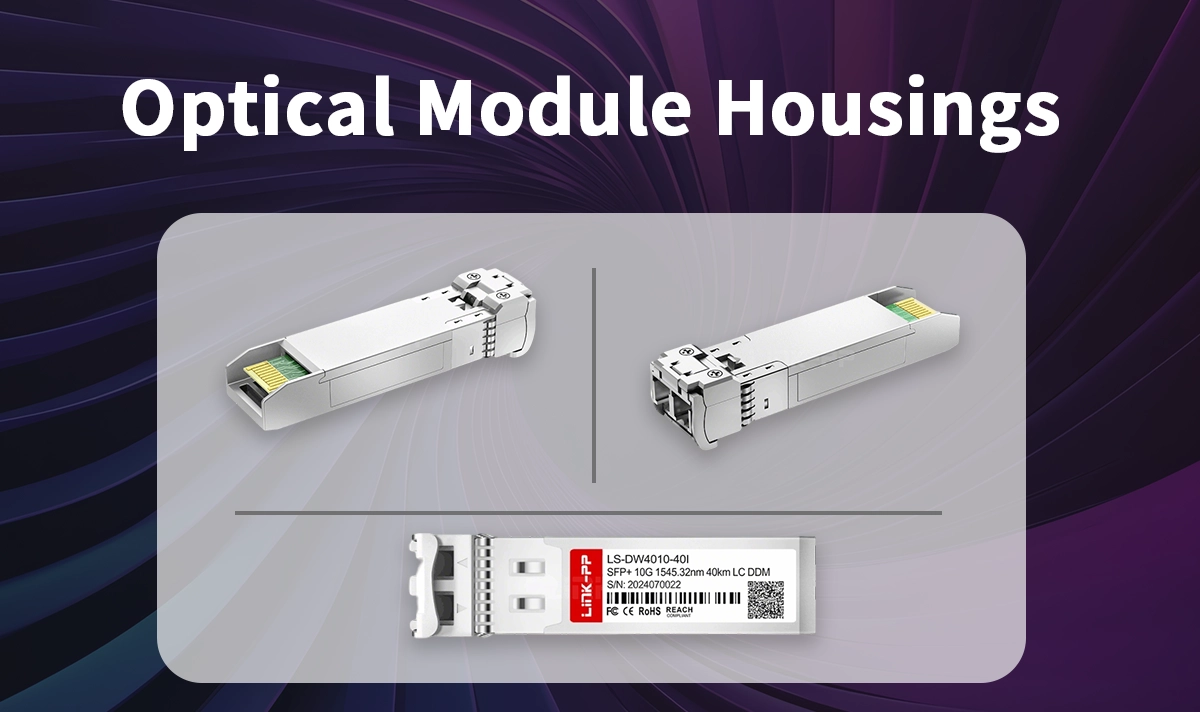

What Exactly is an Optical Module Housing?
An optical module housing is the protective outer shell that encloses the internal components of an optical transceiver module. These modules are essential for converting electrical signals into light signals and vice versa, forming the backbone of fiber optic communication systems in data centers and 5G networks.
Think of the housing as a miniature armored suit. It must be tough enough to shield sensitive components like lasers and processors from physical damage, environmental hazards like moisture and dust, and even electromagnetic interference (EMI). But its job doesn’t end there.
Why is Housing So Critical? The Triple Threat
The design and material of a housing directly impact three key areas:
Thermal Management (The Big Challenge): This is arguably the housing's most crucial job. High-speed optical modules generate significant heat. Without effective dissipation, this heat can degrade performance and slash the lifespan of components. Studies show that for every 10°C rise in temperature, the lifespan of sensitive components like laser diodes can be halved. With modern 800G modules reporting temperatures exceeding 100°C, effective heat management is non-negotiable.
Protection & Shielding: The housing provides a robust physical barrier against damage. Furthermore, metal housings act as a Faraday cage, shielding internal signals from external electromagnetic interference and preventing data corruption.
Structural Integrity and Standardization: Housings ensure all internal components are precisely aligned and secure. They are also manufactured to strict international form factors (like SFP, QSFP, CFP), guaranteeing they fit perfectly into switches and routers from different manufacturers.
What Are They Made Of? Materials Matter
The choice of material is a balancing act between thermal performance, strength, weight, and cost.
Ceramics: Highly valued in high-end applications for their excellent thermal stability, good electrical insulation, and resistance to wear and corrosion. Companies like Kyocera and Ceramtec are leaders in this field. They are often used in environments demanding extreme reliability.
Metal Alloys: A popular and versatile choice.
Aluminum Alloys: Offer a great blend of good thermal conductivity, low weight, and cost-effectiveness. They are widely used across many module types.
Copper & Tungsten-Copper Alloys: Copper is a superstar in thermal conductivity. Innovative alloys, like the new tungsten-copper material developed by Sirui New Materials, are emerging to address the intense heat in 400G+ modules. These alloys provide high thermal performance while managing structural integrity.
Zinc Alloys: Often used in traditional, lower-power modules (like 200G and below) where the thermal demands are less extreme.
Plastics & Composites: Typically used for non-critical, lower-cost, or lower-power applications where maximum thermal dissipation is not the primary concern.
The Biggest Hurdle: Keeping Your Cool
As data rates skyrocket from 400G to 800G and toward 1.6T, power densities increase dramatically. The latest 800G modules can generate so much heat that their shells reportedly reach temperatures as high as 146°C, far exceeding the standard industry limit of 70°C. This creates a major thermal management challenge.
Innovation is continuously addressing this:
Advanced Thermal Interface Materials (TIMs): Materials like ultra-high thermal conductivity gels (e.g., 9W/m·K gels from suppliers like Alead) are developed to efficiently bridge the microscopic gaps between hot chips and the housing, minimizing thermal resistance.
Integrated Heat Dissipation Designs: Some innovative designs incorporate features like square heat pipes directly into the housing structure during manufacturing. These pipes use a vacuum and a working fluid to efficiently wick heat away from critical areas.
Material Science Advances: Developing new alloys and composite materials that offer superior thermal conductivity to keep pace with future demands.
