Introduction
Multi-Source Agreements (MSAs) are critical in optical communications. They are industry-driven protocols—not formal standards like IEEE—that ensure optical modules remain interoperable across vendors. As innovations multiply, so do MSA types. This article outlines the most common MSA protocols, defines their roles, and highlights how LINK-PP optical transceivers align with these categories for reliable, high-quality performance.

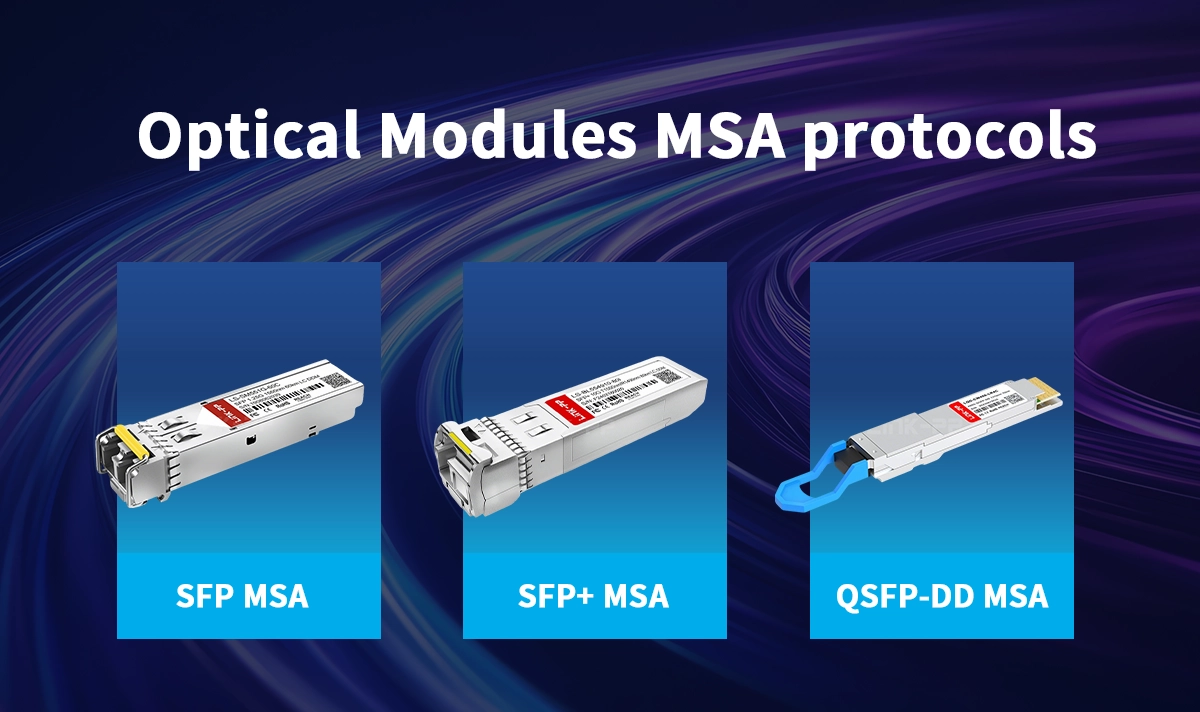

1. Common MSA Types by Form Factor
SFP, SFP+, SFP28, and SFP Variants
SFP (Small Form-factor Pluggable): Traditional 1G modules used widely in Ethernet and Fiber Channel.
SFP+: Enhanced for 10 Gbps, widely adopted due to its backward compatibility with SFP.
SFP28: Supports 25 Gbps using same form factor—ideal for upgrades.
SFP-DD (Double Density): Doubles port density using two lanes.
SFP112 / SFP-DD112: Advanced lanes using PAM4 signaling for next-gen bandwidth.
QSFP Series
QSFP: Quad-lane modules for 4-channel connectivity.
QSFP+, QSFP28, QSFP56: Used for 40 G, 100 G, and 200 G respectively; QSFP28 is backwards-compatible.
QSFP-DD: Double-density QSFP with up to 8 lanes.
QSFP112: Targets 112 G per lane for 400G and beyond.
CFP Family
CFP (100G form factor): Originally for 100 G, larger than SFP, supports lanes over 100G networks.
2. Application-Level and Functional MSAs
Beyond hardware form factors, MSAs define performance:
CWDM4 / DWDM: Use wavelength-division multiplexing for higher capacity over single mode fibers.
ZX / LX / EX / SX (SFP subtypes): Represent wavelength and reach types—e.g., SX (850 nm, multi-mode, 550 m), LX (1310 nm, single-mode, 10 km), EX (40 km), ZX (80 km).
BiDi (Bidirectional): Single-fiber transceivers that send and receive on different wavelengths.
3. LINK-PP Modules That Follow MSA Protocols
LINK-PP offers high-quality modules aligned with these MSAs across speed and form-factor categories:
LINK-PP LS-SM3110-10C (SFP+): 10 Gbps, ≤ 10 km, 1310 nm, DOM support, SFP+ MSA-compliant. Ideal for data centers and telecom networks.
LINK-PP LS-SM551G-60C (SFP): 1.25 Gbps, 60 km, single-mode, DFB 1550nm, supports SFP MSA & SFF-8472 diagnostic features.
LINK-PP LS-MM8532-S1C (SFP28): 32 Gbps, multimode, 100 m, DDM/DOM, complies with SFP28 MSA, SFF-8472, and SFF-8431/32.
4. Why MSAs Matter—and Why LINK-PP Delivers
Interoperability: Because LINK-PP modules adhere to MSA standards, they seamlessly integrate within mixed-vendor environments.
Varied Reach and Form Factors: Whether it's short-reach (SFP+) or long-haul (SFP), or high-bandwidth (SFP28, QSFP series), LINK-PP has MSA-aligned modules across the board.
Diagnostics and Reliability: Many LINK-PP modules support DOM/DDM, giving real-time monitoring—critical for EEAT and technical trust.
Cost-Performance: LINK-PP balances performance and price, making their modules ideal for enterprise and carrier deployments.
Conclusion
Understanding MSA protocols empowers better purchasing decisions. Key MSAs like SFP / SFP+ / SFP28, QSFP / QSFP-DD / QSFP112, and CFP, along with wavelength-based categories, form the backbone of modern optical networking. LINK-PP provides a matched and compliant product range—ensuring your network is high-performing, interoperable, and future-ready.
