QSFP+ 40G FR4 Explained: Your Ultimate Guide to 4x10G Parallel Optics

In the high-speed world of data centers and enterprise networks, the demand for bandwidth is ever-increasing. Choosing the right optical transceiver is critical for building a scalable, efficient, and cost-effective network infrastructure. Among the various options available, the QSFP+ 40G FR4 stands out as a pivotal solution for achieving 40G connectivity.

But what exactly is it, and why is it so important? This comprehensive guide will break down the technology, specifications, and advantages of the QSFP+ 40G FR4 transceiver, a key component for modern 40G Ethernet and fiber channel applications.

⚙️ Breaking Down the Name: QSFP+ 40G FR4

Let's start by decoding the name itself, which reveals its core characteristics:

• QSFP+: Stands for Quad (Q) Small Form-factor Pluggable Plus. This means it's a compact, hot-pluggable module that can support four independent channels of data transmission and reception. It's an evolution of the SFP+ form factor, designed for higher densities and speeds.

• 40G: Denotes the total data rate of the module, which is 40 Gigabits per second. With four channels, each operates at 10Gbps.

• FR: Stands for 4-Wavelength Coarse Wavelength Division Multiplexing (CWDM). It uses four individual laser signals at specific wavelengths (1271nm, 1291nm, 1311nm, and 1331nm) transmitted over a single-mode fiber (SMF).

• 4: Represents the 4 channels of 10G, which are multiplexed to create a single 40G link.

⚙️ How Does a QSFP+ 40G FR4 Transceiver Work?

The magic of FR4 lies in its use of CWDM technology. It's crucial to understand that a single QSFP+ 40G FR4 module is unidirectional—it either transmits or receives the multiplexed signal. A complete link requires two modules: one at each end of the fiber link.

Here’s a simplified breakdown of the communication process between two switches:

1. At the Transmitting End (Switch A):

   • The transceiver (LINK-PP LQ-CW40-FR4C) receives four electrical 10G lanes from Switch A.

   • Four separate distributed feedback (DFB) lasers convert each electrical signal into a specific optical wavelength (1271nm, 1291nm, 1311nm, 1331nm).

   • A built-in multiplexer (MUX) combines these four optical signals onto a single SMF strand for transmission.

2. Fiber Transmission:

   • The combined CWDM signal travels over the single-mode fiber optic cable (a transmit strand).

3. At the Receiving End (Switch B):

   • Another LINK-PP LQ-CW40-FR4C module receives the combined signal on a separate fiber strand.

   • A built-in demultiplexer (DEMUX) separates the four incoming wavelengths.

   • Photodetectors convert each optical wavelength back into an electrical signal, delivering four 10G lanes to Switch B.

This process happens in reverse for communication from Switch B to Switch A, requiring a second pair of fibers. Therefore, a full duplex 40G link requires two SMF strands (one for Tx/Rx and one for Rx/Tx).

⚙️ QSFP+ 40G FR4 vs. SR4: A Quick Comparison Table

Choosing the right optic depends on your fiber type and distance requirements. The primary competitor to FR4 is the QSFP+ 40G SR4, designed for multi-mode fiber.

Key Takeaway: Use SR4 for short, cost-effective runs inside your data center. Use FR4 when you need to cover longer distances (up to 2km) between buildings or across a large campus, or when you want to conserve valuable fiber strands.

⚙️ Key Applications & Benefits of 40G FR4 Modules

The QSFP+ 40G FR4 transceiver is a versatile solution for modern network architects.

• Data Center Interconnect (DCI): Perfect for connecting two data centers located up to 2km apart.

• High-Density 40G Switch Links: Ideal for creating high-speed backbone links between switches in different parts of a building or campus.

• Fiber Infrastructure Maximization: Its ability to carry 40G over just two SMF strands makes it incredibly efficient, delaying the need for costly new fiber runs.

• CWDM System Integration: Can be easily integrated into existing CWDM infrastructure for flexible network design.

⚙️ Looking for a Reliable 40G FR4 Solution? Meet LINK-PP

When performance and network uptime are critical, choosing a high-quality, compatible transceiver is non-negotiable. LINK-PP manufactures a range of MSA-compliant optical transceivers known for their reliability, performance, and seamless compatibility with major OEM switches from Cisco, Juniper, Arista, and more.

For your 40G QSFP+ FR4 needs, we recommend the:

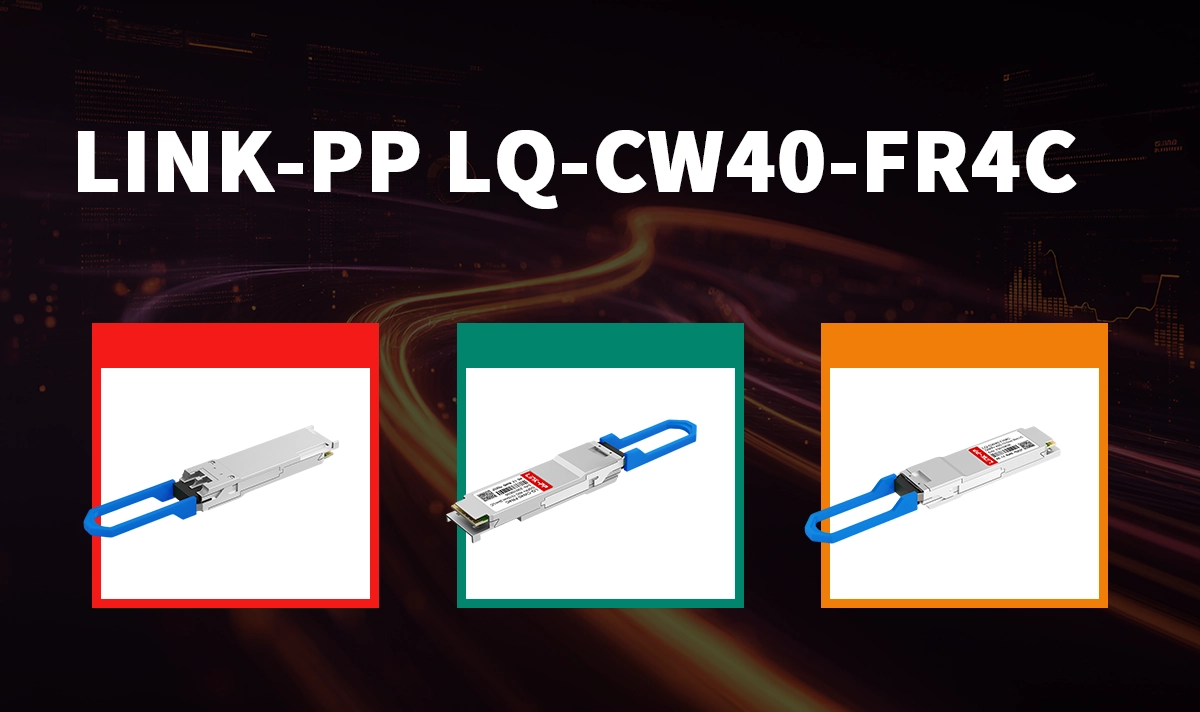

LINK-PP LQ-CW40-FR4C
This module is rigorously tested to ensure full interoperability and comes with a lifetime warranty, giving you peace of mind for your mission-critical network links.

> > Discover the LINK-PP LQ-CW40-FR4C Datasheet <<

⚙️ Conclusion

The QSFP+ 40G FR4 transceiver is a sophisticated and efficient solution for medium-reach, high-speed networking. Its clever use of CWDM technology over single-mode fiber makes it an indispensable tool for data center interconnects (DCI), maximizing existing fiber assets, and building scalable network backbones.

By understanding its role and how it compares to SR4, you can make an informed decision that optimizes both performance and cost for your 40G Ethernet deployment.

⚙️ FAQ

What does QSFP+ 40G FR4 mean?

You see "qsfp+" as a type of transceiver. "40g" shows the speed, which is 40 gigabits per second. "fr4" means it uses four wavelengths over single-mode fiber.

What devices work with QSFP+ 40G FR4?

You can use qsfp+ 40g fr4 in many network switches and servers. Most modern equipment with QSFP+ ports supports this transceiver.

What is the maximum distance for QSFP+ 40G FR4?

You can connect devices up to 2 kilometers apart. This reach works well in large data centers and office buildings.

What fiber type do you need for QSFP+ 40G FR4?

You need single-mode fiber. This type of cable lets you send data over long distances without losing quality.

What makes QSFP+ 40G FR4 different from older transceivers?

You get higher speed, longer reach, and better efficiency. The small size helps you save space and power in your network racks.
