In the high-stakes world of data centers and enterprise networking, speed is everything. As the demand for bandwidth skyrockets, making the jump from 10G to 40G is no longer a luxury—it's a necessity. At the heart of this transition is a powerful, yet often overlooked component: the QSFP+ 40G SR4 optical transceiver.
If you're an IT manager, network engineer, or simply a tech enthusiast, understanding this technology is crucial. This guide will demystify the QSFP+ 40G SR4, exploring how it works, where it's used, and why it remains a dominant force in 40G Ethernet connectivity.
➤ Key Takeaways
The QSFP+ 40G SR4 transceiver can move data very fast, up to 40Gbps. This makes it great for big data centers and business networks.
You can install or replace it while the network is on. This means you do not need to turn off anything. Your network keeps working well.
The transceiver sends data through many channels at once. This stops slowdowns and helps the network work better.
It works with many devices and older modules. This makes it easy to upgrade your network and connect everything together.
Digital Diagnostic Monitoring (DDM) lets you check the transceiver’s health right away. This helps you find problems early, before they hurt how things work.
➤ What is a QSFP+ 40G SR4 Transceiver?
Let's break down the name:
QSFP+: Stands for Quad Small Form-factor Pluggable Plus. The "Quad" indicates it can support four independent channels of data transmission and reception.
40G: Denotes its data rate of 40 Gigabits per second.
SR4: Signifies Short Range with 4 lanes. It's designed for short-distance transmissions over multi-mode fiber (MMF).
In essence, a QSFP+ 40G SR4 is a hot-swappable, compact optical module that plugs into a switch, router, or network interface card. It converts electrical signals into optical signals and vice versa, enabling data to travel over fiber optic cables at blazing speeds.
➤ How Does 40G SR4 Technology Work?
The magic of the SR4 lies in its parallelism. Instead of using one high-speed lane, it uses four separate 10G lanes in each direction (transmit and receive). This is known as parallel optics.
Here’s the process:
The transceiver takes a single 40G electrical signal from your network device.
It breaks (multiplexes) this signal into four 10G channels.
Each 10G channel is converted to an optical signal and transmitted out of one of four dedicated VCSEL (Vertical-Cavity Surface-Emitting Laser) lasers.
These four optical signals travel down an OM3 or OM4 multi-mode fiber cable via an MPO/MTP connector.
On the receiving end, another QSFP+ SR4 module receives the four signals, converts them back to electrical signals, and combines them to reconstruct the original 40G data stream.
This parallel approach is a cost-effective and efficient way to achieve high bandwidth.
➤ Key Applications & Use Cases
The QSFP+ 40G SR4 transceiver is incredibly versatile, making it ideal for:
Data Center Aggregation: Connecting top-of-rack (ToR) switches to end-of-row (EoR) or core switches.
High-Performance Computing (HPC): Linking servers and clusters that require massive data throughput for tasks like AI modeling and scientific simulations.
40G Ethernet Network Upgrades: A perfect solution for enterprises moving from 10G SFP+ to 40G QSFP+ infrastructure.
Breakout Connectivity: One of its most powerful features is breakout functionality. A single 40G SR4 port can be split into four independent 10G SFP+ connections using a special breakout cable, providing a cost-effective path for network expansion.
➤ QSFP-40G-SR4 vs. Other 40G Modules: A Quick Comparison
Not all 40G modules are created equal. The right choice depends on your transmission distance and fiber type.
Feature | QSFP-40G-SR4 (Short Range) | QSFP-40G-LR4 (Long Range) | QSFP-40G-ER4 (Extended Range) |
|---|---|---|---|
Reach | Up to 100m (OM4) / 150m (OM4) | Up to 10km | Up to 40km |
Fiber Type | Multi-Mode (OM3/OM4) | Single-Mode (OS2) | Single-Mode (OS2) |
Laser Technology | VCSEL | DWDM CWDM | DWML EML |
Typical Use Case | Data Center Racks | Campus/City Links | Long-Haul Telecom |
Cost | $$ (Lowest) | $$$ | $$$$ (Highest) |
➤ Why Choose LINK-PP QSFP+ 40G SR4 Modules?
When selecting transceivers, compatibility, reliability, and performance are non-negotiable. This is where LINK-PP excels. Our optical transceivers are engineered to meet or exceed OEM standards, ensuring flawless performance in your branded equipment.
Key Advantages of LINK-PP 40G SR4 Modules:
100% MSA-Compliant: Guarantees interoperability with major switch brands (Cisco, Juniper, Arista, etc.).

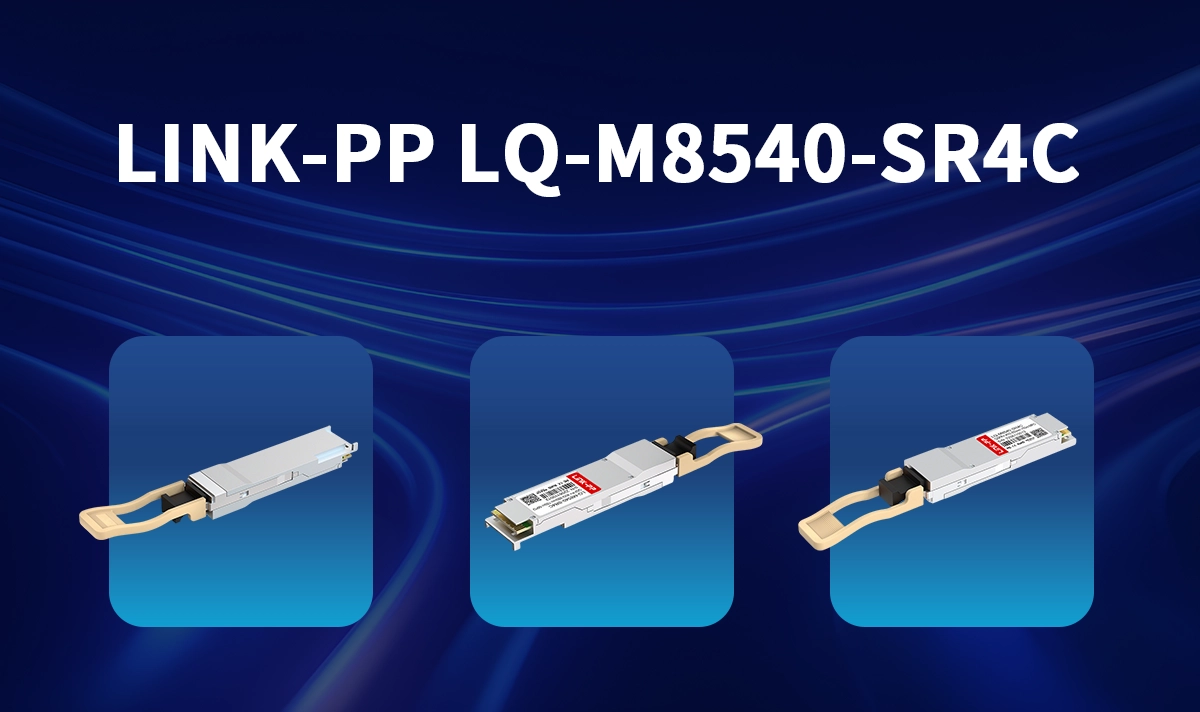

Rigorous Testing: Every module, including our popular LINK-PP LQ-M8540-SR4C model, undergoes extensive testing to ensure optimal performance and low bit error rate (BER).
Cost-Effective: Save up to 80% compared to OEM pricing without sacrificing quality or functionality.
Lifetime Warranty: We stand behind our products with robust customer support and a comprehensive warranty.
For those looking for a high-quality 40G QSFP SR4 compatible solution that won't break the bank, LINK-PP provides the perfect balance of performance and value. Whether you need a standard 40gbe sr4 module or are exploring 40G optical transceiver options for a new deployment, we have you covered.
➤ Conclusion: Is QSFP+ 40G SR4 Right for You?
The QSFP+ 40G SR4 transceiver remains a cornerstone of modern data center design. Its efficient parallel optics design, breakout capability, and cost-effectiveness make it an incredibly smart choice for short-reach 40G applications.
As you plan your network infrastructure, choosing a reliable supplier for your fiber optic transceivers is critical. LINK-PP is committed to providing high-performance, compatible, and affordable solutions that keep your data flowing.
Ready to supercharge your network with reliable 40G connectivity? 🔗
Browse our extensive selection of certified LINK-PP QSFP+ 40G SR4 modules today. Our experts are on hand to help you find the exact compatible transceiver for your needs.
👉 Shop LINK-PP LQ-M8540-SR4C Now & Save! 👈
Have a specific compatibility question? Contact our support team for a seamless purchasing experience
➤ FAQ
What is the maximum distance for QSFP+ 40G SR4 modules?
QSFP+ 40G SR4 modules can reach 100 meters with OM3 fiber. They can go up to 150 meters with OM4 fiber. These modules are best for short connections in data centers.
What devices support QSFP+ 40G SR4 transceivers?
You can use QSFP+ 40G SR4 transceivers in new switches, routers, and servers. The device must have a QSFP+ port. Always check your device’s list before buying.
What type of cable do you need for QSFP+ 40G SR4?
You need multimode fiber cables with MPO connectors. These cables help send data fast and keep your module working well.
What does Digital Diagnostic Monitoring (DDM) show you?
DDM gives you live details about your module. You can see temperature, voltage, signal strength, and error counts. This helps you find problems early and keep your network working.
