The insatiable demand for data, driven by AI, 5G, and hyperscale computing, is pushing networks to their limits. To keep up, data centers are rapidly adopting 200 Gigabit Ethernet (200GbE) as the new standard for high-speed spine and leaf layers. At the heart of this transition is a critical component: the QSFP56 optical transceiver.
If you're planning an upgrade or simply future-proofing your infrastructure, understanding this technology is crucial. Let's dive in.
✅ Key Takeaways
QSFP56 optical transceivers move data very fast at 200G speeds. They work well for busy data centers.
These modules can be swapped while the network is running. You do not need to turn off your network. This saves time and keeps your network working.
QSFP56 modules are small. You can fit more connections in one rack. This helps you use space better in your data center.
QSFP56 transceivers use PAM4 modulation. They send more data through the same fiber. This makes things work better and faster.
Pick MSA-compliant QSFP56 modules for easy upgrades. They work with many brands. This gives you more choices for your network.
✅ What is a QSFP56 Transceiver?
QSFP56 stands for Quad Small Form-factor Pluggable 56. Let's decode that:
Quad: Contains four independent data channels.
Small Form-factor Pluggable: Hot-pluggable form factor for easy installation and replacement.
56: Each channel operates at 56Gbps (Gigabits per second).
By leveraging four channels, the aggregate data rate is 4 x 56Gbps = 200Gbps. This makes it the direct successor to the QSFP28 (4x25G=100G) and is designed for 200GbE applications.
✅ Why QSFP56? Key Advantages Over Older Generations
Why choose a QSFP56 transceiver for your 200G optics needs? The benefits are clear:
Double the Bandwidth: The most obvious advantage. It delivers twice the data rate of a QSFP28 (100G) within the same physical footprint, maximizing port density and efficiency.
Backward Compatibility: A key feature often overlooked. QSFP56 ports are often backward compatible with QSFP28 and QSFP+ transceivers, providing flexibility and a smooth migration path from 40G or 100G networks.
Improved Power Efficiency: Despite the speed increase, modern QSFP56 transceivers are designed for improved power efficiency per gigabit, helping to manage the total power budget in dense data center racks.
PAM4 Modulation: QSFP56 utilizes PAM4 (Pulse Amplitude Modulation, 4-level) signaling. This advanced modulation technique allows it to transmit two bits per symbol, effectively doubling the data rate over the same channel compared to the NRZ modulation used in older generations.
✅ QSFP56 vs. QSFP28 vs. QSFP-DD: A Quick Comparison
It's easy to confuse the different form factors. This table clarifies the key differences.
Feature | QSFP28 | QSFP56 | QSFP-DD |
|---|---|---|---|
Data Rate per Channel | 25Gbps | 56Gbps | 50Gbps (NRZ) or 100Gbps (PAM4) |
Total Aggregate Data Rate | 100Gbps | 200Gbps | 400Gbps (8x50G) |
Modulation | NRZ | PAM4 | PAM4 |
Primary Application | 100GbE | 200GbE | 400GbE |
Backward Compatible | QSFP+ | QSFP28, QSFP+ | QSFP56, QSFP28 |
Table: Comparing QSFP form factors for high-speed networking.
As the table shows, QSFP56 is the natural 200G optical module solution for those evolving from a 100G base.

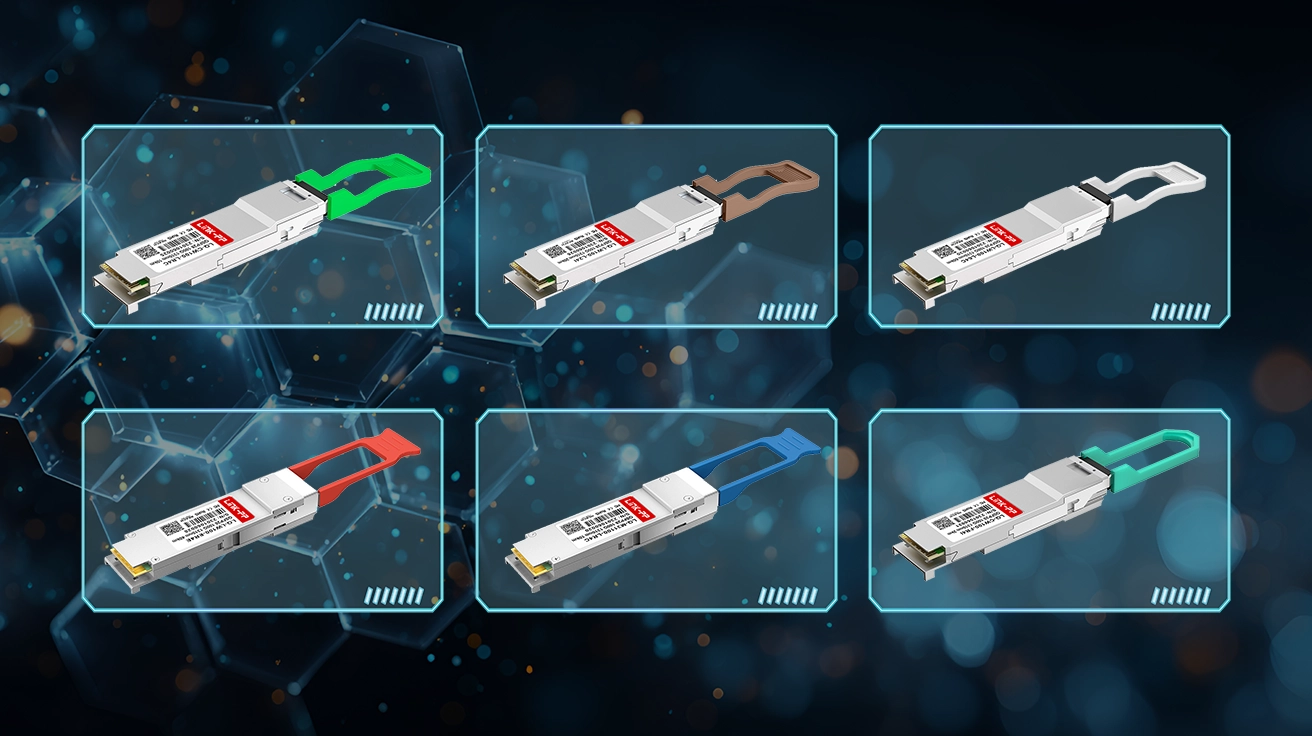

✅ Common Types and Applications of QSFP56 Modules
QSFP56 transceivers come in various types for different reach requirements, a critical consideration for any data center connectivity strategy.
QSFP56 SR4: Designed for short-range connections over multimode fiber (OM3/OM4/OM5). Uses an MPO-12 connector. Perfect for intra-rack and inter-rack links within a data center.
▫ Reach: Up to 70m (OM3), 100m (OM4), and 150m (OM5).
QSFP56 DR4: Uses single-mode fiber for medium-range connections. Ideal for connecting across different buildings or campuses.
▫ Reach: Up to 500m.
QSFP56 FR4: Also uses single-mode fiber but is designed for longer-range applications, often using a duplex LC connector.
▫ Reach: Up to 2km.
For a robust and reliable solution in high-density data center environments, the LINK-PP QSFP-100G-SR4 (a 100G module) demonstrates the quality engineering that carries over to our 200G lineup. When you're ready for 200G, looking for a LINK-PP QSFP-200G-SR4 ensures you get the same performance and reliability your network depends on.
✅ How to Choose the Right QSFP56 Transceiver
Selecting the right high-speed optical transceiver is more than just picking a form factor. Ask these questions:
What is the required reach? Match the transceiver type (SR4, DR4, FR4) to the distance you need to cover.
What fiber type is installed? Ensure compatibility with your existing fiber plant (multimode vs. single-mode).
Is it compatible with my switch? Always check the vendor's compatibility matrix. While standards-based, some switches may require coded modules.
What about quality and warranty? This is where brand reputation matters. Avoid cheap, uncertified modules that can cause network failures and void switch warranties.
✅ Why Choose LINK-PP for Your 200G Needs?
At LINK-PP, we specialize in manufacturing high-performance, compatible optical transceivers. Our QSFP56 optical modules are rigorously tested to ensure full compatibility with major OEM switches from Cisco, Juniper, Arista, and others. We provide:
100% Performance Guarantee: Our modules meet or exceed industry standards.
Lifetime Warranty: Confidence in the quality and longevity of our products.
Significant Cost Savings: Get OEM-level performance without the OEM price tag.
Ready to power your 200G network with reliable, high-performance transceivers? 🚀
Browse our extensive selection of LINK-PP optical transceivers to find the perfect QSFP56 solution for your data center. Have a specific compatibility question?
👉 [Explore LINK-PP 200G Transceivers Now] 👈
👉 [Contact Our Experts for a Custom Quote] 👈
✅ FAQ
What is the main use of a QSFP56 optical transceiver?
You use a QSFP56 optical transceiver to connect switches, servers, and routers in data centers. It helps you move data at 200G speeds. This device supports high-density and high-speed networking.
What types of cables work with QSFP56 modules?
You can use OM4 multimode fiber cables for short distances. For longer links, you use single-mode fiber. MTP/MPO-12 connectors fit these modules and help you manage cables easily.
What does PAM4 mean in QSFP56 transceivers?
PAM4 stands for Pulse Amplitude Modulation with four levels. You send more data over the same fiber. This technology lets you reach 200G speeds with better efficiency.
What makes QSFP56 different from QSFP28?
QSFP56 supports 200G speeds and uses PAM4 modulation. QSFP28 supports 100G and uses NRZ. You get double the speed with QSFP56. You also get better performance for busy networks.
What should you check before buying a QSFP56 module?
You should check your switch or server specs. Make sure they support QSFP56. Look at the distance you need and the type of fiber. Always choose MSA-compliant modules for best compatibility.
