What functions do LEDs serve in RJ45 connectors

In today’s networked world, RJ45 connectors are found in almost every Ethernet-based system—from office routers to industrial switches. But have you ever noticed the tiny LED lights that often accompany these connectors? These small indicators play a critical role in diagnosing and maintaining healthy network connections. LEDs on an RJ45 Connector help users monitor basic link and activity status at a glance. These small lights show if the network link works, may indicate the negotiated link speed depending on device configuration, and if data moves through the cable. People can quickly spot problems or check connections by watching these LEDs.

In this article, we’ll explore how these LEDs work and how LINK-PP provides flexible customization options to match specific networking needs.

What Are the LEDs in RJ45 Connectors?

The LEDs integrated into RJ45 connectors are visual indicators that display real-time network status. Typically located on either side of the Ethernet port, these lights come in various colors—usually green, yellow, or orange—and may either remain steady or blink, depending on the type of activity detected.

Key Functions of RJ45 LEDs

✅ Link Status Indicator

One of the primary functions is to show whether the Ethernet cable is successfully connected and the link is established.

  • A solid light usually indicates that a valid physical connection exists.

  • No light means the cable is unplugged or the port is inactive.

🔁 Data Activity Indicator

These LEDs blink when data packets are actively being transmitted or received.

  • Flashing light = active data transfer

  • No flashing = idle link or possible issue

📶 Speed Indicator (Optional)

On more advanced devices, different LED colors or patterns typically represent different network speeds:

  • Green for 100 Mbps

  • Orange or Yellow for 1 Gbps

  • Blue or Red (less common) for 10 Gbps and above

Note：depends on the support and configuration of the Ethernet PHY chip.

Why Are These LEDs Important?

RJ45 LEDs may seem small, but they offer major benefits:

  • Quick troubleshooting: Instantly check if the connection is live without tools. (though in-depth diagnostics still require software tools or testers.)

  • Efficient diagnostics: Identify issues such as cable faults, misconfigurations, or inactive ports.

  • Improved user experience: Especially helpful for IT teams and network engineers when installing or maintaining systems.

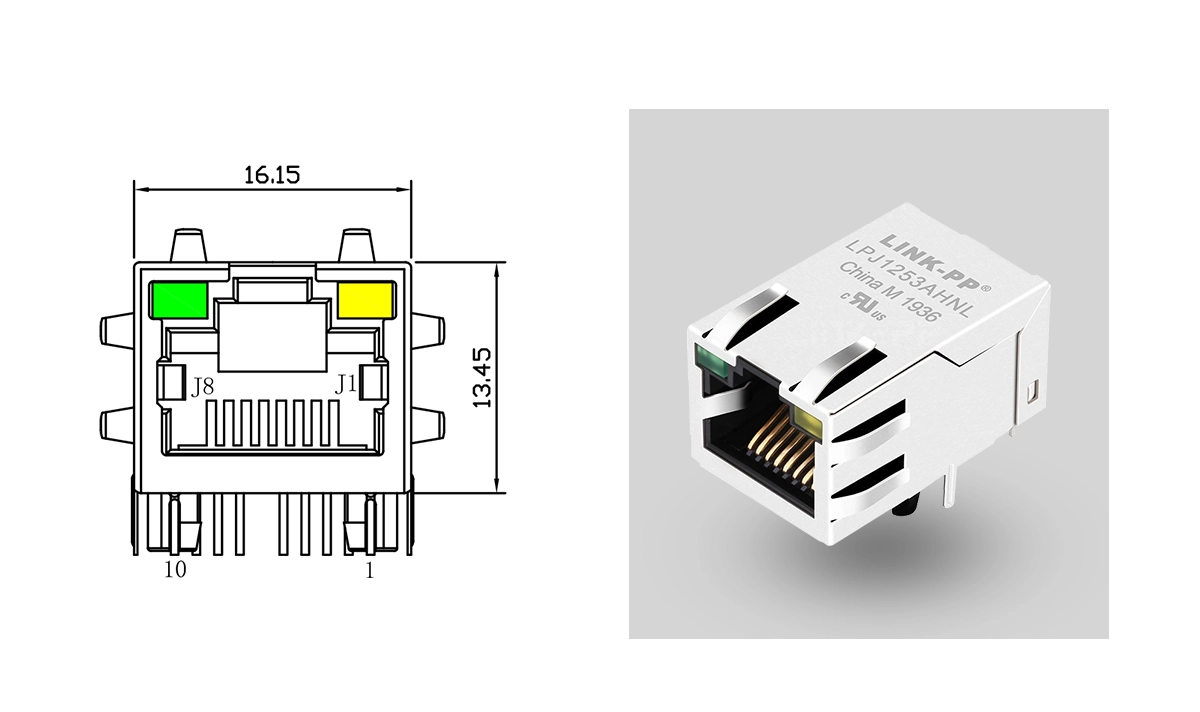

LINK-PP RJ45 Connectors

LINK-PP’s LED Customization Options

LINK-PP supports a wide range of LED configurations based on customer application requirements. In the part number naming system, LED combinations are denoted by short codes, such as:

  • A: Y/G = Left Yellow + Right Green

  • B: G/Y = Left Green + Right Yellow

  • 31: G/O+G/O = Left Green / Orange + Right Green / Orange

  • Q: Y+G/O = Left Yellow + Right Green / Orange

  • No LED is Available

You can find these codes in the part number suffix, e.g. LPJG16544A4NL 1000 Base-T Single Port RJ45 PCB Connector with Integrated Magnetic Tab Up Green&Yellow/Green&Yellow LEDs

  • LPJ – LINK-PP RJ45 Series

  • G – 1000Base-T Gigabit Series

  • 1654 – Schematic (see drawing)

  • A – With LEDs and EMI Finger

  • 4 – LED Left: Green/Yellow, Right: Green/Yellow

  • NL – RoHS Compliant

Benefits of LINK-PP RJ45 with Custom LEDs

  • Simplified Network Monitoring: Easily detect connection and activity without additional test tools.

  • Improved Product Aesthetics: Match LED colors to your device's UI scheme.

  • Faster Debugging & Deployment: Reduce setup time with intuitive indicators.

  • Wide Compatibility: Suitable for routers, switches, IP phones, PoE devices, and industrial control units.

Conclusion

The LEDs on RJ45 connectors are essential tools for managing network hardware. They provide quick visual cues that make network setup and troubleshooting easier and more effective. Whether you’re an engineer designing an embedded system or a technician installing a server rack, understanding these LEDs can save valuable time and effort. By choosing a trusted RJ45 Connectors supplier like LINK-PP, you gain access to fully customizable LED configurations that enhance product performance, visibility, and user experience.
