RJ45 Connectors in Network Switch

In today's data-driven world, network switches form the communication backbone of homes, offices, and data centers. One of the most critical components within these devices is the RJ45 connector with integrated magnetics, also known as a MagJack. These compact connectors do far more than just link Ethernet cables—they ensure reliable signal transmission, electromagnetic protection, and efficient power delivery.

In this article, we explore how LINK-PP’s RJ45 magnetic connectors support switch functionality, meet modern Ethernet standards, and contribute to overall system integrity.

What Are RJ45 Connectors with Magnetics?

Unlike standard RJ45 jacks, MagJack connectors integrate magnetic components such as transformers, chokes, and common-mode filters into the connector housing. These components:

  • Provide galvanic isolation between the switch and external Ethernet lines

  • Improve return loss, crosstalk suppression, and signal integrity

  • Support PoE (Power over Ethernet) by separating DC power from data signals

These features make MagJacks ideal for high-speed network switches, especially as devices scale up from 10/100 Mbps to 5G/10G Ethernet.

What Is an Ethernet Switch?

An Ethernet switch is a core networking device that connects multiple endpoints within a Local Area Network (LAN). Operating primarily at Layer 2 of the OSI model, switches forward data packets intelligently using MAC addresses, ensuring that each data frame is sent only to its intended recipient. This makes switches more efficient and secure than hubs.

Each port on a switch typically includes an integrated RJ45 connector to accept Ethernet cables. These connectors handle the electrical interface and signal conditioning required for reliable network performance at various speeds, from 10/100 Mbps to multi-gigabit Ethernet.

How RJ45 MagJack Works in a Network Switch

Inside a network switch, the RJ45 MagJack sits at the interface between the Ethernet cable and the internal circuitry. The data path typically looks like this:

🟦 Ethernet Cable →🟦 MagJack →🟦 PHY →🟦 Switch ASIC

MagJack connectors isolate and filter signals before they reach the sensitive PHY chip, improving the robustness and EMI immunity of the entire system.

Why Switches Use Integrated RJ45 Connectors

In modern switch design—especially for gigabit and higher-speed ports—integrated RJ45 connectors are preferred over separate modular jacks and discrete magnetics. Here’s why:

  • ✅ Signal Isolation & Filtering: Built-in transformers offer essential galvanic isolation and suppress signal noise to meet IEEE 802.3 standards.

  • ✅ Compact Design: Integrating the magnetic components into the jack reduces the PCB footprint, enabling high-density port layouts.

  • ✅ Improved EMI Performance: Shielded construction and optimized internal layout reduce electromagnetic interference.

  • ✅ Simplified Manufacturing: Fewer components translate to reduced BOM complexity, faster assembly, and greater reliability.

These benefits make integrated RJ45 connectors the standard solution for network switches across enterprise, industrial, and data center environments.

LINK-PP Integrated RJ45 Connectors for Network Switches

Integrated RJ45 Connectors

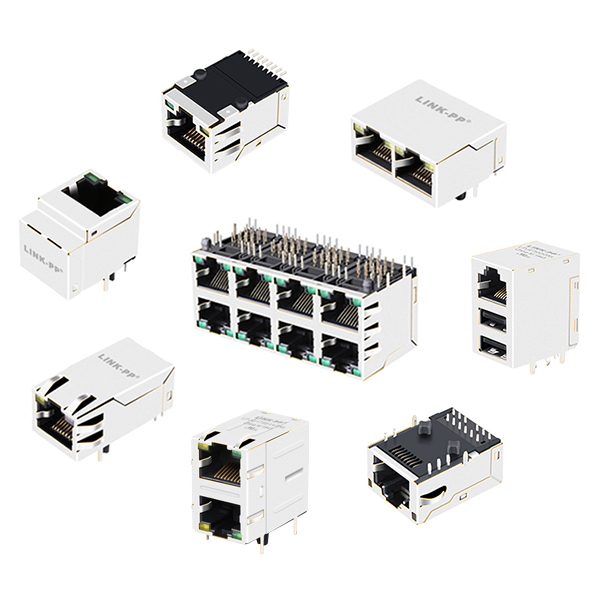

LINK-PP, a global leader in magnetic telecom and networking components, offers a broad range of Magjack (integrated RJ45) connectors that meet the diverse needs of Ethernet switch designs. LINK-PP’s products are widely trusted for their performance, durability, and manufacturing consistency.

Key Features of LINK-PP Integrated RJ45 Connectors:

  • Data Rates: Support for 10Base-T, 100Base-TX, 1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T, and HDBase-T.

  • Port Configurations: Single-port (1×1), multi-port (1×N, 2×N), including stacked and ganged options.

  • PoE Support: Compatible with PoE/PoE+/PoE++, including 2-pair and 4-pair power delivery.

  • Mounting Types: Through-hole, Surface Mount (SMT), Pin-in-Paste, and Press-Fit.

  • Shielding and LEDs: Available with EMI shields and integrated status indicators.

  • Temperature Ranges: Commercial (0°C to +70°C), industrial (-40°C to +85°C), and extended (-55°C to +105°C).

Featured Products from LINK-PP

  • LPJ0012DNL: A 10/100Base-T Magjack ideal for cost-sensitive switch applications requiring reliable isolation and small footprint.

  • LPJK4036CNL: A gigabit integrated RJ45 connector offering improved signal integrity and robust EMI protection.

  • LPJM27010AHNL: A 2.5G 2×2 port connector designed for higher-speed switch architectures in a compact multi-port format.

  • LPJK9436AHNL: A 10GBase-T integrated RJ45 solution built for ultra-high-speed networking with excellent thermal and EMI characteristics.

Why Choose LINK-PP for RJ45 Magnetic Connectors?

  • 🌐 Global OEM for Tier 1 networking brands

  • ✅ ISO 9001 / UL / RoHS / REACH certified

  • 📦 In-stock supply & short lead times

  • 🛠️ Customization support for housing, pin layout, LED, and turns ratio

Conclusion

RJ45 connectors with integrated magnetics are fundamental to the performance, safety, and scalability of modern network switches. Whether you're building a compact unmanaged switch or a high-density 10G PoE+ device, LINK-PP MagJack solutions offer the signal integrity, shielding, and efficiency you need.

👉 Explore LINK-PP’s full range of integrated RJ45 connectors at www.l-p.com.

FAQ

What are the main benefits of RJ45 connectors with magnetics?

RJ45 connectors with magnetics improve signal integrity, reduce electromagnetic interference, and provide electrical isolation. These features help network switches deliver faster data rates and support Power over Ethernet. They also increase reliability in both enterprise and industrial environments.

Can RJ45 connectors with magnetics support PoE devices?

Yes, these connectors support Power over Ethernet (PoE) devices. They safely deliver both data and power through a single cable. This makes them ideal for powering devices like IP cameras, VoIP phones, and wireless access points.

How do integrated magnetics affect network switch design?

Integrated magnetics simplify network switch design. Engineers use fewer external components, which saves PCB space and reduces assembly time. This integration also lowers the risk of wiring errors and improves overall system reliability.

Are RJ45 connectors with magnetics compatible with all Ethernet standards?

Most RJ45 connectors with magnetics support a wide range of Ethernet standards, from 10Base-T up to 10G Ethernet. Always check the product specifications to ensure compatibility with the required data rate and PoE standard.

Tip: Review the datasheet before selecting a connector for your application.
