In the demanding landscape of modern data centers and enterprise networks, delivering high-speed, reliable connectivity is non-negotiable. When it comes to cost-effective 10 Gigabit Ethernet over short to medium distances, the SFP-10G-SR optical transceiver remains a cornerstone technology. This comprehensive guide dives deep into its specifications, applications, compatibility, and why choosing the right module, like those from LINK-PP, is critical for performance and value.

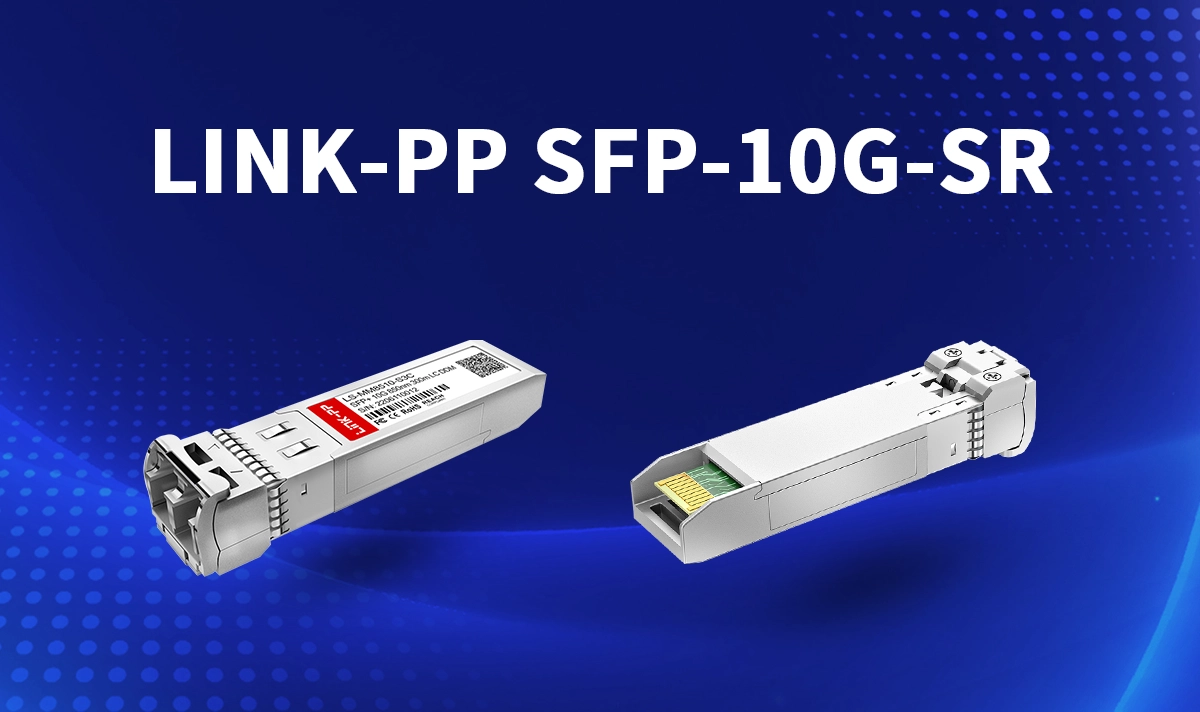

➤ Understanding the SFP-10G-SR Transceiver
"SFP-10G-SR" stands for Small Form-factor Pluggable 10 Gigabit Short Reach. It's a hot-swappable, industry-standard optical transceiver module designed for high-speed data transmission. Key characteristics include:
Speed: 10.3125Gbps (Gigabits per second) data rate.
Form Factor: SFP+ (Enhanced Small Form-factor Pluggable), ensuring compatibility with a vast range of switches, routers, and network interface cards.
Optical Interface: Uses an LC duplex connector.
Reach: Optimized for short reach multi-mode fiber (MMF) connections.
Laser Type: 850nm VCSEL (Vertical Cavity Surface Emitting Laser) transmitter.
Application: Primarily used for 10GBASE-SR Ethernet links.
Technical Specifications Deep Dive
The SFP-10G-SR operates over standard multi-mode optical fiber, leveraging the OM3 and OM4 grades that dominate modern data center installations. Its performance is tightly linked to the fiber type:
Fiber Type | Core Diameter | Maximum Reach (SFP-10G-SR) | Key Advantage |
|---|---|---|---|
OM3 | 50µm | Up to 300 meters | Widely deployed, cost-effective |
OM4 | 50µm | Up to 400 meters | Enhanced bandwidth, longer reach |
OM2 | 50µm | Up to 82 meters | Legacy, limited use today |
OM1 | 62.5µm | Up to 33 meters | Legacy, not recommended for 10G |
➤ Crucial Features for Reliable Performance
Low Power Consumption: Modern SFP-10G-SR modules, such as the LINK-PP LS-MM8510-S3C, are designed for efficiency, reducing operational costs and heat generation within equipment chassis.
Digital Diagnostics Monitoring (DDM): Also known as DOM (Digital Optical Monitoring), this feature provides real-time access to vital operating parameters like:
Transceiver temperature
Laser bias current
Transmitted optical power
Received optical power
Transceiver supply voltage
Compliance: Adheres strictly to industry standards:
SFF-8431 (SFP+ MSA): Defines the mechanical form factor and electrical interface.
IEEE 802.3ae 10GBASE-SR: Defines the physical layer specifications for operation.
Quality Components: Premium modules use high-grade lasers and detectors to ensure low bit error rates (BER), signal integrity, and longevity. Choosing a reliable optical transceiver supplier (like LINK-PP) is paramount for network stability.
➤ Where is SFP-10G-SR Used? Key Applications
Data Center Interconnections: The primary home for SFP-10G-SR. Connecting top-of-rack (ToR) switches to aggregation or core switches within the same row or adjacent racks over OM3/OM4 cabling.
High-Performance Computing (HPC) Clusters: Providing low-latency, high-bandwidth links between servers and switches.
Enterprise Network Backbones: Upgrading core network segments within buildings or campuses where fiber runs are within 400 meters.
Storage Area Networks (SAN): Supporting protocols like 10G Fibre Channel (10GFC) over the same physical transceiver type.
Telecommunications Access Networks: Providing high-speed backhaul for cell towers or FTTx (Fiber to the x) aggregation points.
➤ Why Compatibility and Quality Matter
Not all SFP-10G-SR modules are created equal. While designed to standards, variations in manufacturing and component quality exist. Using poorly constructed or uncertified modules can lead to:
Intermittent link failures or instability
Reduced reach or failure to achieve specified distances
Potential damage to host equipment ports
Lack of reliable DDM data for proactive monitoring
Higher long-term failure rates
➤ LINK-PP: Your Trusted Partner for High-Performance Optical Transceivers
When sourcing your 10 gigabit multi-mode optical transceivers, LINK-PP stands out as a provider committed to excellence. Our LS-MM8510-S3C module exemplifies our dedication:
Full MSA Compliance: Guarantees seamless interoperability with major OEM switches and routers (Cisco, Juniper, Arista, HPE, Dell, Brocade, etc.). Always verify compatibility with your specific equipment model.
Rigorous Testing: Every module undergoes extensive pre- and post-production testing to ensure performance meets or exceeds IEEE 802.3ae specifications.
Premium Components: We utilize top-tier VCSELs and photodiodes for superior signal quality and reliability.
Comprehensive DDM/DOM Support: Provides accurate, real-time monitoring for proactive network management.
Competitive Pricing & Lifetime Warranty: Delivering exceptional value and peace of mind. Investing in a genuine quality SFP+ module saves costs associated with downtime and replacements.
Global Support: Expert technical assistance when you need it.

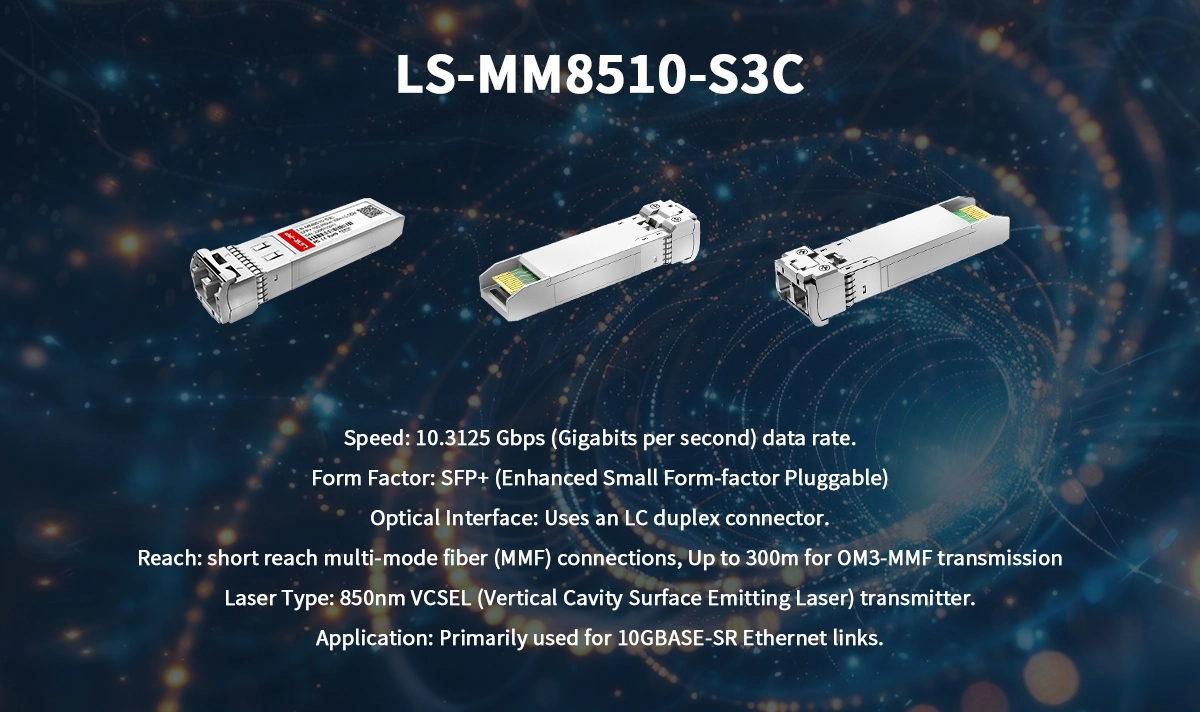

For LS-MM8510-S3C:
➤ Choosing Between SFP-10G-SR and Other 10G Optics
vs. SFP-10G-LR: LR (Long Reach) modules use single-mode fiber (SMF) and 1310nm lasers for distances up to 10km. Essential for longer runs, but SMF and LR modules are typically more expensive than MMF and SR modules. Choose SR for cost-effective intra-data center links.
vs. SFP-10G-T: The "T" stands for Twisted-pair (copper). These modules use standard Cat 6a/Cat 7 Ethernet cables but are limited to 30 meters and consume significantly more power than optical modules. SR is superior for distances beyond 30m and within data centers.
➤ Maximizing Your SFP-10G-SR Investment: Best Practices
Use Quality Fiber: Ensure you deploy OM3 or OM4 laser-optimized multi-mode fiber (LOMMF) for reliable performance up to the specified 300m/400m distances. Older OM1/OM2 fiber severely limits reach.
Inspect Connectors: Clean fiber connectors regularly using approved tools to prevent dust and contamination from causing signal loss (attenuation) or errors.
Verify Compatibility: While MSA-compliant, always check your equipment vendor's compatibility list or use a reputable third-party supplier like LINK-PP known for broad compatibility. Our SFP-10G-SR is engineered for maximum compatibility.
Monitor DDM/DOM: Leverage the diagnostic data to track transceiver health, identify potential issues like deteriorating connectors or marginal power levels before they cause outages. This is vital for maintaining optical transceiver performance.
Source Reputably: Avoid counterfeit or uncertified modules. Partner with established suppliers like LINK-PP who offer warranties and technical support.
➤ Conclusion: The Essential 10G Multi-Mode Workhorse
The SFP-10G-SR optical transceiver remains an indispensable solution for high-bandwidth, low-latency connections within data centers and enterprise networks where multi-mode fiber reigns supreme. Its balance of performance, reach, cost-effectiveness, and widespread compatibility ensures its continued relevance.
Ready to upgrade or expand your 10G infrastructure with reliable, high-performance optics?
Explore the proven quality and value of the LINK-PP-10G-SR-LC module today! Our LINK-PP experts are here to ensure you get the perfect compatible SFP+ transceiver for your specific needs.
➤ FAQ
What is the main use of the sfp-10g-sr transceiver?
The sfp-10g-sr transceiver sends data fast over short spaces. It is used a lot in data centers. It connects switches and servers together. It works best for short-range data jobs and short-reach uses.
How far can a cisco sfp-10g-sr module transmit data?
LINK-PP's sfp-10g-sr module can send data up to 300 meters with OM3 fiber. With OM4 fiber, it can go up to 400 meters. This distance is good for most data center and business network needs.
Why do data centers choose high-quality 10GBASE-SR SFP+ transceivers?
Data centers need fast and steady data speeds. Good 10GBASE-SR SFP+ transceivers give stable data and easy upgrades. These modules work for many uses and help keep networks strong.
Can sfp-10g-sr modules work in different application scenarios?
Yes, SFP-10G-SR modules work for many uses. They fit in data centers, business networks, and school campuses. These modules handle video, cloud, and storage jobs. Their design lets them work in many places.
What makes the 10GBASE-SR standard important for short-reach applications?
The 10GBASE-SR standard lets data move fast on multimode fiber. It is good for short-reach jobs in data centers and offices. This standard gives quick and steady links for fast networks.
