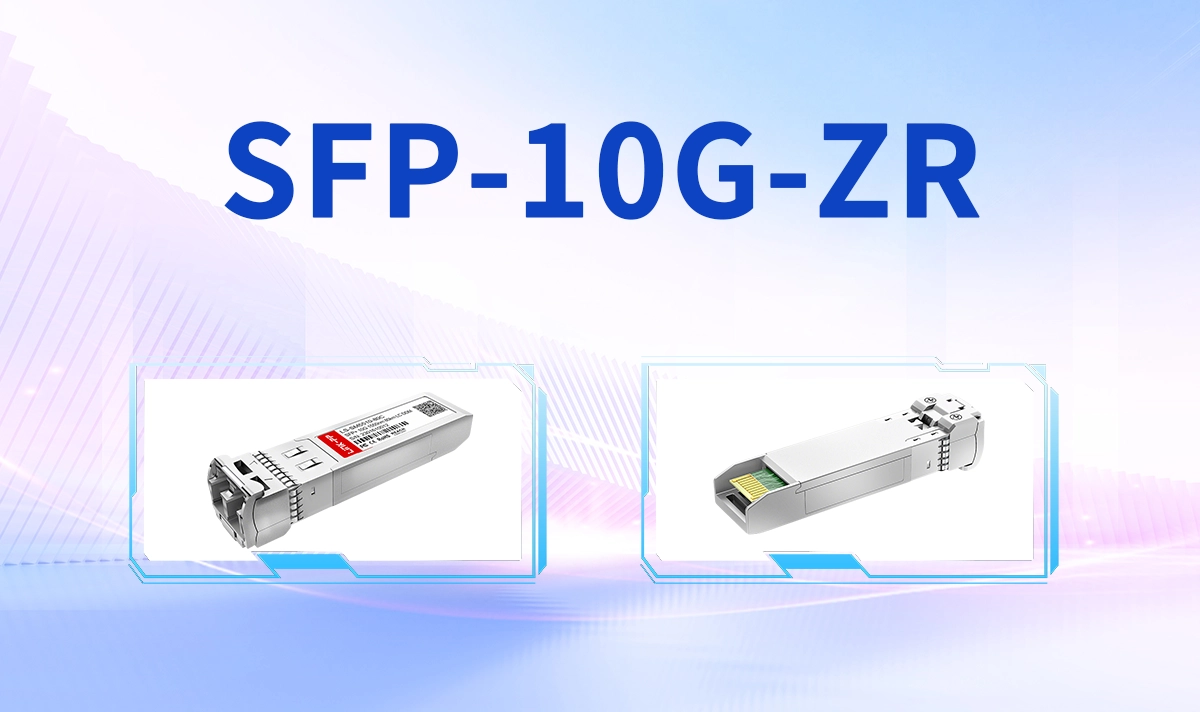

What is SFP-10G-ZR? Your Ultimate Guide to Long-Reach 10G Optics

In the demanding world of high-speed networking, bridging vast distances reliably requires specialized hardware. Enter the SFP-10G-ZR optical transceiver – a critical component engineered for long-haul 10 Gigabit Ethernet (10GbE) and 10G Fibre Channel connections. This guide delves deep into what the SFP-10G-ZR is, its technical specifications, core applications, key advantages, and how choosing a high-quality module like LINK-PP LS-SM5510-80C ensures optimal performance for your critical 80km optical links.

➣ What Exactly is an SFP-10G-ZR Module?

The SFP-10G-ZR is a hot-pluggable SFP+ form factor optical transceiver designed explicitly for 10 Gigabit per second (10Gbps) data transmission over single-mode fiber (SMF). Its defining characteristic is its extended reach, conforming to the 10GBASE-ZR standard, enabling links up to approximately 80 kilometers (km). Unlike shorter-reach SR/LR/ER optics, the ZR variant utilizes higher-power 1550nm lasers and often incorporates sophisticated Dispersion Compensation (DC) techniques to overcome signal degradation over such long distances.

Key Technical Specifications & Standards
Understanding the specs is vital for compatibility and deployment planning:

• Form Factor: SFP+

• Data Rate: 10.3125Gbps (10GbE), 10.51875Gbps (10G Fibre Channel)

• Standard: IEEE 802.3ae clause 52 (10GBASE-ZR) – Note: ZR is vendor-specified beyond the IEEE ER standard.

• Wavelength: 1550nm (Tx and Rx)

• Fiber Type: Single-Mode Fiber (SMF) exclusively (OS2 recommended)

• Max Reach: Up to 80km (Actual distance depends on fiber quality, splices, connectors, and module quality)

• Connector: Duplex LC

• Diagnostics: Digital Diagnostics Monitoring (DDM/DOM) support is crucial for real-time performance tracking on long-distance fiber optic links.

• Power Consumption: Typically higher than SR/LR modules (approx. 1.5W - 2.5W range).

➣ SFP-10G-ZR vs. Other Common 10G SFP+ Modules

➣ Why Choose SFP-10G-ZR? Core Applications & Advantages

This long-reach SFP+ module solves specific challenges:

1. Metropolitan Area Network (MAN) Links: Connecting geographically dispersed buildings, campuses, or data centers across a city or region without intermediate repeaters. Ideal for high-speed WAN connectivity.

2. Service Provider Backhaul: Aggregating traffic from cell towers or remote access points back to the core network over 80km optical links.

3. High-Speed Dark Fiber Connectivity: Utilizing leased dark fiber strands for dedicated, high-performance 10GbE point-to-point links over extended distances.

4. Disaster Recovery (DR) Site Connections: Establishing reliable, high-bandwidth links between primary and secondary data centers located tens of kilometers apart.

5. Replacing Legacy Long-Haul Equipment: Providing a cost-effective, standardized (SFP+) upgrade path for older long-distance systems.

Critical Advantages of the SFP-10G-ZR

• Extended Reach: The primary benefit – enabling 80km 10Gbps links over SMF.

• Standardized Form Factor: Hot-pluggable SFP+ compatibility ensures broad switch/router support.

• Cost-Effectiveness: Often cheaper than deploying multiple intermediate repeaters or specialized long-haul equipment.

• Simplified Network Design: Reduces complexity by eliminating regeneration sites over the 80km span.

• High Performance: Delivers reliable 10GbE data transmission for bandwidth-intensive applications over distance.

➣ Ensuring Success with Your SFP-10G-ZR Deployment

Deploying optics for 80km DWDM applications or demanding point-to-point links requires attention to detail:

• Fiber Quality & Inspection: Use OS2 single-mode fiber. Meticulously clean and inspect all connectors (LC) and fiber ends. Contamination is a major cause of failure, especially over long distances.

• Loss Budget Calculation: Accurately calculate your total link loss (fiber attenuation, connectors, splices). Ensure it is well within the transceiver's operating budget (Tx power - Rx sensitivity). Include a safety margin.

• Dispersion Management: For links approaching 80km, especially with older fiber, confirm if the specific SFP-10G-ZR module has integrated Dispersion Compensation or if external DC is needed. LINK-PP optical modules LS-SM5510-80C are engineered with robust dispersion tolerance.

• Quality Matters: Invest in genuine, high-quality optical transceivers from reputable manufacturers. Counterfeit or low-grade modules can lead to instability, reduced reach, and premature failure on critical long-haul fiber runs.

• DDM/DOM Monitoring: Actively monitor Tx/Rx power, temperature, and voltage via DDM/DOM for proactive maintenance and troubleshooting.

➣ Why Choose LINK-PP SFP-10G-ZR Modules?

When performance, reliability, and value for long-distance 10G connectivity are paramount, LINK-PP stands out:

• Rigorous Quality Control: Every LINK-PP SFP-10G-ZR undergoes extensive testing for optical performance, compliance, and interoperability, ensuring stability over demanding 80km DWDM networks and point-to-point links.

• Optimized Performance: Engineered with high-quality components for superior sensitivity, optimal dispersion tolerance, and low bit error rates (BER) across the full 80km range. Maximize your fiber optic link budget.

• Full DDM/DOM Support: Provides real-time visibility into module health and link performance for easier management and troubleshooting.

• Compatibility Guaranteed: Tested for broad compatibility with major networking equipment brands (Cisco, Juniper, HPE, Arista, Brocade, Dell, etc.).

• Cost-Effective Solution: Deliver carrier-grade long-reach SFP+ performance without the premium price tag of OEM modules.

• Expert Support: Access knowledgeable technical support for SFP+ transceiver selection and deployment guidance.

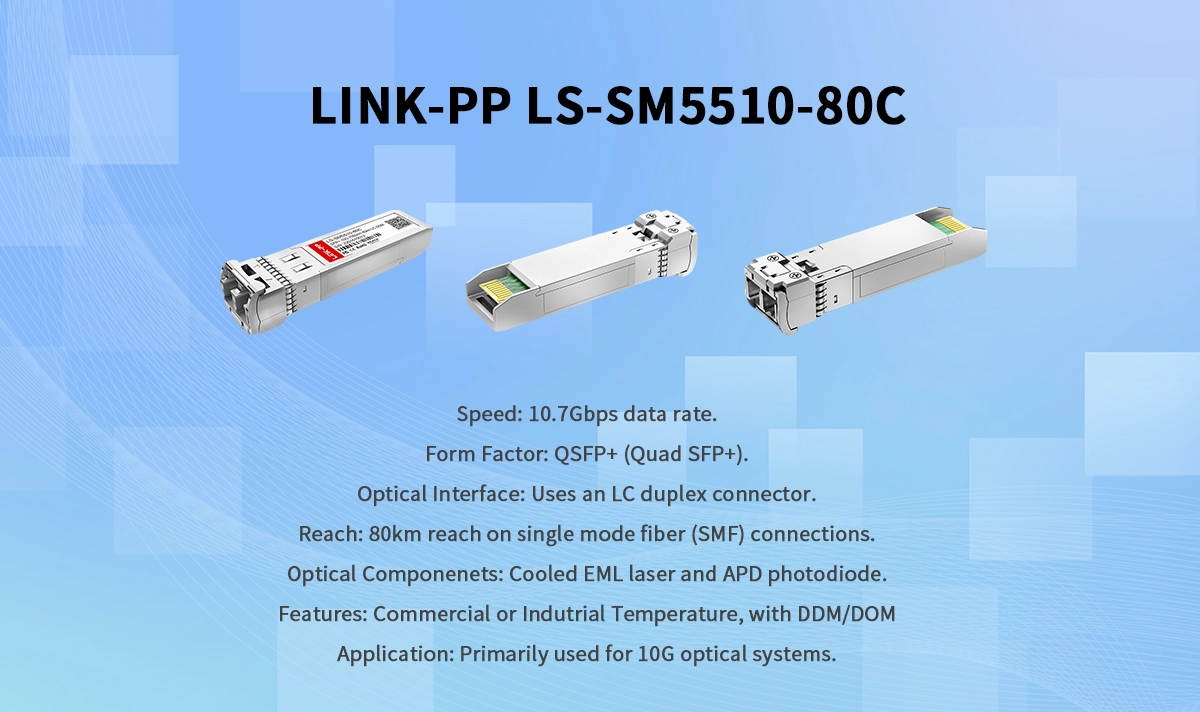

LINK-PP SFP-10G-ZR: Your Reliable Partner for 80km Links
Specifically designed to meet the rigorous demands of 10G ZR SFP applications, the LINK-PP LS-SM5510-80C optical transceiver delivers:

• Guaranteed 80km reach on OS2 SMF

• 1550nm wavelength operation

• Comprehensive DDM/DOM functionality

• Low power consumption design

• Industry-leading reliability and longevity

• Exceptional value proposition

➣ Conclusion: Mastering Long-Haul 10G with SFP-10G-ZR

The SFP-10G-ZR optical module is an indispensable tool for network engineers designing high-speed, long-distance infrastructure. Its ability to push 10GbE signals reliably up to 80km over single-mode fiber makes it ideal for MANs, service provider backhaul, dark fiber leases, and DR connectivity. Understanding its specifications, deployment requirements, and the critical importance of module quality is key to success.

Ready to deploy robust, cost-effective 80km 10G links?

Explore the high-performance LINK-PP SFP-10G-ZR optical transceiver today!

☛ LINK-PP LS-SM5510-80C

☛ Request a Quote

➣ FAQ

What is the maximum distance for SFP-10G-ZR modules?

SFP-10G-ZR modules can send data up to 80km. Some special models can go as far as 120km. You should always check the datasheet for the right distance.

Can SFP-10G-ZR work with non-Cisco devices?

Yes, SFP-10G-ZR modules can work with other brands. The device must follow SFP+ rules. It also depends on the firmware and support from the vendor. Always look at the device manual to be sure.

What fiber type does SFP-10G-ZR require?

SFP-10G-ZR modules need single-mode fiber. The fiber core is usually 8 to 10 micrometers wide. The module uses a duplex LC connector to plug in.

Does SFP-10G-ZR support digital diagnostics?

Yes. SFP-10G-ZR modules have Digital Diagnostics Monitoring. This lets teams check temperature, optical power, and voltage right away.

How should teams maintain SFP-10G-ZR modules?

• Clean the fiber connectors often.

• Watch the module’s temperature and power.

• Use good single-mode fiber cables.

• Update the device firmware when needed.

Taking care of the module helps it work well for long distances.
