This guide explores the SFP-1G-LX transceiver, a critical solution for 1 Gigabit Ethernet over single-mode fiber (SMF) up to 10km. Learn its technical specs, compare it to other optics (like SX), understand key applications, and discover why choosing reliable brands like LINK-PP ensures network performance, cost savings, and seamless scalability.
➣ The Essential Role of SFP-1G-LX in Modern Networks
Demanding reliable, high-speed data transmission over longer distances is non-negotiable. Enter the SFP-1G-LX transceiver – the industry-standard workhorse for 1 Gigabit Ethernet connectivity over single-mode fiber (SMF). Designed for spans up to 10 kilometers, this compact, hot-pluggable module bridges gaps efficiently where copper cabling fails and shorter-range optics (like SX) fall short.

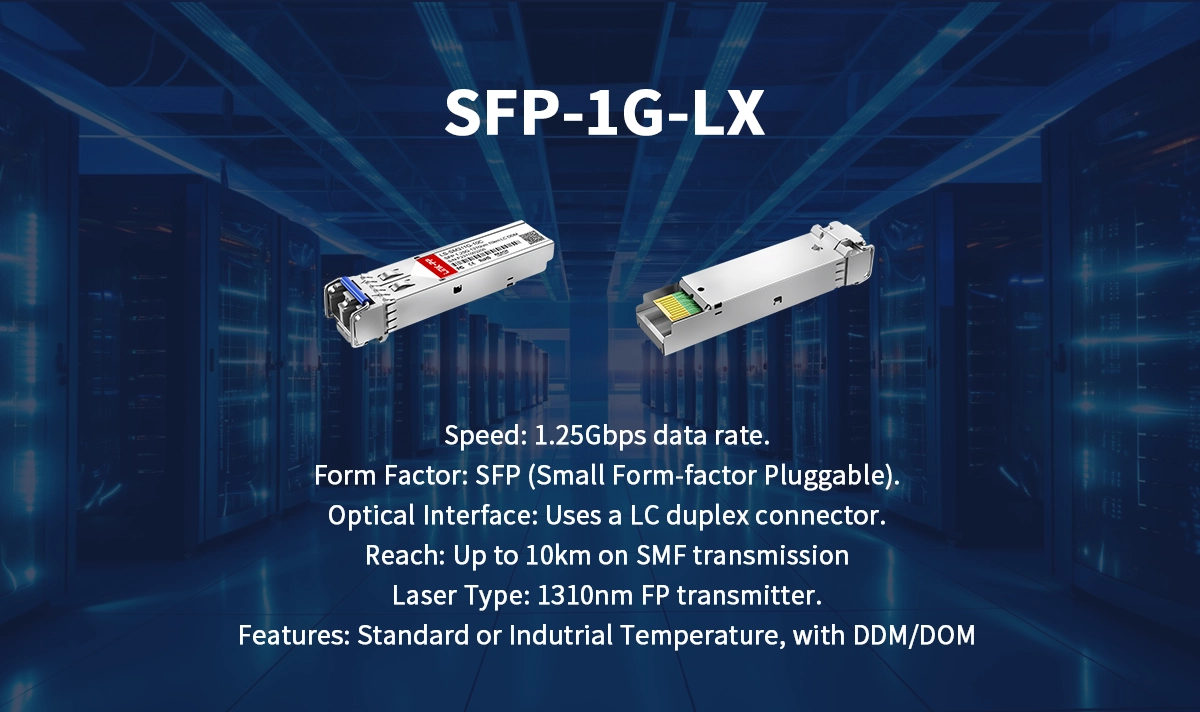

Technical Deep Dive: What is SFP-1G-LX?
Standard: Compliant with IEEE 802.3z 1000BASE-LX.
Interface: Duplex LC connector.
Wavelength: 1310nm laser.
Fiber Type: Single-Mode Fiber (SMF) (Core: 9µm).
Max Distance: 10 kilometers (6.2 miles) - the defining advantage.
Data Rate: 1.25Gbps (Gigabit Ethernet).
Form Factor: SFP (Small Form-factor Pluggable), ensuring broad switch/router compatibility.
DOM Support: Most modern LX modules support Digital Optical Monitoring (DOM) for real-time diagnostics (Tx/Rx power, temperature, voltage).
➣ Why Choose LX Over Other Options? The Distance Factor
The key differentiator lies in reach and fiber type. Compare:
Feature | Copper SFP (1000BASE-T) | ||
|---|---|---|---|
Fiber Type | Single-Mode (SMF) | Multi-Mode (MMF) | Cat5e/Cat6 |
Wavelength | 1310nm | 850nm | N/A |
Max Distance | Up to 10km | Up to 550m (OM3) | Up to 100m |
Primary Use | Campus links, MAN, | Data center racks, | Desktops, short |
ISP backhaul, WAN | intra-building | server links | |
Cost (Fiber) | Higher (SMF cable) | Lower (MMF cable) | Lowest |
Crucial Applications for SFP-1G-LX Modules
Connecting Buildings: Link offices across a campus or industrial park within the 10km range.
Service Provider Access Networks: Deliver Gigabit services from central offices (COs) to customer premises.
Long-Distance Switch Interconnects: Connect core, distribution, and access layer switches over SMF infrastructure.
Wireless Backhaul: Connect cell towers or Wi-Fi access points to the core network.
Security Systems: Link high-resolution IP cameras over large areas like airports, factories, or city centers.
➣ Choosing the Right Module: Compatibility & Quality Matter
While SFP-1G-LX follows the Multi-Source Agreement (MSA) standard, ensuring physical interchangeability, compatibility with your specific switch or router brand (Cisco, Juniper, HPE, Brocade, etc.) is paramount. Using coded modules programmed for your equipment avoids potential link issues.
Investing in quality is non-negotiable. Cheap, uncertified modules risk:
Link instability and downtime
Damage to expensive switch ports
Higher total cost of ownership (TCO) due to replacements
Discover LINK-PP: Your Partner for Reliable, Cost-Effective Optics
For high-performance, fully compatible SFP-1G-LX modules backed by rigorous testing and lifetime warranties, look no further than LINK-PP. We specialize in premium third-party optics that deliver 100% functionality at a fraction of OEM costs.
Featured LINK-PP SFP-1G-LX Solutions:
LINK-PP LS-SM311G-10C: Our standard MSA-compliant LX module, ideal for broad compatibility.
SFP-1G-LX CISCO Solution: Specifically coded for seamless integration with Cisco Catalyst/Nexus switches.
➣ Installation & Best Practices
Verify Compatibility: Ensure the module is coded for your specific switch/router model.
Clean Fiber Connectors: Use proper LC fiber cleaning tools. Contamination is the #1 cause of link failure!
Handle with Care: Avoid touching the gold-plated electrical contacts or the optical bore. Use an ESD wrist strap.
Insert Firmly: Push the module fully into the SFP cage until it clicks.
Connect Fiber: Insert cleaned LC duplex patch cables until they click. Ensure polarity (Tx to Rx).
Verify Link & DOM: Check the switch interface status and monitor DOM values (if supported) for optimal Tx/Rx power levels.
➣ Beyond Gigabit: Is SFP-1G-LX Still Relevant?
Absolutely! While 10G, 25G, and beyond are growing, Gigabit Ethernet remains the dominant standard for countless access networks, industrial applications, and cost-sensitive deployments requiring distances beyond copper or multi-mode capabilities. The SFP-1G-LX provides a proven, reliable, and cost-effective solution for these essential long-links. Upgrading fiber infrastructure to SMF ensures readiness for future higher-speed LX optics (like 10G-LR) when needed.
Ready to Optimize Your Fiber Links?
Don't let distance limitations throttle your network. LINK-PP SFP-1G-LX modules deliver the reliability, performance, and value you need for robust long-distance Gigabit Ethernet connectivity.
>> Browse our certified, high-quality SFP-1G-LX modules at LINK-PP today! [Techniacal Datasheet ➞]
>> Need help selecting the right optic or ensuring compatibility? Contact our expert team for a free consultation! [Technical Support ➞]
>> Upgrade your network backbone with confidence – Choose LINK-PP for all your fiber transceiver needs! [Optical Module Page ➞]
