If you've ever been tasked with procuring long-range fiber optic transceivers, you've likely encountered the confusingly similar part numbers: SFP-1G-ZX and SFP-1G-EZX. While both promise to extend your network reach up to 80 kilometers, they are not identical.
Choosing the wrong one can lead to performance issues, compatibility headaches, or unnecessary costs. In this definitive guide, we'll decode the differences, explore their specifications, and help you make an informed decision. Let's dive in!
🏆 Key Takeaways
Pick SFP-1G-ZX if you need up to 80km. It saves money for city networks and big campuses.
Use SFP-1G-EZX for distances up to 100km. This module works best for very long connections.
Always check how far your network needs to reach before you pick an sfp module. This helps your network work well and stay reliable.
Both modules give gigabit speeds and use the same wavelength. They are good for fast data transfer.
Make sure your equipment works with the module, especially with Cisco devices. This stops problems and keeps things running smoothly.
🏆 The Core Difference: It's All About the Receiver Sensitivity
At first glance, both modules are 1000BASE-ZX SFP transceivers operating on a single-mode fiber (SMF) at a wavelength of 1550nm. The key distinction lies in their internal design and, most importantly, their receiver sensitivity.
SFP-1G-ZX: This is the standard 80km transceiver. It uses a standard PIN photodiode receiver.
SFP-1G-EZX (Enhanced ZX): This is the enhanced version. It typically incorporates an APD (Avalanche Photodiode) receiver. APD receivers are more sensitive, meaning they can detect weaker light signals traveling over long distances.
This fundamental difference in receiver technology cascades into several practical implications for your network deployment.
🏆 Head-to-Head Comparison: SFP-1G-ZX vs. SFP-1G-EZX
To make the differences crystal clear, let's break them down in a side-by-side table.
Feature | SFP-1G-ZX | SFP-1G-EZX (Enhanced) | Winner & Analysis |
|---|---|---|---|
Form Factor | SFP (1G) | SFP (1G) | Tie - Both are standard SFP modules. |
Fiber Type | Single-Mode (SMF) | Single-Mode (SMF) | Tie - Both require 9/125µm single-mode fiber. |
Wavelength | 1550nm TX / 1550nm RX | 1550nm TX / 1550nm RX | Tie - Standard wavelength for long-haul transmission. |
Max Distance | ~80 km | ~100 km | Tie - Both are marketed for 80km reach. |
Receiver Type | PIN Photodiode | APD (Avalanche Photodiode) | EZX - APD offers superior receiver sensitivity. |
Receiver Sensitivity | Typically around -23dBm | Typically -28dBm or better | EZX - Can detect much fainter signals, crucial for marginal links. |
Transmit Power | 0 to +5dBm | -5 to 0dBm | Contextual - EZX doesn't need as much power due to its sensitive receiver. |
Power Consumption | Lower | Slightly Higher | ZX - APD receivers require a higher bias voltage. |
Cost | Generally Lower | Generally Higher | ZX - The simpler PIN receiver design is less expensive. |
Use Case | Stable, well-planned fiber links with low attenuation. | Challenging links with higher splice/connector loss, older fiber, or variable conditions. | Contextual - EZX is the "insurance policy" for difficult deployments. |
When to Choose SFP-1G-ZX
Choose the standard SFP-1G-ZX module if:
Your fiber optic path is well-characterized and has low signal loss (attenuation).
The link is relatively new with high-quality splices and connectors.
Your budget is a primary concern, and you are confident the standard module will suffice.
You are replacing an existing ZX module that worked perfectly.

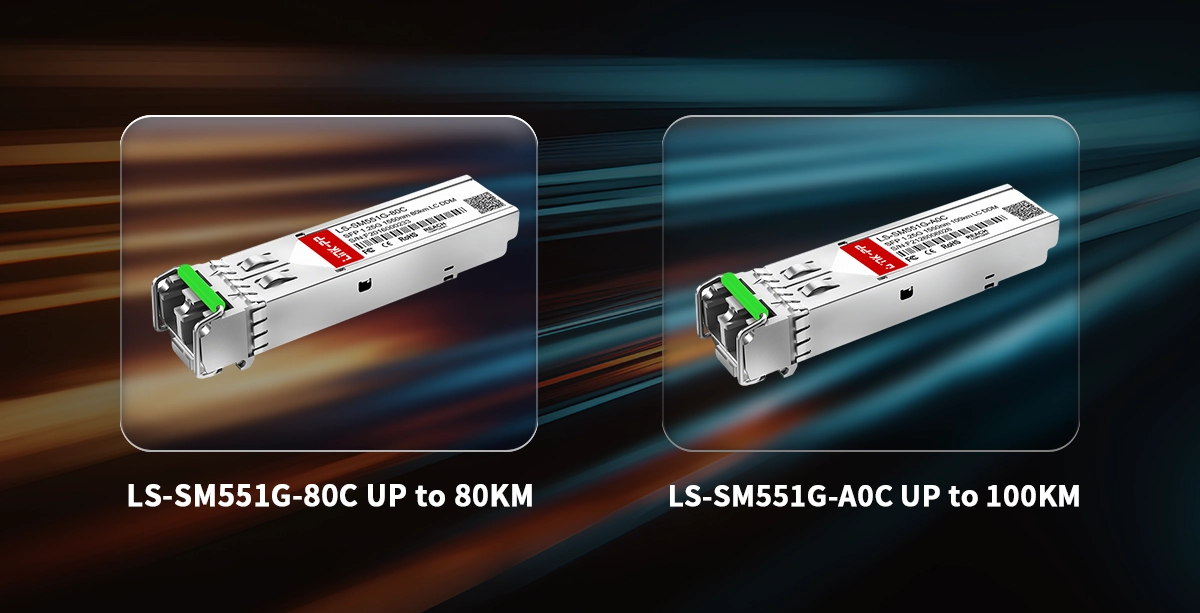

A reliable and cost-effective option for this scenario is the LINK-PP LS-SM551G-80C, known for its compatibility and stable performance in standard 80km applications.
When to Choose SFP-1G-EZX (Enhanced)
Opt for the enhanced SFP-1G-EZX module if:
You are pushing the maximum distance and are concerned about link margin.
Your fiber infrastructure is older, has many splices, or has higher-than-expected attenuation.
You need a "set-it-and-forget-it" solution for a critical link where reliability is paramount.
Environmental factors might cause minor fluctuations in fiber performance.
For these demanding scenarios, the LINK-PP LS-SM551G-A0C is engineered to provide that extra margin of safety. Its superior receiver sensitivity ensures a stable and robust connection even on less-than-perfect fiber lines, making it a premier choice for mission-critical network links.
🏆 Conclusion and Final Recommendation
So, which one should you choose?
For cost-efficiency and proven links: The standard SFP-1G-ZX is a perfect fit.
For performance margin and challenging conditions: The enhanced SFP-1G-EZX is worth the extra investment.
Always remember to calculate your fiber link budget before purchasing. If the total loss (fiber attenuation + splice loss + connector loss) is close to the maximum allowed by a ZX module, upgrading to an EZX module is a wise and proactive decision.
Still Unsure About Your Link Budget?
Don't leave your network performance to chance. Browse our extensive selection of certified SFP-1G-ZX and SFP-1G-EZX modules at LINK-PP. Our technical experts can help you analyze your needs and recommend the perfect transceiver for your specific infrastructure. Ensure unwavering reliability—choose LINK-PP for your high-performance fiber optic connectivity needs.
Explore LINK-PP Transceivers Now!
🏆 FAQ
What is the main difference between SFP-1G-ZX and SFP-1G-EZX?
You will see the biggest difference in distance. Sfp-1g-zx supports up to 80km. Sfp-1g-ezx reaches up to 100km. Both use the same speed and wavelength.
Can I use both modules in the same network?
Yes, you can use both modules in one network if your devices support them. Just make sure each link matches the right distance for the module.
Which module should I choose for future network growth?
If you plan to expand your network over longer distances, pick sfp-1g-ezx. It gives you more range and flexibility for future upgrades.
Are SFP-1G-ZX and SFP-1G-EZX compatible with Cisco switches?
You can use both modules with most Cisco switches. Always check your switch model for compatibility before you buy.
Do both modules support the same data rate?
Yes, both sfp-1g-zx and sfp-1g-ezx support 1.25Gbps (1000base). You get the same gigabit speed with either module.
