In today's data-driven landscape, the demand for reliable, high-bandwidth network connections is non-negotiable. Whether you're managing a bustling data center, ensuring seamless campus connectivity, or upgrading enterprise backbone links, 10 Gigabit Ethernet (10GbE) has become a fundamental requirement. At the heart of many of these deployments lies a critical yet often understated component: the SFP-10G-LR optical transceiver. This compact powerhouse enables high-speed data transmission over significant distances, forming the optical lifelines of modern networks. Understanding its capabilities and selecting the right module is paramount for optimal network performance and cost efficiency.
➤ What is an SFP-10G-LR Optical Transceiver?
The SFP-10G-LR is a hot-pluggable, industry-standard small form-factor pluggable module designed for 10 Gigabit per second data rates. It belongs to the SFP+ (Enhanced Small Form-Factor Pluggable) family. The "LR" designation stands for Long Reach, indicating its primary function: transmitting 10GbE signals over single-mode fiber (SMF) optic cables for distances up to 10 kilometers (approximately 6.2 miles).
Form Factor: SFP+ (Same physical size as SFP, but supporting 10Gbps speeds).
Data Rate: 10.3125 Gbps (10 Gigabit Ethernet).
Reach: Up to 10 kilometers.
Fiber Type: Single-Mode Fiber (SMF) (Core diameter typically 9µm).
Wavelength: 1310nm laser.
Connector: Duplex LC.
Standard Compliance: IEEE 802.3ae 10GBASE-LR.
Applications: Data center interconnects (DCI), metropolitan area networks (MAN), enterprise backbone networks, high-speed switch-to-switch links, router uplinks.
➤ Why Choose SFP-10G-LR? Key Advantages
Cost-Effective Long Reach: Provides the most economical solution for 10Gbps transmission up to 10km, significantly cheaper than ZR or ER options for this distance.
Ubiquitous Standardization: As a mature IEEE standard (10GBASE-LR), it ensures multi-vendor interoperability. Modules from reputable manufacturers like LINK-PP are rigorously tested to work seamlessly in equipment from Cisco, Juniper, HPE, Arista, Dell, and others.
High Performance & Low Latency: Engineered for reliable, low bit-error-rate (BER) transmission critical for latency-sensitive applications.
Density & Flexibility: The compact SFP+ form factor allows network switches and routers to support a high number of ports, maximizing rack space utilization.
Lower Power Consumption: Compared to earlier 10G modules or those designed for longer reaches, SFP-10G-LR modules generally consume less power, contributing to lower operational costs and cooler running temperatures.

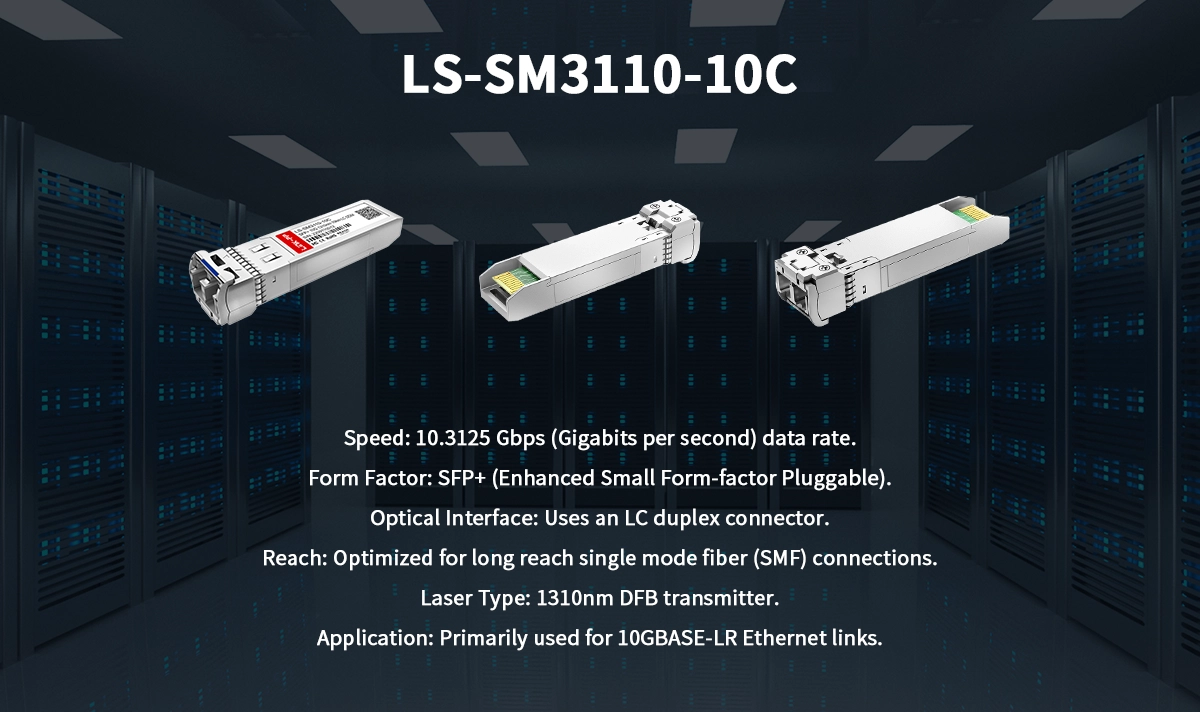

➤ Technical Specifications Deep Dive
Understanding the core specifications is vital for deployment planning:
Laser Class: Typically Class 1 Laser Product (IEC 60825-1), safe under normal operating conditions. Always check the specific module's safety certification.
Diagnostics: Most modern SFP-10G-LR modules, including LINK-PP SFP-10G-LR, support Digital Diagnostics Monitoring (DDM) or Digital Optical Monitoring (DOM). This allows real-time monitoring of parameters via SNMP or CLI:
Transceiver temperature
Laser bias current
Transmitted optical power
Received optical power
Transceiver supply voltage
This enables proactive network management and fault isolation.
Power Consumption: Usually ranges between 0.8W and 1.5W. LINK-PP modules are optimized for efficiency.
Operating Temperature: Commercial (0°C to 70°C), Industrial (-40°C to 85°C), or Extended ranges available depending on model. Choose based on environment.

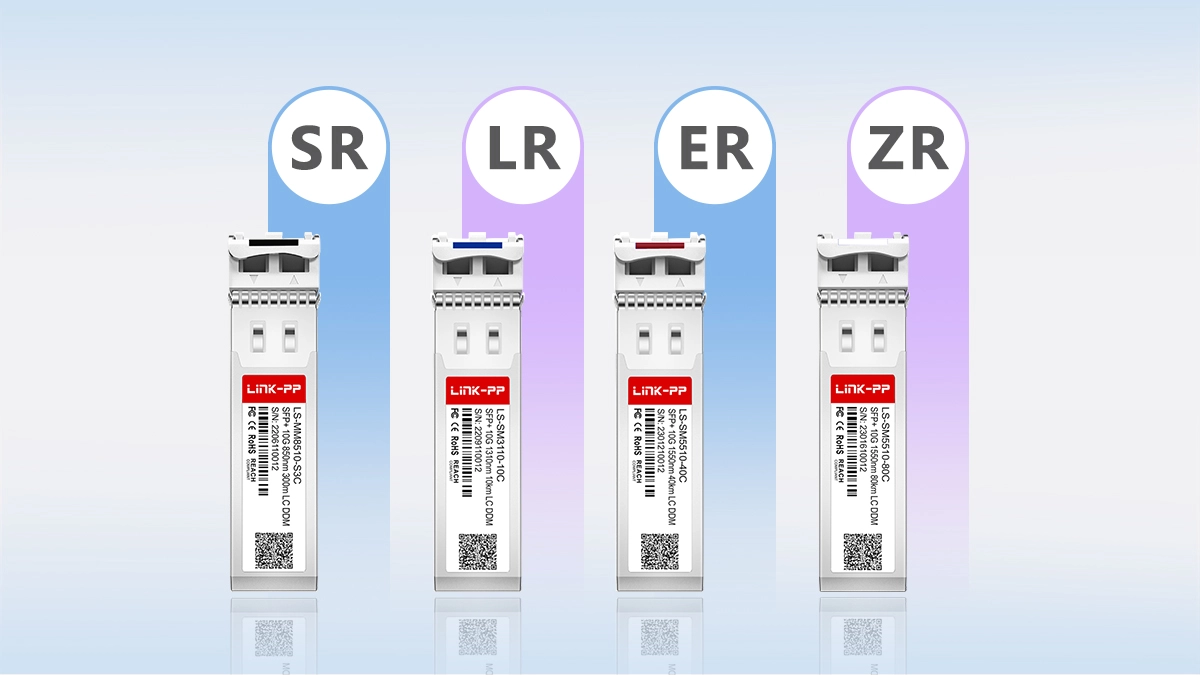

➤ SFP-10G-LR vs. Other Common 10G SFP+ Modules
Feature | SFP-10G-LR | SFP-10G-SR | SFP-10G-LRM | SFP-10G-ER | SFP-10G-ZR |
|---|---|---|---|---|---|
Reach | Up to 10km | Up to 300m | Up to 220m | Up to 40km | Up to 80km |
Fiber Type | Single-Mode (SMF) | Multi-Mode (MMF) | Multi-Mode (MMF) | Single-Mode (SMF) | Single-Mode (SMF) |
Wavelength | 1310 nm | 850 nm | 1310 nm | 1550 nm | 1550 nm |
MMF Type | N/A | OM3/OM4 | OM1/OM2/OM3 | N/A | N/A |
Key Use Case | Standard Long Haul | Short Reach Data Center | Legacy MMF Installations | Extended Reach | Very Long Haul |
➤ Essential Applications for SFP-10G-LR Optical Transceivers
Data Center Interconnects (DCI): Linking geographically separate data center buildings or floors within large campuses over SMF.
Metropolitan Area Networks (MAN): Connecting business offices or Points of Presence (PoPs) within a city.
Enterprise Network Backbones: High-speed uplinks between core switches and distribution switches/routers.
Service Provider Access/Aggregation: Providing high-bandwidth connections for business customers or aggregating traffic.
High-Performance Computing (HPC) Clusters: Interconnecting nodes requiring low latency and high throughput.
Fiber to the Tower (FTTT) / Mobile Backhaul: Transporting cellular traffic from cell towers to the core network.
➤ Choosing the Right High-Quality Optical Transceiver: Why Brand Matters
While the SFP-10G-LR standard ensures interoperability, the quality, reliability, and longevity of the optical transceiver module itself vary significantly. Choosing a reputable manufacturer like LINK-PP is crucial:
Rigorous MSA Compliance: Ensures seamless compatibility with major OEM equipment.
Extensive Testing: Modules undergo exhaustive testing for performance, interoperability, and environmental resilience.
Quality Components: Use of high-grade lasers, PCBs, and connectors ensures signal integrity and long operational life.
Full DOM/DDM Support: Accurate monitoring for proactive network health management.
Comprehensive Warranty & Support: Peace of mind and expert assistance when needed.
Cost Savings: High-quality compatible modules like the LINK-PP SFP-10G-LR offer significant savings over OEM equivalents without sacrificing performance or reliability.

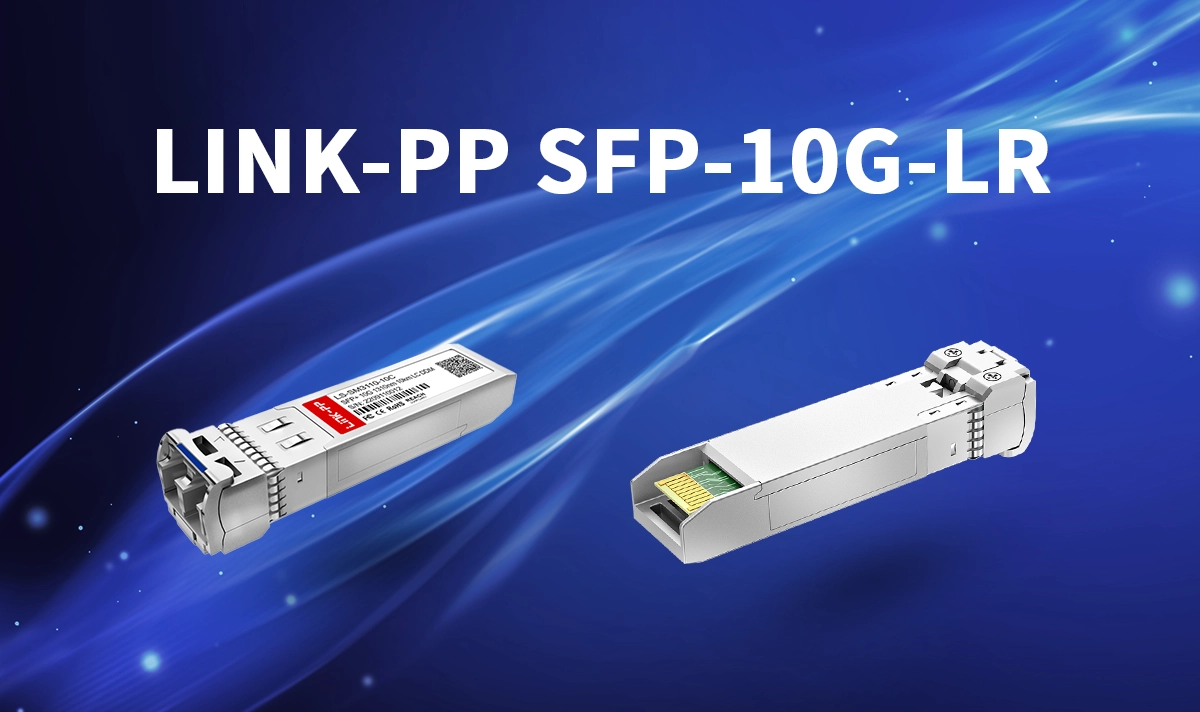

➤ Optimizing Your Network with LINK-PP SFP-10G-LR
The LINK-PP SFP-10G-LR exemplifies the commitment to quality and performance expected from a leading optical transceiver supplier. Engineered to strict standards, it delivers:
Guaranteed Compatibility: Tested across a vast array of switches and routers.
Superior Optical Performance: Low BER and stable transmission over the full 10km distance.
Robust DOM Functionality: Real-time monitoring for temperature, voltage, Tx/Rx power.
Low Power Consumption: Designed for energy efficiency (typically < 1W).
Commercial and Extended Temperature Options: Versatile for various deployment environments.
Industry-Leading Warranty & Support: Backed by responsive technical expertise.
➤ Installation Best Practices
Check Compatibility: Always verify the module is compatible with your specific switch/router model using the vendor's compatibility list. LINK-PP provides comprehensive lists.
Inspect Fiber: Ensure SMF patch cables (LC-LC) are clean (use a fiber scope), undamaged, and meet specifications. Contamination is a leading cause of failure.
Handle with Care: Avoid touching the gold-plated electrical contacts or the optical bore. Use an ESD wrist strap.
Insert Firmly: Push the module straight into the port until it clicks securely into place.
Verify Link & Monitor: Check the port status lights and use CLI/SNMP to verify link establishment and monitor DOM values (Tx Power, Rx Power).
➤ Troubleshooting Common Issues
No Link Light:
Verify module compatibility.
Ensure the module is fully seated.
Check for and clean contaminated fiber connectors.
Verify correct fiber type (SMF) and cable integrity.
Check Tx Power (should be within spec) and Rx Power (should be above receiver sensitivity).
Intermittent Link/High Errors:
Clean fiber connectors meticulously.
Check for damaged fiber cables or connectors (bends, breaks).
Verify DOM values (especially Rx Power - might be too low or too high causing saturation).
Check module temperature.
DOM Values Not Reading:
Ensure the host device supports DOM/DDM.
Verify compatibility (some older hosts have limited support).
➤ The Future of 10G Connectivity
While faster technologies like 25G, 40G, 100G, and 400G are proliferating, 10 Gigabit Ethernet remains a massively deployed and essential speed tier. The SFP-10G-LR optical transceiver continues to be a vital workhorse for cost-effective, high-performance connections over distances up to 10km. Its maturity, reliability, and affordability ensure its relevance for years to come, especially in aggregation, metro, and enterprise backbone applications. Choosing high-quality, compatible modules is key to maximizing network uptime and return on investment.
Ready to Deploy Reliable, Cost-Effective 10G Links?
Don't let subpar optical components become the weak link in your high-speed network. Ensure optimal performance, reliability, and value for your 10GBASE-LR deployments.
Explore the high-performance LINK-PP SFP-10G-LR optical transceiver today! Our modules are rigorously tested for compatibility with all major brands and backed by exceptional support.
➤ FAQ
What devices support the sfp-10g-lr module?
Most switches and network cards with SFP+ ports can use this module. Always look at your device’s manual before you install it. You should also check the vendor’s list to be sure it works.
Can I use sfp-10g-lr with multimode fiber?
You should not use this module with multimode fiber. It is made for single-mode fiber and LC connectors. Using the wrong fiber can make the link fail or work badly.
How do I check sfp-10g-lr compatibility with my switch?
Read your switch’s manual to see if it supports this module. You can also look at the vendor’s compatibility chart. These will tell you if you need special firmware.
What should I do if my sfp-10g-lr module is not recognized?
Check that you put the module in the right way. Clean the connectors and make sure there is no dust. Update your device’s firmware and check the compatibility list. If it still does not work, try another module or ask support for help.
