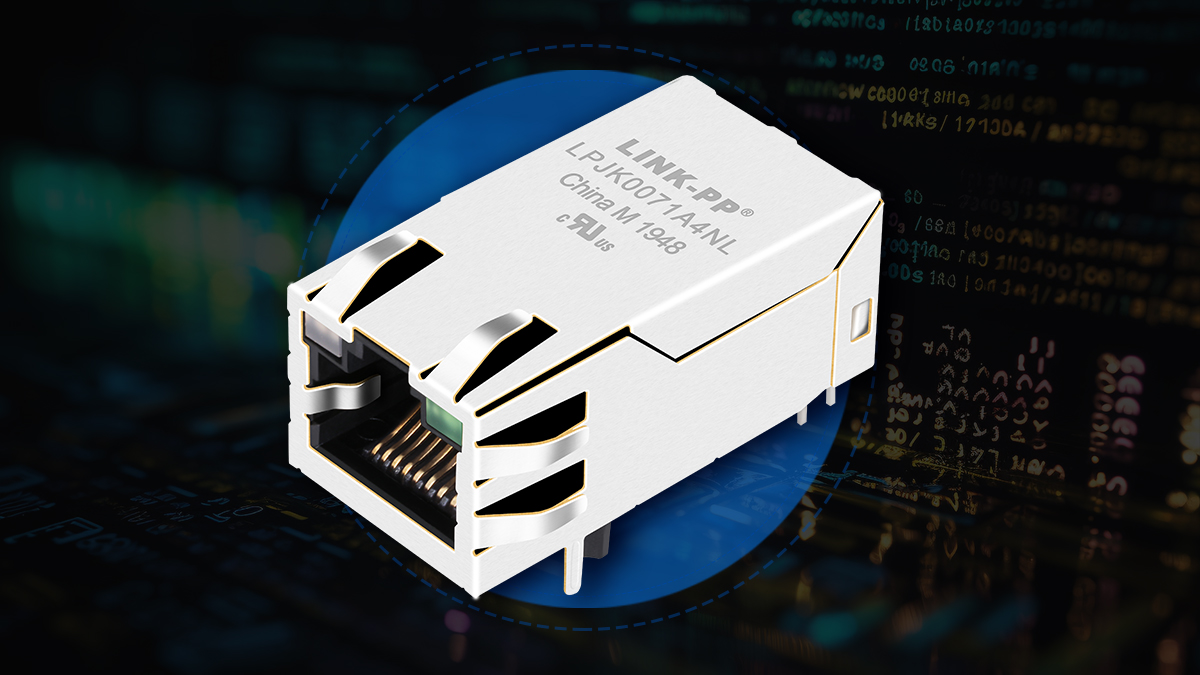

The LINK-PP LPJK0071AINL is a 1000 Base-T RJ45 connector designed to deliver exceptional performance in Ethernet and networking environments. It supports speeds of 100/1000 Base-T, making it ideal for high-speed data transmission. You can rely on its compliance with IEEE 802.3, UL, RoHS, and REACH standards, ensuring both quality and safety.

This 100/1000 base-t RJ45 Magjack excels in demanding applications like digital cameras, routers, and industrial automation. Its high-reliability LAN transformers ensure stable connections, meeting the needs of enterprise networks, data centers, and IoT systems. With low insertion loss and high return loss, the LPJK0071AINL guarantees superior signal integrity.

Key Features of the 100/1000 Base-T RJ45 Magjack

Supported Ethernet Speeds and Standards

The LINK-PP LPJK0071AINL supports Ethernet speeds of 10/100/1000 Base-T, making it a versatile choice for various networking applications. Whether you're working on a high-speed data center or a standard industrial network, this magjack ensures reliable performance. Its compliance with IEEE 802.3 standards guarantees compatibility with modern Ethernet protocols, allowing you to integrate it seamlessly into your projects.

Integrated Magnetics and EMI Shielding

One of the standout features of this 1000 Base-T RJ45 connector is its integrated magnetics. These components play a critical role in maintaining signal integrity by reducing noise and ensuring stable data transmission. The LPJK0071AINL also includes EMI shielding tabs, which minimize electromagnetic interference. This shielding is essential for maintaining high-speed data transfer in environments with multiple electronic devices.

Physical Design and Durability

The physical design of the LPJK0071AINL is both practical and robust. Its 90-degree angle orientation and tab-up configuration make it easy to install on PCBs, even in compact spaces. The through-hole mounting type ensures a secure connection, reducing the risk of dislodgment during operation.

Durability is another key aspect of this RJ45 Connector with Magnetics. It operates reliably within a temperature range of 0℃ to 70℃, making it suitable for various environmental conditions. The connector also features 12 positions and 8 contacts (12p8c), ensuring compatibility with standard Ethernet cables.

Here’s a quick overview of its specifications:

LED Indicators and Usability

The LED indicators on the LINK-PP LPJK0071AINL play a vital role in simplifying network management. These small yet powerful lights provide real-time feedback about the status of your connection. You can quickly identify whether the device is connected, transmitting data, or experiencing issues. This feature makes troubleshooting faster and more efficient.

The connector includes dual-color LEDs in yellow and green. Each color serves a specific purpose. For example, the green LED often indicates a successful link, while the yellow LED signals data activity. This visual feedback allows you to monitor your network without needing additional tools or software. It’s especially useful in environments where multiple devices are connected, such as data centers or industrial setups.

Tip: Use this connector for applications requiring stable data transmission and compact PCB layouts. Its durability and cost-effectiveness make it a smart choice for large-scale projects.

Comparison to Alternatives in the RJ45 Magjack Market

Competitors and Compatibility

When choosing an RJ45 connector, you may encounter several alternatives in the market. Competitors like Belfuse, Halo, and Pulse offer similar products, but not all deliver the same level of performance. The LINK-PP LPJK0071AINL stands out due to its compliance with IEEE 802.3 standards and its robust design. This ensures compatibility with a wide range of Ethernet applications, from industrial automation to IoT devices.

The LPJK0071AINL also integrates seamlessly into existing setups. Its compact design and through-hole mounting make it easy to install on high-density PCBs. If you’re working with devices like routers or network firewalls, this connector ensures reliable performance. Its compatibility with other leading brands, such as Belfuse 0826-1K1T-23-F , Halo HFJT1-1G20C3-L51RL and Pulse JK0654218Z, adds to its versatility.

Unique Advantages of the LINK-PP LPJK0071AINL

The LINK-PP LPJK0071AINL offers unique advantages that set it apart from competitors. Its integrated magnetics and EMI shielding ensure stable data transmission, even in environments with high electromagnetic interference. You’ll appreciate its dual-color LED indicators, which provide real-time feedback on connection status. This feature simplifies troubleshooting and enhances usability.

Another standout feature is its durability. The connector operates reliably within a temperature range of 0℃ to 70℃, making it suitable for various environmental conditions. Its gold-plated contacts and high-temperature thermoplastic housing ensure long-lasting performance. These features make the LPJK0071AINL a dependable choice for demanding applications.

Here’s a quick overview of LINK-PP Advantages:

Cost-Effectiveness and Value Proposition

The LINK-PP LPJK0071AINL offers excellent value for its price. At $4.762 per unit, it provides high-quality performance at a competitive cost. Bulk pricing further enhances its affordability, with prices dropping to $2.239 per unit for orders of 6,000 pieces. This makes it an economical option for large-scale projects.

Avoiding RJ45 Magjack Design Mistakes

PCB Layout Considerations

Proper PCB layout is key to optimizing RJ45 magjack performance. Focus on controlled impedance for differential pairs and minimize EMI by careful routing and grounding. Avoid placing ground planes directly under RX/TX lines unless using common mode capacitors. For Ethernet, 2- or 4-layer stacks with ground planes and power islands are recommended. Use surface copper pour cautiously to avoid affecting impedance. Extend system ground to the connector edge for improved signal integrity and noise reduction.

Grounding and Shielding Best Practices

Effective grounding and shielding are essential for reliable network connections. Always bond the cable shield to the grounded chassis or rack at each access point to prevent ground loops. Regular visual checks help catch issues early. At the workstation, use a true RMS multimeter to check for potential differences between outlet ground and the shielded module, ensuring proper continuity. These practices help avoid grounding-related RJ45 Magjack design errors and support stable performance.

Performance Test ensuring Optimal Performance in High-Speed Applications

FAQ

What is the purpose of the LINK-PP LPJK0071AINL in a network setup?

This RJ45 magjack ensures stable connections for high-speed Ethernet networks. It supports 100/1000 Base-T speeds and minimizes interference, making it ideal for industrial setups, IoT devices, and automation systems.

How does the pinout of the LPJK0071AINL affect its functionality?

The pinout defines the arrangement of its 12 positions and 8 contacts. This configuration ensures compatibility with Ethernet cables and maintains signal integrity during data transmission.

Can the LPJK0071AINL handle harsh environmental conditions?

Yes, it operates reliably within a temperature range of 0℃ to 70℃. Its durable construction and EMI shielding make it suitable for industrial environments and high-density PCB designs.

Are the LED indicators useful for troubleshooting network issues?

Absolutely. The dual-color LEDs provide real-time feedback on connection status. Green indicates a successful link, while yellow signals data activity, simplifying network management.

Is the LPJK0071AINL compatible with other RJ45 connectors?

Yes, it works seamlessly with connectors like Belfuse 0826-1K1T-23-F and Halo HFJT1-1G20C3-L51RL. Its design ensures compatibility across various Ethernet applications.
