The LS-MM8510-S3C is LINK-PP’s cost-effective, high-performance SFP+ 10GBASE-SR optical transceiver, built for short-distance, high-speed 10G Ethernet links. Designed with an 850nm VCSEL laser and LC duplex connector, it delivers stable and reliable connections over OM3 multimode fiber up to 300 meters.

This hot-pluggable SFP+ module meets IEEE 802.3ae and SFF-8431 standards, making it fully interoperable with most major network devices. It supports data rates of up to 10.3125Gbps and is ideal for use in switches, routers, and network interface cards.

Key Takeaways

• The LINK-PP LS-MM8510-S3C 10G SFP+ Module delivers fast and reliable 10G connectivity with easy hot-swappable installation and real-time diagnostics for simple maintenance.

• This module supports up to 10.3 Gbps over multimode fiber up to 300 meters, works with major brands like Cisco and Juniper, and fits various network setups for broad compatibility.

• To maximize performance, use clean OM3 fiber cables, monitor environmental conditions, and handle the module carefully to ensure long-lasting, stable network connections.

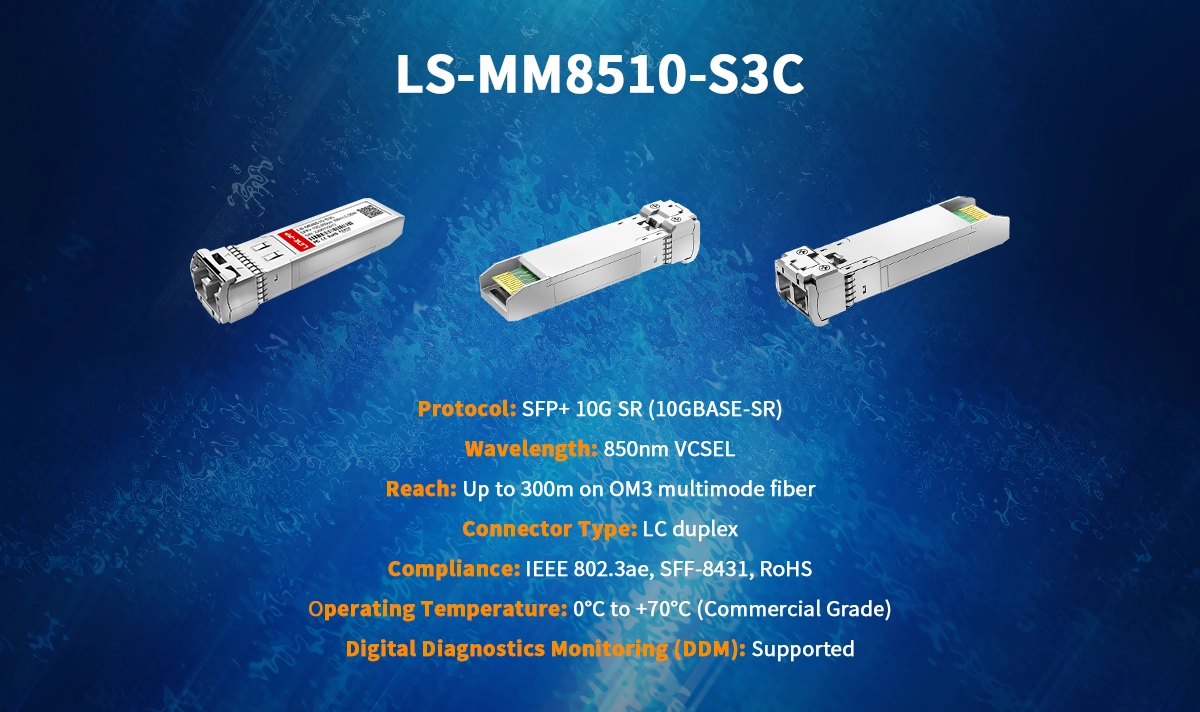

SFP+ 10G SR LS-MM8510-S3C Overview

The LS-MM8510-S3C SFP+ transceivers are high-performance, cost-effective modules supporting a data rate of 10.3Gbps. Compatible with Dell Networking Transceiver SFP+ 10GBE SR 850nm Wavelength 300m Reach. This hot-pluggable transceiver with SFP (Small Form Factor Pluggable) footprint features a duplex LC connector. All modules satisfy class I laser safety requirements. The transceivers are compatible with the SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specifications:

Product Advantages:

✅ Reliable Short-Reach 10G Connectivity – Optimized for high-speed. transmission within data centers and enterprise networks.
✅ 850nm VCSEL Technology – Ensures high performance and energy efficiency with low EMI.
✅ Low Power Consumption (<1W) – Reduces operating costs and heat generation.
✅ Broad Compatibility – Fully compatible with a wide range of OEM devices including Cisco SFP-10G-SR, Juniper EX-SFP-10GE-SR, Arista SFP-10G-SR, HP JD092B, Huawei 02311KLT, Intel E10GSFPSR, and many others. Plug-and-play performance guaranteed for major switch and router platforms.
✅ Supports DDM – Real-time monitoring of temperature, voltage, laser bias current, transmit and receive power.

Deploying SFP+ 10G SR Modules

Application Scenarios:

• 10G Ethernet Links within Data Centers

• High-Performance Computing (HPC) Clusters

• Storage Area Networks (SAN)

• Rack-to-Rack and Switch-to-Switch Connections

• Short-distance fiber interconnects in Campus Networks

Selection Guide

Choosing the right SFP+ 10G Module for your network ensures reliable and high-speed connectivity. You should consider several important factors before making a decision:

• Performance & Distance: Check that the module supports the data rate you need and can reach up to 300 meters on OM3 multimode fiber. This distance covers most data center and enterprise applications.

• Medium Compatibility: Match the module to your existing fiber type. SFP+ 10G SR modules work best with OM3 multimode fiber, which supports high bandwidth and low signal loss.

• Hardware & Ecosystem Compatibility: Confirm that the module is MSA compliant and works with your switches, routers, and firmware versions. The LS-MM8510-S3C is compatible with major brands, making it easy to integrate into your network.

• Total Cost of Ownership: Consider not just the upfront cost, but also power consumption and cooling needs. SFP+ 10G SR modules use less power than long-range modules, which helps reduce operating costs in large deployments.

• Environmental Factors: Make sure the module operates within the recommended temperature range. The LS-MM8510-S3C performs reliably between 0°C and 70°C, which suits most data center environments.

• Reliability: Choose modules from reputable manufacturers that offer warranties and technical support. This ensures long-term stability and easier maintenance.

Selecting high-quality, laser-optimized multimode fibers and keeping connectors clean will help you achieve the best performance and minimize signal loss.

Installation Steps

Proper installation of your LS-MM8510-S3C module helps you avoid common issues and ensures stable operation. Follow these steps for a smooth setup:

1. Prepare Your Equipment
   Power on your switch or server. Make sure the SFP+ port is clean and free of dust. Use dust caps when the port is not in use.

2. Check Compatibility
   Verify that your device supports SFP+ 10G SR modules. The LS-MM8510-S3C works with many leading brands, but always check your device’s documentation.

3. Insert the Module
   Hold the module by its sides. Align it with the SFP+ port and gently slide it in until it clicks. Avoid forcing the module, as this can cause damage.

4. Connect the Fiber Cable
   Use OM3 multimode fiber with duplex LC connectors. Insert the cable firmly into the module. Make sure the connectors are clean to prevent signal loss.

5. Check Link Status
   Look for the link LED on your device. A solid or blinking light usually means the connection is active. If the LED does not light up, check the cable and module seating.

6. Configure the Port
   Access your device’s management interface. Set the port speed to 10Gbps and enable the port if needed. Some devices may require a firmware update for full compatibility.

7. Test the Connection
   Run a simple data transfer or use built-in diagnostics to confirm the link is stable and performing as expected.

Tip: The LS-MM8510-S3C supports hot-pluggability. You can insert or remove the module without shutting down your system, which makes upgrades and maintenance easier.

Why Choose LINK-PP:

As a global leader in optical connectivity solutions, LINK-PP delivers OEM-compatible transceivers with factory-direct pricing, full testing, and international certifications. The LS-MM8510-S3C is an excellent alternative to branded SFP+ modules, offering performance without the premium cost.
