Integrated RJ45 connectors—also known as magnetics RJ45 jacks or RJ45 with built-in transformers—are essential components in Ethernet communication systems. These connectors combine standard RJ45 interface functionality with integrated magnetics, simplifying PCB design while improving signal integrity and EMI performance.

This guide introduces the key performance parameters of integrated RJ45 connectors, categorized into five main sections: electrical, mechanical, environmental, compliance, and other features. Understanding these parameters will help engineers and purchasing teams make smarter component decisions.

🔌 I. Electrical Performance Parameters

1. Data Rate
   Integrated RJ45 connectors support various Ethernet speeds, including:

   • 10/100Mbps (Fast Ethernet)

   • 1000Mbps (Gigabit Ethernet)

   • 2.5G, 5G, and 10G Ethernet (for high-speed applications)

2. Insertion Loss
   Indicates how much signal is lost as it passes through the connector.

   • Typical: ≤ 1 dB (varies by frequency and speed)

3. Return Loss
   Measures how much signal is reflected due to impedance mismatch.

   • Common requirement: ≥ 16 dB @ 100MHz

4. Crosstalk
   Crosstalk refers to signal interference between adjacent pairs.

   • Good integrated RJ45 connectors meet IEEE 802.3 standards for crosstalk isolation.

   • Types:

     • NEXT (Near-End Crosstalk)

     • FEXT (Far-End Crosstalk)

5. Hi-Pot Test Voltage (Isolation Voltage)
   Ensures safe electrical isolation between signal and power circuits.

   • Standard value: 1500Vrms for 60 seconds

   • Critical for PoE safety

⚙️ II. Mechanical Specifications

1. Mounting Type

   • THT (Through-Hole Technology)

   • SMT (Surface-Mount Technology)

   • Vertical or Right-Angle orientation options

2. Pin Configuration

   • Standard or custom pin layouts (Tab-Up / Tab-Down)

   • T568A/B compatible for network standards

3. LED Indicators

   • Built-in LEDs (green/yellow or bi-color) for link and activity indication

4. Mechanical Dimensions

• Specifies the outer and PCB-related sizes, includes:

  • Body size

  • Pin length

  • Port count: Single (1x1), Dual (1x2), Quad (2x2)

  ---

🌡️ III. Environmental Specifications

1. Operating Temperature Range

• Commercial grade: 0°C to +70°C

• Industrial grade: -40°C to +85°C

2. Storage Temperature

• Typically: -40°C to +85°C

3. Humidity Resistance

• Required for high-reliability or outdoor use

• Common benchmark: 95% RH non-condensing

📑 IV. Compliance & Compatibility

1. Industry Standards

• IEEE 802.3 series (10/100/1000Base-T, 2.5G, 10GBase-T)

• IEEE 802.3af / 802.3at / 802.3bt (PoE compatibility)

2. Environmental Directives

• RoHS and REACH compliance (lead-free, eco-friendly)

3. Safety Certifications

• UL / CE / FCC approvals (as applicable)

🧩 V. Additional Features

1. Shielding Type

• Shielded (metal housing)

• Unshielded versions available

• Optional EMI fingers for enhanced grounding

2. Integrated Magnetics

• Built-in magnetic components:

  • Common-mode chokes

  • Differential-mode chokes

  • Isolation transformers

• Ensures signal integrity and suppresses EMI

3. Integrated Protection

• Optional built-in TVS (Transient Voltage Suppression)

• Provides electrostatic and surge protection

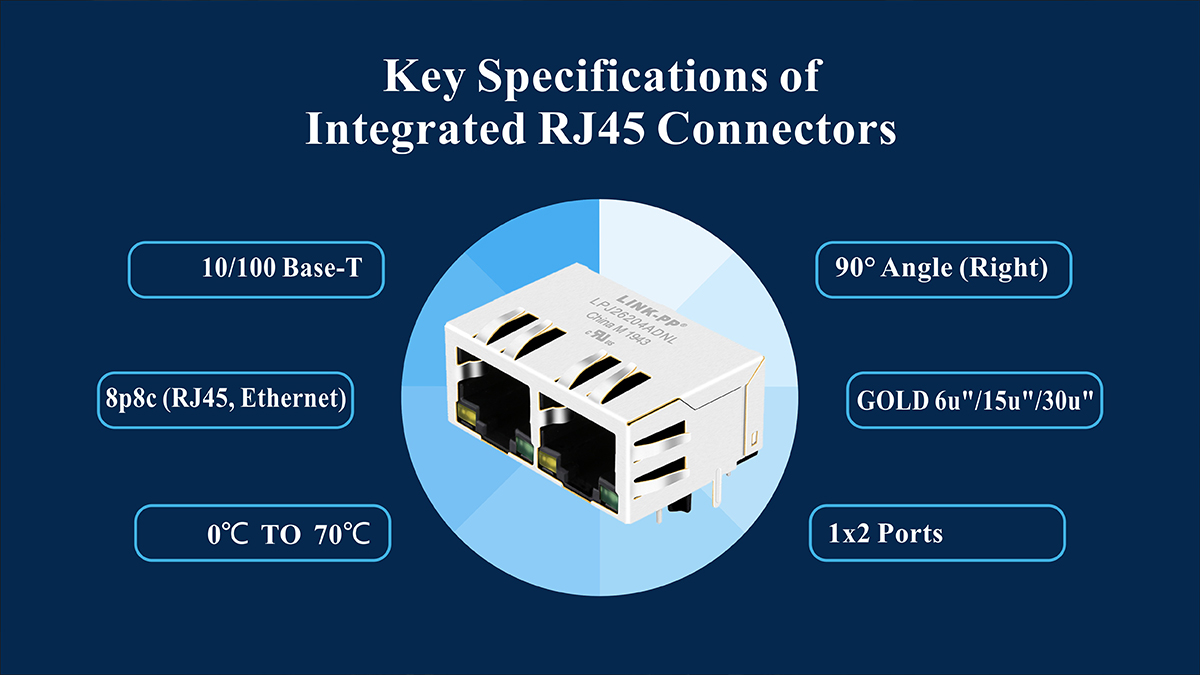

📊 Quick Reference Specification Table: LINK-PP LPJ26204ADNL

The LINK-PP LPJ26204ADNL is a dual-port integrated RJ45 connector designed for 10/100 Base-T Ethernet applications.

📄 Download LPJ26204ADNL Datasheet (PDF)

✅ Conclusion

Understanding the core specifications of Magnetic RJ45 connectors is crucial when designing or sourcing networking hardware. Whether your focus is on signal quality, PoE capability, EMI shielding, or environmental durability, these parameters help ensure you choose the right component for your application.
