Unlock the secrets of 100G optics! Choosing between a single lambda (1x100G) and a 4-channel (4x25G) transceiver is a critical decision impacting your network's cost, complexity, and future readiness. This guide demystifies these technologies, helping you select the optimal 100G QSFP28 transceiver for your specific needs. Let's dive into the light!
🚀 The Core Difference: Single Lambda or 4-Channel?
100G Single Lambda (1x100G): Uses one high-speed laser operating at 100 Gbps on a single wavelength (e.g., 1310nm for LR1, or a specific DWDM/CWDM channel). Think of it as a single, powerful highway lane.
100G 4-Channel (4x25G): Uses four lower-speed lasers, each operating at 25 Gbps, combined onto one fiber pair using CWDM technology (typically around 1310nm band). Think of it as four lanes merging onto one highway.
🚀 Why Does This Distinction Matter?
This fundamental difference drives several key performance and deployment factors:
Feature | 100G Single Lambda (e.g., 100G FR1, 100G LR1, 100G ER1 ) | 100G 4-Channel (e.g., 100G SR4, 100G CWDM4, 100G PSM4) | Key Consideration |
|---|---|---|---|
Technology | Single Wavelength (e.g., 1310nm, DWDM Channel) | 4 Wavelengths (CWDM4 - e.g., 1271, 1291, 1311, 1331nm) | WDM Complexity |
Fiber Type | Single-Mode Fiber (SMF) | SR4: Multi-Mode Fiber (MMF) | Fiber Plant Compatibility |
Fiber Pair Count | 1 Pair (Tx & Rx) | SR4: 1 Pair (using MTP/MPO) | Fiber Strand Utilization |
Typical Reach | FR1: 2km, LR1: 10km, ER1: 40km | SR4: 100m (OM4), CWDM4: 2km/10km/20km, PSM4: 500m/2km/10km | Data Center Interconnect (DCI), Campus Links |
Power Consumption | Generally Higher | Generally Lower (especially SR4/CWDM4) | Power Efficiency, Thermal Management |
Cost (Historically) | Higher (especially long-haul/DWDM) | Lower (especially SR4/CWDM4 for shorter reaches) | Total Cost of Ownership (TCO) |
Complexity | Simpler wavelength management (one lambda) | Requires CWDM Mux/Demux for SMF (except PSM4) | Deployment & Maintenance |
Applications
Single Lambda (1x100G) Shines For:
Longer Haul Links: Essential for metro networks, DCI (Data Center Interconnect) beyond 2km, and service provider backbones. Maximizes distance on limited fiber pairs.
DWDM Integration: The natural choice for dense wavelength division multiplexing (DWDM) systems, packing many 100G channels onto a single fiber pair. Ideal for maximizing fiber capacity.
Future 400G/800G Path: Uses the same fundamental technology (single wavelength per direction) as higher-speed standards like 400G-FR4/LR4 and 800G, simplifying upgrades on existing fiber.
4-Channel (4x25G) Excels For:
Short Reach, Cost-Sensitive Links: 100G SR4 dominates within data center racks and rows over multi-mode fiber (MMF) due to lower cost.
Moderate Reach SMF Links: 100G CWDM4 is highly popular for cost-effective DCI links up to 2km (often 500m/2km variants) and intra-campus connections up to 10km/20km, using just one single-mode fiber pair. Great for access networks.
Parallel Fiber Links: 100G PSM4 utilizes 4 separate SMF pairs, often used in specific high-density, shorter-reach data center applications where fiber count isn't a constraint.
🚀 LINK-PP: Your Partner for Optimal 100G Solutions

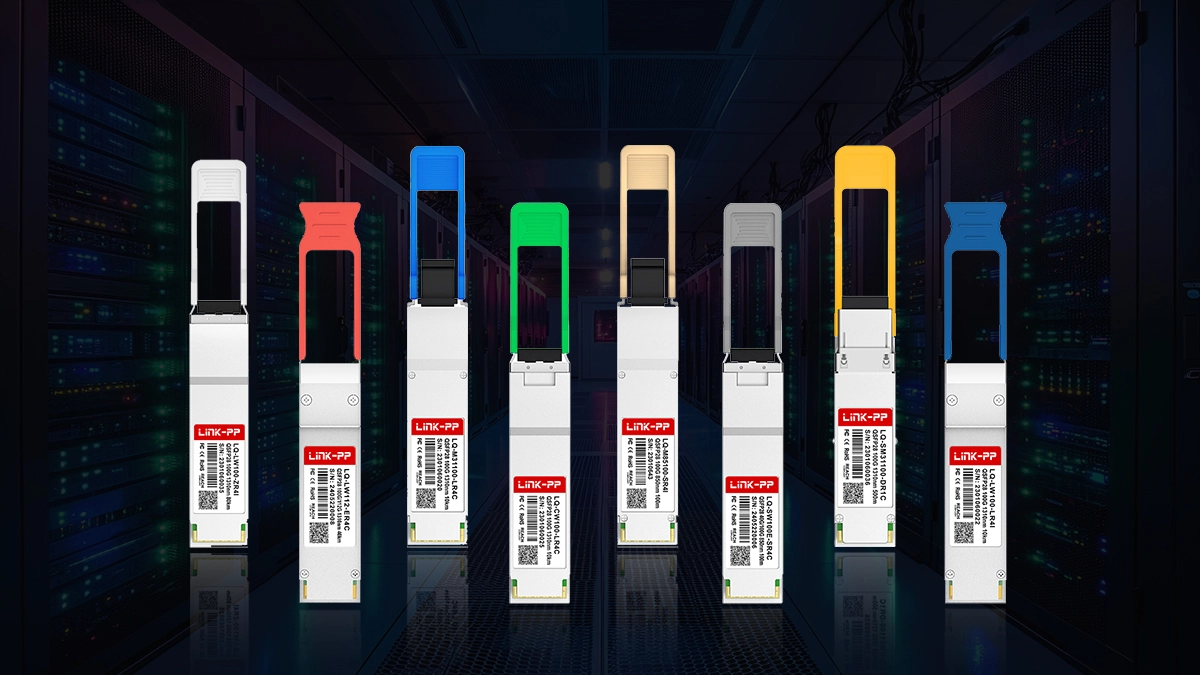

Navigating the 100G optics landscape requires expertise and reliable products. LINK-PP offers a comprehensive portfolio of high-performance, MSA-compliant QSFP28 transceivers for every application:
LINK-PP LQ-SM31100-LR1C: Our flagship single lambda 100G transceiver for robust 10km single-mode fiber links. Features low power consumption and exceptional reliability for critical data center interconnects and enterprise backbones.
LINK-PP LQ-CW100-FR4C: The industry-standard 4-channel solution for cost-effective 2km reach over a single fiber pair. Perfect for economical DCI and intra-campus deployments. Offers excellent power efficiency.
LINK-PP LQ-SM31100-ER1C: Need more reach? Our single lambda ER4 Lite module delivers 40km performance without the traditional ER4 price premium, ideal for extended metro network connections.
LINK-PP LQ-M85100-SR4C: The go-to choice for high-density, short-reach multi-mode fiber connectivity within the data center (up to 100m on OM4).
Explore our full range of 100G single lambda and 4 channel optical transceivers, including duplex single fiber bidirectional options and DWDM-ready modules, designed for maximum compatibility and performance.
🚀 How to Choose Between 100G Single Lambda and 4 Channel Transceiver?
Don't get caught in a "one size fits all" trap. The best choice hinges on your specific needs:
Prioritize Reach & Fiber Savings? Single Lambda (1x100G) like LR1, ER1, or DWDM is likely your answer, especially for longer distances or DWDM systems.
Need Cost-Effective Shorter Links on SMF? 4-Channel CWDM4 offers an excellent balance.
Connecting over MMF within a DC? 4-Channel SR4 is the standard. LINK-PP QSFP-100G-SR4 provides reliable connectivity.
Optimize your network's performance, cost, and scalability with the right optical engine!
🚀 The Future: Embracing Coherent & Higher Speeds
While 100G remains crucial, the industry rapidly adopts 400G and 800G. Single lambda technology forms the foundation for these next generations (e.g., 400G-FR4/LR4 uses 4x100G wavelengths). Coherent optics, predominantly single lambda, dominate long-haul and high-capacity DCI for 100G+ due to superior reach and spectral efficiency. Choosing single lambda today often eases the path to tomorrow's speeds.
🔍 Ready to simplify your 100G optical transceiver selection?
👉 Contact the LINK-PP experts today! We'll analyze your specific network requirements – reach, fiber type, budget, future plans – and recommend the perfect 100G QSFP28 solution, whether it's a high-performance single lambda module or a cost-efficient 4-channel transceiver. Boost your network's efficiency with confidence!
