In today's data-driven world, fueled by cloud computing, streaming giants, IoT, and 5G, the demand for network bandwidth is exploding. Traditional fiber optic links, carrying a single data channel per fiber pair, simply cannot keep pace. This is where Dense Wavelength Division Multiplexing (DWDM) emerges as the cornerstone technology for scaling optical networks exponentially. But what exactly is DWDM?
DWDM systems can send 16, 32, 40, or even over 80 wavelengths on one fiber.
One system at 100Gbps on 80 wavelengths can reach 8Tbps total.
DWDM helps companies like Google link data centers with fast connections. It also supports the growing needs from cloud, 5G, and streaming.
By adding more wavelengths, DWDM lets networks get bigger without new cables. This makes it cheaper and more flexible.
➤ Key Takeaways
DWDM sends many data signals through one fiber. It uses different light wavelengths for each signal. This makes the network hold more data without new cables.
Important DWDM parts are transmitters, multiplexers, amplifiers, and transponders. These parts work together to keep signals strong and clear. They also help the network change easily in the future.
DWDM lets data move fast and far. This makes it great for big networks, data centers, and cloud services. It also helps save money and space.
DWDM puts more channels close together than CWDM. This gives higher speeds and longer reach. But it also costs more and is harder to set up.
DWDM networks can grow by adding more channels. They use smart tools like AI and automation. This helps them get ready for new tech like 5G and IoT.
➤ Understanding the Core Concept: Light on Many Lanes

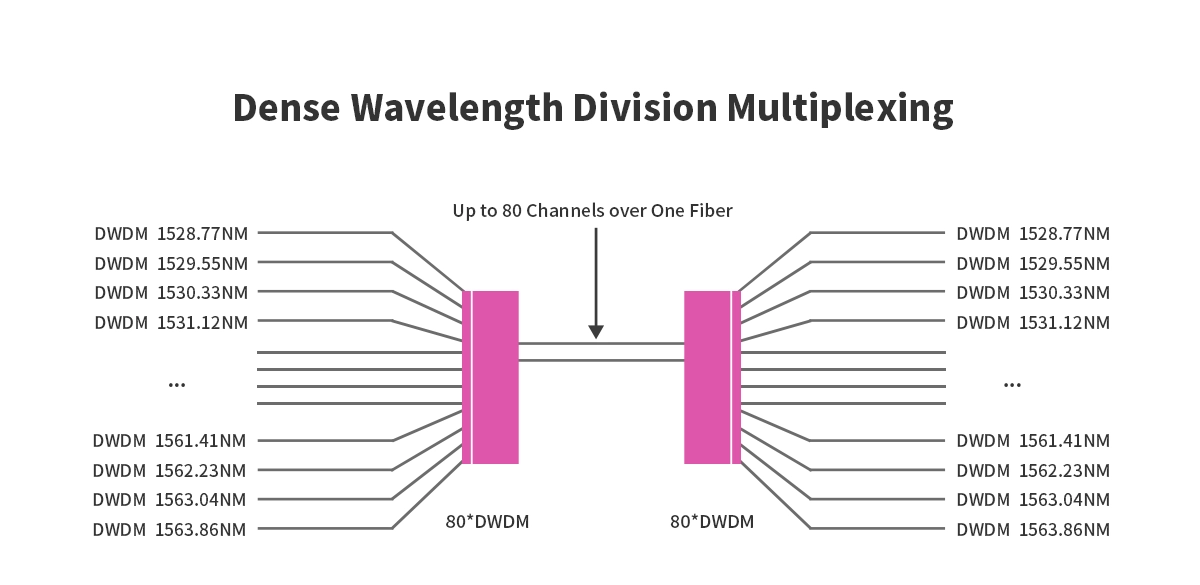

Imagine a multi-lane superhighway compared to a single-lane road. DWDM operates on a similar principle for optical fiber. It allows multiple optical carrier signals, each carried on a distinct, precisely spaced wavelength (or color) of laser light, to be transmitted simultaneously down a single strand of optical fiber.
The "Dense" in DWDM refers to the tight spacing between these wavelengths. Unlike its cousin CWDM (Coarse Wavelength Division Multiplexing), which uses wider spacing (typically 20nm), DWDM utilizes much narrower channel spacing, often 0.8nm, 0.4nm (50GHz), or even 0.2nm (25GHz) in advanced systems. This density enables packing dozens, even hundreds, of individual data channels onto one fiber pair.
➤ DWDM Components
DWDM systems rely on five core components to deliver high-capacity, long-distance data transmission:
Transmitters/Receivers for signal conversion and error correction.
MUX/DEMUX for multi-channel aggregation and separation.
Optical Amplifiers for signal integrity over vast distances.
Transponders for wavelength adaptation and system monitoring.
OADMs for flexible network expansion and management.
🔹 1. Transmitters and Receivers
Role: Core components that enable data transmission and reception in DWDM systems. Key Functions:
Transmitters: Convert electrical signals into precise light wavelengths using lasers.
Receivers: Capture light signals and convert them back to electrical data.
Critical Performance Metrics:
Metric | Role in DWDM Systems |
|---|---|
Forward Error Correction (FEC) | Corrects data errors without additional hardware, improving link reliability. |
Jitter Control | Maintains signal integrity over long distances. |
Wavelength Stability | Ensures accuracy across up to 160 channels (spacing as low as 0.4nm). |
Signal-to-Noise Ratio (SNR) | Keeps signals clear after amplification. |
Key Challenges Addressed:
Temperature Control: Stabilizes laser wavelengths for precise channel spacing.
High Density: Supports up to 160 channels per fiber.
🔹 2. Multiplexers and Demultiplexers
Role: Enable multi-channel data transmission over a single fiber. Key Functions:
Multiplexer (MUX): Combines multiple light signals (each with unique wavelengths) into one fiber.
Demultiplexer (DEMUX): Separates combined signals at the receiving end.
Advancements & Benefits:
Innovations: Nanostructure-based MUX/DEMUX devices improve coupling efficiency.
Efficiency: Reduces cable clutter and enhances network performance.
Scalability: Critical for modern high-capacity networks (e.g., 400G transmission).
🔹 3. Optical Amplifiers
Role: Boost signal strength without converting light to electrical signals. Types & Functions:
Erbium-Doped Fiber Amplifiers (EDFAs): Amplify multiple wavelengths simultaneously.
Raman Amplifiers: Enhance signals along the fiber for ultra-long-haul transmission.
Benefits:
Long-Distance Support: Enables transoceanic data transmission without signal degradation.
Cost Savings: Reduces the need for additional equipment.
🔹 4. Transponders
Role: Convert client data to DWDM-compatible wavelengths and monitor system health. Key Functions:
Wavelength Conversion: Adapt incoming data to precise DWDM wavelengths.
Error Detection: Identify and correct errors before transmission.
Flexibility: Support multi-speed data (up to 400G) and diverse network services.
Advantages:
Reliability: Ensures compliance with stringent service requirements.
Troubleshooting: Facilitates rapid issue resolution.
🔹 5. Optical Add/Drop Multiplexers (OADMs)
Role: Dynamically add or drop specific wavelengths without disrupting other channels. Operational Benefits:
Benefit | Description |
|---|---|
Cost-effectiveness | Avoids costly upgrades by enabling selective channel management. |
Power Efficiency | Operates without electrical power, reducing energy consumption. |
High Port Density | Saves physical space in network racks. |
Flexibility | Supports diverse topologies (e.g., ring/spur) and simplifies upgrades. |
Types:
Fixed OADMs: Preconfigured for static networks.
Reconfigurable OADMs (ROADMs): Enable remote network adjustments.
Significance: Essential for scalable and adaptable DWDM networks.
➤ How DWDM Works
1. The Core Idea: Multiplexing Light
* DWDM (Dense Wavelength Division Multiplexing) dramatically increases the data capacity of a single optical fiber by simultaneously sending multiple independent data streams.
* Imagine a multi-lane highway: each lane carries traffic going to the same general destination, but the vehicles in different lanes don't mix. In DWDM, each "lane" is a specific wavelength (color) of laser light, carrying its own separate data stream.
* This process of combining multiple light signals onto one fiber is called multiplexing. A device called a multiplexer (Mux) combines the different wavelengths at the transmission end.
2. Channel Separation: Keeping Signals Apart
* The key to making DWDM work is ensuring these closely spaced wavelengths (channels) don't interfere with each other.
* Think of a radio: many stations broadcast at different frequencies. You tune your radio to one frequency to hear only that station, ignoring the others. DWDM operates similarly, but using light wavelengths instead of radio frequencies.
* The wavelengths are packed extremely densely, sometimes only 0.8 nanometers apart.
* Precise control of the laser sources and sophisticated filtering techniques prevent the channels from drifting or overlapping, which would cause data corruption.
* At the receiving end, a demultiplexer (Demux) acts like a highly tuned filter. It splits the combined light back into its individual wavelengths/channels, directing each data stream to its correct destination.
3. Amplification: Boosting the Signal
* Light signals weaken as they travel long distances through fiber.
* Optical amplifiers, like Erbium-Doped Fiber Amplifiers (EDFAs), are placed along the fiber route.
* These amplifiers boost the optical signal strength directly in its light form, without needing to convert it back to an electrical signal first. This makes long-distance, high-speed transmission efficient and practical.
4. The Result: Massive Data Capacity
* By carefully controlling the wavelengths, spacing them densely, and using optical amplification, DWDM enables an extraordinary number of channels (up to 160 or more) to travel simultaneously on a single fiber.
* Each channel acts as an independent high-speed data path, capable of carrying internet traffic, phone calls, video streams, or any other data.
* This allows modern DWDM systems to achieve staggering total capacities exceeding 40 Terabits per second on a single fiber strand.
5. Key Benefit: Efficiency & Scalability
* DWDM maximizes the use of the fiber's inherent physical bandwidth.
* Its primary advantage is scalability: network operators can dramatically increase capacity by adding more wavelengths (channels) onto their existing fiber infrastructure, avoiding the massive cost and disruption of laying new cables.
➤ DWDM vs. CWDM: Choosing the Right Tool
Feature | CWDM (Coarse WDM) | DWDM (Dense WDM) |
|---|---|---|
Channel Spacing | Wide (20nm) | Narrow (0.8nm, 0.4nm/50GHz, 0.2nm/25GHz) |
Channels | Typically 8, 16, or 18 | Dozens to Hundreds (e.g., 40, 80, 96, 192) |
Wavelength Range | 1270nm to 1610nm (O,E,S,C,L bands) | Primarily C-band (1530nm-1565nm) & L-band (1565nm-1625nm) |
Reach | Shorter (Up to ~80km) | Long Haul & Ultra-Long Haul (100s-1000s km) |
Cost | Lower (Cooled lasers often unnecessary) | Higher (Requires temp-controlled lasers, tighter tolerances) |
Use Case | Metro Access, Short Haul, Cost-sensitive | Long Haul, Subsea, High-Capacity Metro Core, Scalab |
The Compelling Advantages of DWDM Technology
Massive Bandwidth Scalability: This is the primary driver. DWDM multiplies the capacity of existing fiber infrastructure by factors of 40, 80, 96, or more, delaying or eliminating the need for costly new fiber deployment.
Cost Efficiency: Leveraging existing dark fiber with DWDM is significantly cheaper than laying new cables, especially over long distances or in dense urban areas.
Protocol and Bit Rate Transparency: DWDM transports data regardless of the underlying protocol (Ethernet, SONET/SDH, Fibre Channel, InfiniBand) or bit rate (1G, 10G, 100G, 400G, 800G). It simply carries the light.
Long-Haul Capability: Combined with optical amplifiers (EDFAs) and advanced dispersion compensation, DWDM enables transmission over thousands of kilometers, making it essential for terrestrial backbones and subsea cables.
Simplified Fiber Management: Consolidating numerous services onto fewer fibers drastically simplifies network architecture and reduces fiber congestion in pathways.
➤ Applications: Where DWDM Powers the Modern World
Telecom Backbone Networks: The core networks of major service providers rely heavily on DWDM.
Internet Exchange Points (IXPs): Handling massive peering traffic between networks.
Content Delivery Networks (CDNs): Distributing high-bandwidth video and content globally.
Enterprise Data Center Interconnect (DCI): Connecting geographically dispersed data centers securely and at high speed.
Cable Operator Infrastructure: Delivering video, voice, and broadband services.
5G Transport (Fronthaul, Midhaul, Backhaul): Aggregating massive traffic from cell sites.
➤ Choosing the Right DWDM Optical Transceivers
The performance and reliability of your DWDM system hinge significantly on the quality of the DWDM optical transceiver modules. Key considerations include:
Form Factor: SFP+ (10G), QSFP28 (100G), QSFP-DD/OSFP (400G/800G), matching your equipment ports.
Wavelength Accuracy & Stability: Critical for avoiding channel interference in dense systems. LINK-PP transceivers, like the LINK-PP LS-DW3210-40I, utilize high-precision, temperature-controlled lasers.
Transmission Distance: Ranges from 80km to 120km+; choose based on your link budget.
Diagnostics: Digital Diagnostics Monitoring (DDM/DOM) provides real-time health data (temperature, voltage, Tx/Rx power).
Compatibility: Ensure compatibility with your specific network equipment vendor platforms.
➤ Future-Proofing with LINK-PP DWDM Solutions
As bandwidth demands continue their relentless climb, DWDM remains the proven, scalable solution. Leveraging high-quality, reliable components is non-negotiable for network performance and uptime.
Ready to Scale Your Network Capacity?
LINK-PP offers a comprehensive portfolio of high-performance, standards-compliant DWDM optical transceiver modules, including SFP+, QSFP28, QSFP-DD, and OSFP form factors, supporting all standard ITU wavelengths and distances. Our solutions are rigorously tested for interoperability and reliability, ensuring seamless integration into your existing DWDM infrastructure or new deployments.
Explore our range of advanced DWDM optical transceivers today and discover how LINK-PP can help you maximize your fiber investment and effortlessly meet tomorrow's bandwidth challenges.
➤ FAQ
Q1: What does a multiplexer do in a fiber optic network?
A: A multiplexer puts many data signals together in one fiber. Each signal uses its own wavelength, like a different color. This lets the network send more information at once. It helps use the fiber’s space in the best way.
Q2: What is the main benefit of using optical amplifiers?
A: Optical amplifiers make light signals stronger without changing them. They do not turn light into electrical signals. This keeps data strong over long distances. It also means less extra equipment is needed.
Q3: What happens if two channels overlap in wavelength?
A: If two channels overlap, their signals can mix and cause mistakes. The network might lose data or have interference. Careful control of wavelengths stops this and keeps each channel clear.
Q4: What is an OADM used for?
A: An Optical Add/Drop Multiplexer (OADM) lets the network add or take away certain wavelengths from a fiber. This tool helps operators change the network easily. It makes data routing flexible and efficient.
Q5: What types of networks use DWDM technology?
A: Many big networks use DWDM technology. These include telecom backbones, data center links, and cloud service providers. DWDM helps them move lots of data quickly and safely.
