The QSFP-DD (Quad Small Form-Factor Pluggable Double Density) optical transceiver is a revolutionary advancement in high-speed data communication, designed to meet the escalating bandwidth demands of modern data centers, cloud computing, and 5G networks. With its compact form factor, backward compatibility, and thermal efficiency, QSFP-DD has become the preferred choice for 400G and beyond deployments.
In this Blog, we explore the core advantages of QSFP-DD modules and highlight the LINK-PP LQD-CW400-LR4C 400G QSFP-DD LR4 Transceiver as a high-performance example of what this form factor has to offer.
🔗 View Product Page
📄 Download Datasheet
What is QSFP-DD
QSFP-DD is an 8-lane pluggable transceiver that doubles the density of traditional QSFP modules while maintaining backward compatibility. It supports:
200G, 400G, and 800G Ethernet
PAM4 modulation for higher data rates
Flexible thermal management for high-power applications
Key Standards Compliance:
QSFP-DD MSA (ensures interoperability)
IEEE 802.3bs/cd (400G Ethernet)
CMIS 4.0 (Common Management Information Service)
Key Benefits of QSFP-DD Optical Transceivers
1. Backward Compatibility for Flexible Network Upgrades
One of the major strengths of QSFP-DD is its backward compatibility. QSFP-DD ports can support legacy QSFP modules, including:
QSFP+
QSFP28
QSFP56
This allows network operators to reuse existing infrastructure while gradually migrating to 400G-capable modules. It protects previous investments and provides unmatched flexibility for system designers and end-users alike.
⚠️ Note: While QSFP-DD ports can accept older QSFP modules, QSFP-DD transceivers cannot be used in older QSFP ports due to their additional row of electrical contacts.
2. Superior Port Density for Space Optimization
QSFP-DD modules maintain the same compact footprint as traditional QSFP modules, while offering double the data lanes. This results in significantly higher port density on switches and routers, which is crucial for:
Cloud-scale data centers
High-performance computing (HPC)
AI/ML training clusters
5G and edge network build-outs
By doubling the port capacity in the same physical space, QSFP-DD supports efficient scaling without needing more rack space.
3. Optimized Thermal Performance
Efficient thermal design is critical at 400G speeds. QSFP-DD modules, such as the LINK-PP LQD-CW400-LR4C, support thermal dissipation up to 12W per module, depending on the host system.
Key design features supporting thermal optimization include:
2x1 stacked cage designs
Flat-top module profiles
Surface mount technology (SMT) connectors
These allow system designers to implement effective airflow and heatsinking, reducing the risk of overheating even under heavy workloads.
4. Future-Proofing with Support for Next-Gen ASICs
Switches and network devices built with QSFP-DD modules are able to fully utilize the bandwidth potential of next-generation ASICs. The 8-lane electrical interface allows for scalable speed configurations, including:
8x50Gbps = 400Gbps (standard today)
8x100Gbps = 800Gbps (future-proofed)
This means QSFP-DD is not only optimized for current deployments but is ready for next-gen interfaces, minimizing the need for frequent hardware upgrades.

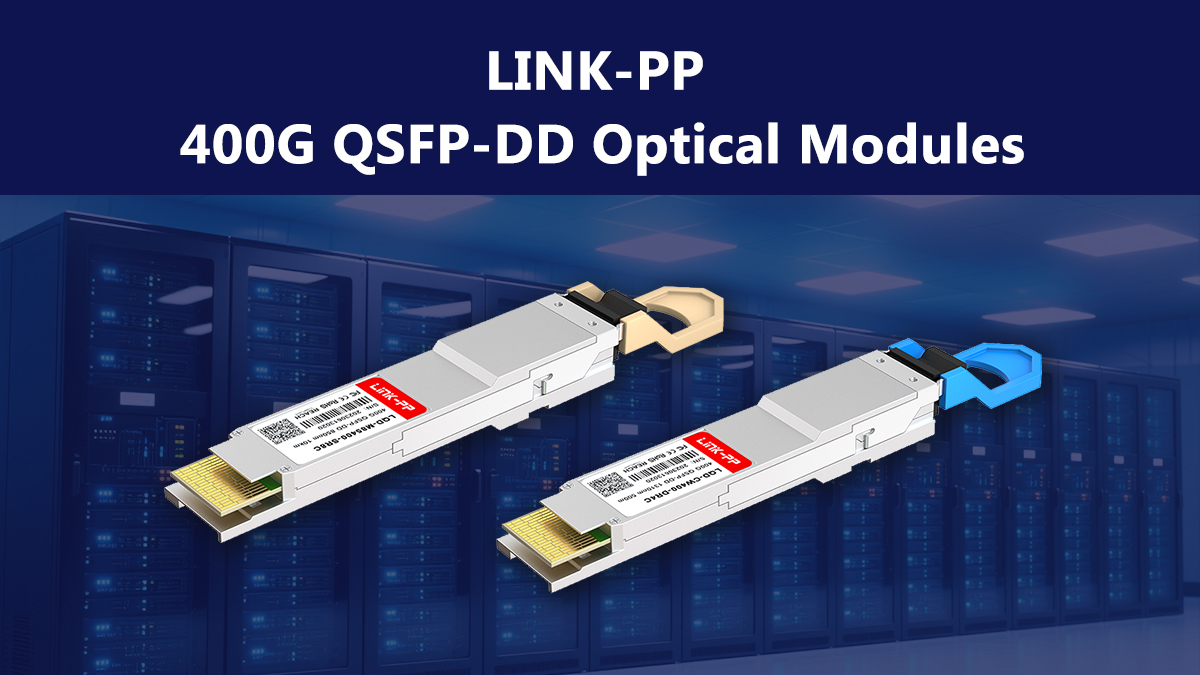

LINK-PP LQD-CW400-LR4C 400G QSFP-DD LR4 Transceiver – A Case Study
Product Overview
The LQD-CW400-LR4C is a high-performance 400G LR4 transceiver designed for 10km single-mode fiber (SMF) applications.
Key Features:
400GAUI-8 electrical interface with 8x53.125Gbps lanes
4x106.25Gbps optical lanes using 100G Lambda MSA
Integrated multiplexing and demultiplexing
Up to 10km reach on SMF with FEC
CMIS 4.0-compliant management interface
Operating temperature: 0°C to +70°C
Power consumption: <9.5W
Fully compliant with IEEE 802.3bs and QSFP-DD MSA
Applications of QSFP-DD Modules
The compact yet powerful nature of QSFP-DD transceivers makes them suitable for a wide range of applications, including:
Cloud and Hyperscale Data Centers
400G Ethernet Switch-to-Switch Connections
Data Center Interconnect (DCI)
Machine Learning and AI Infrastructure
5G Transport Networks
Metro and Long-Haul DWDM Solutions (with appropriate optics)
With modules like the LINK-PP LQD-CW400-LR4C, businesses can confidently address bandwidth-intensive workloads while minimizing cost and maximizing performance.
