In today's hyper-connected world, a network is only as strong as its individual components. While often overlooked, the RJ45 connector is a critical link in the chain, determining the reliability, speed, and power of your entire system. Choosing the right one isn't just about specs; it's about solving problems.

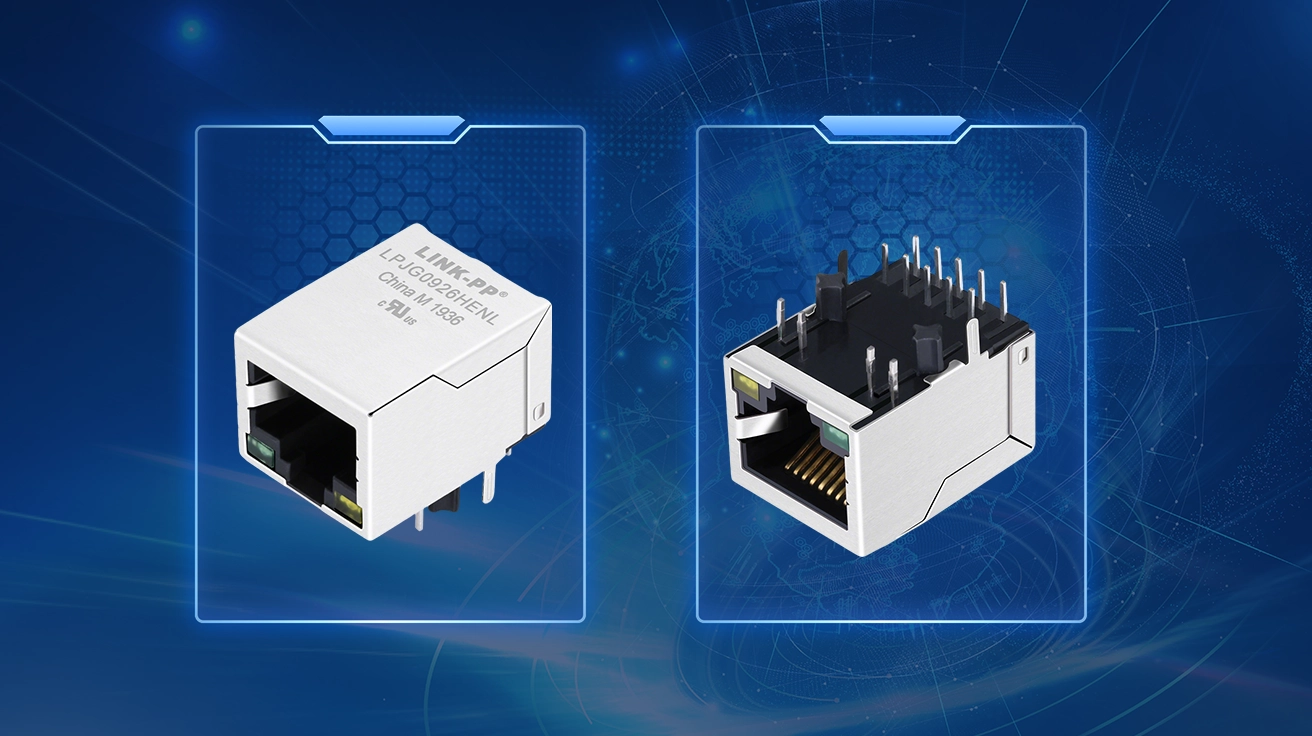

The LINK-PP LPJG0926HENL is a high-performance RJ45 female jack that goes beyond basic connectivity. Its combination of Gigabit Ethernet support, PoE+ capability, and a robust through-hole design makes it the ideal solution for a range of demanding applications. Let's dive into five key scenarios where this connector truly shines.
📜 5 Key Applications for LPJG0926HENL RJ45 Connector
1. Industrial Automation & ILoT: Built for Tough Environments
In factories and industrial settings, equipment faces vibrations, dust, and constant use. The need for a reliable RJ45 jack for industrial use is non-negotiable.
Application: Connecting Programmable Logic Controllers (PLCs), industrial sensors, and motor drives on the factory floor.
Why the LPJG0926HENL Excels:
Durability: The through-hole mounting provides a strong, solder-based connection to the PCB that is far more resistant to physical stress than surface-mount alternatives, ensuring a stable connection in vibrating environments.
PoE+ for Simplicity: Its support for PoE+ (IEEE 802.3at) allows you to power devices like IP cameras and sensors directly over the Ethernet cable, eliminating the need for separate power outlets in hard-to-reach places.
LED Diagnostics: The integrated LED indicators offer at-a-glance status checks, crucial for quick troubleshooting and minimizing downtime.
2. Smart Building & Enterprise Networking: The Backbone of Connectivity
From office networks to smart building management systems, reliability and cable management are key.
Application: Network switches, wall jack panels, and access control systems.
Why the LPJG0926HENL Excels:
Optimized Form Factor: The tab down RJ45 port is ideal for wall plates and network equipment, guiding cables neatly downward to reduce strain and maintain a clean, professional installation.
High-Speed Backbone: Supporting 100/1000BASE-T, this connector ensures your network backbone can handle high-bandwidth activities like video conferencing and large file transfers without bottlenecks.
Power over Ethernet for Access Points: It is a perfect RJ45 connector for PoE+ applications like powering Wi-Fi access points mounted on ceilings or walls, streamlining deployment.
3. Power over Ethernet (PoE) Lighting & Smart Signs
Modern LED lighting and digital signage are becoming IP-connected devices, and the LPJG0926HENL is at the heart of this revolution.
Application: PoE-driven smart lighting systems and digital information displays in offices, retail spaces, and airports.
Why the LPJG0926HENL Excels:
Robust Power Delivery: Certified for PoE+, it safely delivers the necessary power (up to 30W) to illuminate LED fixtures and run digital signs, all through a single, standardized cable.
Data and Power in One: This simplifies installation and allows for centralized control of lighting and signage via the network, a core requirement for any PoE+ powered device solution.
4. Surveillance & Security Systems: Always Watching, Always Powered
Security systems demand unwavering reliability. The connection for IP cameras and network video recorders (NVRs) must be secure and capable.
Application: IP security cameras, both indoor and outdoor (within appropriately rated enclosures), and NVR units.
Why the LPJG0926HENL Excels:
Secure Connection: The through-hole mounting ensures the RJ45 port remains firmly attached to the PCB, even when camera cables are occasionally bumped or tugged.
Power and Data Simplified: Using PoE+ for IP cameras means simpler, cheaper installation without the need for an electrician to run separate power lines to each camera location.
5. Internet of Things (IoT) Gateways & Edge Devices
IoT gateways collect data from various sensors and need a stable, high-speed uplink to the cloud.
Application: Industrial IoT gateways, smart agriculture controllers, and environmental monitoring systems.
Why the LPJG0926HENL Excels:
Reliable Uplink: Provides a dependable Gigabit Ethernet connection for uploading critical sensor data without interruption.
Versatile Power Options: The PoE+ support offers flexible power sourcing for gateways installed in locations where a direct power connection is impractical.
📜 Why Specify the LINK-PP LPJG0926HENL? A Quick Comparison
Application Scenario | Key Requirement | How LPJG0926HENL Delivers |
|---|---|---|
Industrial Control | Vibration Resistance, Reliability | Through-hole mounting for superior mechanical strength |
Smart Building | Neat Cable Management, High Speed | Downward-facing port, Gigabit Ethernet support |
PoE Lighting/Signage | Power Delivery over Data Cable | Full IEEE 802.3at (PoE+) Compliance |
Surveillance Systems | Secure Connection, Simplified Power | Secure mounting & integrated PoE+ |
IoT Gateways | Stable, High-Speed Uplink | 1000BASE-T performance & flexible powering |
📜 Conclusion: Build Smarter, More Connected Solutions
The LINK-PP LPJG0926HENL is more than a component; it's an enabling technology. By understanding its applications in industrial, commercial, and IoT fields, you can design products and systems that are more robust, efficient, and easier to deploy. When your design requires a tab down RJ45 jack with LED that won’t let you down under pressure, this model is the proven choice.
Ready to integrate this versatile connector into your next design?
