▲What Is CMIS?
CMIS—the Common Management Interface Specification—is a standard developed under the Optical Internetworking Forum (OIF), originating from the QSFP-DD MSA. Its purpose is to unify the management interface across high-speed, multi-lane pluggable modules like QSFP-DD, OSFP, COBO, and other future modules such as co-packaged optics, using a two-wire (I²C-like) host-module interface.
▲Why CMIS Matters
Supports Next-Gen Speeds: Designed for 400G, 800G, and beyond, CMIS addresses the growing complexity of modules with numerous electrical and optical lanes and advanced modulation schemes (e.g., PAM4).
Unified Interface: Replaces older standards with a single, extensible interface—ideal for diverse form factors and evolving architectures.
Simplified Management: Facilitates application-based configuration, dynamic data paths, and intelligent controls, enhancing automation and flexibility.
▲Key Features of CMIS
Application-Based Configuration
Modules support multiple "applications" (e.g., 400G, 2×200G, 4×100G), with each defining lane count, modulation type, and data path architecture. The host controls module configuration via a clearly structured state machine.
Expanded Memory Map
Beyond typical QSFP28 layouts, CMIS includes extensive EEPROM banks (“Bank Pages”) to support richer diagnostics, firmware updates, and configurable behaviors.
Digital Diagnostics & Monitoring (DDM/DOM)
Provides real-time readings such as optical power, temperature, voltage—crucial for proactive network reliability and performance management.
▲CMIS within the Standards Ecosystem
Library Inheritance: CMIS originated from QSFP-DD MSA and was transferred to OIF in 2022 to ensure broader, formal ecosystem support.
Operates Alongside SFF Standards: SFF-8636 remains relevant for legacy modules, whereas CMIS becomes the preferred interface for advanced architectures.
Beyond Optical Modules: CMIS is also relevant for copper-based modules and future co-packaged solutions.
▲CMIS in Action: Engineering Context
Plug-and-Play: Hosts automatically detect and configure modules based on advertised applications and capabilities.
Adaptive Lane Management: Intelligent state machines set up data paths according to chosen application and signal integrity needs.
Enhanced Diagnostics: Detailed alarm thresholds and multiple status registers support rapid fault isolation.
▲Why LINK-PP Supports CMIS

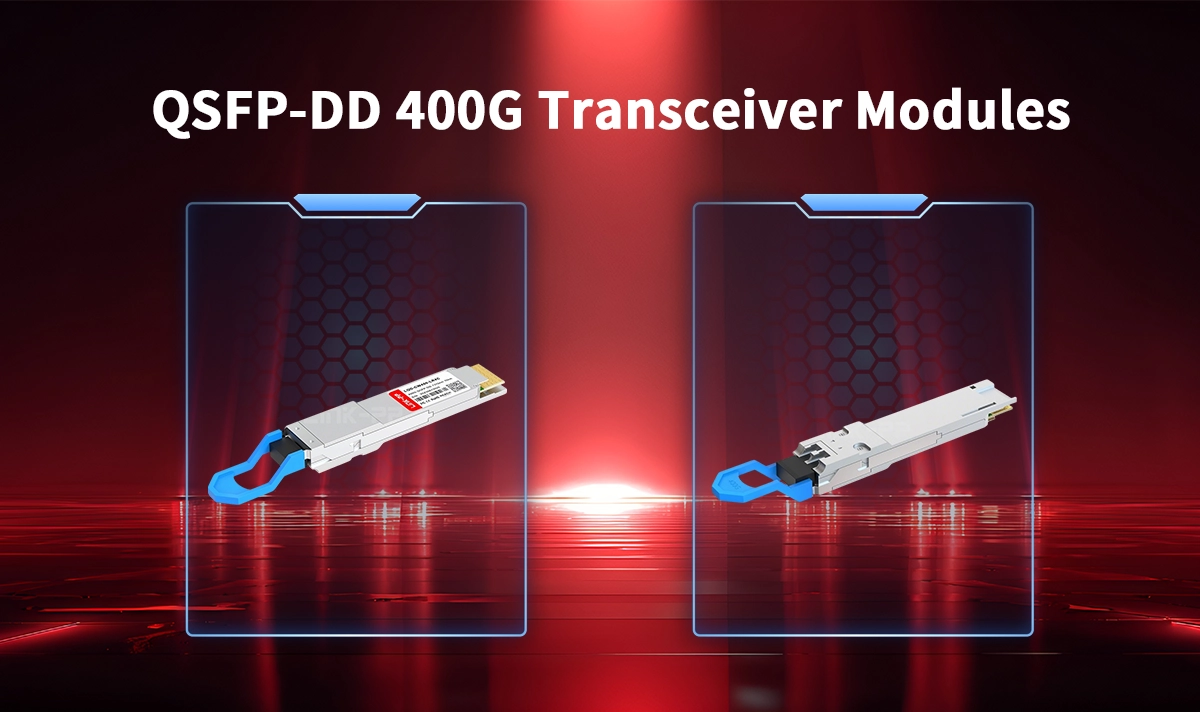

LINK-PP is committed to staying ahead of technology trends. Our QSFP-DD and OSFP optical transceivers are built to support CMIS, ensuring:
100% Interoperability with industry-standard hosts
Advanced Configurability to suit multi-rate networks
Robust Diagnostics for mission-critical deployments
Choose LINK-PP for scalable, future-proof solutions aligning with evolving optical infrastructure needs.
▲In Summary
CMIS is the modern, extensible management interface for high-performance optical modules across form factors and data rates.
It enables flexible application configurations, deep diagnostics, and simplified management via a unified 2-wire interface.
As optical networks advance, standard compliance—like CMIS—is essential for interoperability and network agility.
LINK-PP’s support for CMIS ensures compatibility and readiness for tomorrow's 400G–800G network environments.
