In the relentless pursuit of faster data rates and greater bandwidth, the optical communications industry constantly innovates. When simple on-off keying (OOK) reached its limits, more sophisticated modulation formats emerged. Among them, Dual-Polarization Quadrature Phase-Shift Keying (DP-QPSK) stands as a foundational technology for modern high-speed networks, from long-haul transmission to data center interconnects (DCI).
This article breaks down what DP-QPSK is, why it's so crucial, and how it powers the optical engines in your network.
✦ What is Dual-Polarization QPSK? First, Let's Decode the Name
To understand DP-QPSK, it's best to split the acronym:
QPSK (Quadrature Phase-Shift Keying): A modulation scheme where information is encoded in the phase of the light wave. A QPSK symbol can exist in one of four phases (45°, 135°, 225°, 315°), representing two bits of data (

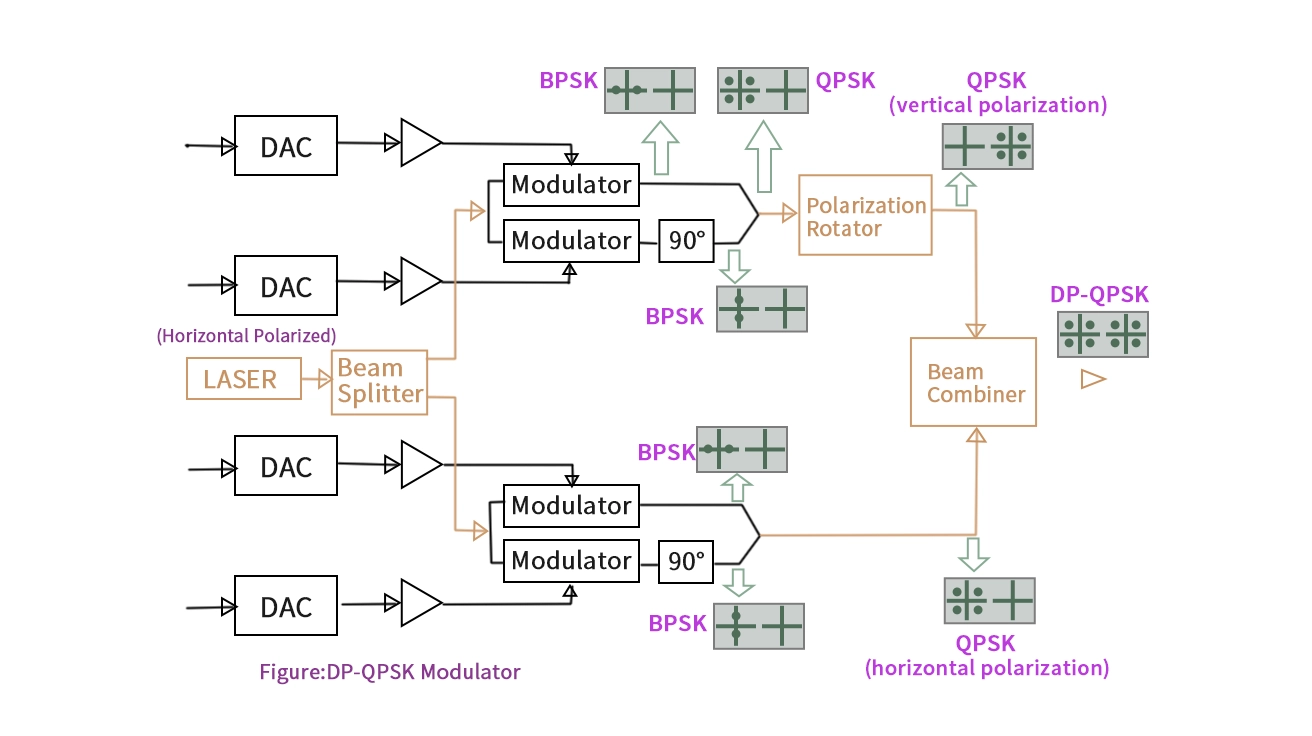

00,01,11,10). This doubles the data capacity compared to schemes sending one bit per symbol.Dual-Polarization (DP): This is the clever part. Light is an electromagnetic wave with a property called polarization (think of it as the orientation of the wave's oscillation). DP-QPSK uses two orthogonal polarizations (typically called X and Y) to transmit two independent QPSK signals simultaneously over the same wavelength. This effectively doubles the capacity again.
By combining these techniques, DP-QPSK transmits four bits per symbol, making it incredibly spectrally efficient.
✦ Why is DP-QPSK a Game-Changer? Key Advantages
The adoption of DP-QPSK, especially with coherent detection, revolutionized optical networking. Here’s why:
Feature | Benefit | Application |
|---|---|---|
High Spectral Efficiency | Transmits more data (bits) per unit of bandwidth (Hz). This is critical as spectrum is a finite resource. | Enables 100G+ rates on a single wavelength within a standard 50GHz channel grid. |
Superior Resistance to Impairments | Coherent DP-QPSK receivers use digital signal processing (DSP) to actively compensate for chromatic dispersion (CD) and polarization mode dispersion (PMD). | Eliminates the need for expensive, specialized dispersion-compensating modules in the fiber span. |
Excellent Optical Signal-to-Noise Ratio (OSNR) Tolerance | Allows signals to travel longer distances before needing regeneration, even in the presence of noise. | The backbone technology for long-haul and subsea cable transmission systems. |
Scalability | Serves as the building block for even higher-order formats like DP-16QAM (for 200G/400G). | Future-proofs network investments and facilitates smooth upgrades. |
✦ Where is DP-QPSK Used? Core Applications
You won't find DP-QPSK in your home router, but it's hard at work in the core of the internet:
100G/200G Coherent Optical Transport: This is its primary domain. It's the standard modulation format for 100G long-haul and metro networks and is often used for 200G in longer-reach scenarios.
Data Center Interconnects (DCI): For connecting data centers over tens or hundreds of kilometers, coherent optical modules using DP-QPSK offer the perfect balance of reach, capacity, and cost.
Undersea Cables: Its resilience to noise and impairments makes it indispensable for spanning oceans with massive data capacity.
✦ Powering Networks with LINK-PP Optical Innovation
Implementing DP-QPSK requires highly integrated and sophisticated hardware. This is where advanced optical transceiver manufacturers like LINK-PP excel. LINK-PP's coherent optical modules are engineered to harness the full potential of this technology, providing network operators with reliable, high-performance solutions.

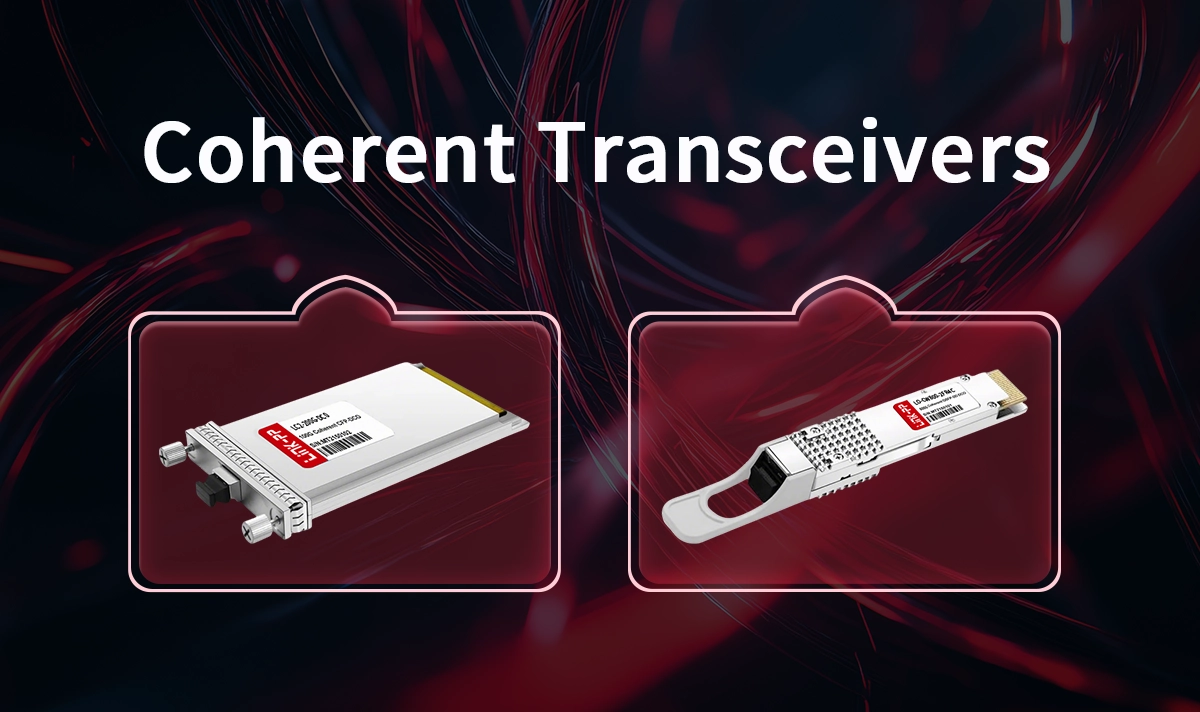

A prime example is the LINK-PP CFP2 coherent transceiver module. This module is designed for 100G/200G applications, leveraging DP-QPSK modulation to deliver exceptional performance for long-haul transmission and metro network upgrades. It features a powerful integrated DSP that handles complex impairment compensation, simplifying network design and reducing operational costs.
For anyone sourcing high-speed optical transceivers or planning a coherent optics strategy, understanding the role of DP-QPSK and partnering with a technology leader like LINK-PP is a critical step.
✦ Conclusion: The Foundation of a Faster Future
Dual-Polarization QPSK is more than just a complex acronym; it's the workhorse modulation format that made the 100G-and-beyond era possible. By brilliantly manipulating both the phase and polarization of light, it delivers the spectral efficiency, reach, and resilience that modern global communications demand. As we march toward 800G and 1.6T, the principles pioneered by DP-QPSK will continue to underpin the future of optical networking.
🚀 Ready to Upgrade Your Optical Network?
Leverage the power of coherent technology and DP-QPSK with LINK-PP's industry-leading optical solutions. Explore our range of high-performance 100G and 200G coherent transceivers to find the perfect fit for your long-haul, metro, or data center interconnect needs.
➡️ Contact our experts today for a consultation!
✦ FAQ
What makes DP-QPSK different from regular QPSK?
DP-QPSK uses two polarizations instead of one. You can send twice as much data in the same channel. This method helps you get faster speeds without needing more bandwidth.
What equipment do you need for DP-QPSK?
You need special transmitters and receivers that handle two polarizations. Digital signal processors help you separate and decode the signals. These devices keep your data clear and strong.
What problems can DP-QPSK solve in networks?
DP-QPSK helps you move more data over long distances. You can avoid signal loss and keep your connections stable. This method works well for busy networks and long-haul links.
What are the main uses of DP-QPSK today?
You find DP-QPSK in optical fiber systems, high-speed internet backbones, and satellite links. Many companies use it to boost data rates and improve network performance.
What should you consider before using DP-QPSK?
You should check if your network supports advanced equipment. DP-QPSK costs more and needs skilled workers. Make sure you have the right tools and training for the best results.
