In the invisible symphony of wireless communication and high-speed data transmission, every bit of data needs a clear, efficient voice. Among the various techniques that make this possible, QPSK Modulation stands as a fundamental and remarkably resilient maestro. Whether you're streaming a video, receiving a GPS signal, or browsing the web, QPSK is likely playing a critical role in the background.
This article will demystify what QPSK is, how it works, and why it remains a cornerstone of modern digital communication systems.
➣ Key Takeaways
QPSK means Quadrature Phase Shift Keying. It sends digital data by changing the phase of a signal. This helps send data faster and more efficiently.
This modulation method sends two bits with each symbol. This doubles the data rate compared to older methods like BPSK.
QPSK works well even when there is noise. This makes it great for wireless communications in cell phones, Wi-Fi, and satellites.
Using QPSK saves bandwidth. This lets more data be sent in the same space. It leads to faster downloads and clearer calls.
Knowing about QPSK can help you pick the right technology. You can choose what is best for speed or reliability in your digital communications.
➣ What is QPSK Modulation?
QPSK, or Quadrature Phase Shift Keying, is a digital modulation scheme used to transmit data over radio waves, coaxial cables, and fiber optic links. It's a type of Phase Shift Keying (PSK) that conveys data by changing, or modulating, the phase of a reference signal (the carrier wave).
The "Quadrature" in its name signifies that it uses two carrier waves out of phase by 90 degrees—a sine wave (I for In-phase) and a cosine wave (Q for Quadrature). This clever use of two orthogonal carriers is the key to its efficiency.
➣ How Does QPSK Work? The Magic of 4 Phases
Unlike simpler BPSK (which uses two phases to represent 1 bit per symbol), QPSK uses four distinct phase shifts to represent data. Each unique phase shift encodes a unique two-bit symbol.

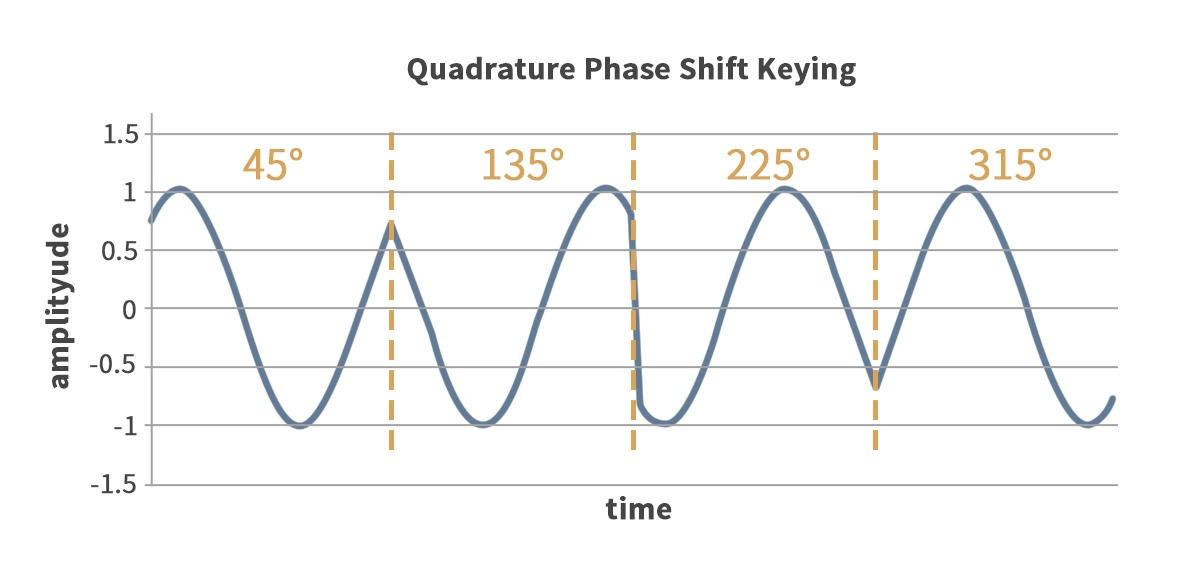

The four standard phase shifts are: 45°, 135°, 225°, and 315°. Each of these phases corresponds to one of four possible two-bit combinations:
Phase Shift (Degrees) | Dibit (I, Q) | Symbol |
|---|---|---|
45° | (0, 0) | 00 |
135° | (0, 1) | 01 |
225° | (1, 1) | 11 |
315° | (1, 0) | 10 |
This means that with every symbol transmitted, QPSK sends two bits of information. This doubles the data rate of BPSK for the same bandwidth, making it a highly spectrally efficient modulation technique.
Key Advantages of QPSK: Why It's So Popular
Bandwidth Efficiency: As mentioned, its ability to transmit 2 bits per symbol makes it twice as efficient as BPSK, a critical factor in crowded spectrum environments.
Robustness: QPSK is relatively resistant to signal degradation and noise compared to higher-order modulation schemes (like 64-QAM). This makes it excellent for long-haul communication and low-signal-strength scenarios.
Simplicity: Its implementation is less complex than higher-order modulations, leading to more reliable and cost-effective systems.
➣ Where is QPSK Used? Key Applications
QPSK isn't just a theoretical concept; it's a workhorse in countless real-world technologies:
Satellite Communication: Downlinking data from satellites (e.g., GPS signals, satellite TV like DVB-S2) often uses QPSK due to its noise resilience over vast distances.
Wireless Networks: It's a foundational scheme in Wi-Fi standards (802.11) and cellular networks (CDMA, LTE, and now 5G for control channels).
Fiber Optic Systems: In coherent optical communications, variants like DP-QPSK (Dual-Polarization QPSK) are the bedrock of modern 100G+ optical transceivers, enabling massive data throughput over global networks.
Speaking of high-performance optics, achieving optimal results with QPSK-modulated signals requires precision-engineered hardware. This is where high-quality coherent optical modules come into play. For network engineers looking for reliability, a module like the LINK-PP LS-SM3125-10C is engineered to deliver exceptional performance for long-reach, QPSK-based fiber optic communication links, ensuring data integrity and minimal bit error rates.
➣ QPSK vs. Other Modulation Schemes
Modulation | Bits per Symbol | Spectral Efficiency | Robustness | Typical Use Case |
|---|---|---|---|---|
BPSK | 1 | Low | Very High | Deep-space communication, robust links |
QPSK | 2 | Medium | High | Satellite, Wi-Fi, optical transport |
16-QAM | 4 | High | Medium | 5G, Wi-Fi, cable modems |
64-QAM | 6 | Very High | Low | High-speed Wi-Fi, 5G in good conditions |
➣ Optimizing Your Network with the Right Technology
Understanding modulation schemes like QPSK is the first step. Implementing them effectively is the next. Whether you're designing a satellite link or upgrading a data center's DWDM infrastructure, the choice of components is paramount. High-performance optical transceivers are critical for modulating and demodulating these signals with precision.
For projects demanding unwavering quality and technical support, partnering with a proven manufacturer is key. LINK-PP specializes in advanced optical solutions, including a range of coherent CFP2 optical modules designed for complex modulation formats.
➣ FAQ
What does QPSK stand for?
QPSK stands for Quadrature Phase Shift Keying. You use this method to send digital data by changing the phase of a signal.
What makes QPSK different from BPSK?
You send two bits with each symbol in QPSK. BPSK only sends one bit per symbol. QPSK lets you transfer data faster.
What devices use QPSK modulation?
You find QPSK in cell phones, Wi-Fi routers, and satellites. These devices use QPSK to send data quickly and clearly.
What happens if there is noise in a QPSK signal?
You may see errors if noise changes the signal’s phase. QPSK helps you keep signals clear because the phase states are easy to tell apart.
