✈️ What Is Avionics and Why Does It Matter

What Is Avionics

Avionics—short for aviation electronics—refers to all electronic systems installed in aircraft, including communication, navigation, monitoring, flight control, and data management.
These systems form the digital nervous system of modern aircraft, ensuring safety, efficiency, and intelligent operation.

With the growth of ARINC 664/AFDX and Ethernet-based networks, avionics has evolved toward data-centric architectures, where Ethernet transformers play a crucial role in maintaining signal integrity and reliability.

✈️ The Shift Toward Ethernet in Avionics Systems

Traditional aircraft networks (ARINC 429, MIL-STD-1553) are giving way to deterministic Ethernet for high-speed, high-volume data transfer.
In avionics Ethernet systems, requirements include:

  • Deterministic communication with redundancy

  • EMI resistance under extreme flight conditions

  • Compact, lightweight design

  • Compliance with aviation standards (DO-160, DO-254)

These networks power everything from flight management systems to in-flight entertainment and real-time health monitoring.

✈️ What Are Ethernet Transformers?

Definition and Core Functions

An Ethernet transformer, also called a LAN magnetics module, provides:

  • Galvanic isolation between circuits

  • Common-mode noise suppression for EMI protection

  • Signal integrity through impedance matching

  • Safety compliance by meeting isolation voltage requirements

In avionics, these transformers are vital for ensuring stable, noise-free Ethernet communication across flight-critical systems.

Why Avionics Requires Special Magnetics

Unlike standard industrial applications, avionics Ethernet magnetics must operate under:

  • Wide temperature range (–55 °C to +125 °C)

  • Strong vibration and altitude variation

  • Lightning and transient voltage exposure

That’s why aerospace-grade Ethernet transformers require enhanced shielding, robust materials, and strict traceability.

✈️ Design Requirements for Avionics Ethernet Transformers

Electrical Specifications

Parameter

Typical Requirement

Description

Bandwidth

Up to 125 MHz + harmonics

Supports 100/1000BASE-T Ethernet

Isolation Voltage

≥ 2.5 kVrms

Meets DO-160 transient protection

CMRR

High (> 50 dB)

Filters EMI noise

Temperature Range

–55 °C to +125 °C

For aviation environments

Package

Compact, low profile

Space and weight optimized

Integration with Avionics PHY and RJ45 MagJack

In avionics designs, Ethernet transformers are often integrated with RJ45 connectors to save PCB space and improve EMI performance.
LINK-PP offers custom magnetics RJ45 connectors compatible with avionics-grade AFDX/ARINC 664 networks.

✈️ Ethernet Transformers in Avionics Network Architecture

System-Level Function

In a typical avionics Ethernet architecture, Ethernet transformers connect:

  • Flight computers

  • Data concentrator units (DCU)

  • Cockpit displays

  • Sensors and actuators

They ensure every Ethernet signal remains isolated, synchronized, and interference-free, forming the foundation of reliable aircraft networking.

✈️ LINK-PP’s Ethernet Magnetics Solutions

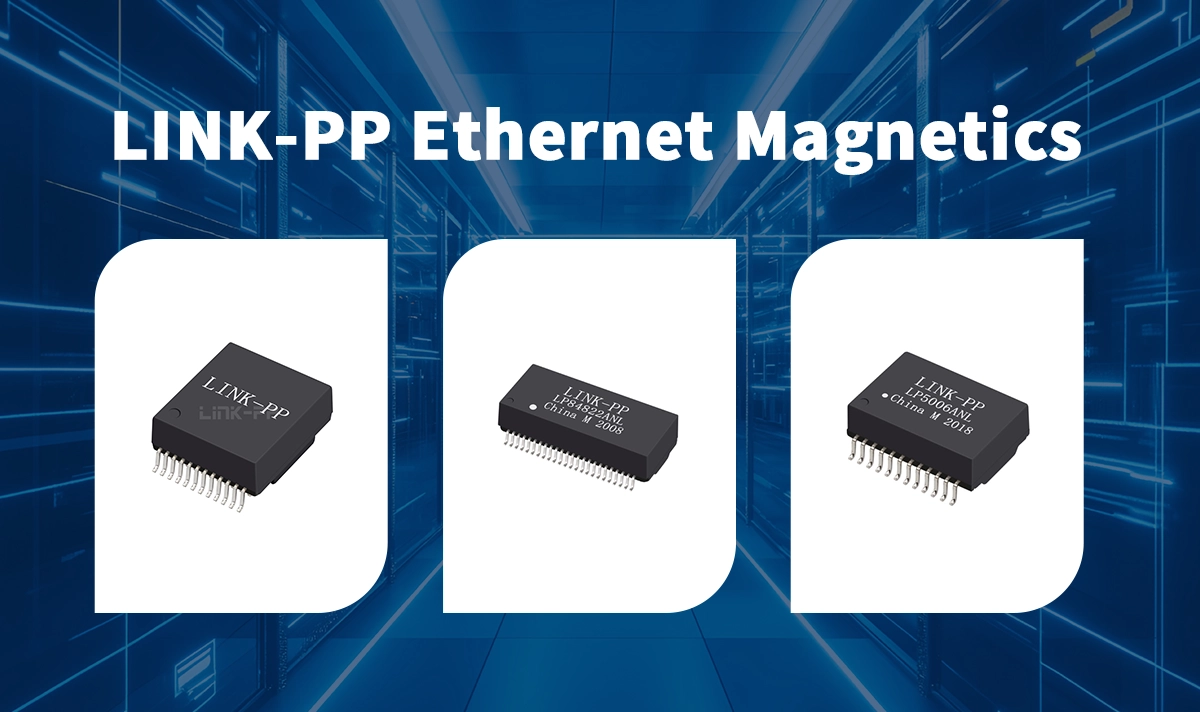

Ethernet Transformers in Avionics Ethernet Systems

Key Advantages of LINK-PP Ethernet Magnetics

  • Extended operating temperature

  • High isolation voltage and CMRR

  • Compact, lightweight form factor

  • Proven performance in ARINC 664 / AFDX avionics Ethernet

  • Custom OEM/ODM options for aerospace customers

Typical Product Example

Model: LP7030NL SMD LAN Transformer
Speed: 2.5G Base-T
Isolation: 4kVrms
PoE: 90W PoE++
Applications: Avionics data bus, AFDX switch, in-flight video, and radar interfaces.

✈️ Why High-Quality Ethernet Magnetics Ensure Flight Safety

Poor signal isolation or EMI coupling can cause packet loss or control errors, which in safety-critical avionics networks could trigger cascading system faults.
Thus, high-quality Ethernet transformers are essential to maintain network integrity, redundancy, and deterministic timing—core principles in avionics design.

✈️ Conclusion

In summary, Ethernet transformers in avionics Ethernet systems enable reliable, EMI-protected data communication essential to modern aircraft performance.
For aerospace engineers and system integrators, choosing a certified, high-reliability Ethernet transformer partner like LINK-PP ensures your avionics designs meet both technical and safety standards.

Looking for Ethernet transformers or custom RJ45 MagJack solutions?
👉 Contact LINK-PP to discuss your avionics Ethernet application and get tailored product recommendations.
