1. Introduction
High-speed Ethernet networks are highly susceptible to electromagnetic interference (EMI), which can disrupt data integrity and compromise system reliability. To address these challenges, LAN transformers—often integrated into RJ45 connectors—play a critical role in isolating circuits, preserving differential signaling, and suppressing unwanted noise.
This article explores how Ethernet Transformers reduce EMI, highlights best design practices for minimizing interference, and explains how LINK-PP’s magnetics help achieve stable performance and compliance with international EMI/EMC standards.
2. What a LAN Transformer Does

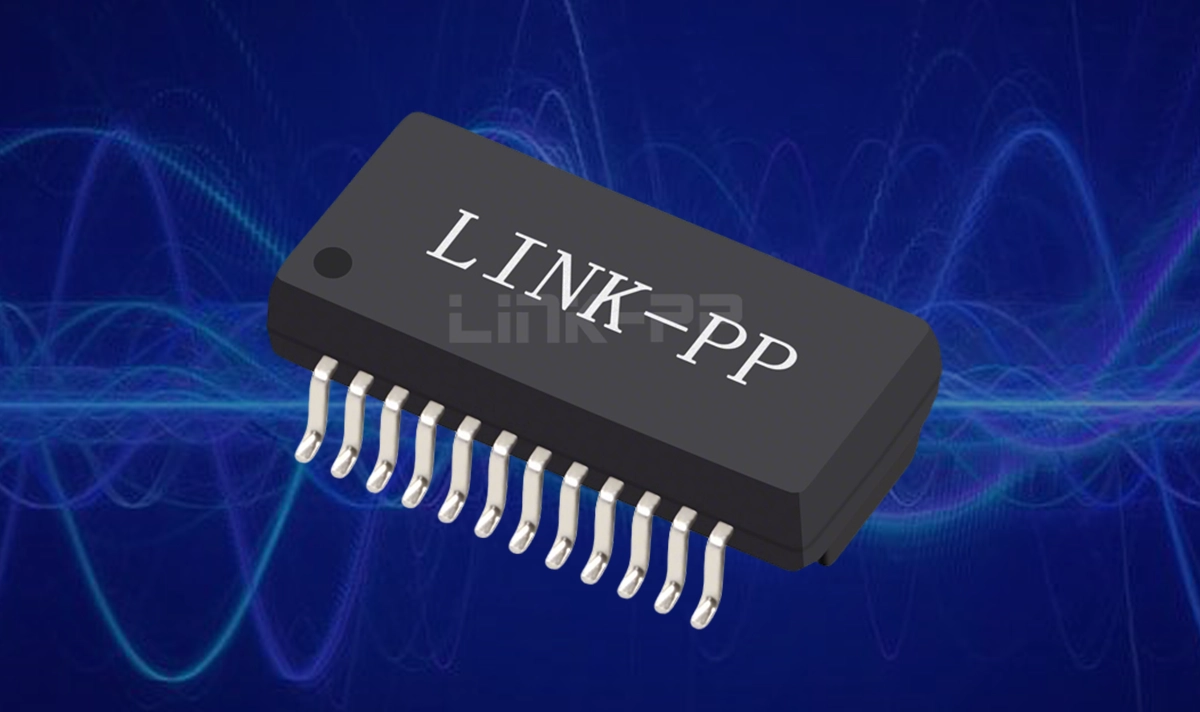

A LAN transformer, also called Ethernet magnetics, is placed between the Ethernet PHY and the RJ45 port. It provides three key functions:
Galvanic isolation between the circuit and the twisted-pair cable protects devices from surges and ground potential differences.
Differential signal coupling to ensure reliable data transmission.
Common-mode noise rejection and controlled impedance, both critical to lowering EMI.
3. How LAN Transformers Reduce EMI
Differential vs. Common-Mode Noise
Ethernet signals are transmitted in differential pairs. Balanced differential transmission inherently cancels most electromagnetic radiation. The transformer helps preserve this differential balance and attenuates unwanted common-mode noise, which otherwise causes conducted and radiated EMI.
Role of the Common-Mode Choke (CMC)
Modern LAN transformers often integrate a common-mode choke (CMC). The CMC provides high impedance to common-mode currents while leaving the differential data path unaffected. This significantly reduces EMI conducted onto the cable and radiated into free space.
Termination and Center-Tap Strategy
Proper use of center taps and line terminations (such as Bob Smith termination) controls reflections, defines a stable common-mode path, and suppresses high-frequency ringing — all of which lower EMI emissions.
4. PCB Design and System Considerations
Even the best LAN transformer cannot guarantee low EMI without correct PCB and system design. Engineers should follow these guidelines:
Place the LAN transformer or RJ45 with integrated magnetics close to the connector to minimize loop area.
Route Ethernet differential pairs with controlled impedance and equal length to prevent mode conversion.
Provide solid grounding and stitching vias for low-impedance return paths.
Consider additional ferrite beads or EMI filters for PoE (Power over Ethernet) designs where noise margins are tighter.
6. Integrated RJ45 Magnetics vs. Discrete Magnetics
Integrated RJ45 with magnetics: Offers compact size, reduced PCB complexity, consistent EMI performance, and simplified compliance testing.
Discrete magnetics: Allow flexibility in placement and may reduce BOM cost, but require more careful PCB layout to achieve the same EMI suppression.
For most modern Ethernet designs, integrated RJ45 magnetics provide a more reliable path to passing EMI/EMC certification.
7. Practical Tips for Reducing Ethernet EMI
Select LAN transformers with integrated common-mode chokes.
Minimize the trace length between RJ45 and transformer.
Match differential pair impedance and avoid stubs.
Terminate according to PHY and transformer recommendations.
Perform early pre-compliance EMI testing to validate design choices.
8. LINK-PP LAN Magnetics Note
LINK-PP offers a comprehensive portfolio of LAN transformers and RJ45 connectors with integrated magnetics, specifically engineered to address EMI and EMC challenges in modern Ethernet designs. These components combine high-performance isolation, common-mode noise suppression, and optimized impedance matching to ensure stable high-speed data transmission.
By integrating magnetics directly into the RJ45 connector, LINK-PP ICMs simplify PCB layout, reduce component count, and enhance EMI control compared to discrete solutions. This makes them particularly suitable for applications such as network switches, routers, servers, industrial control systems, and PoE-enabled devices, where consistent electromagnetic compatibility is critical.
In addition, LINK-PP’s solutions are RoHS compliant and designed to meet or exceed IEEE 802.3 standards, helping manufacturers pass international EMC/EMI certification with confidence.
👉 Explore LINK-PP’s LAN Transformer Product Line to discover solutions tailored for high-speed networking, EMI suppression, and reliable compliance with global standards.
9. Conclusion
LAN transformers play a critical role in lowering EMI by maintaining balanced differential signaling, isolating circuits, and attenuating common-mode currents. When paired with proper PCB design and high-quality integrated magnetics, they ensure that Ethernet devices not only perform reliably but also meet strict EMI/EMC standards.
