Imagine a multi-lane highway. Each car has its own dedicated lane to travel without interfering with others. This is the core principle behind Frequency Division Multiple Access (FDMA), one of the foundational multiple access technologies that enable our connected world.
In this deep dive, we'll unpack what FDMA is, how it works, its applications, and its evolution alongside modern tech. We'll also explore a critical hardware component that makes advanced implementations possible: the optical transceiver.
📄 Key Takeaways
FDMA lets many users talk at the same time by giving each person their own frequency band. This keeps signals clear and private.
The system uses guard bands to stop signals from mixing. This helps keep the connection steady and free from interference.
FDMA is easy to set up and control. It works well for old mobile networks, satellite talks, and radio shows.
FDMA gives good communication, but it has some limits. It uses fixed bandwidth and is less efficient than newer ways like OFDMA.
Knowing FDMA's good and bad points helps you pick the best way to communicate for your needs.
📄 What is Frequency Division Multiple Access (FDMA)?
Frequency Division Multiple Access (FDMA) is a channel access method where the total available bandwidth is divided into multiple, distinct frequency bands. Each band is allocated to a different user or data stream, allowing for simultaneous communication without interference. It's the granddaddy of multiple access schemes, forming the basis for many first-generation cellular networks (like 1G) and still vital in today's hybrid systems.

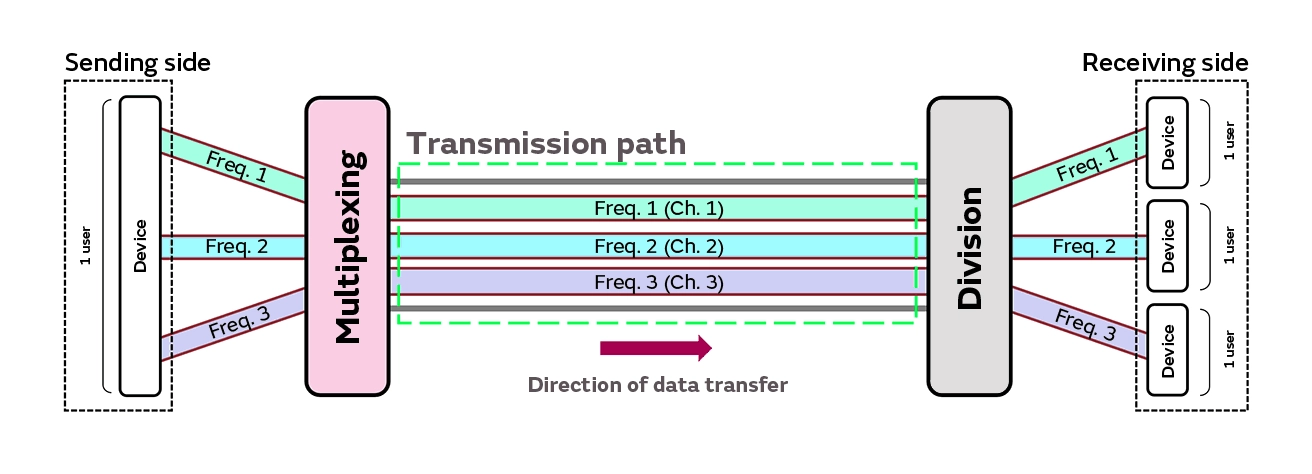

📄 How Does FDMA Work? The Mechanics
The operation of FDMA is elegantly simple:
Spectrum Division: The total frequency spectrum is sliced into smaller, narrower frequency channels.
Channel Allocation: Each user is assigned a unique, dedicated channel for the entire duration of their call or data session.
Guard Bands: To prevent crosstalk and interference between adjacent channels, small unused frequency ranges called "guard bands" are placed between them. This is crucial for maintaining signal integrity.
Because each user has their own private "lane," FDMA is known for its simplicity and reliability—there's no competition for the channel once it's assigned.
📄 FDMA vs. Other Multiple Access Techniques
FDMA doesn't exist in a vacuum. It's often compared and combined with other methods like TDMA (Time Division Multiple Access) and CDMA (Code Division Multiple Access). Here’s a quick comparison:
Feature | FDMA | TDMA | CDMA |
|---|---|---|---|
Core Principle | Divides by Frequency | Divides by Time | Divides by Code |
User Allocation | Dedicated frequency band | Dedicated time slot on a shared frequency | Entire bandwidth all the time with a unique code |
Analog/Digital | Primarily Analog | Digital | Digital |
Complexity | Low | Medium | High |
Iconic Use Case | 1G systems, Satellite TV | 2G GSM networks | 3G UMTS networks |
Modern standards like 4G LTE and 5G NR use sophisticated combinations of these techniques, primarily OFDMA (Orthogonal FDMA), which is a more efficient and scalable digital evolution of classic FDMA.
📄 Applications: Where is FDMA Used Today?
While pure FDMA is less common in new consumer digital tech, its principles are everywhere:
Satellite Communications: A primary application. Different transponders on a satellite use different frequency bands to handle multiple signals simultaneously.
Fiber Optic Systems: Using Wavelength Division Multiplexing (WDM), which is the optical equivalent of FDMA, where different data streams travel on different wavelengths (colors) of light.
Radio & Broadcast TV: Traditional AM/FM radio and analog TV stations each operate on their own assigned frequency.
Cable TV (CATV): The backbone of cable internet and TV relies on dividing the coaxial cable's bandwidth into many 6 MHz channels.
📄 The Optical Backbone: Where FDMA Meets Fiber Optics
This is where the magic of modern high-speed data transmission happens. While RF FDMA deals with radio frequencies, the same principle applies to light in fiber optics. Wavelength Division Multiplexing (WDM) is essentially FDMA for light.
WDM allows multiple optical carrier signals (different wavelengths) to be transmitted on a single fiber. This dramatically increases the capacity of the fiber infrastructure without laying more cables. This technology is critical for backhauling the massive amount of data generated by FDMA and other access technologies from cell towers and satellite ground stations to the core network.
To make this possible, you need high-performance, reliable hardware: optical transceivers. These modules convert electrical signals to optical signals and vice versa. For WDM systems, specific tunable or WDM/DWDM Optical Modules are required. They must be highly stable to precisely emit light at the intended wavelength without drift, ensuring no "crosstalk" in the optical domain.
For robust network performance, especially in demanding FDMA and WDM backhaul applications, choosing the right module is paramount. A standout solution is the LINK-PP DWDM 100G CFP2 module. This module is engineered for long-haul transmission and high-density applications, offering exceptional performance and wavelength stability, which is a critical requirement for modern optical networks based on dense wavelength division principles.
📄 Advantages and Disadvantages of FDMA
Pros:
✅ Simplicity: Easy to implement and manage.
✅ Low Latency: Continuous channel assignment means no waiting for a time slot.
✅ Reliability: Dedicated channels minimize user-to-user interference.
Cons:
❌ Inefficient Spectrum Use: If a user is not transmitting data, their frequency channel remains idle and wasted.
❌ Limited Scalability: The number of users is directly limited by the number of available frequency bands.
❌ Guard Band Overhead: Guard bands consume valuable spectrum that could otherwise be used for data.
📄 Conclusion: The Enduring Legacy of FDMA
FDMA may seem like a technology of the past, but its conceptual framework is the bedrock upon which modern wireless and optical communication is built. From enabling the first mobile calls to forming the principle behind critical 5G network architecture and high-speed data center interconnects, its influence is undeniable. Understanding FDMA is key to understanding the evolution and future of connectivity.
Ready to build a robust and high-capacity network infrastructure? The right technology is only as good as the hardware that supports it. Explore LINK-PP's full portfolio of high-performance optical transceivers, including DWDM modules, 100G capable optical modules, and 5G fronthaul solutions, designed to meet the demands of today and tomorrow.
🔗 Browse our products and find the perfect fit for your network at [link-pp.com]
📄 FAQ
What does FDMA stand for?
FDMA means Frequency Division Multiple Access. You see this word in many communication systems. It lets users share one channel by using different frequency bands.
What makes FDMA different from other access methods?
With FDMA, you get your own frequency band. Other ways, like TDMA, give you a time slot instead. OFDMA splits the frequency into smaller sub-bands for each user.
What are guard bands in FDMA?
Guard bands are small spaces between frequency bands. They stop signals from mixing together. This helps keep your messages clear and free from noise.
What devices use FDMA today?
FDMA is used in satellite phones, walkie-talkies, and some radio networks. These devices need strong and steady signals to talk clearly.
What are the main benefits of FDMA?
You get to talk or send data all the time. The equipment is simple to use. Your signals stay clear. FDMA is good when you need a steady and reliable connection.
