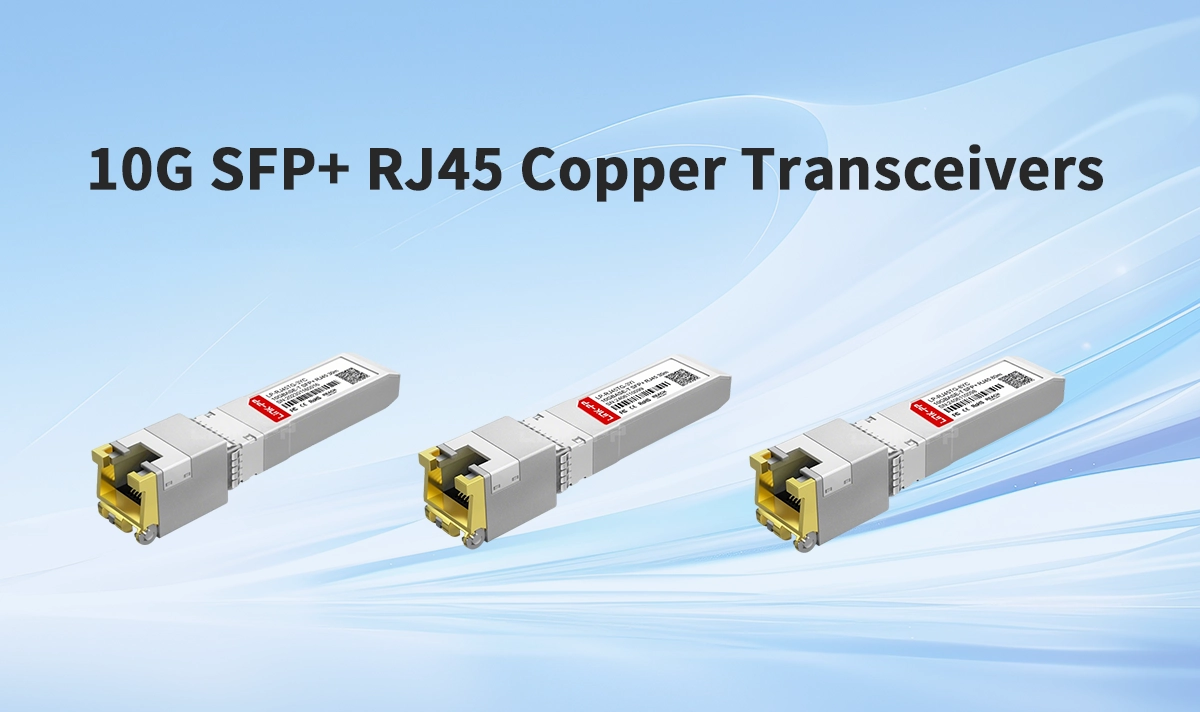

Guide to 10G SFP+ RJ45 Copper Transceivers

1. Introduction

A 10G SFP+ RJ45 Module—also known as a 10GBASE-T SFP+ Copper Transceiver—lets you use the familiar copper Ethernet cabling (like Cat6a or Cat7) to run 10-gigabit Ethernet over your SFP+ port. It's a compact, hot-plug module that simplifies network upgrades while leveraging existing infrastructure.

2. Why Use a 10G SFP+ RJ45 (Copper) Transceiver Modules?

• Easy upgrade path: No need to rewire fiber—you can use your existing copper cables.

• Form-factor familiarity: Fits into any standard SFP+ slot—just plug and play.

• Data center friendly: Especially useful within racks or between nearby switches (up to 100 m).

This approach is both cost-efficient and scalable, offering a smooth upgrade from 1G to 10G without major infrastructure changes.

3. How It Works & Key Specs

• Connector type: Standard RJ-45, so your Ethernet cabling plugs right in.

• Supports 10GBASE-T standard: Complies with IEEE 802.3an and often energy-efficient IEEE 802.3az.

• Power use: Typically low—examples include around 2.5W for 30 m modules.

• Distance:

  • Many modules support up to 30 m over Cat6a/7—ideal for tight spaces.

  • Some, like the LINK-PP “LP-RJ45TG-8YC,” extend this to 80 m under the right conditions.

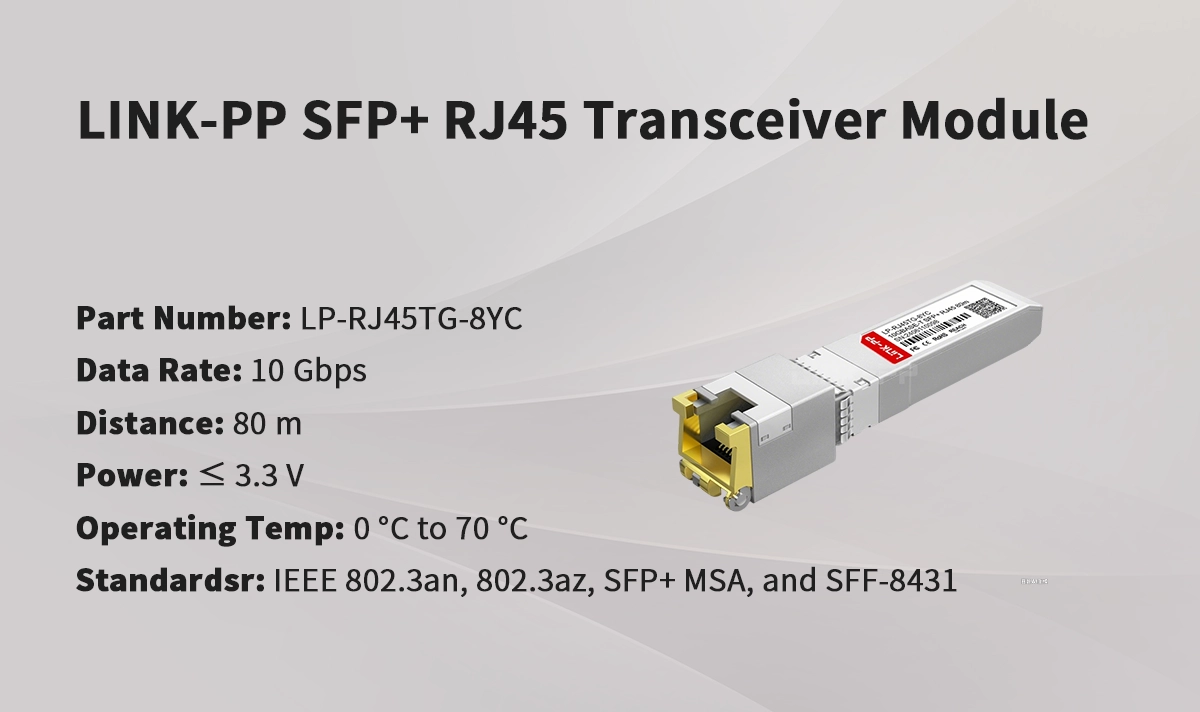

4. Spotlight: LINK-PP 10G SFP+ RJ45 Transceiver (LP-RJ45TG-8YC)

LINK-PP offers a robust 10G SFP+ RJ45 module with the following features:

• Model: LP-RJ45TG-8YC (compatible with Cisco SFP-10G-T-80)

• Data Rate: 10 Gbps

• Distance: Supports up to 80 m over Cat6a or Cat7 cabling

• Power and Standards: ≤ 3.3 V power draw, conforming to IEEE 802.3an, 802.3az, SFP+ MSA, and SFF-8431

• Operating Temp: 0 °C to 70 °C

This makes it a high-performance, cost-effective option for environments like data centers, telecom equipment, or enterprise network racks.

5. Choosing the Right Module

1. Distance Matters:

   • For < 30 m, most standard modules work fine.

   • For longer runs (up to 100 m), the LINK-PP 80m module is a strong choice.

2. Cable Quality:

   • Cat6a or better (Cat7) ensures better performance and signal integrity.

3. Power Usage:

   • Modules vary; some (like 30 m ones) may use ~2.5W, others may differ.

   • Ensure your switches or transceivers can supply sufficient power.

4. Vendor Compatibility:

   • LINK-PP modules are MSA-compliant and labeled compatible with major brands like Cisco, ensuring broad interoperability.

5. Cooling & Placement:

   • Since these modules can generate heat, ensure good airflow. A user on Reddit noted that 10G SFP+ modules can run hot:

     “10-gig Ethernet is a heat factory… unless you have exceptionally good cooling, avoid those transceivers.”

6. Use Cases & Value Proposition

• Short copper runs in racks: Use when fiber isn’t already installed.

• Flexibility and cost savings: Upgrade easily using existing cabling.

• Enterprise and telecom readiness: LINK-PP’s module suits fast, reliable networks while minimizing disruption.

7. Summary Table

8. Final Thoughts

10G SFP+ RJ45 transceiver modules offer flexibility and simplicity when deploying 10-gigabit Ethernet over copper. LINK-PP’s 80 m module stands out by combining distance, efficiency, and brand compatibility. For smooth upgrades and efficient use of infrastructure, it's a compelling choice.
