1G BiDi SFP Module Selection Guide: Maximize Fiber Efficiency & Performance

Deploying or upgrading network infrastructure often hits a bottleneck: limited fiber strands. Running new fiber is expensive and disruptive. This is where BiDi (Bidirectional) SFP optical modules become a game-changer, especially the versatile 1G BiDi SFP. By transmitting and receiving signals over a single strand of fiber using different wavelengths, BiDi technology effectively doubles your existing fiber capacity. This guide dives deep into the critical factors for selecting the optimal 1G BiDi transceiver, ensuring network reliability, performance, and significant cost savings. Keywords like "fiber optic network upgrade" and "single strand SFP solution" highlight this core value proposition.

➣ Understanding 1G BiDi SFP Technology: How Single Fiber Magic Works

1G BiDi SFPs operate on the fundamental principle of wavelength division multiplexing (WDM) over a single fiber strand. Unlike standard dual fiber SFP modules requiring two strands (one for Tx, one for Rx), a BiDi module uses specialized optics:

• Transmit (Tx) on Wavelength A: e.g., 1310nm

• Receive (Rx) on Wavelength B: e.g., 1550nm (or vice versa, depending on type)

• WDM Coupler/Splitter: Installed at each end of the fiber link, this passive device combines and separates the Tx and Rx signals based on their wavelengths.

This elegant solution is crucial for maximizing existing fiber infrastructure, making it ideal for bandwidth expansion projects, Fiber to the Home (FTTH) backhaul, or connecting remote network switches where fiber is scarce. It directly addresses the "fiber optic cost savings" pain point.

➣ Critical Factors in 1G BiDi SFP Module Selection: Beyond the Basics

Choosing the right single fiber SFP module isn't just about grabbing any compatible unit. Mismatched components lead to link failure. Here’s your essential checklist:

• A. Wavelength Pairing (TX/RX): The Heart of BiDi

  • 1310nm TX / 1550nm RX: The most common pairing for standard applications.

  • 1550nm TX / 1310nm RX: Often used for slightly longer reach or specific compatibility needs.

  • Crucial Rule: Modules at opposite ends of a link MUST have reversed wavelengths. If End A uses 1310nm Tx / 1550nm Rx, End B MUST use 1550nm Tx / 1310nm Rx. Failure here is the #1 cause of non-working BiDi links. This underscores the importance of "BiDi SFP compatibility".

• B. Fiber Type & Core Size: Matching the Medium

  • Singlemode Fiber (SMF, 9/125µm): Essential for BiDi operation over typical distances (2km, 20km, 40km, 80km). Supports the precise wavelengths used.

  • Multimode Fiber (MMF): Generally NOT suitable for standard 1G BiDi SFPs due to modal dispersion and wavelength limitations. (Specialized BiDi MM modules exist but are less common for 1G).

  • Choosing SMF is critical for reliable single fiber transmission.

• C. Transmission Distance: Planning Your Reach
  1G BiDi modules are available in standardized reach options:

  • 10km (or 2km): Often labeled "SX" equivalent, suitable for campus or shorter metro links.

  • 20km: The most common workhorse for enterprise and access networks.

  • 40km / 80km+: For longer haul connections, requiring higher quality fiber and potentially dispersion-shifted fiber for 80km+.

  • Always select a module with reach slightly exceeding your actual fiber path length to account for splices, connectors, and potential future degradation. Factor in "optical link budget calculation".

• D. Connector Type: LC Reigns Supreme

  • The LC duplex connector is the absolute standard for BiDi SFPs. While the module plugs into the SFP port with an LC duplex interface, the actual patch cable uses a single LC connector per end because only one fiber strand is needed! Ensure your fiber patch cables have LC connectors.

• E. Digital Diagnostics Monitoring (DDM / DOM): Proactive Management

  • Modules supporting DDM/DOM provide real-time monitoring via SNMP or the switch CLI of key parameters:

    • Temperature

    • Supply Voltage

    • TX Bias Current

    • TX Output Power

    • RX Received Power

  • Essential for network troubleshooting, predictive maintenance, and ensuring optical transceiver health, especially in critical links. Look for "SFP DDM monitoring" capability.

• F. Compatibility: Avoiding Vendor Lock-In

  • MSA (Multi-Source Agreement) Compliance: Ensures physical and electrical interoperability with SFP ports from different vendors.

  • Coding Compatibility: While MSAs cover hardware, firmware can sometimes cause issues. Using "third-party compatible SFP" modules from reputable manufacturers like LINK-PP – who rigorously test against major brands (Cisco, Juniper, HPE Aruba, Dell, Brocade, etc.) – offers significant cost savings without sacrificing performance or reliability. Always verify compatibility for your specific switch model.

Table 1: Key 1G BiDi SFP Selection Factors at a Glance

➣ Advantages of Using 1G BiDi SFPs: The Compelling Case

Why choose single fiber BiDi modules?

• Double Your Fiber Capacity: The most significant benefit. Utilize existing fiber runs fully without costly new installations. Ideal for "fiber infrastructure optimization".

• Cost Savings: Avoids trenching and new fiber cable costs. Often, BiDi SFPs themselves are cost-competitive with dual-fiber equivalents, especially from value leaders like LINK-PP.

• Simplified Cable Management: Requires only one fiber strand per link, reducing patch panel clutter and potential points of failure.

• Future-Proofing: Leverages the ubiquity and longevity of singlemode fiber.

• Reliability: Proven technology meeting industry standards (IEEE 802.3ah, etc.) when using quality modules.

➣ Introducing LINK-PP: Your Trusted Partner for High-Quality 1G BiDi SFPs

Navigating the world of compatible optical transceivers can be complex. LINK-PP stands out as a manufacturer committed to quality, reliability, and deep compatibility without the exorbitant costs of OEM modules. Our 1G BiDi SFP modules are rigorously tested:

• Full MSA Compliance: Guaranteed interoperability.

• Extensive Compatibility Testing: Verified to work flawlessly with switches from Cisco, HPE, Juniper, Dell, Brocade/Ruckus, Aruba, MikroTik, Ubiquiti, and more.

• 100% DDM/DOM Support: Real-time monitoring for proactive management.

• Stringent Quality Control: Components sourced from tier-1 suppliers, assembled under strict processes.

• Competitive Pricing: Significant savings compared to OEM, without compromising on performance or longevity.

• Lifetime Warranty & Expert Support: Peace of mind and technical assistance.

Ready to maximize your fiber efficiency? Explore our compatible LINK-PP 1G BiDi SFP solutions today! Source now ➞

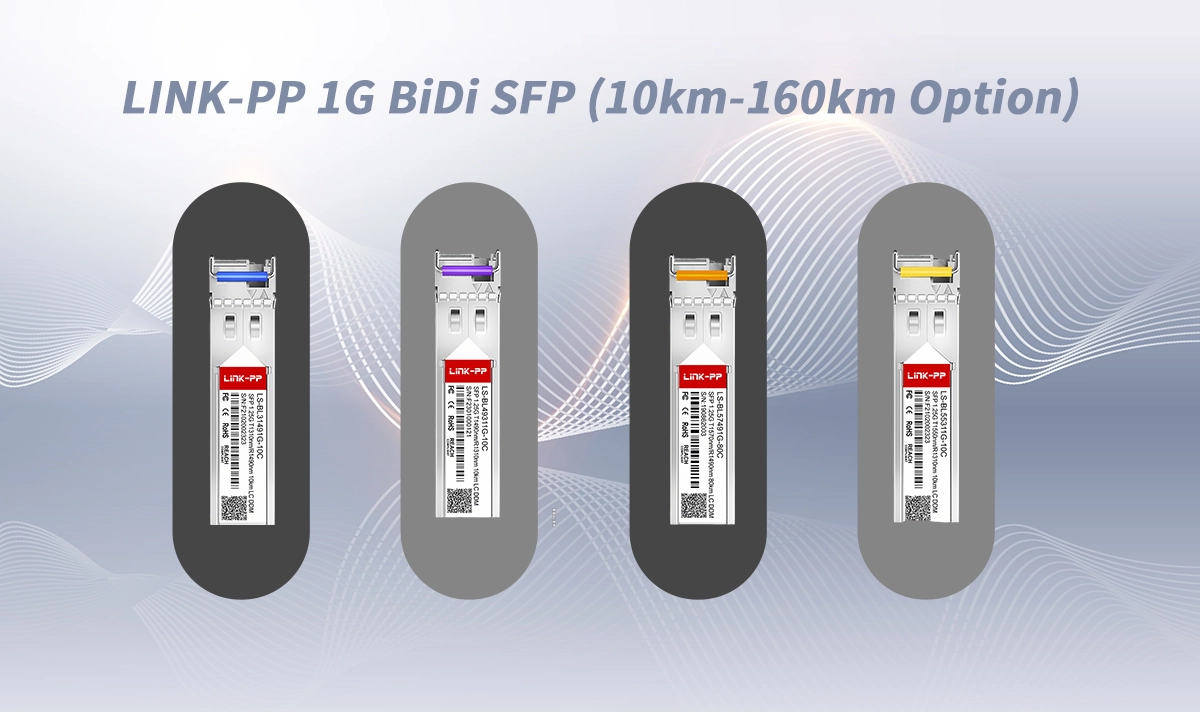

Recommended LINK-PP 1G BiDi SFP Models

Selecting the right LINK-PP BiDi SFP model depends on your wavelength and distance requirements. Here are our flagship models, rigorously tested for "reliable fiber optic connectivity":

• LINK-PP LS-BL31551G-20C (1310nm Tx / 1550nm Rx - 20km): The industry-standard workhorse. Ideal for most enterprise and access network links.

• LINK-PP LS-BL55311G-20C (1550nm Tx / 1310nm Rx - 20km): The essential counterpart for the other end of a link using LS-BL31551G-20C. Always deployed as a pair.

• LINK-PP LS-BL31491G-40C (1310nm Tx / 1490nm Rx - 40km): For longer reach requirements within metro areas or large campuses.

• LINK-PP LS-BL49311G-40C (1490nm Tx / 1310nm Rx - 40km): The required partner for LS-BL31491G-40C.

• LINK-PP LS-BL49551G-80C (1490nm Tx / 1550nm Rx - 80km): Extended long-haul applications. Requires high-quality SMF.

• LINK-PP LS-BL55491G-80C (1550nm Tx / 1490nm Rx - 80km): Partner module for LS-BL49551G-80C.

Table 2: LINK-PP 1G BiDi SFP Model Guide

➣ Installation & Best Practices: Ensuring Flawless Operation

Proper installation is key to "troubleshooting BiDi SFP links" avoidance:

1. Verify Wavelength Pairing: Double-check that modules at each end are correctly paired. This is non-negotiable.

2. Use Single LC Patch Cables: Connect the module's LC duplex port to your fiber panel using a patch cable with a single LC connector. The other end connects similarly at the remote device.

3. Inspect Connectors: Use a fiber microscope to check for dirt, dust, or damage on the fiber connectors (ferrules). Clean if necessary. Contamination is a major cause of signal loss.

4. Check Link Budget: Ensure the optical power levels (Tx power at one end, Rx power at the other) fall within the module's specifications and account for fiber loss, splices, and connectors. DDM/DOM data is invaluable here. Calculate your "optical link budget" carefully.

5. Secure Connections: Ensure LC connectors are fully seated and latched.

6. Monitor DDM/DOM: After installation, verify Tx and Rx power levels are within the normal operating range. Set up thresholds for alerts.

➣ Cost Considerations & ROI: Smart Spending on Quality Optics

While upfront cost is a factor, consider the total cost of ownership (TCO) for your 1G fiber optic transceivers:

• OEM Module Premium: Brand-name modules carry significant markups.

• LINK-PP Value Proposition: Offers identical performance and reliability to OEMs, with full compatibility and DDM support, at a fraction of the cost. This directly impacts your "network upgrade budget".

• Fiber Cost Avoidance: The primary ROI comes from not having to install new fiber cables. BiDi SFPs unlock trapped capacity in existing infrastructure.

• Downtime Costs: Reliable modules from trusted suppliers like LINK-PP minimize the risk of costly network outages.

• Management Efficiency: DDM support reduces troubleshooting time.

Calculate your potential savings! Request a quote for your specific LINK-PP BiDi needs.

➣ Conclusion: Selecting Your Ideal 1G BiDi SFP Partner

Choosing the right 1G BiDi SFP module is a strategic decision impacting your network's efficiency, reliability, and budget. By understanding the critical factors – wavelength pairing, fiber type, distance, DDM, and switch compatibility – you can make an informed choice that maximizes your existing fiber investment.

LINK-PP stands ready as your reliable source for high-performance, rigorously tested, and cost-effective 1G BiDi SFP modules. Our extensive compatibility, lifetime warranty, and expert support ensure your single fiber network links perform flawlessly for years to come.

Ready to unlock the full potential of your fiber infrastructure?

✅ Browse our full range of compatible LINK-PP 1G BiDi SFP modules and find the perfect match for your switches and distance requirements. Shop Now 🛒

✅ Have specific switch models or a complex project? For personalized recommendations and volume quotes, Contact our optical experts today ➞
