We live in a hyper-connected world where a video call with someone 10,000 miles away feels seamless. Behind this modern miracle lies the immense power of long-distance fiber optic transmission, the silent backbone of the global internet. But how does light travel across oceans and continents with minimal signal degradation?
This article delves into the engineering marvels that make ultra-long-haul data transmission possible, the challenges overcome, and the critical role of advanced optical components.
📝 The Everest of Data: Key Challenges in Long-Haul Transmission
Sending data over hundreds or thousands of kilometers isn't simple. The main enemies of a clean optical signal are:
Attenuation: The gradual loss of light signal intensity as it travels through the fiber. It's the primary barrier to long-distance travel.
Dispersion: The "smearing" or spreading out of a light pulse as it travels. This blurring of pulses makes them harder to distinguish at the receiving end, leading to errors.
Non-Linear Effects: At very high power levels, the light signal itself can alter the fiber's properties, causing complex distortions and crosstalk.
Overcoming these requires a combination of brilliant physics and cutting-edge hardware.
📝 The Arsenal of Long-Distance Tech: DWDM, Amplifiers & More
To combat attenuation and maximize the capacity of a single fiber, engineers use a powerful combination of technologies:
Dense Wavelength Division Multiplexing (DWDM): This is the superstar of capacity. DWDM technology allows multiple optical carrier signals (each on a different wavelength/laser color) to be transmitted simultaneously on the same fiber. Think of it as turning a single-lane road into a massive, multi-lane super-highway.
Optical Amplifiers: Instead of converting the optical signal back to electrical for boosting (which is slow and expensive over long chains), Erbium-Doped Fiber Amplifiers (EDFAs) are used. They directly amplify the light signal in its optical form, providing a crucial power boost every 80-100 km.
Advanced Modulation Formats: Techniques like DP-QPSK (Dual-Polarization Quadrature Phase-Shift Keying) and coherent optics pack more data into each pulse of light, making the transmission more efficient and resilient to noise and dispersion.
📝 The Unsung Hero: The Right Long-Haul Optical Transceiver

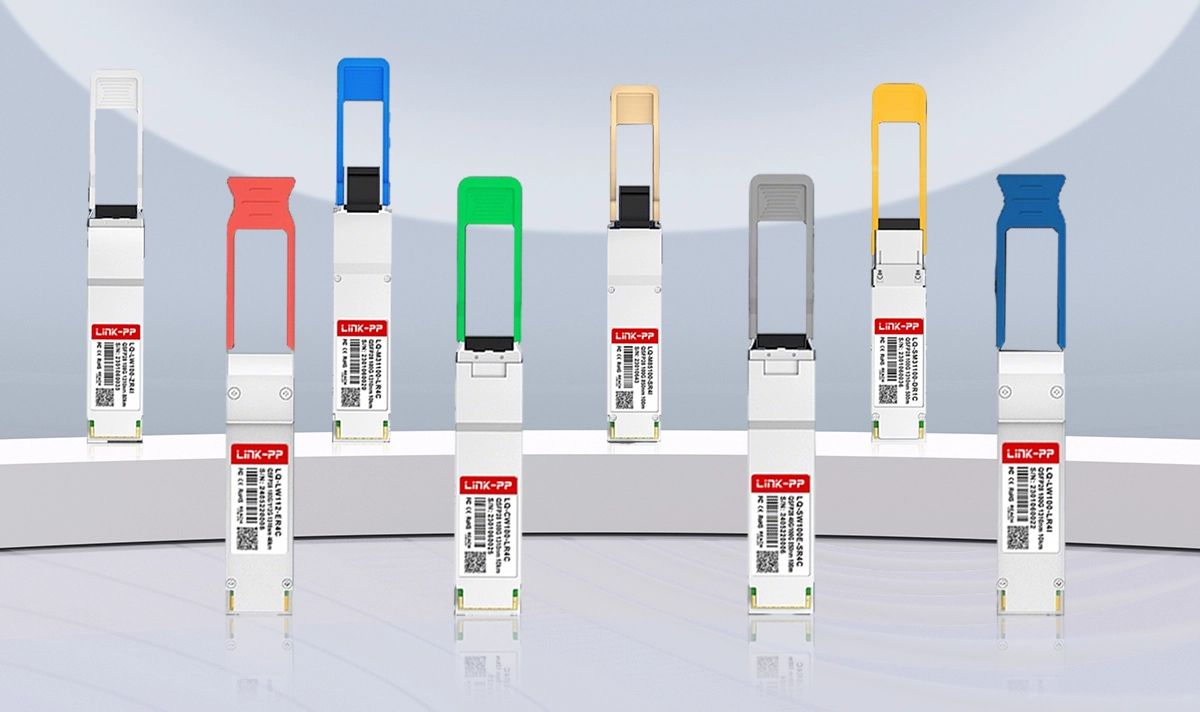

At the heart of every long-haul link are the optical transceivers. Not just any transceiver will do. You need specifically designed long-haul optics capable of high output power, superior sensitivity, and support for advanced modulation.
This is where performance and reliability are non-negotiable. Brands like LINK-PP specialize in manufacturing robust, high-performance optical transceivers engineered for these demanding applications.
For instance, the 400G-ZR+ QSFP-DD coherent pluggable module is a game-changer for long-distance data center interconnects (DCI). It supports transmission up to 800km using coherent technology and is designed for high-density DWDM line systems.
Another excellent choice for legacy and modern networks is the LINK-PP LQ-LW100-ZR4C. This 100G ZR4 coherent transceiver is a workhorse for achieving 100G rates over distances beyond 80km, perfect for metropolitan area networks (MANs) and regional links, offering a great balance of performance and cost.
When selecting a module, key specifications to consider include transmitter output power, receiver sensitivity, and dispersion tolerance.
📝 Comparing Common Long-Haul Transmission Solutions
The following table breaks down the common technologies used to achieve different distance goals:
Technology | Typical Distance | Key Features | Best For |
|---|---|---|---|
100GBASE-LR4 / ER4 Optics | 10km / 40km | Uses 4 LAN WDM wavelengths, popular for high-speed data center interconnects | Metro & Regional Networks |
100G ZR/ZR+ Coherent | 80km - 800km | Coherent technology, integrated DSP, high dispersion tolerance | Long-Haul & DCI |
DWDM + EDFA | 100km - 1000km | Amplifies multiple wavelengths simultaneously, immense capacity | Transoceanic Cables, Core Networks |
📝 The Future of Long-Haul Transmission
The quest for more capacity and longer reaches never stops. The future lies in:
Increased Integration: Pluggable coherent optics (like the 400ZR+ and 800ZR standards) are bringing submarine cable performance into data centers.
Space Division Multiplexing (SDM): Using multi-core fibers to effectively create "more fibers" within a single cable.
Advanced Fiber Designs: New fiber types with reduced attenuation and better resistance to non-linear effects.
📝 Conclusion: Connecting the World, One Pulse of Light at a Time
Long-distance fiber optic transmission is a fascinating field where physics, engineering, and innovation converge to power our digital lives. By leveraging technologies like DWDM, optical amplification, and high-performance coherent optical transceivers from industry leaders like LINK-PP, we continue to push the boundaries of speed and distance.
Ready to design or upgrade your long-haul network infrastructure?
Ensure your project's success with reliable, high-performance components. Explore LINK-PP's full portfolio of long-distance optical transceivers to find the perfect solution for your specific reach and capacity requirements.
Contact our experts today for a consultation ➞
📝 FAQ
What is the main job of long-haul transmission?
Long-haul transmission moves your data over very long distances. It connects cities, countries, and even continents. You use it every day for internet, phone calls, and streaming.
How do fiber optic cables send data so fast?
Fiber optic cables use light to carry your data. Light travels very quickly through the glass strands inside the cable. This lets you send information far away in just seconds.
Why do signals need amplifiers and repeaters?
Signals can get weak as they travel. Amplifiers boost the signal’s strength. Repeaters catch the signal and send it forward. You get clear and strong data, even over long distances.
Can long-haul transmission work under the ocean?
Yes! Special fiber optic cables run under the sea. These cables connect continents. You can call or message people in other countries because of these underwater cables.
Is long-haul transmission important for online gaming?
Absolutely! Long-haul networks keep your connection fast and steady. You play games with friends in other cities or countries without lag. This makes your gaming experience smooth and fun.
