In the fast-evolving world of fiber optics, precision is everything. Whether you're deploying 5G networks, testing data centers, or ensuring high-speed internet reliability, understanding the light signals traveling through optical fibers is crucial. That's where an Optical Spectrum Analyzer (OSA) comes in—a powerful instrument that measures the wavelength, power, and spectral characteristics of light. Think of it as a "microscope for light," revealing details invisible to the naked eye. From detecting signal distortions to optimizing optical module performance, OSAs are indispensable tools for maintaining network integrity. In this article, we'll explore how OSAs work, their key applications, and why they're vital for testing components like optical transceiver modules. Plus, we'll highlight how brands like LINK-PP leverage OSA data to deliver reliable solutions. Ready to illuminate your knowledge? Let's dive in!
📝 Key Takeaways
An Optical Spectrum Analyzer checks light power at many wavelengths. It helps you learn about lasers, LEDs, and fiber optic signals.
Pick an OSA that matches what you need. Look at the wavelength range, resolution, sensitivity, and dynamic range. Make sure it works for your job.
Testing often with an OSA can stop network problems in telecommunications. It helps you find noise and interference in fiber optic signals.
There are different OSAs, like grating-based, Fabry-Perot, and FT-OSA. Each one is good for certain jobs, so choose the right one for you.
Using an OSA makes your work better by giving correct measurements and quick results. This tool is important in labs, factories, and telecom networks.
📝 What is an Optical Spectrum Analyzer (OSA)?
An Optical Spectrum Analyzer (OSA) is a specialized device used to analyze the spectral composition of light signals in optical communication systems. It measures parameters such as wavelength (in nanometers or nanometers), optical power (in dBm), and signal-to-noise ratio (SNR), providing a graphical representation of the spectrum. This helps engineers identify issues like chromatic dispersion, laser drift, or unwanted harmonics. OSAs are widely used in fiber optic testing, telecom networks, and R&D labs to ensure signals meet industry standards.
OSAs operate across various wavelength ranges, such as the C-band (1530–1565nm) and L-band (1565–1625nm), which are common in modern optical systems. They can be benchtop units for lab use or portable models for field applications.
📝 How Does an OSA Work? The Science Behind the Scenes

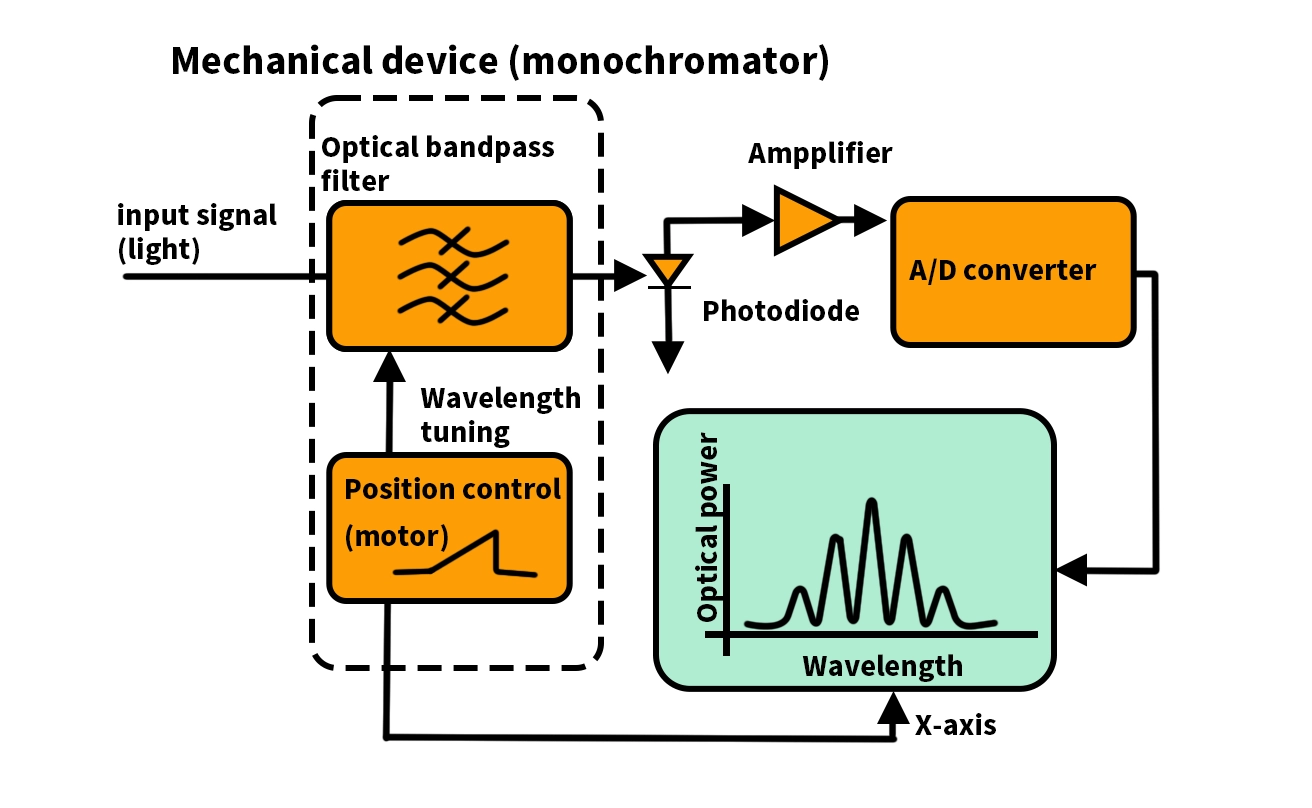

At its core, an OSA uses diffraction gratings or interferometers to disperse light into its component wavelengths. Here's a simplified breakdown:
Light Input: The optical signal is coupled into the OSA via a fiber connector.
Dispersion: A grating or prism splits the light into individual wavelengths.
Detection: A photodetector array measures the intensity of each wavelength.
Analysis: Software processes the data to display a spectrum plot, showing power versus wavelength.
This process enables precise measurements critical for wavelength division multiplexing (WDM) systems, where multiple signals share one fiber. For example, OSAs can detect channel spacing errors or power imbalances that could degrade network performance.
📝 Key Applications of Optical Spectrum Analyzers
OSAs are versatile tools with applications spanning multiple industries. Below is a table summarizing common use cases:
Application Area | How OSA is Used | Industry Impact |
|---|---|---|
Telecommunications | Monitors DWDM systems for channel power and wavelength accuracy. | Ensures 5G and broadband reliability; reduces downtime. |
Data Centers | Tests optical transceivers and fiber links for signal integrity. | Supports high-speed data transmission; critical for cloud services. |
R&D and Manufacturing | Characterizes lasers, LEDs, and optical components during development. | Accelerates innovation in photonics; improves product quality. |
Environmental Sensing | Analyzes spectral shifts in sensors for gas detection or temperature monitoring. | Enhances precision in industrial and scientific applications. |
These applications highlight why OSAs are a cornerstone of optical spectrum analysis and fiber optic maintenance.
📝 The Critical Link: OSA Testing for Optical Transceiver Modules
Optical transceiver modules—such as SFP, QSFP, and CFP forms—are the workhorses of fiber optic networks, converting electrical signals to light and vice versa. However, their performance depends on precise wavelength alignment and power stability. This is where OSA testing becomes essential.
An OSA verifies that a transceiver operates at the correct wavelength (e.g., 1310nm for multimode or 1550nm for single-mode) and within power tolerances. For instance, testing optical transceiver modules with an OSA can reveal manufacturing defects or degradation over time. This is particularly important for high-speed optical modules used in data centers, where even minor deviations can cause packet loss.
Brands like LINK-PP integrate OSA validation into their quality control processes. For example, the LINK-PP SFP28-10G-SR optical module—designed for 10G Ethernet—undergoes rigorous OSA checks to ensure compliance with IEEE standards. By using OSAs to measure parameters like center wavelength and side-mode suppression ratio, LINK-PP guarantees modules that deliver low latency and high reliability. This attention to detail makes LINK-PP optical transceivers a preferred choice for optimizing optical module performance in demanding environments.
📝 Conclusion: Harness OSA Power for Smarter Networks
Optical Spectrum Analyzers (OSA) are more than just measurement tools—they’re guardians of optical network quality. From enabling precise wavelength measurement to ensuring optical module reliability, OSAs play a pivotal role in today’s connected world. As technologies like IoT and 5G expand, the demand for accurate spectral analysis will only grow.
📝 FAQ
What does an Optical Spectrum Analyzer show you?
You see a graph with light power at each wavelength. This helps you know how good your light source is. You can also learn about its features.
What types of light sources can you test with an OSA?
You can test lasers, LEDs, and fiber optic signals. Some OSAs also work with broadband sources like supercontinuum lasers.
What should you check before buying an OSA?
Look at the wavelength range, resolution, sensitivity, and dynamic range. Make sure the analyzer fits your light source and testing needs.
What is the difference between a grating-based OSA and an FT-OSA?
A grating-based OSA splits light using a diffraction grating. An FT-OSA uses an interferometer and math to make the spectrum. Each type is best for different jobs.
