Reliable optical transceiver performance keeps your network running smoothly and avoids costly interruptions. When transceivers malfunction, the consequences can be severe. For example, flaws in wavelength stability, power output, or temperature tolerance can lead to data loss, latency, or hardware damage. The cost loss from downtime is huge. Regular optical transceiver performance tests ensure compliance with industry standards and help avoid these financial pitfalls. By prioritizing reliability, you protect your network and maximize operational efficiency.
Why Optical Transceiver Reliability Matters
Impact on Network Performance
Reliable optical transceivers are the backbone of high-performing networks. When transceivers fail, they disrupt data flow, causing delays and errors. Metrics like forward error correction (FEC) and optical signal-to-noise ratio (OSNR) highlight the importance of transceiver reliability. FEC improves OSNR, ensuring accurate data transmission even in noisy environments. Another critical metric, the distance-capacity ratio, measures how efficiently data travels over long distances. These metrics demonstrate how reliable transceivers maintain seamless communication and reduce operational costs.
Risks of Unreliable Transceivers
Unreliable optical transceivers pose significant risks to your network. Here are some common issues:
Compatibility challenges: Incompatible transceivers can cause connection failures or even damage hardware.
Heat and power consumption: High-speed transceivers may overheat, leading to thermal throttling or failure.
Signal interference and attenuation: Dirty connectors or low-quality cables can result in data errors.
Counterfeit products: Non-certified transceivers often fail to meet industry standards, causing performance issues.
Performance degradation: Over time, transceivers in high-traffic environments may degrade, reducing network reliability.
Addressing these risks proactively ensures your network remains stable and efficient.
Role of Optical Transceiver Performance Tests
Optical transceiver performance tests play a vital role in maintaining network reliability. These tests evaluate transceivers under various conditions, ensuring they meet industry standards. For example, transceivers designed for industrial environments must operate across extreme temperature ranges. The table below highlights the different temperature ranges and their applications:
Temperature Range | Description |
|---|---|
Commercial Temperature Range | Suitable for typical data center environments where conditions are controlled. |
Extended Temperature Range | Designed for outdoor applications where temperatures may drop below freezing or exceed room temp. |
Industrial Temperature Range | Intended for severe weather conditions and industrial environments with extreme temperature variations. |
By conducting regular optical transceiver performance tests, you can identify potential issues early, minimize downtime, and extend the lifespan of your equipment.

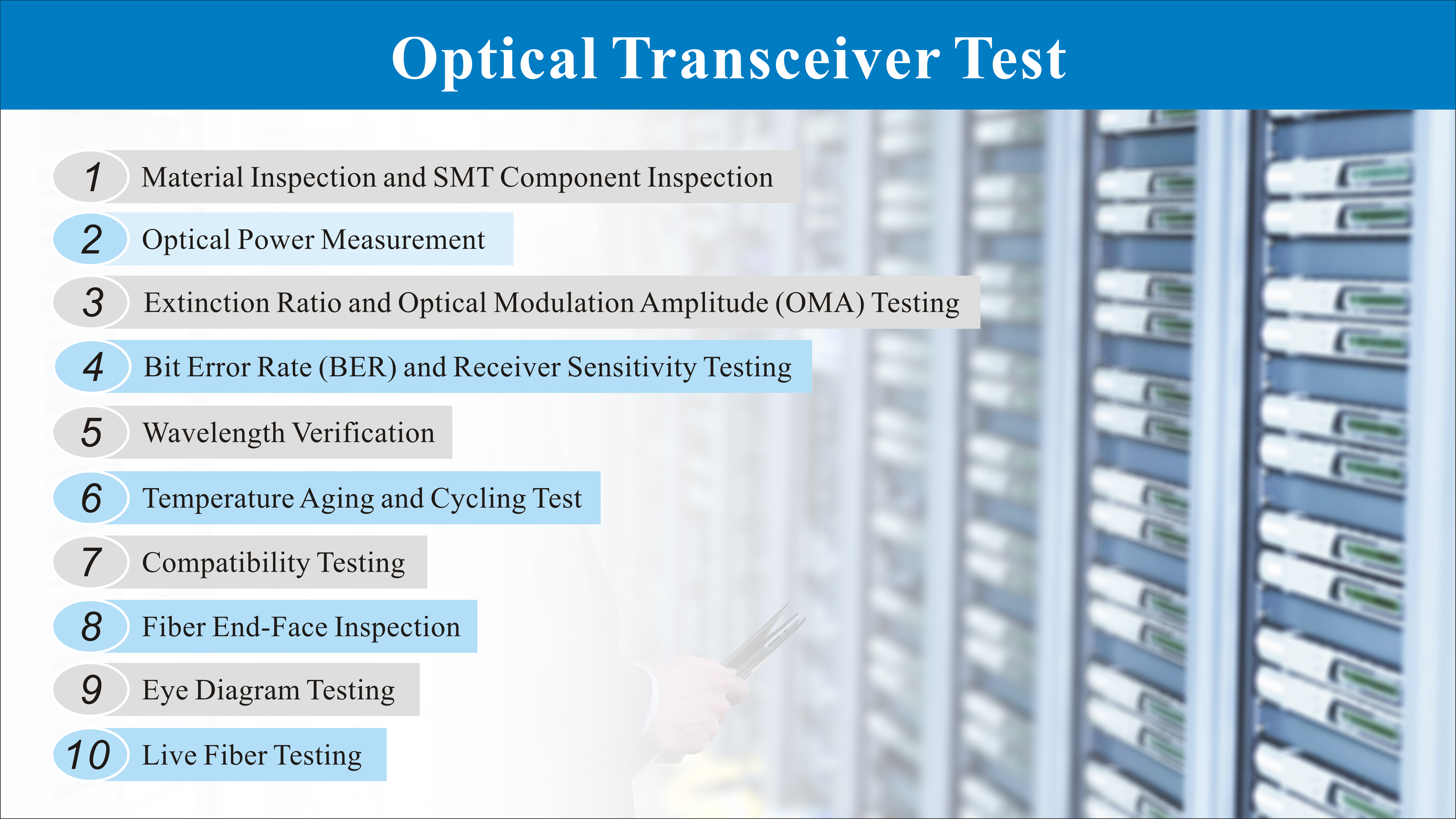

Key Metrics for Optical Transceiver Performance Test
Understanding the key metrics for an optical transceiver performance test helps you evaluate the reliability and efficiency of your network components. These metrics provide insights into how well your transceivers perform under different conditions, ensuring seamless data transmission.
Optical Output Power
Optical output power measures the average power emitted by the transmitter during normal operation. This metric ensures that the transmitter delivers sufficient power for the signal to travel across the intended distance without degradation. Insufficient output power can lead to signal loss, while excessive power may damage the receiver.
Extinction Ratio
The extinction ratio measures the efficiency of a transceiver in distinguishing between logic levels ‘1’ and ‘0’. A higher extinction ratio indicates better signal clarity, which reduces the likelihood of errors during data transmission. This metric is particularly important in high-speed networks where even minor signal distortions can lead to significant performance issues.
Bit Error Rate (BER)
The bit error rate (BER) quantifies the number of errors in a transmitted data stream. A lower BER indicates higher transmission accuracy, which is crucial for maintaining network performance. For reliable optical communication, the pre-FEC BER threshold should not exceed 4.5E-3. This ensures that error correction mechanisms, such as Hard-Decision (HD) Staircase FEC, can effectively eliminate errors.
Receiver Sensitivity
Receiver sensitivity determines how effectively your optical transceiver can detect and process incoming signals. It measures the minimum optical power required for the receiver to achieve a specified bit error rate (BER). Lower sensitivity values indicate better performance, as the receiver can operate reliably even with weaker signals.
Two types of receiver sensitivity are commonly evaluated during optical transceiver performance tests: unstressed receiver sensitivity and stressed receiver sensitivity (SRS). Unstressed sensitivity measures the receiver's performance under ideal conditions, while SRS evaluates its ability to handle degraded signals, such as those affected by noise or distortion. Both metrics are crucial for ensuring reliable data transmission in real-world scenarios.
Eye Diagram Analysis
Eye diagram analysis provides a visual representation of signal quality in optical transceivers. It evaluates the integrity of transmitted signals by plotting voltage levels against time. The resulting "eye" shape reveals critical information about timing, amplitude, and noise margins, making it an essential tool for quality assurance.
Testing Procedures for Optical Transceivers
Testing optical transceivers ensures they meet performance standards and operate reliably in your network. By following structured procedures, you can identify potential issues early and maintain seamless data transmission. Below are the key testing methods for both transmitters and receivers, along with advanced analysis techniques.
Transmitter Testing
Transmitter testing evaluates the ability of the optical transceiver to send data accurately and efficiently. This process focuses on key parameters that influence signal quality and overall performance. Here are some established methods for transmitter testing:
Testing Method | Description |
|---|---|
Transmitter Signal Strength | Impacts overall performance; essential for assessing transmitter functionality. |
Jitter Test | Analyzes signal strength fluctuations; crucial for identifying potential signal loss issues. |
Eye Mask Test | Evaluates optical waveform parameters, ensuring optimal transmitter performance. |
Optical Modulation Amplitude | Measures the difference in optical powers; helps assess sustainable operating power of the transmitter. |
Extinction Ratio Test | Determines optimal bias point and modulation efficiency, critical for transmitter reliability. |
Receiver Testing
Receiver testing focuses on the transceiver's ability to detect and process incoming signals. This step is crucial for maintaining data integrity, especially in high-speed networks. Key aspects of receiver testing include:
Sensitivity Testing: Measures the minimum optical power required for the receiver to achieve a specified bit error rate (BER). This ensures the receiver can handle weak signals without compromising performance.
Overload Testing: Evaluates the receiver's ability to process high-power signals without distortion or damage.
Stressed Receiver Sensitivity (SRS): Tests the receiver's performance under degraded signal conditions, such as noise or distortion.
Eye Diagram and Jitter Analysis
Eye diagram and jitter analysis provide a deeper understanding of signal quality in optical transceivers. These techniques visually represent the integrity of transmitted signals, helping you identify potential issues like distortion or timing errors.
Eye Diagram Analysis: This method plots voltage levels against time to create an "eye" shape. Metrics such as eye height, eye width, and noise margin reveal critical information about signal strength, timing, and interference tolerance. A wide and open eye indicates a high-quality signal, while a narrow or closed eye suggests potential problems.
Jitter Analysis: Jitter refers to timing variations in signal transitions. Excessive jitter can lead to data errors and reduced network reliability. By analyzing jitter, you can pinpoint the root causes of timing inconsistencies and take corrective actions.
Environmental Stress Testing
Environmental stress testing evaluates how optical transceivers perform under extreme conditions. These tests simulate real-world challenges, ensuring your transceivers can handle harsh environments without compromising reliability. By conducting these tests, you can identify vulnerabilities and improve the durability of your network components.
Key Types of Environmental Stress Tests
Several testing methods assess transceiver reliability under environmental stress. Each test targets specific challenges that transceivers may encounter during operation:
Temperature Cycling: This test exposes transceivers to repeated temperature changes, simulating conditions like outdoor installations or industrial environments. It identifies mechanical fatigue caused by thermal expansion mismatches, ensuring components remain stable over time.
Damp Heat Test: Moisture can degrade optical transceivers, especially in humid climates. This test evaluates their ability to resist moisture-filled atmospheres, ensuring long-term functionality in sealed environments.
Life Tests: Accelerated lifetime tests simulate decades of operation in a short period. These tests validate the transceiver's reliability and durability, helping you predict its lifespan.
Live Tests: High-speed digital signals stress the transceiver during live tests. These tests measure bit error rates under harsh conditions, ensuring consistent performance even in demanding scenarios.
Compatibility and Interoperability Testing
Compatibility and interoperability testing ensure your optical transceivers work seamlessly with other network components. These tests verify that transceivers meet industry standards and function correctly across different systems, reducing the risk of connection failures.
Compatibility Testing
Compatibility testing ensures your transceivers align with the specifications of your switches, routers, and cables. This step minimizes downtime and prevents costly repairs.
Interoperability Testing
Interoperability testing evaluates how well transceivers integrate with multi-vendor systems. Modern networks often use components from different manufacturers. Interoperability tests confirm that your transceivers can communicate effectively across diverse platforms, maintaining smooth data transmission.
By conducting these tests, you safeguard your network against failures and optimize the efficiency of your optical transceivers.
Practical Tips for Long-Term Reliability
Ensuring the long-term reliability of optical transceivers requires consistent care and adherence to proven practices. By following these steps, you can extend the lifespan of your transceivers and maintain optimal network performance.
Inspect and Clean Connectors Regularly
Dust and debris on connectors can degrade signal quality. Use lint-free wipes and isopropyl alcohol to clean connectors during routine inspections. This simple step prevents signal loss and ensures reliable data transmission.Organize Cables Properly
Tangled or improperly routed cables can cause physical damage to transceivers. Use cable management tools like ties or trays to keep cables neat and secure. Proper organization reduces strain on connectors and minimizes the risk of accidental damage.Operate Within Temperature Limits
Extreme temperatures can harm transceivers. Always check the manufacturer’s specified operating range and ensure your equipment stays within these limits. Use cooling systems or temperature-controlled environments to prevent overheating.Monitor Performance in Real Time
Many transceivers include diagnostic features like Digital Diagnostics Monitoring (DDM). Use these tools to track metrics such as temperature, voltage, and optical power. Real-time monitoring helps you detect and address issues before they escalate.Update Firmware Regularly
Manufacturers release firmware updates to improve compatibility and fix known issues. Keep your transceivers updated to ensure they function efficiently with the latest network technologies.Using Certified and Compatible Components
Using certified and compatible components ensures your transceivers meet industry standards and function reliably.Partnering with Trusted Vendors
Choosing reliable vendors for your optical transceivers is essential for maintaining network performance. Trusted suppliers offer high-quality products, rigorous testing, and ongoing support. For example, LINK-PP specializes in advanced optical modules for modern networks.Store Transceivers Properly
When not in use, store transceivers in anti-static bags and avoid exposing them to moisture or extreme temperatures. Proper storage protects them from environmental damage and extends their lifespan.
Tip: Implementing these best practices not only enhances reliability but also reduces maintenance costs over time. A proactive approach ensures your network operates smoothly and efficiently.
Conclusion
Reliable optical transceiver performance ensures your network operates efficiently and avoids costly disruptions. Regular testing, adherence to industry standards, proactive maintenance, and choose reliable vendor(like LINK-PP) are essential for achieving this reliability.
