☑ Introduction

IP cameras (Internet Protocol Cameras) have become a key component in modern security and surveillance systems. Unlike traditional analog cameras, IP cameras transmit digital video data over Ethernet networks. Many IP cameras also leverage Power over Ethernet (PoE) technology to receive power directly through the Ethernet cable, simplifying installation and reducing wiring complexity.

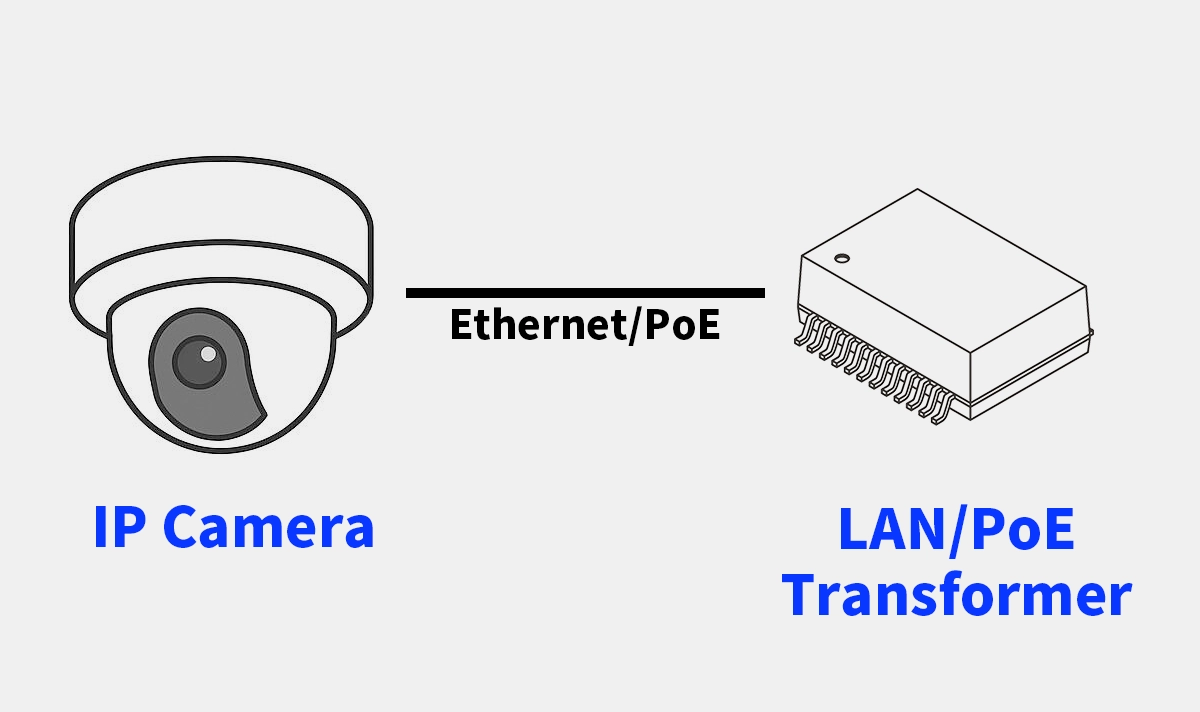

PoE LAN Transformers play a critical role in these systems by combining power delivery, signal integrity, and electromagnetic interference (EMI) suppression in a compact module.

☑ Key Functions of PoE LAN Transformers in IP Cameras

  1. Electrical Isolation

    • Protects sensitive IP camera circuitry from voltage spikes and surges.

    • Ensures compliance with international safety standards.

    • Prevents damage from ground loops, which is especially important in outdoor surveillance installations.

  2. Power Delivery over Ethernet

    • Supports IEEE 802.3af/at/bt standards for PoE, enabling both low-power and high-power cameras.

    • Reduces the need for separate power cables, simplifying deployment in ceiling-mounted or remote locations.

  3. Signal Integrity and Data Transmission

    • Maintains high-speed Ethernet data integrity over long cable runs.

    • Minimizes signal reflections, crosstalk, and common-mode noise, ensuring clear video streams without artifacts.

  4. EMI and Noise Suppression

    • Integrated magnetics in the LAN transformer filter high-frequency noise.

    • Helps IP cameras meet stringent EMC/EMI requirements, especially in industrial or urban environments with many electronic devices.

☑ Why PoE LAN Transformers Are Critical for IP Cameras

Without a proper LAN transformer, IP cameras may experience:

  • Unstable video streaming due to signal interference.

  • Hardware damage from voltage spikes or ground loops.

  • Difficulty meeting PoE standards, limiting remote installation options.

By incorporating a PoE LAN transformer, IP cameras achieve:

  • Stable power delivery through a single cable.

  • Reliable data transmission for high-resolution video (e.g., 4K or 8MP IP cameras).

  • Enhanced lifespan and protection for the camera electronics.

☑ LINK-PP PoE LAN Transformers for IP Cameras

LINK-PP PoE LAN Transformers

LINK-PP offers a variety of PoE-enabled LAN transformers designed specifically for IP cameras and networking devices:

  • LP5007NL: Compact design for space-constrained IP camera boards, reliable PoE delivery.

  • LP5009NL: SMD 24PIN PoE Ethernet Transformer, integrated magnetics for EMI suppression.

These products ensure that your IP camera installations are both safe and efficient, delivering power and data over a single Ethernet cable with minimal signal degradation.

☑ Conclusion

PoE LAN transformers are an essential component for modern IP cameras, combining electrical isolation, EMI suppression, signal integrity, and PoE support. Choosing high-quality transformers, like those from LINK-PP, ensures reliable surveillance performance and long-term protection for your devices.
