In the relentless pursuit of faster data centers and enterprise networks, the transition from 10G to 40G Ethernet was a monumental leap. At the heart of this evolution lies a critical component: the QSFP+ 40G LR4 optical transceiver. This powerful little module is the workhorse for high-bandwidth, long-distance connections. But what exactly is it, and how does it enable such impressive performance?
This guide will demystify the 40G LR4 QSFP+, exploring its technology, advantages, and how to select the best one for your infrastructure.
✅ What is a QSFP+ 40G LR4 Module?
A QSFP+ (Quad Small Form-Factor Pluggable Plus) 40G LR4 is a hot-swappable, compact optical transceiver designed for high-speed network applications. The "40G" denotes its data rate of 40 gigabits per second, while "LR4" stands for Long Reach 4-lane. It's specifically engineered to transmit data over single-mode fiber (SMF) for distances up to 10 kilometers.
Its primary role is to convert 4 channels of 10G electrical signals into 4 optical wavelengths, multiplex them onto a single fiber strand, and do the reverse on the receiving end. This technology is fundamental for data center interconnects (DCI), enterprise networking, and telecommunications.
✅ How Does 40G-LR4 Technology Work? The Magic of WDM
The secret sauce of the 40G LR4 is Wavelength Division Multiplexing (WDM). Instead of using four separate fiber strands, it combines four independent 10G data streams, each carried on a different laser wavelength (1271nm, 1291nm, 1311nm, and 1331nm). These are multiplexed into a single beam of light for transmission.
On the far end, another 40GBASE-LR4 QSFP+ module receives this beam, demultiplexes it back into the four distinct wavelengths, and converts each back into an electrical signal. This efficient process allows for high bandwidth over a single fiber pair, saving significant infrastructure costs.
Key Applications and Use Cases
Data Center Connectivity: Connecting switches and routers across different rows or buildings within a campus.
High-Performance Computing (HPC): Linking clusters that require low-latency, high-throughput connections.
Telecommunications Backhaul: Aggregating network traffic for transmission to core networks.
40G Ethernet Networks: Providing the essential physical layer interface for 40G switch ports.
✅ QSFP+ 40G LR4 vs. Other 40G Optics: A Quick Comparison
Not all 40G optics are created equal. Choosing the right one depends on your distance and fiber type requirements.
Feature | |||
|---|---|---|---|
Media | Single-Mode Fiber (SMF) | Multi-Mode Fiber (MMF) | Single-Mode Fiber (SMF) |
Max Distance | Up to 10km | Up to 150m (OM4) | Up to 40km |
Wavelength | 4x WDM (1271-1331nm) | 4x 850nm | 4x WDM (1271-1331nm) |
Primary Use Case | Long-Reach Data Center Links | Short-Reach Within Rack | Long-Haul Metro Links |
✅ Why Choose a LINK-PP QSFP+ 40G LR4 Module?
When your network's performance is on the line, opting for high-quality, compatible optics is non-negotiable. This is where LINK-PP excels. Our transceivers are meticulously engineered to meet or exceed OEM specifications, ensuring flawless interoperability and low power consumption.

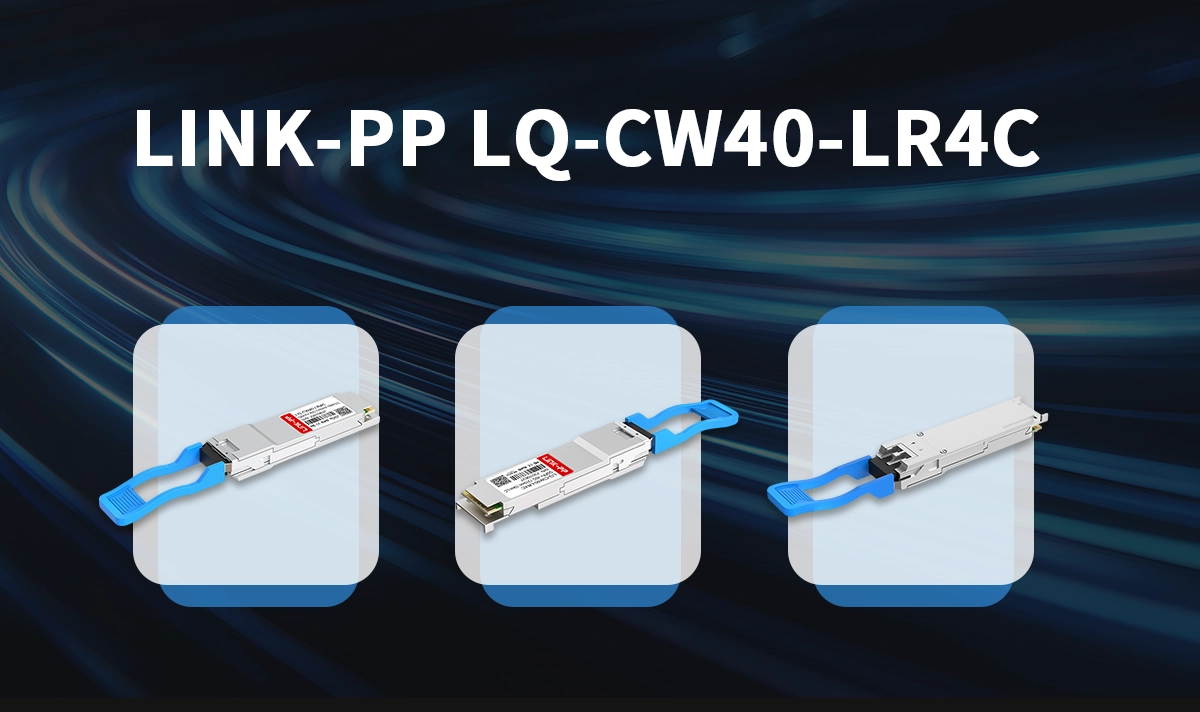

For instance, our popular LINK-PP LQ-CW40-LR4C model offers:
Full MSA (Multi-Source Agreement) compliance for broad compatibility.
DDM/DOM support for real-time monitoring of temperature, voltage, and optical power.
Rigorous testing to guarantee reliability and a lifetime warranty.
Significant cost savings compared to branded OEM modules.
Whether you're looking for a Cisco-compatible QSFP-40G-LR4-S or a Juniper-compatible QSFP-40G-LR4, our modules provide a reliable, budget-friendly solution without compromising on performance. Ensuring 40G LR4 compatibility with your switch brand is our top priority.
Key Considerations Before You Buy
Switch Compatibility: Always verify that the module is coded to work with your specific switch brand (e.g., Cisco, Juniper, Arista).
Fiber Type: Confirm you are using single-mode fiber (OS2) patch cables with LC connectors.
Digital Diagnostics: Utilize the DDM/DOM features to proactively monitor the health of your links and simplify troubleshooting.
Supplier Reliability: Choose a reputable vendor like LINK-PP that offers robust warranties and technical support. Be wary of extremely cheap, uncertified modules that can risk network stability.
✅ Conclusion: Powering Your Network's Future
The QSFP+ 40G LR4 transceiver remains a vital and cost-effective solution for achieving high-bandwidth, long-distance links in modern data centers. Understanding its technology and specifications empowers you to make informed decisions that enhance your network's scalability and reliability.
By choosing a trusted partner like LINK-PP, you gain access to high-performance optics that ensure your infrastructure is built to last, all while achieving substantial cost savings.
🚀 Ready to Upgrade Your Network?
Browse our extensive collection of certified 40G QSFP+ modules to find the perfect solution for your needs. Have questions about 40G LR4 compatibility or need a custom solution?
