In the high-speed world of data transmission, the backbone of your network relies on a critical component: the optical transceiver. Choosing the right one isn't just a technicality; it's a crucial decision that impacts performance, scalability, and budget.
The two primary contenders are Single-Mode Fiber (SMF) optical modules and Multi-Mode Fiber (MMF) optical modules. But which one is right for your project? This guide will demystify the SMF vs MMF debate, helping you make an informed, powerful choice for your infrastructure. Let's dive in!
➤ Key Takeaways
Pick SMF transceivers for far distances. They keep signals strong for up to 100km.
Use MMF transceivers for short connections. They cost less and work well in one building.
Make sure your transceiver matches the fiber type. Mixing SMF and MMF can make signals weak and cause problems.
Think about how fast your network needs to be. SMF works for faster speeds and big data jobs. MMF is good for smaller tasks.
Check and clean your fiber links often. This helps your network work its best.
➤ First, The Basics: Core Differences Explained
The fundamental difference lies in the path light takes through the fiber cable.
Single-Mode Fiber (SMF): Uses a tiny glass core (8-10 microns). It allows light to travel in a single, straight path with minimal reflection or modal dispersion. Think of a laser beam traveling perfectly straight.
Multi-Mode Fiber (MMF): Uses a much larger core (50 or 62.5 microns). It allows multiple light paths (modes) to bounce through the fiber simultaneously. Think of multiple beams traveling down a wide corridor at once.
This core physical difference dictates everything else: distance, bandwidth, cost, and application.
➤ Head-to-Head Comparison: SMF vs MMF Transceivers
The following table summarizes the key differences to help you compare at a glance.
Feature | Single-Mode Fiber (SMF) Modules | Multi-Mode Fiber (MMF) Modules |
|---|---|---|
Core Diameter | Small (8-10 µm) | Large (50 or 62.5 µm) |
Light Source | Laser (e.g., DFB, FP) | VCSEL (Vertical-Cavity Surface-Emitting Laser) |
Wavelength | 1310nm, 1550nm, CWDM/DWDM | 850nm, sometimes 1310nm |
Transmission Distance | Long-Haul (10km to 160km+) | Short-Haul (100m to 550m, up to 2km with OM5) |
Bandwidth Capacity | Very High (Virtually unlimited) | High (But limited by modal dispersion) |
Initial Cost | Higher (Costly lasers & components) | Lower (More affordable electronics) |
Total Cost of Ownership | Lower for long-distance, future-proofing | Higher for long-distance (requires more infrastructure) |
Best For | Long-distance links, MANs, WANs, ISPs, Data Center Interconnect (DCI) | Short-distance links, LANs, data center racks, server connectivity |
➤ Choosing Your Champion: Application Scenarios
Your choice isn't about which is "better," but which is right for the job.
Choose SMF Optical Modules if:
You need long-distance data transmission between buildings, cities, or countries.
Your application is for a Telecom Provider or Internet Service Provider (ISP) backbone.
You require massive, scalable bandwidth for Data Center Interconnect (DCI).
You are future-proofing your network infrastructure for higher speeds over long distances.
Choose MMF Optical Modules if:
You are setting up a local area network (LAN) within a single building or campus.
You need cost-effective connectivity within a data center (e.g., connecting racks of servers to a top-of-rack switch).
Your required link length is under 500 meters.
Your budget for initial hardware deployment is a primary concern.
➤ Future-Proofing & The Rise of High-Speed Networks
As networks evolve towards 400G and 800G, both technologies are adapting. Single-mode fiber is the undisputed king for long-haul, high-speed links. For multi-mode, the new OM5 wideband fiber extends the reach and versatility of MMF for shorter-reach 400G applications.
The key is to plan your fiber plant (the cables in the ground) wisely. Installing single-mode fiber today, even for short runs, offers the greatest flexibility and future-proofing for decades to come.
➤ Why Choose LINK-PP for Your Optical Module Needs?
Navigating the complexities of fiber optic transceivers can be challenging. You need a reliable partner who provides high-quality, compatible, and affordable solutions.

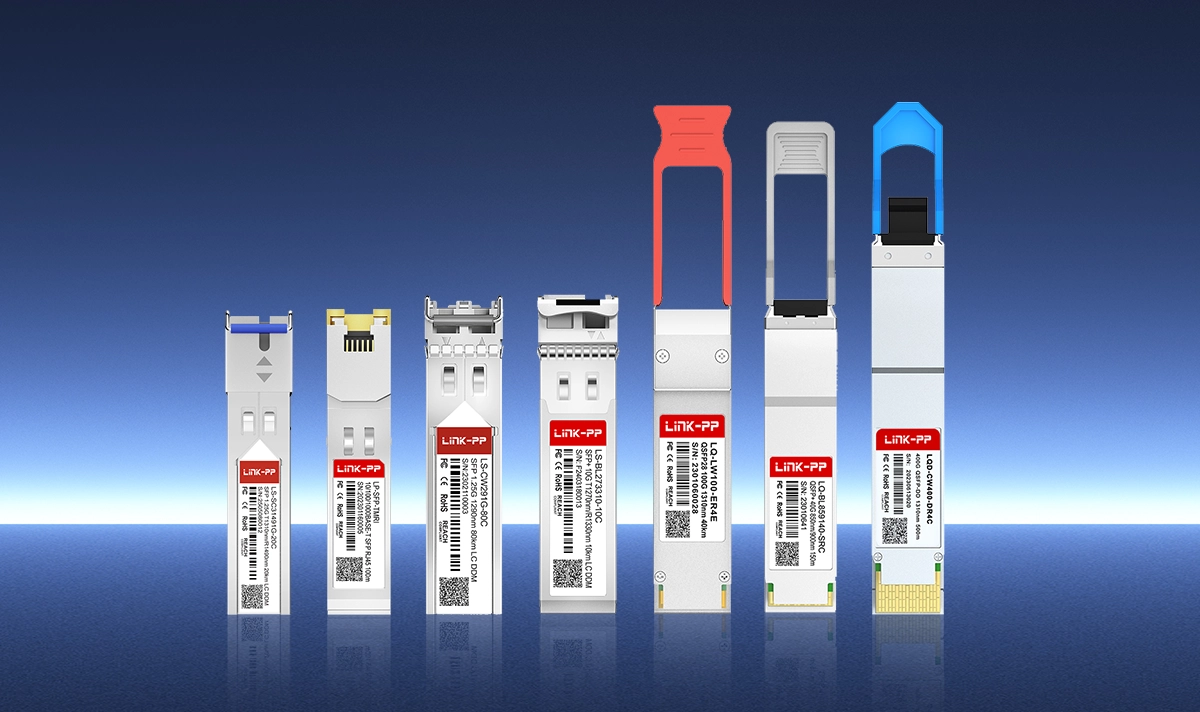

That's where LINK-PP comes in. We specialize in manufacturing a vast array of 100% MSA-compliant optical transceivers for every need. Whether you're looking for a standard MMF SFP+ for your server room or a long-haul SMF QSFP28 for data center interconnect, LINK-PP has you covered.
For instance, our popular LINK-PP SFP-10G-LR is a superb choice for a classic 10G single-mode application up to 10km. For multi-mode needs within a data center, our LINK-PP SFP-10G-SR offers reliable and cost-effective performance.
Explore our catalog to find the perfect transceiver for your specific switch model and application requirements. Source now ➞
➤ Conclusion: It's All About the Right Fit
There's no winner in the SMF vs MMF debate—only the right tool for the job.
MMF is your cost-effective champion for short-distance, high-bandwidth applications.
SMF is the powerful workhorse for long-haul, massive capacity networks.
Understanding the difference between single-mode and multi-mode fiber is the first step in building a robust, efficient, and scalable network.
Still unsure about the best optical module for your project? 🧐
Our experts at LINK-PP are here to help! Contact us today for a free consultation and let us guide you to the optimal solution for your performance and budget needs. Don't forget to explore our blog for more insights on data center connectivity solutions and high-speed transceiver technology!
➤ FAQ
What is an sfp transceiver and how does it help your network?
An sfp transceiver lets you connect different types of fiber cables to your network switch. You can use it to send data between devices. It helps your network work better by improving performance and making upgrades easy.
How do you choose between single-mode and multimode sfp transceivers for your network?
You should look at the distance your network needs to cover. Single-mode sfp transceivers work best for long links. Multimode sfp transceivers fit short links. Both types move data fast, but single-mode gives better performance for long distances.
Why does wavelength matter when picking an sfp transceiver for your network?
Wavelength affects how far your data travels in your network. Single-mode sfp transceivers use a longer wavelength. This helps data move farther with strong performance. Multimode sfp transceivers use a shorter wavelength for short links.
Tip: Always match the wavelength of your sfp transceiver to your fiber cable for the best network performance.
Can you mix single-mode and multimode sfp transceivers in one network?
You cannot mix single-mode and multimode sfp transceivers in the same network link. Each type needs its own fiber cable. Mixing them can lower performance and cause data loss.
How do you keep your sfp transceivers working well in your network?
Clean your sfp transceivers often. Check your cables for damage. Test your network to make sure data moves fast and performance stays high. Replace broken sfp transceivers quickly to keep your network strong.
