1. Introduction
The IEEE 802.3ba amendment, ratified on June 17, 2010, introduced two milestone data rates—40Gbps and 100Gbps—within a unified Ethernet standard. It emerged in response to rapid growth in data center aggregation and backbone networking needs that exceeded the capacity of 10GbE networks.

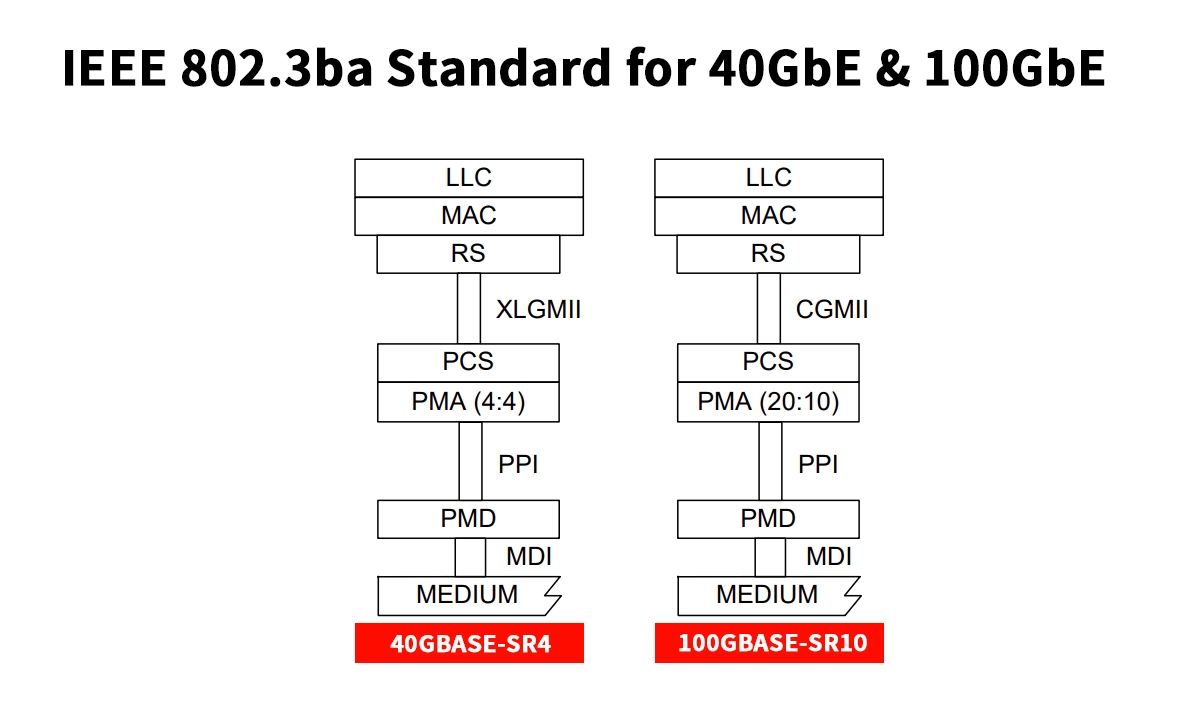

2. Standard Architecture & Design Principles
Unified architecture: Maintains core features of Ethernet—same frame format, full-duplex operation, using the existing MAC layer for backward compatibility.
Physical Layers (PHY): Defines a range of options across media types—single-mode fiber, multi-mode fiber, copper twinax, and backplane links.
3. PHY Media and Reach Capabilities
Key supported PHY types and their reaches include:
Media Type | 40GbE PHY (Examples) | 100GbE PHY (Examples) |
|---|---|---|
Backplane | 40GBASE-KR4 (≥ 1m) | — |
Copper twinax cable | 40GBASE-CR4 (≤ 7m) | 100GBASE-CR10 (≤ 7m) |
Multi-mode fiber (OM3) | 40GBASE-SR4 (≥ 100m) | 100GBASE-SR10 (≥ 100m) |
Multi-mode fiber (OM4) | (Up to ≥ 150m) | (Up to ≥ 150m) |
Single-mode fiber | 40GBASE-LR4 (≥ 10km) | 100GBASE-LR4 (≥ 10km); 100GBASE-ER4 (≥ 40km) |
These PHY options ensure versatile deployment across data centers, enterprise networks, and service provider backbones.
4. Data Lane Distribution & Encoding
The standard uses a multi-lane structure:
40GbE: uses 4 parallel lanes.
100GbE: employs up to 10 lanes.
Encoding uses 64b/66b line coding (BASE-R), with PCS distributing data across lanes with alignment for deskewing.
5. Why It Matters: Impact & Use Cases
Scalable bandwidth: Offers major boosts over 10GbE, perfect for data-intensive applications and cloud infrastructure.
Industry compatibility: Aligns with existing Ethernet ecosystems, enabling smooth upgrades.
Modular deployment: Supports multiple media and connectors, facilitating diverse environments and hardware designs.

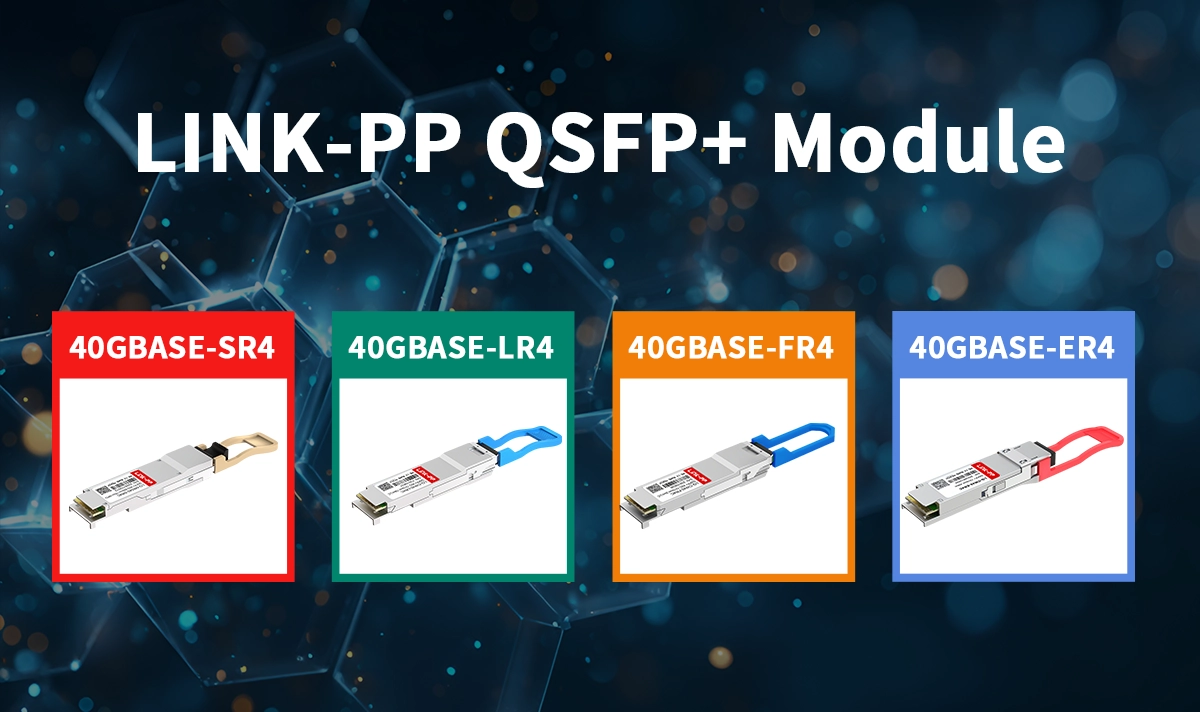

6. LINK-PP’s 40G QSFP+ Modules
LINK-PP provides 40G QSFP+ optical modules engineered to meet IEEE 802.3ba specifications. While the product page does not detail exact technical metrics, QSFP+ modules inherently support standards like 40GBASE-SR4, 40GBASE-LR4, and 40GBASE-ER4—common PHYs defined by IEEE 802.3ba. These modules thus fit seamlessly into data center and high-density networking deployments that leverage 40GbE – a perfect match for environments needing reliability, compatibility, and performance.
7. Conclusion
The IEEE 802.3ba standard, introduced in 2010, marked a pivotal shift to 40GbE and 100GbE, delivering flexible, high-bandwidth Ethernet over multiple media types. LINK-PP’s 40G QSFP+ modules provide practical, standards-compliant hardware that aligns with this evolution—ideal for forward-looking network infrastructures.
