Ever wonder how you get blazing-fast internet, crystal-clear VoIP, and HD streaming delivered directly to your home or business? It all starts deep within your Internet Service Provider's (ISP) central office with a powerful piece of hardware: the OLT.
If the fiber optic network is a vast, information-speeding highway system, the OLT (Optical Line Terminal) is the central traffic control hub. It's the critical endpoint hardware that makes Fiber-to-the-Home (FTTH) and passive optical networks (PON) possible.
In this guide, we'll demystify what an OLT is, how it works, and why it's the unsung hero of modern broadband connectivity.
➤ Key Takeaways
An Optical Line Terminal (OLT) is very important. It changes electrical signals into light signals in fiber networks. This helps give fast and steady internet connections.
OLTs control how data moves. They split one line into many lines. This lets many people use the same fiber-optic cable. It saves space and lowers costs.
Using an OLT makes the network work better. It controls timing and stops data from crashing together. It keeps connections strong for things like streaming and gaming.
Picking the right OLT is important. It should have good security and work with different PON standards. This helps build a fiber network that is strong and can grow.
OLTs are very important in fiber-to-the-home (FTTH) and fiber-to-the-premises (FTTP) networks. They give fast internet to homes and businesses.
➤ What is an OLT (Optical Line Terminal)?
An OLT is a device that serves as the primary endpoint in a passive optical network. It lives in your ISP's data center and performs two essential functions:
Downstream: Converting electrical signals from the ISP's core network into optical signals (light pulses) to be sent to subscribers.
Upstream: Receiving optical signals from users and converting them back into electrical data.
It’s the master device that communicates with all the ONUs (Optical Network Units) or ONTs (Optical Network Terminals) at your home or office, managing the entire data flow efficiently and securely.

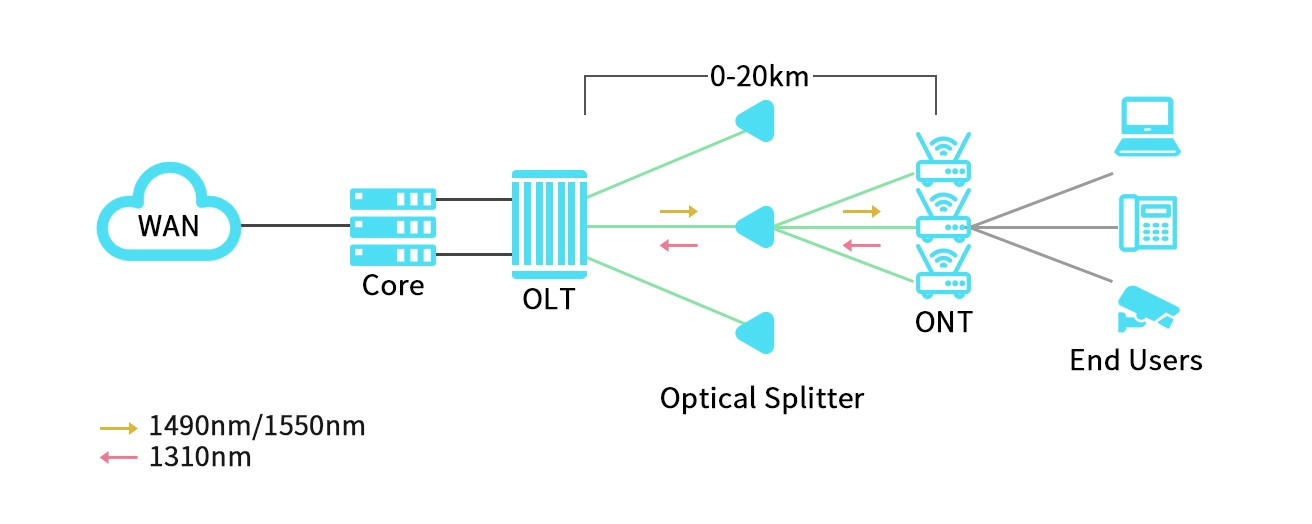

➤ How Does an OLT Work? The Magic of PON
The OLT operates within a PON (Passive Optical Network) architecture, a "passive" system because it uses unpowered optical splitters, reducing the need for electrical equipment between the central office and the end user.
Here’s a simplified breakdown of the process:
The OLT receives standard data (internet, voice, video) in electrical form.
Its transceiver converts this data into optical signals using a specific wavelength of light (e.g., 1490nm for downstream data).
These light pulses travel along a single main fiber optic cable.
A passive splitter divides this main signal, broadcasting it to up to 64 or even 128 subscriber ONUs.
For upstream traffic, each ONT/ONU transmits on a different wavelength (e.g., 1310nm). The OLT coordinates these signals to prevent collisions, using a protocol called TDMA (Time Division Multiple Access).
This efficient, point-to-multipoint architecture is why ISPs can offer high-speed, scalable fiber optic access network services cost-effectively.
➤ Key Components of an OLT
A typical OLT chassis is built with redundancy and high availability in mind. Its main components include:
Control Board (SWITCH): The brain of the OLT, handling routing, management, and communication with the ISP's core network.
Uplink Cards: Provide high-capacity interfaces (like 10G/100G Ethernet) to connect to the internet backbone.
PON Interface Cards: These are the line cards that host the actual optical ports (e.g., GPON, XG-PON, 10G-EPON) which connect to the field fiber.
Management Card: Allows network administrators to monitor, configure, and troubleshoot the device.
Power Supply & Fans: Provide redundant, hot-swappable power and cooling for maximum uptime.
➤ OLT Standards and Types: GPON, XG-PON, and Beyond
Not all OLTs are the same. They adhere to different PON standards, which define their capabilities and speed. Choosing the right standard is crucial for future-proofing your fiber network.
Standard | Downstream Speed | Upstream Speed | Key Use Case |
|---|---|---|---|
GPON | 2.5Gbps | 1.25Gbps | Most common standard for residential FTTH |
XG-PON | 10Gbps | 2.5Gbps | Upgraded standard for higher bandwidth demands |
XGS-PON | 10Gbps | 10Gbps | Symmetric bandwidth for business and 5G fronthaul |
NG-PON2 | 40+Gbps | 40+Gbps | Next-generation standard using wavelength multiplexing |
When planning your network, considering a scalable OLT solution that can support multiple standards is a wise strategic move.
➤ Applications: Where is an OLT Used?
The primary application of an OLT is in Fiber-to-the-Home (FTTH) deployments. However, its use cases extend far beyond:
Fiber-to-the-Building (FTTB): Providing connectivity to multi-tenant units like apartments.
Mobile Fronthaul/Backhaul: Connecting 4G/5G cell towers to the core network.
Business Services: Delivering dedicated, high-speed internet access to enterprises.
Campus Networks: University and corporate campuses with high bandwidth needs.
➤ Choosing the Right OLT for Your Network
Selecting an OLT is a significant decision that impacts your network's performance, scalability, and total cost of ownership. Key factors to consider include:
Supported PON Standards: Does it support GPON and the next-gen XG(S)-PON?
Port Density: How many subscribers can a single chassis support?
Management Features: Is the software intuitive and feature-rich?
Reliability & Redundancy: Are key components like power and control boards hot-swappable?
➤ FAQ
What does an OLT do in a fiber network?
You use an OLT to control data flow between your provider and users. The OLT changes signals, manages timing, and keeps your connection stable.
What types of networks use OLTs?
You find OLTs in fiber-to-the-home (FTTH), fiber-to-the-premises (FTTP), and fiber-to-business (FTTB) networks. These networks need fast, reliable connections.
What makes OLTs important for internet speed?
You rely on OLTs to convert signals quickly and share bandwidth fairly. The OLT helps you get high-speed internet for streaming, gaming, and work.
What challenges can you face when installing an OLT?
You may face issues like signal loss, distance limits, or equipment compatibility. You solve these by choosing the right OLT and using quality cables.
What features should you look for in an OLT?
Tip: You should check for support of PON standards, strong security, easy scalability, and network monitoring tools. These features help you build a reliable fiber network.
