You want high-speed and reliable connections for your data center. The LS-MM8532-S1C offers a cost-effective solution with SFP28 Transceivers. Common concerns include:
Compatibility with network equipment
Data rate and transmission distance
Budget constraints
The LS-MM8532-S1C Datasheet shows strong performance, making this SFP28 transceiver a smart choice.
✅ Key Takeaways
The LS-MM8532-S1C 850nm optical modules provide high-speed data rates of up to 32Gbps, enhancing your data center's performance and efficiency.
Advanced diagnostic features allow for real-time monitoring, helping you detect issues early and maintain network reliability.
Broad compatibility with major brands and a hot-pluggable design simplify integration and reduce downtime during upgrades.
✅Product Overview
The LS-MM8532-S1C is a high-performance and cost-effective SFP28 optical transceiver designed for short-reach multimode fiber (MMF) links. Supporting data rates up to 28.05Gbps, it is an ideal solution for 25G Ethernet, 28G Fibre Channel, and high-speed interconnects in modern data centers and enterprise networks.
This module integrates a VCSEL laser transmitter, a PIN photodiode with TIA, and an MCU control unit, ensuring stable operation, low power consumption, and compliance with Class I laser safety standards.

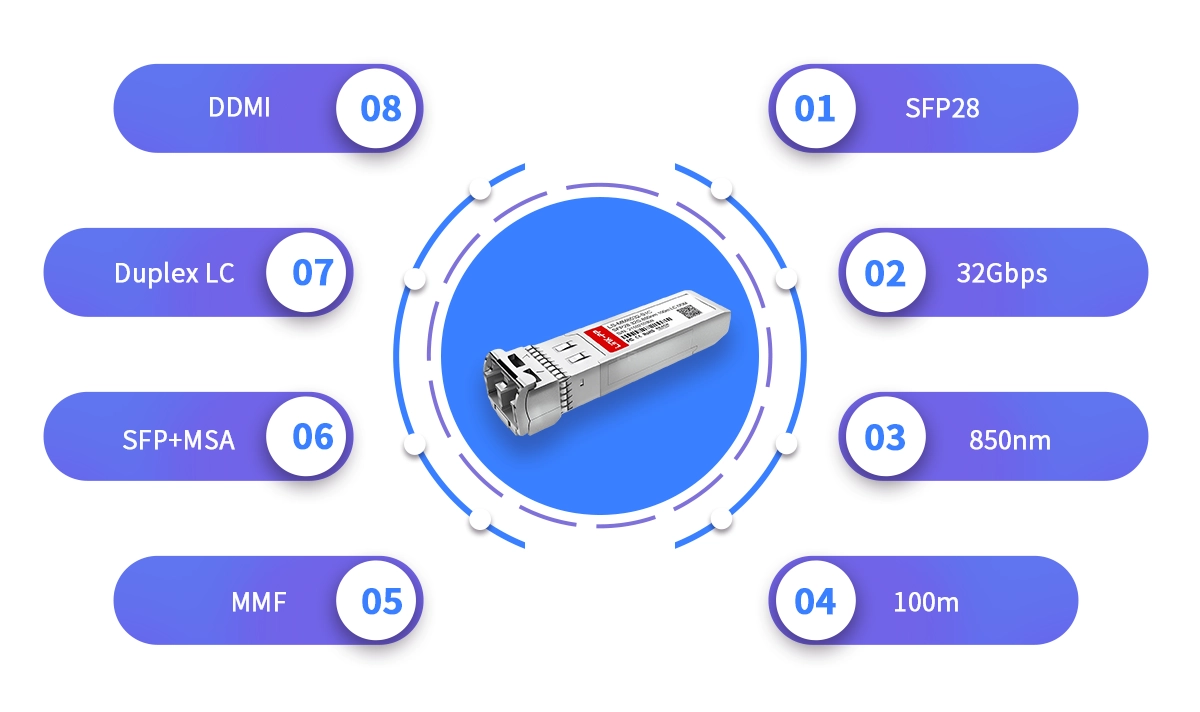

Key Features of LS-MM8532-S1C SFP28 Transceiver
Feature | Description |
|---|---|
Maximum Data Rate | Up to 28.05Gbps |
Wavelength | 850nm VCSEL laser transmitter and PIN receiver |
Link Distance | 70m on OM3 MMF, 100m on OM4 MMF |
Form Factor | Hot-pluggable SFP28 footprint |
Connector Type | Duplex LC interface |
Diagnostics | Digital Diagnostic Monitoring (DDMI), compliant with SFF-8472 |
Power Supply | Single +3.3V |
Power Consumption | Low, typically ~1–1.5W |
Operating Temperature | 0°C to +70°C (commercial grade) |
Compliance | RoHS compliant, lead-free |
Applications
25G/28G Ethernet connections
28.05Gbps Fibre Channel
Data center interconnects (DCI)
High-performance computing (HPC) clusters
Enterprise and cloud networks
Standards Compliance
SFF-8472 (DDMI)
SFF-8402 / SFF-8431 / SFF-8432
SFP+ MSA compatibility
Class I Laser Safety (IEC 60825-1)
✅ SFP28 Transceivers Benefits
High-Speed 25G and 32G Performance
The LS-MM8532-S1C SFP28 transceiver supports 25G Ethernet and up to 32Gbps data rates, enabling low-latency, high-bandwidth connectivity for data centers, cloud, and HPC applications. It boosts throughput over OM3/OM4 multimode fiber and helps future-proof your network.
Reliability and Diagnostics
Equipped with a VCSEL laser, PIN photodiode, and DDMI support, it ensures stable transmission while allowing real-time monitoring of temperature, voltage, bias current, and optical power—reducing downtime through proactive maintenance.
Compatibility and Integration
The module is hot-pluggable, interoperable with major brands (Cisco, LINK-PP, Brocade, Q-Logic), and consumes only ~1–1.5W, lowering data center energy costs. It operates reliably in 0–70°C environments.
Compatible Brands | Compatible Part Number |
|---|---|
Vendor LINK-PP | LS-MM8532-S1C |
Cisco | DS-SFP-FC32G-SW |
Brocade | XBR-000212 |
Q-logic | SFP32-SR-SP-C |

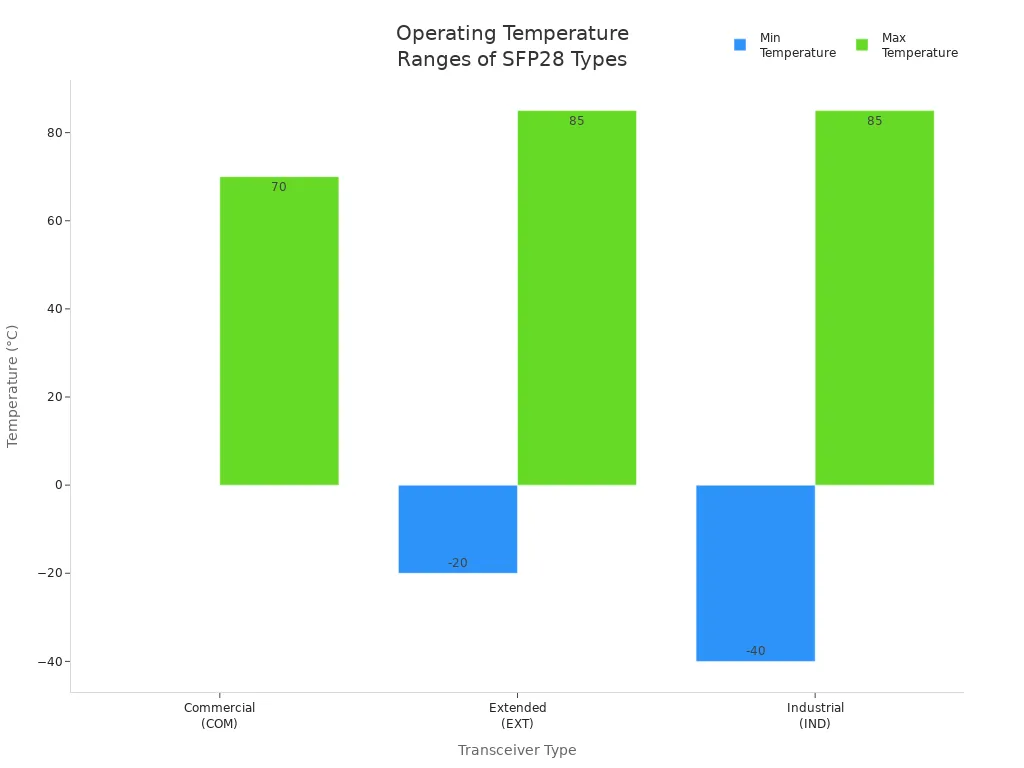

You also get a robust operating temperature range. The LS-MM8532-S1C works reliably from 0°C to 70°C, which covers most data center and enterprise environments.
You can deploy SFP28 modules in many scenarios, such as:
Data center spine-leaf architectures for 25G server access and uplinks
5G mobile networks that require low latency and high-speed connections
Enterprise networks upgrading beyond 10G for modern access points
High-performance computing clusters that need reliable, high-speed interconnects
With these benefits, the LINK-PP LS-MM8532-S1C MMF Transceiver stands out as a reliable, high-speed, and future-proof solution for your network.
✅ Installation Tips
To get the best results from your SFP28 transceivers, follow these steps:
Use OM3 or OM4 multimode fiber for distances up to 100 meters.
Make sure your cables support 25Gbps data rates.
Pick cables that match your environment.
Check that connectors fit your devices.
Balance quality and cost for long-term performance.
If you face issues, check compatibility, clean connectors, update firmware, run diagnostics, and watch LED indicators. Always follow vendor instructions for troubleshooting.
Enhance Your Network Today!
Discover the LS-MM8532-S1C SFP28 Optical Transceiver Module and elevate your data center's performance. Click to learn more!
