DDMI：Digital Diagnostic Monitoring Interface

➤ What Is DDMI?

Definition
DDMI stands for Digital Diagnostic Monitoring Interface. It is a standardized interface—under the SFF-8472 agreement—that allows devices to read real-time health information directly from optical transceivers like SFP, SFP+, and QSFP modules.

Interface Mechanics
Using the I²C two-wire bus, DDMI communicates with the module’s microcontroller, which digitizes internal analog signals to present diagnostic data. The information is stored in specialized memory areas defined by SFF-8472 and accessible via specific I²C addresses (A2h for diagnostics).

➤ Why DDMI Matters

  • Proactive Fault Detection
    With internal status metrics available at all times, network managers can identify early signs of failure—like overheating or signal drop—before they impact operations.

  • Standardized Compatibility
    Modules conforming to SFF-8472, such as LINK-PP’s DDM-enabled optical modules, ensure consistent diagnostics across varied platforms.

  • Faster Troubleshooting
    Accessing real-time DDMI data via CLI, SNMP, or NMS helps pinpoint faults quickly and replace problem modules without downtime.

➤ Key Parameters Monitored via DDMI

What Is DDMI? Digital Diagnostic Monitoring Interface

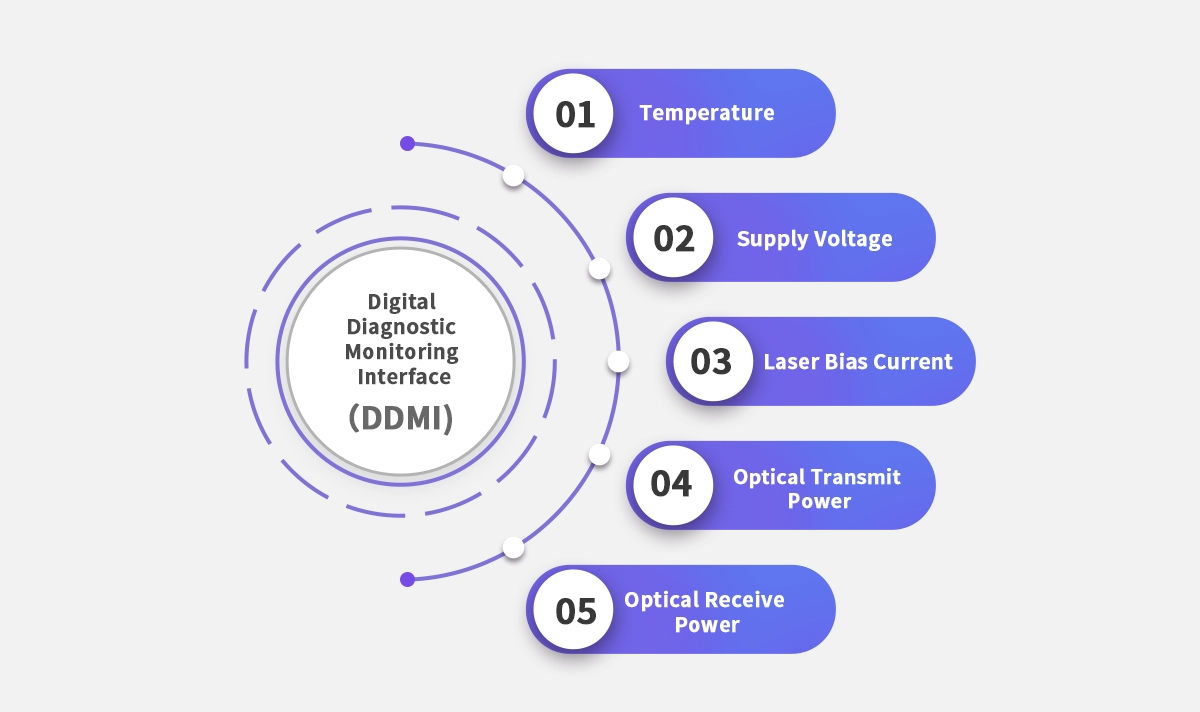

DDMI provides real-time measurements of several vital parameters:

  1. Temperature – Tracks module operating temperature, crucial for avoiding heat-related failures.

  2. Supply Voltage – Ensures the optical module receives stable power; deviations may indicate electrical issues.

  3. Laser Bias Current – Monitors the current driving the laser diode, indicating aging or pending failure.

  4. Transmit (TX) Optical Power – Checks that the output signal is within the optimal range for good link quality.

  5. Receive (RX) Optical Power – Monitors incoming signal strength; helps detect fiber or alignment issues.

These real-time metrics allow proactive maintenance and consistency in network performance.

➤ How to Access DDMI Data

  • CLI Interfaces: Many switches and routers allow commands (e.g., "show interface transceiver") to display DDMI readings.

  • SNMP/NMS Integration: DDMI values may be polled and logged for trend analysis or alarm configuration.

  • Vendor Tools: Some transceiver manufacturers offer software utilities that display real-time diagnostics.

➤ DDMI in Practice: LINK-PP’s LS-MM8532-S1C Module

One standout example of DDMI capability in LINK-PP’s portfolio is the LS-MM8532-S1C — a 32 Gb/s (SFP28) 850 nm transceiver supporting 100 m reach over MMF and featuring full DDMI support. It integrates a VCSEL transmitter, PIN photodiode with TIA, and an MCU to enable live diagnostics in real-world applications.

This module demonstrates that even at high speeds (32 Gb/s), reliable diagnostic access is achievable through standardized interfaces—making it ideal for data centres and modern network setups.

➤ Benefits of DDMI-Enabled Modules

  • Early Warning System: Trends such as rising temperature or falling TX power can signal preventive maintenance.

  • Standardization: Consistent access across modules—even from different vendors—simplifies asset management.

  • Reduced Downtime: Faulty modules are identified and replaced quickly, enhancing network resilience.

  • Scalability: From small setups to large networks, centralized DDMI monitoring scales seamlessly.
