As the demand for compact and high-performance networking solutions continues to grow, the LPJG0926HENL from LINK-PP offers a reliable, space-efficient RJ45 connector engineered for Gigabit Ethernet and Power over Ethernet Plus (PoE+) applications. Designed with integrated magnetics, advanced EMI shielding, and robust mechanical structure, this model meets the strict requirements of modern industrial, telecom, and networking equipment.
Key Takeaways
The LPJG0926HENL combines integrated magnetics and PoE+ support to deliver reliable data and power through a single compact connector, saving space and simplifying device design.
Its built-in LED indicators help users quickly check network status and troubleshoot issues, improving maintenance and user experience.
This connector meets key industry standards and offers a compact, efficient solution that reduces wiring complexity and supports flexible device placement in modern Ethernet applications.
Key Features & Benefits
✔ Integrated Magnetics for Signal Integrity
The LPJG0926HENL includes built-in magnetics that support 10/100/1000Base-T Ethernet. These components are carefully tuned to ensure stable data transmission with Standard insertion loss and return loss. By integrating the transformer inside the connector, it helps reduce PCB complexity and manufacturing costs.
✔ PoE+ Compatibility (IEEE 802.3at)
This connector is fully compliant with IEEE 802.3af/at standards, supporting PoE and PoE+ with a maximum current rating of 1.5A per contact. It allows network devices such as IP cameras, VoIP phones, and wireless access points to receive both power and data through a single Ethernet cable—simplifying deployment in constrained spaces.
✔ Robust Shielding for EMI Protection
The fully shielded housing offers superior protection against electromagnetic interference (EMI), making it well-suited for use in electrically noisy environments such as industrial automation, switches, and routers. The compact layout and shielding improve system reliability and reduce the risk of data loss.
✔ Compact and Space-Efficient Design
With its 90-degree orientation and through-hole PCB mounting style, the LPJG0926HENL saves valuable board space. This makes it a preferred solution for high-density equipment such as embedded systems and compact networking modules.

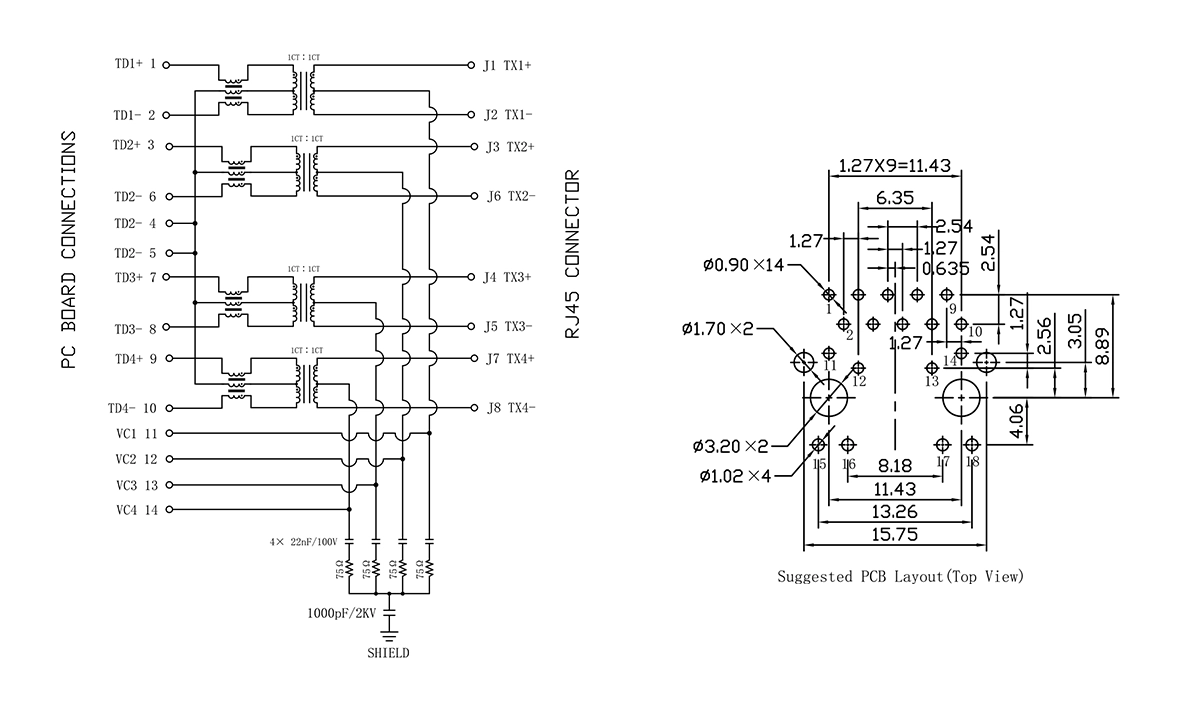

LPJG0926HENL Gigabit Magjack Specifications
Technical Specifications
Specification | Details |
|---|---|
Part Number | LPJG0926HENL |
Speed | 10/100/1000 Mbps |
PoE Rating | IEEE 802.3at, 1.5A per contact |
LEDs | Yes (Green/Yellow) |
Mounting Style | Through-hole |
Operating Temperature | -40°C to +85°C |
Shielding | Full Metal Shield with EMI Tabs |
Housing Material | High-temperature thermoplastic UL94V-0 |
Compliance | RoHS, REACH, UL certified |
Electrical Specifications @25°C
Parameter | Specification |
|---|---|
Turn Ratio (±5%) | Pri:Sec = 1CT : 1CT |
Inductance (OCL) | 350 µH MIN @ 100 kHz / 0.1 V, 8 mA DC Bias |
Insertion Loss | -1.0 dB MAX @ 1–100 MHz |
Return Loss | -16 dB MIN @ 1–40 MHz |
Crosstalk (NEXT) | -30 dB MIN @ 1–100 MHz |
Common Mode Rejection | -30 dB MIN @ 1–100 MHz |
DC Current / Voltage (PSE Pins) | 600 mA MAX @ 54 VDC (Continuous) |
Hi-pot Test Voltage | 1500 Vrms MIN |
Operating Temperature | 0°C to +70°C |
Compliance Standards
The LPJG0926HENL meets strict industry standards, ensuring safety, reliability, and environmental responsibility:
IEEE 802.3at (PoE+)
UL certification for electrical safety
RoHS and Reach compliance for hazardous substance control
ISO 19001 and ISO 14001 for quality and environmental management
These certifications confirm that the connector delivers high-speed data and power while supporting global regulatory requirements.
For complete technical details, view the LPJG0926HENL datasheet.
Applications
The LPJG0926HENL is engineered for a wide range of networking applications:
Industrial Ethernet Controllers
VoIP Telephony Equipment
Wireless Access Points
IP Surveillance Systems
Embedded Networking Boards
Gigabit Switches and Routers
Its integrated design simplifies assembly and ensures high durability across demanding environments.
Why Choose LINK-PP?
At LINK-PP, we specialize in magnetic telecom and networking components with consistent quality and global reach. The LPJG0926HENL is part of our extensive portfolio of RJ45 Connectors designed to support fast, efficient, and cost-effective Ethernet designs.
By choosing LINK-PP, customers benefit from:
Strict quality control and certification
Competitive lead times with global delivery
Customized solutions for OEM and ODM partners
FAQ
What is the operating temperature range for the LPJG0926HENL?
The LPJG0926HENL operates reliably from 0°C to 70°C. This range supports most commercial and industrial applications.
Does the LPJG0926HENL support both 10/100 and 1000 Mbps Ethernet?
Yes. The connector supports 10/100/1000 Mbps speeds, making it suitable for a wide variety of modern Ethernet devices.
Are the LED indicators user-configurable?
The green and yellow LEDs indicate link and activity status.
Users can connect these LEDs to custom circuitry for specific signaling needs.
