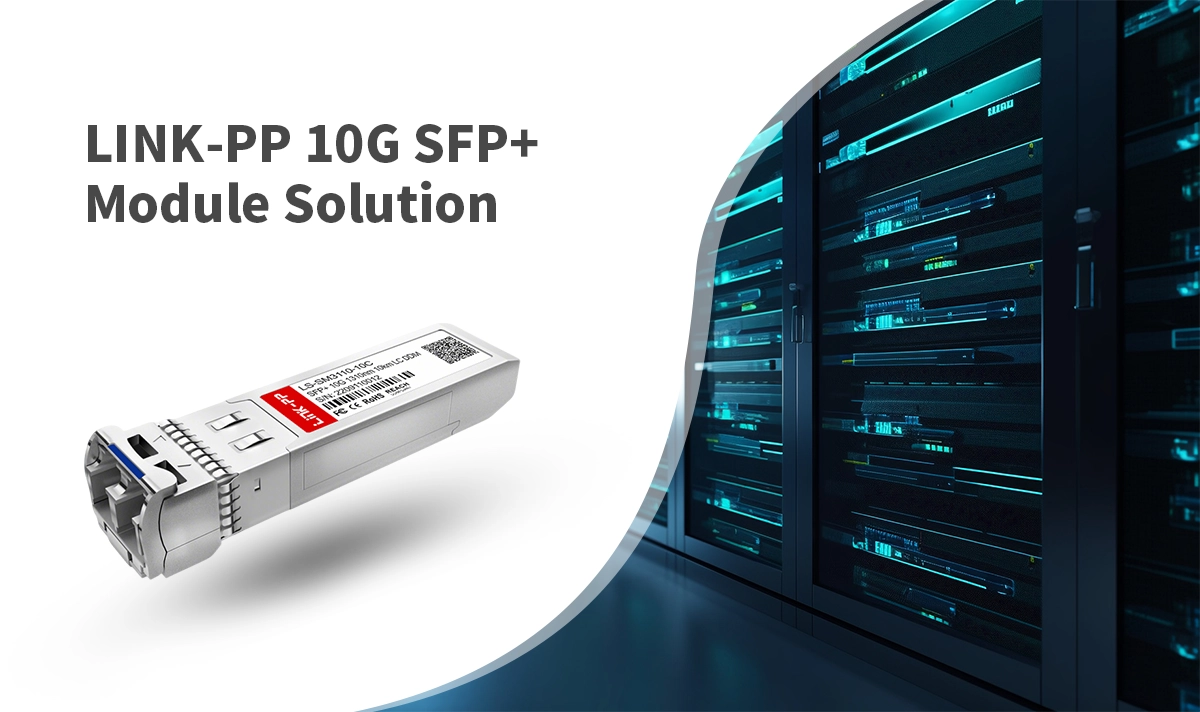

In an era demanding relentless data flow – from cloud computing and HD video streaming to 5G backhaul and enterprise networking – robust, high-speed connectivity over distance is non-negotiable. At the heart of these critical links lie optical transceivers, the unsung heroes converting electrical signals to light and back. The LINK-PP LS-SM3110-10C stands out as a premier solution for 10 Gigabit Ethernet over 10 kilometers on single-mode fiber. This comprehensive guide dissects this powerful 10G SFP+ LR module, exploring its specifications, applications, advantages, and why LINK-PP is a brand synonymous with reliability.
➤ Understanding the LS-SM3110-10C: Core Specifications & Technology
The LINK-PP LS-SM3110-10C is a hot-pluggable SFP+ form factor optical transceiver designed for 10 Gigabit Ethernet (10GbE) applications. Adhering strictly to the SFF-8431 and IEEE 802.3ae 10GBASE-LR standards, it guarantees seamless interoperability with compatible switches, routers, and network interface cards (NICs).
Key Technical Specifications:
Form Factor: SFP+ (Small Form-factor Pluggable Plus)
Data Rate: 10.3125 Gbps (10 Gigabit Ethernet)
Wavelength: 1310nm
Fiber Type: Single-Mode Fiber (SMF)
Max Distance: 10 Kilometers (10KM) - Ideal for campus links, metro access, and data center interconnects.
Connector: Duplex LC
Transmitter: DFB (Distributed Feedback) Laser
Receiver: PIN Photodiode
Diagnostics: Digital Optical Monitoring (DOM) Support - Enables real-time monitoring of temperature, voltage, Tx bias current, Tx optical power, and Rx optical power.
Temperature Range: Standard: 0°C to +70°C (Commercial); Extended options often available (Industrial: -40°C to +85°C).
Compliance: RoHS, CE, FCC
Power Consumption: Typically < 1.0W (Low power consumption is crucial for high-density deployments).
🔍 LS-SM3110-10C Datasheet (PDF)
➤ Why Distance (10KM LR) and Fiber Type (Single-Mode) Matter?
10KM Reach (LR - Long Reach): Bridges gaps between buildings, across campuses, or to nearby data centers without expensive intermediate equipment, solving the distance limitations of copper (DAC cables) or shorter-reach optics (like 10GBASE-SR for multi-mode fiber).
Single-Mode Fiber (SMF): Offers significantly lower signal attenuation and dispersion compared to Multi-Mode Fiber (MMF), enabling much longer transmission distances (like 10km, 20km, 40km, 80km) and higher bandwidth potential. It's the standard for metropolitan area networks (MANs), telecom infrastructure, and long-reach data center links.
LINK-PP LS-SM3110-10C vs. Common Alternatives:
*Table 1: Comparing Key 10G SFP+ Module Types*
Feature | LINK-PP LS-SM3110-10C (10GBASE-LR) | 10GBASE-SR (Multi-Mode) | Direct Attach Copper (DAC) |
|---|---|---|---|
Fiber Type | Single-Mode Fiber (SMF) | Multi-Mode Fiber (MMF) | Copper Twinax |
Max Distance | 10 Kilometers (10KM) | ~300m (OM3), ~400m (OM4) | 7m (Passive), 15m (Active) |
Wavelength | 1310nm | 850nm | N/A |
**Cost (Relative) | Medium | Low-Medium | Very Low (Passive) |
Use Case | Long-distance links, Campus, DC Interconnect | Short DC Racks, Intra-building | Top-of-Rack, Short Server Links |
Latency | Very Low | Very Low | Lowest |
EMI Susceptibility | Immune | Immune | Susceptible |
Weight/Size | Small | Small | Bulky/Stiffer |
➤ Unlocking Applications: Where the LS-SM3110-10C Shines
The versatility of the LINK-PP 10G SFP+ module makes it indispensable across numerous scenarios:
Data Center Interconnects (DCI): Connecting servers, storage, and switches across different buildings or floors within a campus environment, leveraging the 10km single mode fiber capability.
Enterprise Network Backbones: Providing high-speed connectivity between core switches and distribution switches in large office buildings, hospitals, or university campuses.
Telecom & Service Provider Networks: Used in Metro Ethernet deployments, fiber to the building (FTTB), and as crucial components in 5G fronthaul and midhaul networks requiring reliable 10G links.
Cellular Backhaul: Transporting traffic from cell towers back to the core network efficiently over long distance fiber optic links.
High-Performance Computing (HPC) Clusters: Connecting nodes requiring low-latency, high-bandwidth communication.
Network Interface Cards (NICs): Enabling servers with SFP+ ports to connect directly to the fiber network backbone for high-speed data transfer.
Video Surveillance Backbones: Aggregating high-bandwidth video feeds from multiple IP cameras over long distances.
Redundancy Links: Providing reliable, long-distance backup paths for critical network segments.
➤ The LINK-PP Advantage: Why Choose This Brand?
Beyond just specifications, LINK-PP optical modules offer distinct benefits crucial for professional deployments:
Rigorous Quality Control & Testing: Every module undergoes stringent performance and compatibility testing, ensuring reliability and adherence to MSA standards. This minimizes the risk of link failures and network downtime.
Full DOM Support: Comprehensive digital diagnostics monitoring (DDM) provides vital insights for proactive network management, troubleshooting, and performance optimization.
Exceptional Compatibility: Extensive testing ensures broad compatibility with major OEM switches and routers (Cisco, Juniper, Arista, HPE, Dell, Brocade, etc.), often surpassing generic modules. (Always verify compatibility for your specific device).
Cost-Effectiveness: LINK-PP delivers OEM-grade performance and reliability at a significantly lower cost per port than branded optics, offering substantial savings without compromising quality – a key factor in network equipment procurement.
Low Power Consumption: Optimized design minimizes heat generation and operational costs, especially important in dense chassis configurations.
Reliability & Longevity: Built with high-grade components and robust manufacturing processes, ensuring stable operation over an extended lifespan.
Warranty & Support: Backed by a solid warranty and responsive technical support, providing peace of mind.
Ensuring Compatibility & Best Practices
Verify MSA Compliance: Ensure the module meets SFF-8431 and IEEE 802.3ae 10GBASE-LR standards.
Check Device Compatibility: Always consult your switch/router vendor's compatibility matrix or use LINK-PP's compatibility tools before purchasing. While designed for broad compatibility, specific firmware versions can sometimes cause issues.
Use Quality Fiber & Connectors: Ensure your single mode fiber optic patch cables (OS1/OS2) are clean, undamaged, and have high-quality LC connectors. Dirty connectors are a primary cause of link instability and errors.
Handle with Care: Avoid touching the optical ports and always use dust caps when unplugged. Static electricity can damage sensitive components.
Monitor DOM Data: Utilize network management systems to monitor DOM parameters for early detection of potential issues like degrading laser performance or high receive power.
➤ Conclusion: Powering Reliable, Long-Reach 10G Connectivity
The LINK-PP LS-SM3110-10C 10G SFP+ LR 10km optical module represents a perfect blend of performance, reliability, and value for demanding network applications requiring high-speed data transmission over significant distances on single-mode fiber. Its adherence to standards, comprehensive DOM support, proven compatibility, and LINK-PP's commitment to quality make it an intelligent choice for network engineers, data center operators, and service providers seeking to build robust, scalable, and future-proof infrastructure.
Whether you're deploying a new Metro Ethernet service, interconnecting data centers, upgrading an enterprise backbone, or building out 5G infrastructure, this module delivers the long distance fiber optic capability essential for success in today's data-driven world.
Ready to Experience the LINK-PP Difference?
Upgrade your network performance and reliability today!
👉 Check Compatibility for Your Cisco/Juniper/Aruba Switch Now!
👉 Explore the LINK-PP LS-SM3110-10C 10G SFP+ LR Module. Request a Quote ➞
👉 For a FREE consultation on your 10G fiber optic needs? Contact our experts ➞
Unlock the full potential of your 10G network with LINK-PP's high-performance, cost-effective optical solutions.
