In today's data-hungry world, enterprises constantly seek ways to boost network capacity without ripping out existing infrastructure. Enter SWDM (Short Wavelength Division Multiplexing), a groundbreaking optical technology breathing new life into legacy multimode fiber (MMF) cabling. But what exactly is SWDM, and why is it crucial for your network evolution? Let's dive in.
SWDM lets current multimode fiber systems move more data easily.
➤ Key Takeaways
SWDM uses four short light wavelengths to send more data through one pair of multimode fibers. This helps the network go faster without needing new cables.
It can lower the number of fibers needed by up to 75%. This saves money on cables and makes network upgrades easier for data centers and businesses.
SWDM works with OM3, OM4, and OM5 fibers that many people already use. This makes upgrades simple and lets you keep your current setup.
This technology lets data travel farther and faster. It helps networks grow quickly and handle more traffic well.
SWDM is a smart and flexible choice that saves money. It also keeps cable management easy and tidy for the future.
➤ Understanding the Core Concept: Wavelength Division Multiplexing
At its heart, SWDM leverages a fundamental principle: Wavelength Division Multiplexing (WDM). WDM allows multiple distinct data signals, each carried on a slightly different wavelength (or color) of light, to travel simultaneously down a single optical fiber strand. Think of it like different radio stations broadcasting on unique frequencies over the airwaves.
Traditional Multimode Fiber: Historically, MMF systems used a single wavelength (like 850nm) per fiber strand. To increase capacity, you needed more fibers or faster (and more expensive) transceivers.

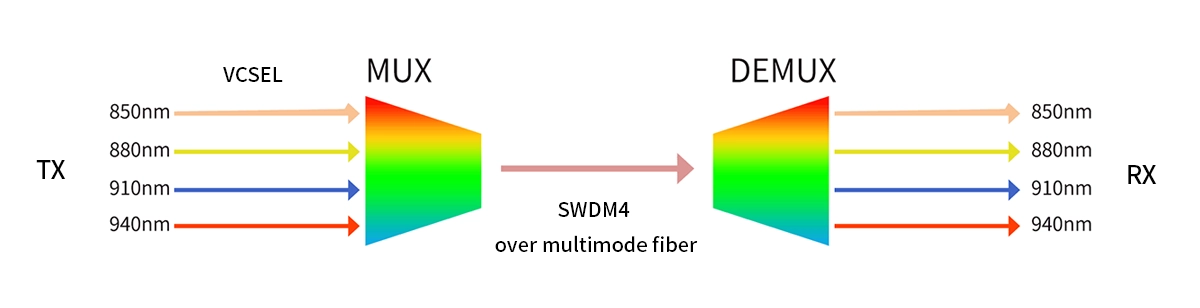

SWDM Innovation: SWDM specifically uses multiple wavelengths clustered within the "short" wavelength range around 850nm. The most common implementation, SWDM4, utilizes four wavelengths (typically around 850nm, 880nm, 910nm, and 940nm) to transmit four independent data streams over one pair of MMF fibers (one fiber for transmit, one for receive).
➤ Why SWDM? Solving the Multimode Fiber Bottleneck
Many enterprise data centers and buildings have significant investments in OM3 or OM4 multimode fiber cabling, originally installed for 1G, 10G, or early 40G deployments. SWDM offers a powerful upgrade path:
Cost-Effective Capacity Boost: Achieve 40G or 100G speeds over just two fibers (one duplex LC pair) of existing OM3/OM4 MMF. This eliminates the need for expensive fiber recabling projects.
Extended Reach: SWDM4 technology reliably supports 100Gbps over 75m on OM3 and 100Gbps over 100m on OM4 fiber – distances perfectly suited for intra-rack, inter-rack, and data center end-of-row deployments.
Backward Compatibility & Simplified Migration: SWDM transceivers plug into standard switch ports (QSFP28 for 100G, QSFP+ for 40G). They work seamlessly over your installed MMF base, protecting your investment and simplifying upgrades.
Fiber Utilization: Drastically reduces the number of fibers required compared to parallel optics solutions (like SR4), freeing up fiber pathways for future expansion.
SWDM vs. Other Common Multimode Technologies (Comparison)
Here’s a quick comparison highlighting SWDM's advantages for specific scenarios:
Technology | Speed | Fiber Used (Duplex LC) | Max Reach (OM4) | Key Advantage | Best For |
|---|---|---|---|---|---|
SWDM4 | 100G | 1 Pair (2 Fibers) | 100m | Uses existing MMF efficiently | Upgrading legacy OM3/OM4 to 100G cost-effectively |
100G SR4 | 100G | 2 Pairs (8 Fibers) | 100m | Lower transceiver cost | New MMF installs with ample fiber |
100G BiDi | 100G | 1 Pair (2 Fibers) | 150m | Uses single fiber type | When MMF fiber count is very limited |
SWDM4 | 40G | 1 Pair (2 Fibers) | 240m+ | Max reach on MMF | Long 40G runs within buildings on OM3/OM4 |
40G SR4 | 40G | 1 Pair (8 Fibers) | 150m | Wide availability | Shorter 40G links with available fiber |
➤ The Role of High-Quality Optical Transceivers
The success of any SWDM deployment hinges on the performance and reliability of the optical transceiver. These sophisticated components contain the lasers generating the precise wavelengths and the receivers decoding the signals. Choosing transceivers from a trusted manufacturer is paramount for signal integrity, low power consumption, and interoperability.
LINK-PP: Your Partner for Reliable SWDM Solutions
LINK-PP is at the forefront of advanced optical transceiver technology, offering a comprehensive range of high-performance, standards-compliant SWDM modules designed for seamless integration and robust operation:
LQ-SW100-SR4C: Our flagship 100G SWDM optical transceiver delivers exceptional performance over 150m on OM5 multimode fiber, perfect for high-density data center aggregation and enterprise core switching. Experience the cost benefits of utilizing your existing fiber plant with genuine LINK-PP quality.
LQ-SW40-S34C: Extend the life of your OM3/OM4 cabling for 40G applications with this highly efficient 40G SWDM transceiver, supporting distances up to 350m on OM4. Ideal for cost-conscious network upgrades within buildings and campuses.
Key Benefits of Choosing LINK-PP SWDM Transceivers:
Full MSA Compliance: Guaranteed interoperability with major networking equipment vendors.
Rigorous Testing: Each module undergoes extensive testing for superior performance and reliability.
Optimized Power Efficiency: Lower operational costs and reduced thermal load.
Extended Temperature Range: Reliable operation in demanding environments.
Comprehensive Warranty & Support: Peace of mind with our dedicated technical backing.
➤ Implementing SWDM: Key Considerations
Existing Fiber Type & Length: Verify your installed fiber is OM3 or OM4 and measure link distances accurately. SWDM4 is optimized for these fiber types within its specified reach.
Switch Compatibility: Ensure your switches or routers have QSFP28 (100G) or QSFP+ (40G) ports supporting the SWDM4 MSA standard. Most modern enterprise and data center switches do.
Transceiver Quality: Invest in genuine, high-quality optical transceivers like those from LINK-PP. Inferior modules can lead to signal degradation, errors, and network downtime.
Clean Fiber Connections: Ensure all fiber patch cords and connectors are pristine. Dirty connectors are a leading cause of optical link failures.
Is SWDM the Right Choice for Your Network?
SWDM technology is an exceptionally smart solution if you:
Have a significant investment in OM3 or OM4 multimode fiber cabling.
Need to upgrade to 40G or 100G speeds without the cost and disruption of installing new single-mode fiber or adding vast quantities of new multimode fiber strands.
Require reliable connectivity for distances up to 100m (100G) or 240m (40G) within a data center hall, building backbone, or campus environment.
Seek a cost-effective and future-proof migration path using industry-standard technology.
➤ Unlock Your Fiber's Potential with LINK-PP SWDM
Don't let your existing multimode fiber infrastructure become a bottleneck. SWDM technology provides a powerful, economical path to higher network speeds. By leveraging multiple wavelengths efficiently, SWDM maximizes the value of your installed OM3/OM4 cable base.
Ready to explore how SWDM and LINK-PP optical transceivers can transform your network?
Explore our full range of SWDM4 transceivers (including QSFP28-SWDM4 and QSFP+-SWDM4) and detailed specifications. Visit our website ➞
For a personalized consultation or technical support, contact our optical networking experts ➞
➤ FAQ
Q1: What does SWDM stand for?
A: SWDM stands for Shortwave Wavelength Division Multiplexing. It uses several short light wavelengths to send more data through multimode fiber. SWDM helps networks move more information without needing new cables.
Q2: What fiber types work best with SWDM?
A: SWDM works best with OM3, OM4, and OM5 multimode fibers. OM5 fiber supports more wavelengths and longer distances. Many networks use OM4 or OM5 for better performance.
Q3: What makes SWDM different from other multiplexing methods?
A: SWDM uses four short wavelengths between 850 nm and 940 nm. Other methods, like CWDM or DWDM, use longer wavelengths and often need single-mode fiber. SWDM lets networks upgrade using existing multimode fiber.
Q4: What upgrades can SWDM support?
A: SWDM supports upgrades to higher speeds, such as 40G, 100G, or even 400G. Networks can add new SWDM transceivers and patch panels. They do not need to replace all their fiber cables.
